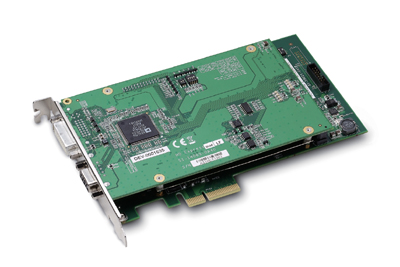

Comprehensive Product Summary: ADLINK PCIe-HDV62 HDMI Video Streaming Card

---

### 1. Product Overview

Product Name: PCIe-HDV62
Model: HDV62
Series: PCI Express® Full HD Frame Grabber Series
Article Number: PCIe-HDV62
Manufacturer: ADLINK Technology Inc.
Product Type: 1-Channel PCI Express® HDMI Video Capture / Frame Grabber Card
Part Number: 50-11164-1000
Manual Revision: 2.00 (January 18, 2010)

The ADLINK PCIe-HDV62 is a high-performance PCI Express® x4 frame grabber designed for uncompressed high-definition video acquisition. It supports both digital (HDMI/DVI) and analog (RGB/YPbPr) video inputs, providing real-time 1080p60 video capture with hardware color space conversion and a 512 MB DDR2 frame buffer. The card is optimized for applications requiring precise, lossless image acquisition such as medical imaging, scientific research, defense, and broadcast-quality video analysis.

---

### 2. Key Features

- Full HD Uncompressed Capture: Supports 1920 × 1080p at 60 frames per second (fps) with 170 MHz sampling rate.
- Multi-Format Input Support: Accepts both digital (DVI 1.0, HDMI 1.3 non-HDCP) and analog (RGB, YPbPr) video signals.
- PCI Express® x4 Interface: High-speed data transfer with full compliance to PCIe x4 standard.
- Hardware Color Space Conversion: Real-time RGB/YUV/monochrome conversion offloads CPU processing.
- 512 MB DDR2 SDRAM Frame Buffer: Dedicated onboard memory for stable, high-throughput video streaming.
- Configurable EDID (Extended Display Identification Data): Allows custom EDID configuration for display compatibility.
- Digital I/O and Triggering: 4 TTL digital inputs, 4 TTL digital outputs, and 1 TTL trigger input/output for synchronization.
- FPGA-Based Processing: Field Programmable Gate Array enables flexible, low-latency image processing.
- DirectShow SDK and API Support: Includes comprehensive software development kit for Windows platforms.
- ViewCreatorPro™ Utility: GUI-based configuration and testing tool for video capture, I/O, and EDID management.
- Applications: Medical imaging, scientific imaging, military/defense, video surveillance, and HD video testing.

---

### 3. Technical Specifications

Form Factor: PCI Express® x4 compliant
Video Input Interfaces:
- Digital: DVI 1.0, HDMI 1.3 (non-HDCP, non-audio)
- Analog: RGB, YPbPr

Supported Video Formats:
- HD:
- 720p @ 50/60 fps
- 1080i @ 25/30 fps
- 1080p @ 25/30/50/60 fps
- SD:
- PAL: 720 × 576 @ 25 fps
- NTSC: 720 × 486 @ 30 fps

Pixel Output Formats:
- RGB: 32-bit, 30-bit, 24-bit
- YCbCr: 24-bit 4:4:4, 20-bit 4:2:2, 16-bit 4:2:2
- Monochrome: 8-bit or 10-bit Y

Frame Buffer: 512 MB DDR2 SDRAM
ADC Resolution: 10-bit digitization
ADC Sampling Rate: 170 MHz

Connectors:
- DVI-I: Supports DVI-D and RGB with sync input
- D-Sub 9 (female): YPbPr analog input
- 26-pin Box Header: Digital I/O and trigger interface

Digital I/O:
- 4 TTL inputs (interrupt capable)
- 4 TTL outputs (configurable open collector or TTL)
- 1 TTL trigger input and 1 TTL trigger output

Power Requirements:
- +12 V @ 0.5 A (max)
- +3.3 V @ 2 A (max)

Dimensions: 174.62 mm (W) × 111.15 mm (L)
Operating Temperature: 0°C to 55°C
Storage Temperature: 0°C to 70°C
Operating Humidity: 5% to 90% RH (non-condensing)
Storage Humidity: 0% to 95% RH (non-condensing)

---

### 4. Functionality

The HDV62 captures uncompressed video streams directly from HDMI, DVI, or analog component sources. The onboard FPGA handles real-time color space conversion and image cropping, reducing CPU load. The card streams video data to the host PC via the PCIe x4 interface, ensuring low-latency, high-bandwidth transfer.

Use Cases and Applications:
- Medical Imaging: High-resolution endoscopy, microscopy, and diagnostic imaging.
- Scientific Research: High-speed video capture for analysis and measurement.
- Military & Defense: Target tracking, surveillance, and simulation systems.
- Broadcast & Multimedia Testing: HDMI signal validation, video quality assurance.
- Industrial Inspection: Machine vision and automated optical inspection systems.

Compatibility:
- Windows® Vista / XP / 7
- Microsoft® DirectX and DirectShow compliant
- Compatible with ViewCreatorPro™ and ADLINK SDK/API

---

### 5. Components & Accessories

Included Items:
- PCIe-HDV62 frame grabber card
- Software installation CD (drivers, SDK, ViewCreatorPro utility)
- User’s Manual (PDF and printed)
- 26-pin flat cable for digital I/O and trigger connections

Optional Accessories:
- DVI-to-HDMI adapter cable
- Shielded D-Sub 9 YPbPr cable
- External trigger and digital I/O harness
- Replacement FPGA golden flash ROM (for recovery mode)

Connectors Overview:
- CN1 (DVI-I): Digital and analog RGB input
- CN2 (D-Sub 9): YPbPr analog input
- CN3 (26-pin header): Power out, digital I/O, trigger I/O
- SW1/SW2: Trigger and digital output mode selection (TTL or open collector)
- SW3: Card ID DIP switch (0–15)
- SW4: FPGA golden flash selection

---

### 6. Installation & Setup

System Requirements:
- Minimum CPU: Intel® Pentium 4, 2.4 GHz or higher
- Memory: 512 MB RAM or above
- Display: 1920 × 1080 resolution, 16-bit color or higher
- Operating System: Windows® XP, Vista, or 7

Installation Steps:
1. Insert the HDV62 card into an available PCIe x4 slot.
2. Connect video input sources (HDMI/DVI/YPbPr).
3. Power on the system and install drivers from the ADLINK setup program.
4. Install .NET Framework 2.0 if prompted.
5. Restart the system and verify device recognition in Windows Device Manager.
6. Launch ViewCreatorPro™ for configuration and testing.

Mounting Options:
- Standard PCIe slot installation with rear I/O bracket.
- Secure with chassis screw for mechanical stability.

Configuration Tools:
- ViewCreatorPro™ Utility: GUI for video format selection, color adjustment, cropping, and I/O control.
- DirectShow SDK: For custom application development.
- ADLINK API Library: Provides C/C++, C#, and VB.NET interfaces for device control and image acquisition.

---

### 7. Performance & Capabilities

Video Capture Performance:
- Uncompressed 1080p60 streaming with zero frame loss.
- Real-time hardware color space conversion (RGB ↔ YUV).
- Supports both progressive and interlaced formats.
- Adjustable cropping, scaling, and horizontal delay.

Digital I/O and Triggering:
- External trigger input for frame synchronization.
- Programmable trigger output pulse width (0.1–50 ms).
- Adjustable trigger delay (0–1000 ms, 1 ms step).
- TTL or open collector output modes selectable via DIP switches.

Efficiency and Throughput:
- PCIe x4 interface ensures sustained high-bandwidth data transfer.
- FPGA-based processing minimizes CPU utilization.
- 512 MB onboard buffer prevents frame drops during high-speed capture.

Limitations:
- HDMI input does not support HDCP or audio.
- Windows-only driver support (no native Linux driver).
- Requires adequate system cooling for continuous 1080p60 operation.

---

### 8. Standards & Compliance

Interface Standards:
- PCI Express® Base Specification Revision 1.1
- DVI 1.0 and HDMI 1.3 (non-HDCP)
- EDID 1.3 compliant

Video Standards:
- SMPTE 274M (1080p/i)
- ITU-R BT.601 and BT.709 color encoding
- PAL/NTSC standard definition compatibility

Regulatory Compliance:
- CE, FCC Class A (industrial/commercial use)
- RoHS compliant
- WEEE directive compliant

Software Standards:
- Microsoft® DirectShow and DirectX compatible
- Windows Driver Model (WDM) compliant

---

### 9. Additional Information

Warranty:
- Standard 2-year limited hardware warranty from ADLINK Technology.

Technical Support:
- Global service centers in Taiwan, USA, China, Japan, Germany, France, Korea, Singapore, and India.
- Email support: service@adlinktech.com
- Toll-free (USA): +1-800-966-5200

Maintenance:
- Periodic firmware updates available via ADLINK support portal.
- FPGA golden flash recovery mode for firmware restoration.
- Regular driver and SDK updates for compatibility with new Windows versions.

Software Updates & SDK:
- ADLINK HDV62 SDK: Includes API libraries (C/C++, C#, VB.NET), header files, and sample code.
- DirectShow Filters: ADLINK HDV62 Video Capture and Crossbar filters for custom graph building.
- ViewCreatorPro™ Utility: Provides real-time preview, image capture, DIO control, trigger configuration, and EDID management.

Documentation:
- User’s Manual (Rev. 2.00)
- API Reference Guide
- Programming Guide (DirectShow and ADLINK API)
- Hardware Reference (Connector pinouts, DIP switch settings, timing diagrams)

Service & Contact Information:
- ADLINK Technology Inc.
9F, No.166 Jian Yi Road, Chungho City, Taipei County 235, Taiwan
Tel: +886-2-8226-5877 | Fax: +886-2-8226-5717
- ADLINK USA: 5215 Hellyer Avenue, #110, San Jose, CA 95138
Tel: +1-408-360-0200 | Email: info@adlinktech.com

---

### Summary

The ADLINK PCIe-HDV62 is a professional-grade, single-channel PCI Express® HDMI video capture card engineered for uncompressed Full HD video acquisition. With its robust FPGA architecture, 512 MB DDR2 frame buffer, and hardware-based color space conversion, it delivers real-time, lossless 1080p60 video streaming suitable for demanding imaging applications. Its flexible input support (HDMI, DVI, RGB, YPbPr), programmable digital I/O, and trigger capabilities make it ideal for integration into medical, scientific, and defense imaging systems. The included SDK and ViewCreatorPro™ utility provide developers and engineers with comprehensive tools for rapid deployment, testing, and customization.

The HDV62 exemplifies ADLINK’s commitment to high-performance imaging solutions, offering reliability, precision, and scalability for advanced vision and video capture applications.
