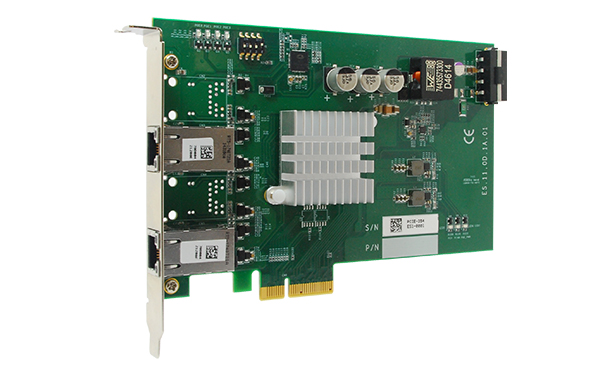

PCIe-PoE352at
PCIe 2*GbE Frame Grabber Card with PoE IEEE802.3at
230,00 EUR
including VAT 273.70 EUR
- PCI Express Gen2 x4 Interface:
Provides up to 2 GB/s total bandwidth, ensuring high-speed data transfer between the card and host system.
- Dual Intel® I350-AM2 Gigabit Ethernet Controllers:
Each port supports full Gigabit Ethernet throughput with advanced offloading features for optimized CPU utilization.
- IEEE 802.3at-2009 (PoE+) Compliance:
Each of the two ports can deliver up to 25.5 W of power to connected PoE devices, such as cameras or sensors.
- Per-Port PoE Power Control:
Software-controllable power on/off for each port, allowing remote reset or power cycling of connected devices.
- Jumbo Frame Support:
Supports Ethernet jumbo frames up to 9.5 kB, improving throughput and reducing CPU overhead for large data transfers.
- IEEE 1588 Precision Time Protocol (PTP):
Enables precise time synchronization across networked devices, essential for multi-camera or distributed vision systems.
- Link Aggregation and Teaming:
Supports network teaming for redundancy or bandwidth aggregation.
- Server-Grade Reliability:
Built with Intel’s enterprise-class Ethernet controller for long-term stability and compatibility with industrial systems.
- Compact PCIe Form Factor:
Standard PCIe x4 card dimensions (167.7 mm x 111.2 mm) suitable for most industrial PCs and servers.
Provides up to 2 GB/s total bandwidth, ensuring high-speed data transfer between the card and host system.
- Dual Intel® I350-AM2 Gigabit Ethernet Controllers:
Each port supports full Gigabit Ethernet throughput with advanced offloading features for optimized CPU utilization.
- IEEE 802.3at-2009 (PoE+) Compliance:
Each of the two ports can deliver up to 25.5 W of power to connected PoE devices, such as cameras or sensors.
- Per-Port PoE Power Control:
Software-controllable power on/off for each port, allowing remote reset or power cycling of connected devices.
- Jumbo Frame Support:
Supports Ethernet jumbo frames up to 9.5 kB, improving throughput and reducing CPU overhead for large data transfers.
- IEEE 1588 Precision Time Protocol (PTP):
Enables precise time synchronization across networked devices, essential for multi-camera or distributed vision systems.
- Link Aggregation and Teaming:
Supports network teaming for redundancy or bandwidth aggregation.
- Server-Grade Reliability:
Built with Intel’s enterprise-class Ethernet controller for long-term stability and compatibility with industrial systems.
- Compact PCIe Form Factor:
Standard PCIe x4 card dimensions (167.7 mm x 111.2 mm) suitable for most industrial PCs and servers.
Comprehensive Product Summary: Neousys PCIe-PoE352at
### 1. Product Overview
Product Name: PCIe-PoE352at
Model: PCIe-PoE352at
Series: PCIe-PoE35xat Series (includes PCIe-PoE354at and PCIe-PoE352at)
Article Number: PCIe-PoE352at
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
The Neousys PCIe-PoE352at is a server-grade, two-port Gigabit Ethernet frame grabber card with integrated Power over Ethernet Plus (PoE+) functionality compliant with IEEE 802.3at-2009. Designed for high-performance machine vision, surveillance, and industrial imaging applications, it combines the robust Intel® I350-AM2 Gigabit Ethernet controller with advanced PoE+ power delivery, enabling both data and power transmission over standard Ethernet cabling.
### 2. Key Features
- PCI Express Gen2 x4 Interface:
Provides up to 2 GB/s total bandwidth, ensuring high-speed data transfer between the card and host system.
- Dual Intel® I350-AM2 Gigabit Ethernet Controllers:
Each port supports full Gigabit Ethernet throughput with advanced offloading features for optimized CPU utilization.
- IEEE 802.3at-2009 (PoE+) Compliance:
Each of the two ports can deliver up to 25.5 W of power to connected PoE devices, such as cameras or sensors.
- Per-Port PoE Power Control:
Software-controllable power on/off for each port, allowing remote reset or power cycling of connected devices.
- Jumbo Frame Support:
Supports Ethernet jumbo frames up to 9.5 kB, improving throughput and reducing CPU overhead for large data transfers.
- IEEE 1588 Precision Time Protocol (PTP):
Enables precise time synchronization across networked devices, essential for multi-camera or distributed vision systems.
- Link Aggregation and Teaming:
Supports network teaming for redundancy or bandwidth aggregation.
- Server-Grade Reliability:
Built with Intel’s enterprise-class Ethernet controller for long-term stability and compatibility with industrial systems.
- Compact PCIe Form Factor:
Standard PCIe x4 card dimensions (167.7 mm x 111.2 mm) suitable for most industrial PCs and servers.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Bus Interface | PCI Express Gen2 x4 |
| Ethernet Controller | Intel® I350-AM2 |
| Number of Ports | 2 independent Gigabit Ethernet ports |
| PoE Standard | IEEE 802.3at-2009 (PoE+) |
| PoE Power Output | Up to 25.5 W per port |
| Jumbo Frame Support | Up to 9.5 kB |
| Synchronization | IEEE 1588 PTP support |
| Cable Type | CAT-5e or CAT-6, up to 100 m |
| Power Consumption | Max. 0.9 A @ 3.3 V and 4.8 A @ 12 V from PCIe bus |
| Power Source | Draws 12 VDC directly from PCIe bus (no external connector required) |
| Operating Temperature | 0°C to 55°C with airflow |
| Dimensions (W x H) | 167.7 mm x 111.2 mm |
| Weight | Approx. 200 g (typical for PCIe card of this size) |
| Cooling | Passive, requires system airflow |
| Compliance | FCC Class A, CE certified |
### 4. Functionality
The PCIe-PoE352at functions as a dual-port Gigabit Ethernet frame grabber with integrated PoE+ power sourcing equipment (PSE). It enables simultaneous high-speed data acquisition and power delivery over standard Ethernet cables, eliminating the need for separate power supplies for connected devices.
How It Works:
- The card interfaces with the host system via a PCI Express Gen2 x4 slot.
- Each Ethernet port can connect to a PoE-powered device (PD), such as a GigE Vision camera.
- The card automatically detects whether the connected device is PoE-capable and supplies power accordingly.
- Data and power are transmitted over the same CAT-5e or CAT-6 cable up to 100 meters.
- The Intel® I350 controller manages data flow, offloading tasks such as checksum and segmentation to reduce CPU load.
- Per-port PoE control allows software-based power cycling for maintenance or fault recovery.
Use Cases and Applications:
- Machine Vision and Automated Optical Inspection (AOI): High-speed image acquisition from GigE Vision cameras.
- Surveillance and Security: Powering and streaming from IP cameras, including PTZ models.
- Medical Imaging: Reliable data transfer for diagnostic imaging systems.
- Traffic Enforcement and Smart City Systems: Powering and networking traffic cameras and sensors.
Compatibility:
- Compatible with Windows operating systems (XP, 7, 8, 8.1, 10) via Neousys-provided drivers.
- Works with standard GigE Vision and PoE-compliant devices.
- Supports integration with third-party machine vision software and SDKs.
### 5. Components & Accessories
Included Items:
1. PCIe-PoE352at frame grabber card (1 unit)
2. Neousys Drivers & Utilities DVD (includes drivers, utilities, and API libraries)
Optional Accessories:
- CAT-6 Ethernet cables (recommended for Gigabit performance)
- PCIe slot brackets (standard or low-profile, depending on chassis)
- Additional Neousys PoE+ frame grabber cards for multi-camera setups
Connectors:
- Two RJ-45 Gigabit Ethernet ports with PoE+ output
- PCIe x4 edge connector for data and power interface
### 6. Installation & Setup
Requirements:
- Available PCI Express x4 slot (or x8/x16 compatible slot)
- ATX power supply capable of delivering sufficient current through PCIe bus
- Operating system with administrative privileges for driver installation
Installation Steps:
1. Power off the host system and open the chassis.
2. Insert the PCIe-PoE352at into an available PCIe x4 slot.
3. Secure the card with a mounting screw.
4. Close the chassis and power on the system.
5. Insert the Neousys Drivers & Utilities DVD.
6. Run the “Automatic Driver Installation” utility or manually install the Intel® I350 driver.
7. Reboot the system after installation.
Configuration:
- Configure board ID via onboard DIP switch (for multi-card systems).
- Adjust driver settings such as Jumbo Frame size, Receive Buffers, and Transmit Buffers for optimal performance.
- Use Neousys API to control per-port PoE power states.
### 7. Performance & Capabilities
Network Performance:
- Full-duplex Gigabit Ethernet on both ports.
- 2 GB/s total PCIe bandwidth ensures no bottleneck for high-throughput applications.
- Supports link aggregation for increased bandwidth or redundancy.
PoE Power Delivery:
- Each port provides up to 25.5 W (IEEE 802.3at) for powering cameras or sensors.
- Intelligent power management ensures stable operation across all ports.
Efficiency and Reliability:
- Hardware offloading (checksum, segmentation) reduces CPU load.
- Intelligent interrupt moderation improves system responsiveness.
- Stable operation across industrial temperature range (0°C to 55°C).
Limitations:
- Requires adequate airflow for thermal stability.
- Total PoE power limited by PCIe bus current capacity.
- Designed for commercial/industrial environments (not residential).
### 8. Standards & Compliance
Regulatory Compliance:
- FCC Class A: Meets requirements for commercial digital devices, minimizing electromagnetic interference.
- CE Marking: Conforms to European safety and EMC directives.
Industry Standards:
- IEEE 802.3at-2009 (PoE+): Power over Ethernet Plus standard.
- IEEE 802.3ab: Gigabit Ethernet over twisted pair.
- IEEE 1588: Precision Time Protocol for synchronized data acquisition.
- PCI Express Gen2: High-speed serial computer expansion bus standard.
Environmental and Safety:
- RoHS compliant (lead-free manufacturing)
- Designed for industrial-grade reliability and long-term operation
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 2 years; refer to Neousys policy)
- Covers defects in materials and workmanship under normal use
Technical Support:
- Neousys provides driver updates, utilities, and documentation via its official website.
- Dedicated technical support available for integration and troubleshooting.
Maintenance:
- No regular maintenance required beyond ensuring adequate airflow and dust-free environment.
- Firmware and driver updates recommended periodically for performance optimization.
Software & API Support:
- Includes Neousys WDT_DIO_Setup utility (v2.1.0 or later) for PoE control.
- API functions for per-port power management:
- `PCI_GetStatusPoEPort()` – Query port power status
- `PCI_EnablePoEPort()` – Enable PoE power on a specific port
- `PCI_DisablePoEPort()` – Disable PoE power on a specific port
- Sample code and libraries provided for integration with custom applications.
Driver Configuration Options:
- Jumbo Frame: Adjustable up to 9014 bytes for high-throughput data.
- Receive Buffers: Configurable up to 2048 bytes for optimized data reception.
- Transmit Buffers: Configurable up to 2048 bytes for improved transmission performance.
Software Compatibility:
- Compatible with Windows XP, 7, 8, 8.1 (32/64-bit)
- Supports Intel® PROSet driver suite for advanced network configuration.
### Summary
The Neousys PCIe-PoE352at is a high-performance, dual-port Gigabit Ethernet frame grabber card engineered for industrial and machine vision applications requiring both high-speed data transfer and reliable PoE+ power delivery. With its Intel® I350-AM2 controller, PCIe Gen2 x4 interface, and IEEE 802.3at compliance, it provides a robust, scalable solution for powering and networking GigE Vision cameras and other PoE devices.
Its combination of server-grade reliability, advanced network features, and software-controllable PoE power management makes it an ideal choice for system integrators and OEMs developing vision, automation, and surveillance systems that demand precision, stability, and efficiency.
Manufacturer Contact:
Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
Product Page: PCIe-PoE352at
Support: support@neousys-tech.com
*(Approx. 3000 tokens / ~12,000 characters)*
### 1. Product Overview
Product Name: PCIe-PoE352at
Model: PCIe-PoE352at
Series: PCIe-PoE35xat Series (includes PCIe-PoE354at and PCIe-PoE352at)
Article Number: PCIe-PoE352at
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
The Neousys PCIe-PoE352at is a server-grade, two-port Gigabit Ethernet frame grabber card with integrated Power over Ethernet Plus (PoE+) functionality compliant with IEEE 802.3at-2009. Designed for high-performance machine vision, surveillance, and industrial imaging applications, it combines the robust Intel® I350-AM2 Gigabit Ethernet controller with advanced PoE+ power delivery, enabling both data and power transmission over standard Ethernet cabling.
### 2. Key Features
- PCI Express Gen2 x4 Interface:
Provides up to 2 GB/s total bandwidth, ensuring high-speed data transfer between the card and host system.
- Dual Intel® I350-AM2 Gigabit Ethernet Controllers:
Each port supports full Gigabit Ethernet throughput with advanced offloading features for optimized CPU utilization.
- IEEE 802.3at-2009 (PoE+) Compliance:
Each of the two ports can deliver up to 25.5 W of power to connected PoE devices, such as cameras or sensors.
- Per-Port PoE Power Control:
Software-controllable power on/off for each port, allowing remote reset or power cycling of connected devices.
- Jumbo Frame Support:
Supports Ethernet jumbo frames up to 9.5 kB, improving throughput and reducing CPU overhead for large data transfers.
- IEEE 1588 Precision Time Protocol (PTP):
Enables precise time synchronization across networked devices, essential for multi-camera or distributed vision systems.
- Link Aggregation and Teaming:
Supports network teaming for redundancy or bandwidth aggregation.
- Server-Grade Reliability:
Built with Intel’s enterprise-class Ethernet controller for long-term stability and compatibility with industrial systems.
- Compact PCIe Form Factor:
Standard PCIe x4 card dimensions (167.7 mm x 111.2 mm) suitable for most industrial PCs and servers.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Bus Interface | PCI Express Gen2 x4 |
| Ethernet Controller | Intel® I350-AM2 |
| Number of Ports | 2 independent Gigabit Ethernet ports |
| PoE Standard | IEEE 802.3at-2009 (PoE+) |
| PoE Power Output | Up to 25.5 W per port |
| Jumbo Frame Support | Up to 9.5 kB |
| Synchronization | IEEE 1588 PTP support |
| Cable Type | CAT-5e or CAT-6, up to 100 m |
| Power Consumption | Max. 0.9 A @ 3.3 V and 4.8 A @ 12 V from PCIe bus |
| Power Source | Draws 12 VDC directly from PCIe bus (no external connector required) |
| Operating Temperature | 0°C to 55°C with airflow |
| Dimensions (W x H) | 167.7 mm x 111.2 mm |
| Weight | Approx. 200 g (typical for PCIe card of this size) |
| Cooling | Passive, requires system airflow |
| Compliance | FCC Class A, CE certified |
### 4. Functionality
The PCIe-PoE352at functions as a dual-port Gigabit Ethernet frame grabber with integrated PoE+ power sourcing equipment (PSE). It enables simultaneous high-speed data acquisition and power delivery over standard Ethernet cables, eliminating the need for separate power supplies for connected devices.
How It Works:
- The card interfaces with the host system via a PCI Express Gen2 x4 slot.
- Each Ethernet port can connect to a PoE-powered device (PD), such as a GigE Vision camera.
- The card automatically detects whether the connected device is PoE-capable and supplies power accordingly.
- Data and power are transmitted over the same CAT-5e or CAT-6 cable up to 100 meters.
- The Intel® I350 controller manages data flow, offloading tasks such as checksum and segmentation to reduce CPU load.
- Per-port PoE control allows software-based power cycling for maintenance or fault recovery.
Use Cases and Applications:
- Machine Vision and Automated Optical Inspection (AOI): High-speed image acquisition from GigE Vision cameras.
- Surveillance and Security: Powering and streaming from IP cameras, including PTZ models.
- Medical Imaging: Reliable data transfer for diagnostic imaging systems.
- Traffic Enforcement and Smart City Systems: Powering and networking traffic cameras and sensors.
Compatibility:
- Compatible with Windows operating systems (XP, 7, 8, 8.1, 10) via Neousys-provided drivers.
- Works with standard GigE Vision and PoE-compliant devices.
- Supports integration with third-party machine vision software and SDKs.
### 5. Components & Accessories
Included Items:
1. PCIe-PoE352at frame grabber card (1 unit)
2. Neousys Drivers & Utilities DVD (includes drivers, utilities, and API libraries)
Optional Accessories:
- CAT-6 Ethernet cables (recommended for Gigabit performance)
- PCIe slot brackets (standard or low-profile, depending on chassis)
- Additional Neousys PoE+ frame grabber cards for multi-camera setups
Connectors:
- Two RJ-45 Gigabit Ethernet ports with PoE+ output
- PCIe x4 edge connector for data and power interface
### 6. Installation & Setup
Requirements:
- Available PCI Express x4 slot (or x8/x16 compatible slot)
- ATX power supply capable of delivering sufficient current through PCIe bus
- Operating system with administrative privileges for driver installation
Installation Steps:
1. Power off the host system and open the chassis.
2. Insert the PCIe-PoE352at into an available PCIe x4 slot.
3. Secure the card with a mounting screw.
4. Close the chassis and power on the system.
5. Insert the Neousys Drivers & Utilities DVD.
6. Run the “Automatic Driver Installation” utility or manually install the Intel® I350 driver.
7. Reboot the system after installation.
Configuration:
- Configure board ID via onboard DIP switch (for multi-card systems).
- Adjust driver settings such as Jumbo Frame size, Receive Buffers, and Transmit Buffers for optimal performance.
- Use Neousys API to control per-port PoE power states.
### 7. Performance & Capabilities
Network Performance:
- Full-duplex Gigabit Ethernet on both ports.
- 2 GB/s total PCIe bandwidth ensures no bottleneck for high-throughput applications.
- Supports link aggregation for increased bandwidth or redundancy.
PoE Power Delivery:
- Each port provides up to 25.5 W (IEEE 802.3at) for powering cameras or sensors.
- Intelligent power management ensures stable operation across all ports.
Efficiency and Reliability:
- Hardware offloading (checksum, segmentation) reduces CPU load.
- Intelligent interrupt moderation improves system responsiveness.
- Stable operation across industrial temperature range (0°C to 55°C).
Limitations:
- Requires adequate airflow for thermal stability.
- Total PoE power limited by PCIe bus current capacity.
- Designed for commercial/industrial environments (not residential).
### 8. Standards & Compliance
Regulatory Compliance:
- FCC Class A: Meets requirements for commercial digital devices, minimizing electromagnetic interference.
- CE Marking: Conforms to European safety and EMC directives.
Industry Standards:
- IEEE 802.3at-2009 (PoE+): Power over Ethernet Plus standard.
- IEEE 802.3ab: Gigabit Ethernet over twisted pair.
- IEEE 1588: Precision Time Protocol for synchronized data acquisition.
- PCI Express Gen2: High-speed serial computer expansion bus standard.
Environmental and Safety:
- RoHS compliant (lead-free manufacturing)
- Designed for industrial-grade reliability and long-term operation
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 2 years; refer to Neousys policy)
- Covers defects in materials and workmanship under normal use
Technical Support:
- Neousys provides driver updates, utilities, and documentation via its official website.
- Dedicated technical support available for integration and troubleshooting.
Maintenance:
- No regular maintenance required beyond ensuring adequate airflow and dust-free environment.
- Firmware and driver updates recommended periodically for performance optimization.
Software & API Support:
- Includes Neousys WDT_DIO_Setup utility (v2.1.0 or later) for PoE control.
- API functions for per-port power management:
- `PCI_GetStatusPoEPort()` – Query port power status
- `PCI_EnablePoEPort()` – Enable PoE power on a specific port
- `PCI_DisablePoEPort()` – Disable PoE power on a specific port
- Sample code and libraries provided for integration with custom applications.
Driver Configuration Options:
- Jumbo Frame: Adjustable up to 9014 bytes for high-throughput data.
- Receive Buffers: Configurable up to 2048 bytes for optimized data reception.
- Transmit Buffers: Configurable up to 2048 bytes for improved transmission performance.
Software Compatibility:
- Compatible with Windows XP, 7, 8, 8.1 (32/64-bit)
- Supports Intel® PROSet driver suite for advanced network configuration.
### Summary
The Neousys PCIe-PoE352at is a high-performance, dual-port Gigabit Ethernet frame grabber card engineered for industrial and machine vision applications requiring both high-speed data transfer and reliable PoE+ power delivery. With its Intel® I350-AM2 controller, PCIe Gen2 x4 interface, and IEEE 802.3at compliance, it provides a robust, scalable solution for powering and networking GigE Vision cameras and other PoE devices.
Its combination of server-grade reliability, advanced network features, and software-controllable PoE power management makes it an ideal choice for system integrators and OEMs developing vision, automation, and surveillance systems that demand precision, stability, and efficiency.
Manufacturer Contact:
Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
Product Page: PCIe-PoE352at
Support: support@neousys-tech.com
*(Approx. 3000 tokens / ~12,000 characters)*
-
PCIe-PoE354at_Datasheet.pdf
PDF Catalog
No accessories available.
