Comprehensive Product Summary – Neousys PCIe-PoE354at

---

### 1. Product Overview

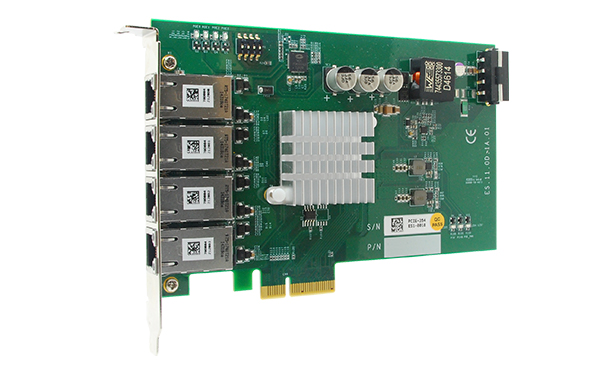

Product Name: PCIe-PoE354at
Model: PCIe-PoE354at
Series: PCIe-PoE35xat Series (includes PCIe-PoE352at variant)
Article Number: PCIe-PoE354at
Manufacturer: Neousys Technology Inc.
Product Type: 4-Port Server-Grade Gigabit Ethernet Frame Grabber Card with IEEE 802.3at PoE+
Website: [www.neousys-tech.com](https://www.neousys-tech.com)

The Neousys PCIe-PoE354at is a high-performance PCI Express frame grabber card integrating four Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) capability. Designed for industrial and machine vision applications, it combines a server-grade Intel® I350-AM4 Gigabit Ethernet controller with IEEE 802.3at-2009 compliance, delivering up to 25.5 W per port. The card supports advanced networking features such as jumbo frames, link aggregation, and IEEE 1588 precision time protocol, making it ideal for high-bandwidth, synchronized imaging and data acquisition systems.

---

### 2. Key Features

- PCI Express Interface: x4, Gen2 PCIe interface providing up to 2 GB/s total bandwidth.
- Server-Grade Ethernet Controller: Utilizes Intel® I350-AM4 controller for superior reliability and performance.
- Four Independent Gigabit Ports: Each port supports 10/100/1000 Mbps operation with full-duplex capability.
- IEEE 802.3at PoE+ Compliance: Delivers up to 25.5 W per port, enabling direct power supply to PoE devices such as cameras and sensors.
- Per-Port PoE Power Control: Software-controllable on/off switching for each PoE port, allowing remote device reset and power management.
- Advanced Networking Features:
- Jumbo frame support up to 9.5 KB
- Link aggregation (teaming) for bandwidth scaling and redundancy
- IEEE 1588 Precision Time Protocol (PTP) for time synchronization
- Checksum and segmentation offloading to reduce CPU load
- Intelligent interrupt moderation for optimized throughput
- Flexible Power Input: Selectable 12 VDC source from PCIe bus or external 4-pin connector via jumper configuration.
- High Compatibility: Single-bus, multi-port topology minimizes motherboard compatibility issues when multiple cards are installed.
- Industrial-Grade Design: Operating temperature range of 0°C to 55°C with airflow, suitable for embedded and industrial environments.
- Applications: Machine vision, automated optical inspection (AOI), surveillance, medical imaging, and traffic enforcement systems.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Bus Interface | PCI Express x4, Gen2 |
| Ethernet Controller | Intel® I350-AM4 |
| Number of Ports | 4 independent Gigabit Ethernet ports |
| PoE Standard | IEEE 802.3at-2009 (PoE+) |
| PoE Power Output | Up to 25.5 W per port |
| Total PoE Power Budget | 102 W (4 × 25.5 W) |
| Jumbo Frame Support | Up to 9.5 KB |
| Link Aggregation | Supported (IEEE 802.3ad) |
| Time Synchronization | IEEE 1588 PTP supported |
| Cable Requirement | CAT-5e or CAT-6, up to 100 m |
| Power Consumption | Max. 1.2 A @ 3.3 V from PCIe bus; Max. 9.6 A @ 12 V from PCIe bus or 4-pin connector |
| Operating Temperature | 0°C to 55°C (with airflow) |
| Dimensions (W × H) | 167.7 mm × 111.2 mm |
| Weight | Approx. 200 g (typical) |
| Cooling | Passive, requires system airflow |
| Compliance | FCC Class A, CE certified |

---

### 4. Functionality

The PCIe-PoE354at functions as both a high-speed network interface and a power sourcing equipment (PSE) device. It transmits data and power simultaneously over standard Ethernet cables, enabling direct connection to PoE-powered devices such as GigE Vision cameras, IP cameras, and sensors.

Operational Workflow:
1. The card is installed in a PCIe x4 or compatible x16 slot on the host system.
2. Each Ethernet port automatically detects connected devices and negotiates link speed (10/100/1000 Mbps).
3. When a PoE-compatible device is detected, the card supplies power according to IEEE 802.3at standards.
4. Data transfer is managed by the Intel® I350 controller, which offloads network processing tasks from the CPU.
5. Users can control PoE power per port via Neousys API functions for remote reset or power cycling.

Use Cases:
- Machine Vision & AOI: Connect and power multiple GigE cameras for synchronized image capture.
- Surveillance & Security: Power PTZ cameras and transmit high-definition video streams.
- Medical Imaging: Provide reliable data transfer for diagnostic imaging systems.
- Traffic Enforcement: Support high-speed camera systems for automated license plate recognition.

Compatibility:
Compatible with Windows operating systems (XP, 7, 8, 8.1, 10) and standard GigE Vision-compliant devices. Supports Intel PROSet drivers and Neousys utilities.

---

### 5. Components & Accessories

Package Contents:
1. PCIe-PoE354at Frame Grabber Card × 1
2. Neousys Drivers & Utilities DVD × 1

Optional Accessories:
- 4-pin ATX power connector cable (for external 12 VDC input)
- CAT-6 Ethernet cables (recommended for Gigabit performance)
- Mounting screw for chassis installation

Connectors:
- 4 × RJ45 Gigabit Ethernet ports with PoE+ output
- 1 × PCIe x4 edge connector
- 1 × 4-pin power input connector (Molex type)
- DIP switch for board ID and power source configuration

---

### 6. Installation & Setup

System Requirements:
- Available PCIe x4 or x16 slot
- ATX power supply (if external 12 VDC is required)
- Windows operating system with administrative privileges

Installation Steps:
1. Configure Board ID:
Use the onboard DIP switch (P1–P3) to assign a unique board ID (0–7) for multi-card systems.
2. Select Power Source (P4):
- Position 1: 12 VDC from PCIe connector
- Position 2: 12 VDC from 4-pin external connector
3. Physical Installation:
- Power off the host system.
- Insert the card into the PCIe slot and secure it with a screw.
- Connect the 4-pin power cable if external power is selected.
4. Driver Installation:
- Insert the Neousys Drivers & Utilities DVD.
- Use “One-Click” automatic installation or manual driver setup.
- Reboot the system after installation.
5. Device Connection:
- Connect PoE or non-PoE devices using CAT-6 cables.
- The card automatically detects device type and supplies power if required.

Configuration Options:
- Jumbo Frame: Enable up to 9014 bytes for high-throughput applications.
- Receive/Transmit Buffers: Adjustable up to 2048 bytes for optimized performance.
- Per-Port PoE Control: Manage power states via Neousys API functions.

---

### 7. Performance & Capabilities

- Data Throughput: Up to 1 Gbps per port, 4 Gbps aggregate bandwidth.
- PCIe Bandwidth: 2 GB/s total (Gen2 x4).
- PoE Power Delivery: 25.5 W per port, compliant with IEEE 802.3at (PoE+).
- Latency & CPU Load: Reduced via hardware offloading (checksum, segmentation).
- Synchronization: IEEE 1588 PTP ensures precise timing for multi-camera setups.
- Efficiency: Intelligent interrupt moderation minimizes CPU overhead.
- Limitations:
- Requires adequate airflow for thermal stability.
- External 12 VDC recommended for full PoE load on all ports.
- Designed for industrial/commercial environments (not residential).

---

### 8. Standards & Compliance

Regulatory Certifications:
- FCC Class A: Complies with Part 15 of FCC Rules for commercial environments.
- CE Marking: Meets European Union directives for electromagnetic compatibility and safety.

Industry Standards:
- IEEE 802.3 (Ethernet)
- IEEE 802.3u (Fast Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3at-2009 (PoE+)
- IEEE 1588 (Precision Time Protocol)
- IEEE 802.3ad (Link Aggregation)

Environmental Compliance:
RoHS-compliant manufacturing and materials.

System Compatibility:
Maintains CE compliance when used with CE-certified components and proper cabling.

---

### 9. Additional Information

Warranty:
Standard manufacturer warranty provided by Neousys Technology Inc. (duration varies by region).

Technical Support:
- Online resources and driver downloads available at [www.neousys-tech.com](https://www.neousys-tech.com).
- Dedicated technical support for driver installation, API usage, and troubleshooting.

Maintenance:
- Periodically inspect connectors and ensure adequate airflow.
- Firmware and driver updates available through Neousys support portal.
- Use only certified CAT-6 cables for optimal performance.

Software & API Support:
- Neousys WDT_DIO_Setup_v2.1.0 or later provides API functions for PoE control.
- Functions include:
- `PCI_GetStatusPoEPort()` – Query port power status
- `PCI_EnablePoEPort()` – Enable PoE power on a specific port
- `PCI_DisablePoEPort()` – Disable PoE power on a specific port
- Sample code and libraries included in installation package.

Revision History:
- User Manual Rev. A1, Published June 18, 2015 – First formal release.

---

### Summary

The Neousys PCIe-PoE354at is a robust, high-performance PCIe frame grabber card engineered for industrial and vision-based applications requiring both high-speed data transfer and reliable power delivery over Ethernet. With four independent Gigabit Ethernet ports, full IEEE 802.3at PoE+ compliance, and advanced Intel® I350 controller features, it provides exceptional throughput, synchronization, and flexibility. Its per-port power control, configurable power input, and comprehensive driver support make it a versatile solution for machine vision, surveillance, and automation systems where reliability and precision are paramount.
