Comprehensive Product Summary: Neousys POC-212 Ultra-Compact Fanless Controller

---

### 1. Product Overview

Product Name: POC-212
Model: POC-212
Series: POC-200 Series – Ultra-Compact Atom™ Bay Trail-I Fanless Embedded Controllers
Article Number: POC-212
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)

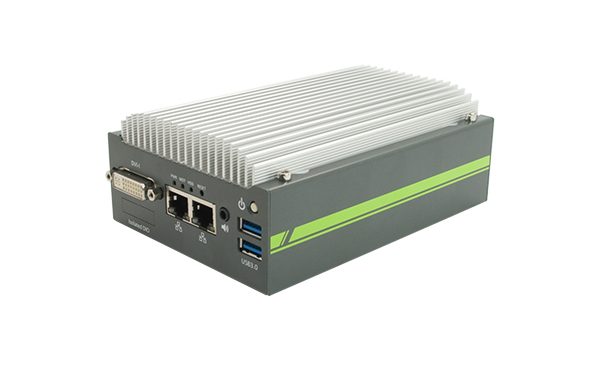

The Neousys POC-212 is a rugged, ultra-compact, fanless embedded controller designed for industrial automation, machine vision, and edge computing applications. It belongs to the POC-200 series, which integrates Intel® Atom™ Bay Trail-I processors and offers a balance of performance, connectivity, and reliability in a small form factor. The POC-212 specifically features an Intel® Atom™ E3845 1.91GHz quad-core CPU, dual Gigabit Ethernet ports, multiple USB 3.0 interfaces, and an easy-swap 2.5” SATA HDD/SSD bay.

---

### 2. Key Features

- Intel® Atom™ E3845 Quad-Core Processor (1.91GHz):
Delivers over 200% performance improvement compared to previous Atom D525/D2550 platforms, leveraging 22nm lithography for enhanced efficiency and integrated Intel® HD Graphics.

- Ultra-Compact Design:

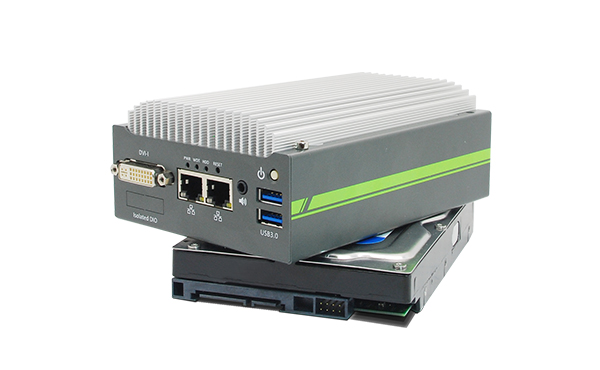

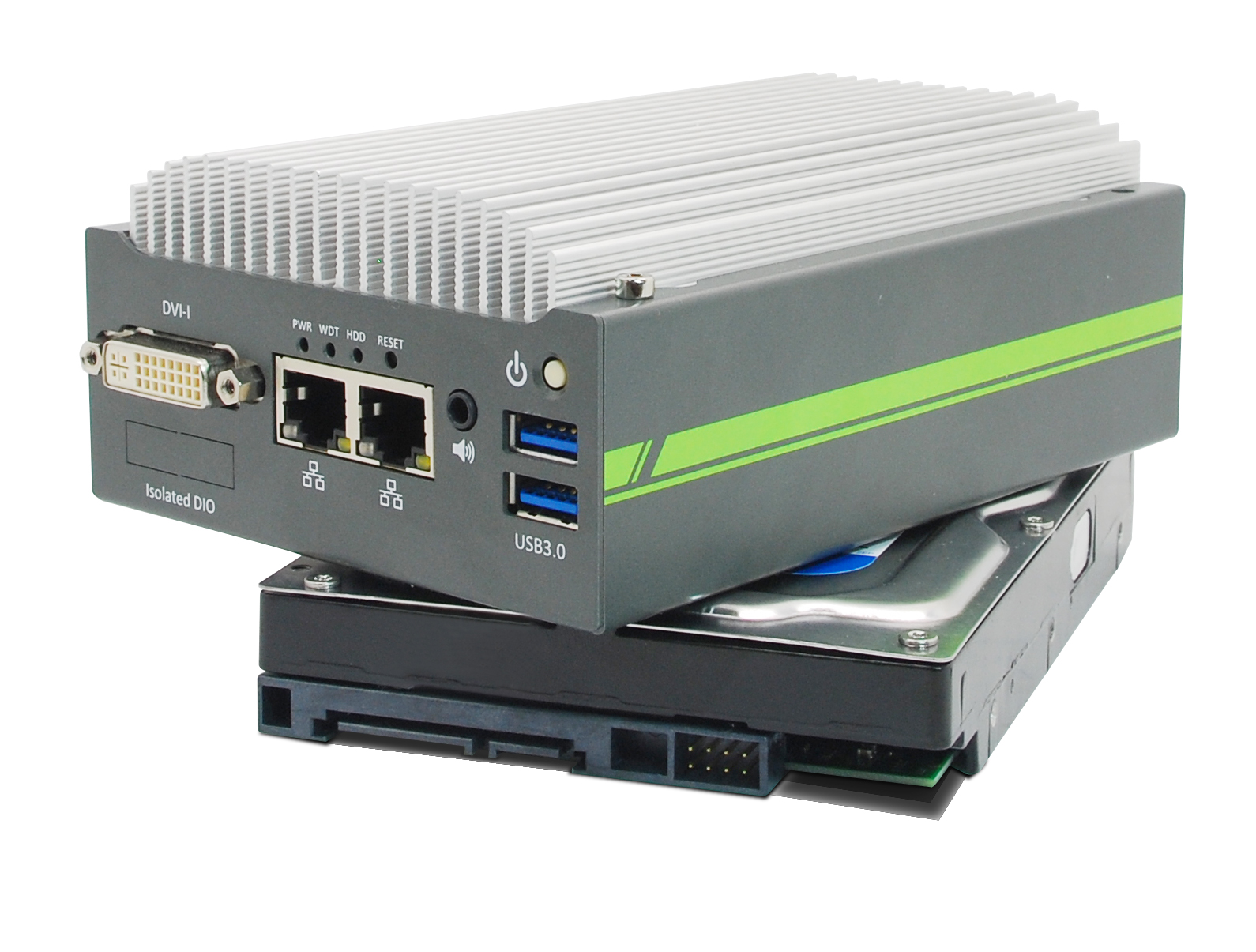

Occupies only a 3.5” HDD footprint (149mm x 105mm x 54mm), ideal for space-constrained environments.

- Fanless Operation:
Supports -30°C to +70°C operation with SSD (or -10°C to +60°C with HDD) under 100% CPU load, ensuring silent and reliable performance in harsh industrial conditions.

- Comprehensive I/O Connectivity:
Includes 2x Intel® I210 Gigabit Ethernet ports, 3x USB 3.0, 1x USB 2.0, 1x DVI-I (supporting analog RGB and DVI/HDMI), 2x COM ports (RS-232/422/485 + RS-232), and 8-channel 5V TTL GPIO.

- Storage Flexibility:

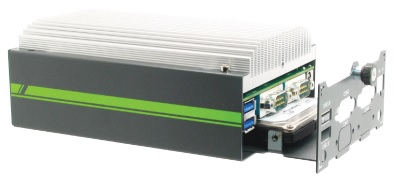

One internal SATA port with an easy-swap 2.5” HDD/SSD tray for quick maintenance and upgrades.

- Expansion Capability:
One Mini PCI Express slot with USIM socket for wireless modules (Wi-Fi, 3G/4G, GPS).

- Wide Power Input Range:
Built-in 8–35VDC power input via a 2-pin pluggable terminal block, suitable for industrial DC power systems.

- Rugged Mechanical Design:
Aluminum alloy chassis with wall-mount and optional DIN-rail mounting options; vibration and shock tested to IEC60068-2-64 and IEC60068-2-27 standards.

- Energy Efficient:
Typical power consumption of 7.68W (0.32A @ 24V) and full-load consumption of 13.44W (0.56A @ 24V).

---

### 3. Technical Specifications

Processor: Intel® Atom™ E3845, 1.91GHz, quad-core
Graphics: Integrated Intel® HD Graphics
Memory: 1x DDR3L-1333 SODIMM socket, up to 8GB (1.35V DDR3L only)
Storage:
- 1x internal SATA port for 2.5” HDD/SSD
- Easy-swap HDD tray
- Optional 16GB onboard eMMC module

I/O Interfaces:
- Ethernet: 2x Intel® I210 Gigabit Ethernet ports
- USB: 3x USB 3.0 (two front, one rear), 1x USB 2.0 (rear)
- Serial Ports: 1x RS-232/422/485 (COM1), 1x RS-232 (COM2)
- Video Output: 1x DVI-I (supports analog RGB and DVI/HDMI, up to 2560x1600 resolution)
- Audio: 1x Speaker-out (Realtek ALC262 codec)
- Digital I/O: 8-channel 5V TTL GPIO (4 DI + 4 DO)

Expansion:
- 1x Mini PCI Express slot with USIM socket

Power Supply:
- Input Voltage: 8–35VDC
- Connector: 2-pin pluggable terminal block
- Optional 60W AC/DC adapter (12V, 5A output)

Mechanical:
- Dimensions: 149mm (W) x 105mm (H) x 54mm (D)
- Weight: 1.1 kg (with 2.5” HDD)
- Mounting: Wall-mount (standard), DIN-rail (optional)

Environmental:
- Operating Temperature:
- -30°C to +70°C (with SSD, 100% CPU load)
- -10°C to +60°C (with HDD, 100% CPU load)
- Storage Temperature: -40°C to +85°C
- Humidity: 10%–90%, non-condensing
- Vibration: 5 Grms, 5–500Hz, 3 axes (IEC60068-2-64)
- Shock: 50 Grms, half-sine 11ms (IEC60068-2-27)

EMC Compliance: CE/FCC Class A (EN 55022 & EN 55024)

---

### 4. Functionality

The POC-212 functions as a compact embedded controller for industrial and automation systems. It integrates computing, communication, and control capabilities in a fanless chassis. The Intel® Atom™ E3845 processor provides sufficient performance for real-time control, data acquisition, and machine vision tasks.

Use Cases and Applications:
- Industrial Automation: PLC interfacing, HMI control, and process monitoring.
- Machine Vision: Integration with GigE or USB3 cameras for inspection and robotics.
- Surveillance: Dual GbE ports for IP camera connectivity and video streaming.
- Edge Computing: Local data processing and IoT gateway applications.
- Transportation and Mobile Systems: Wide DC input and rugged design for vehicular or field deployment.

Compatibility:
Supports Windows 7/8/8.1 (32/64-bit) and Ubuntu 14.04 or later. Linux users may need to manually install Intel I210 GbE drivers.

---

### 5. Components & Accessories

Included Items:
1. POC-212 fanless controller unit
2. DVI-to-VGA adapter
3. 2-pin pluggable terminal block for DC input
4. Neousys Drivers & Utilities DVD
5. Screw package for mounting and HDD installation

Optional Accessories:
- DIN-rail mounting kit
- 60W AC/DC power adapter (12V, 5A output)
- Mini-PCIe expansion modules (Wi-Fi, 3G/4G, GPS)
- DVI-I to VGA+DVI-D Y-cable for dual display output

Connectors:

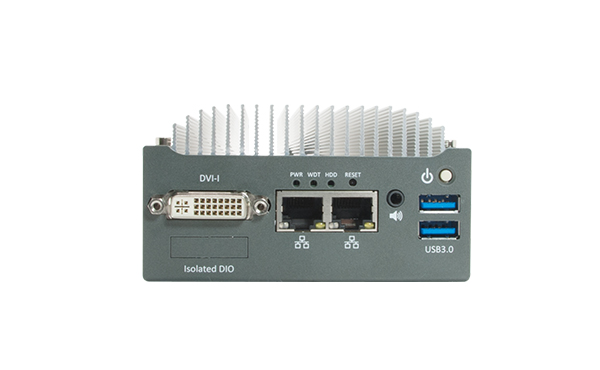

- Front: Power button, reset button, LED indicators (PWR, WDT, HDD), 2x USB 3.0, audio out, DVI-I, DIO connector

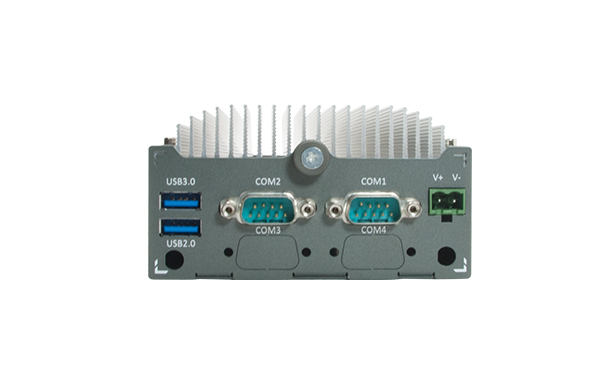

- Rear: 1x USB 3.0, 1x USB 2.0, 2x COM ports, 2x GbE ports, DC input terminal block

---

### 6. Installation & Setup

Requirements:
- DC power source (8–35VDC)
- Compatible DDR3L-1333 SODIMM memory (1.35V)
- 2.5” SATA HDD/SSD or optional eMMC storage

Mounting Options:
- Wall-Mount (Standard): Two keyhole slots for wall suspension.
- Surface Mount (Inside-Out or Outside-In): M4 threaded holes for secure installation.
- DIN-Rail (Optional): Mounting clip for cabinet integration.

Configuration Steps:
1. Install DDR3L SODIMM module (up to 8GB).
2. Mount 2.5” HDD/SSD using the easy-swap tray.
3. Connect DC power via terminal block (observe polarity).
4. Power on using the front power button or remote on/off control.
5. Configure BIOS settings (COM mode, SATA mode, WOL, watchdog timer).
6. Install OS and drivers using the provided DVD or manual installation sequence.

Power Control Options:
- Front power button (ATX mode)
- External latched switch (AT mode)
- External non-latched switch (ATX mode)
- Wake-on-LAN (WOL) via first GbE port

---

### 7. Performance & Capabilities

Processing Performance:
The Atom™ E3845 quad-core CPU provides approximately 240% performance improvement over the older D525 platform, with integrated Intel® HD Graphics supporting 3D acceleration and HD video decoding.

Storage Performance:
Supports SATA 3Gb/s interface for HDD/SSD, with AHCI mode recommended for optimal performance.

Networking:
Dual Intel® I210 GbE controllers ensure reliable, low-latency Ethernet communication. Supports Wake-on-LAN and PXE boot.

I/O Throughput:
Three USB 3.0 ports (5Gbps) and one USB 2.0 port for high-speed peripheral connectivity.

Power Efficiency:
Typical consumption of 7.68W ensures low thermal output, enabling fanless operation even under full CPU load.

Limitations:
- No native PoE support (available only on POC-200 model).
- Limited to one Mini PCIe expansion slot.
- Single display output (DVI-I) without dual independent display capability.

---

### 8. Standards & Compliance

Certifications:
- CE: Conforms to European EMC Directive (EN 55022, EN 55024).
- FCC: Class A digital device compliance under Part 15 of FCC Rules.
- RoHS: Compliant with Restriction of Hazardous Substances Directive.

Environmental Testing:
- Vibration: 5 Grms, 5–500Hz, 3 axes (IEC60068-2-64)
- Shock: 50 Grms, 11ms half-sine (IEC60068-2-27)
- Temperature: Validated for -30°C to +70°C operation with SSD

Industry Standards:
- IEEE 802.3 (Ethernet)
- SATA 3Gb/s
- USB 3.0/2.0
- RS-232/422/485 serial communication standards

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (contact Neousys for regional terms).
- Technical support via Neousys website and authorized distributors.
- Firmware and driver updates available through official support channels.

Maintenance:
- Fanless design minimizes moving parts and maintenance requirements.
- Easy-swap HDD tray simplifies storage replacement.
- Regular firmware and BIOS updates recommended for optimal stability.

Software & Utilities:
- “One-Click” driver installation utility for Windows OS.
- WDT_DIO library for programming watchdog timer and digital I/O functions.
- BIOS configurable watchdog timer for boot reliability.

Watchdog & DIO Programming:
- Watchdog Timer (WDT): Hardware-based system reset mechanism with programmable timeout (1–255 seconds).
- Digital I/O (DIO): 8-channel 5V TTL GPIO (4 DI, 4 DO) accessible via Neousys API library.

Operating System Support:
- Windows 7/8/8.1 (32/64-bit)
- Ubuntu 14.04 or later
- Linux kernel support for Intel I210 GbE (manual driver installation may be required)

---

### Summary
