Comprehensive Product Summary: ADLINK PXI-2022 Simultaneous Sampling Data Acquisition Card

---

### 1. Product Overview

Product Name: PXI-2022
Model: PXI-2022
Series: PXI-2020/2022 Simultaneous Sampling DAQ Series
Article Number: PXI-2022
Manufacturer: ADLINK Technology Inc.
Form Factor: 3U PXI module (EuroCard standard)
Product Type: PXI Bus Analog-to-Digital (AD) Data Acquisition Card

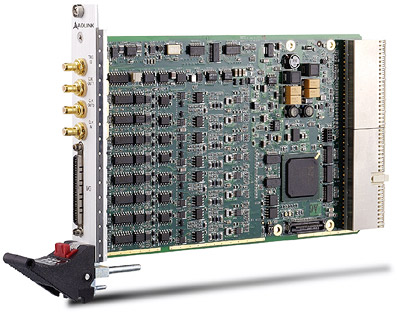

The ADLINK PXI-2022 is a high-performance, 16-channel, 16-bit simultaneous-sampling analog input card designed for PXI-based measurement and automation systems. It provides precise, synchronized data acquisition across multiple channels and modules, supporting a maximum sampling rate of 250 kS/s per channel. The PXI-2022 is engineered for applications requiring high accuracy, low noise, and flexible triggering and synchronization capabilities.

---

### 2. Key Features

- Simultaneous Sampling: 16 differential analog input channels with true simultaneous sampling at up to 250 kS/s per channel.
- High Resolution: 16-bit analog-to-digital conversion using AD7685 ADCs for precise signal representation.
- Programmable Input Range: Bipolar input ranges of ±10 V and ±2.5 V with programmable gain settings (x1, x4).
- Auto-Calibration: Fully automated calibration with onboard 5.000 V reference, eliminating manual trim adjustments.
- Flexible Triggering: Supports software, external digital, PXI Star, and PXI Trigger Bus triggers with multiple trigger modes (pre-, post-, middle-, and delay-trigger).
- Synchronization: Multi-module synchronization via PXI Trigger Bus and System Synchronization Interface (SSI).
- Digital I/O: 4-channel TTL/CMOS-compatible digital input/output lines.
- Timer/Counter: Two 32-bit general-purpose up/down timer/counters with programmable clock and gate sources.
- Memory Buffer: 8 K-sample (16 KB) onboard FIFO for continuous data streaming.
- PXI Compliance: Fully compliant with PXI Specification Rev. 2.2, supporting both 3.3 V and 5 V signaling.
- Software Support: Compatible with ADLINK DAQPilot, D2K-DASK, LabVIEW™, MATLAB®, and DAQBench environments.
- Operating Systems: Windows 2000/XP/Vista/2003 and Linux (via D2K-DASK/X).
- Form Factor: Compact 3U PXI module (100 mm x 160 mm).

---

### 3. Technical Specifications

Analog Input
- Channels: 16 differential inputs
- ADC Type: AD7685, 16-bit resolution
- Sampling Rate: 250 kS/s per channel
- Input Range: ±10 V, ±2.5 V (programmable)
- Input Coupling: DC
- Input Impedance: 1 GΩ
- Input Protection: ±30 V continuous (power on/off)
- Programmable Gain: x1, x4
- Input Bandwidth: 1 MHz (gain=1), 700 kHz (gain=4)
- System Noise: 0.5 mV RMS (gain=1), 0.2 mV RMS (gain=4)
- CMRR: 80 dB typical
- SFDR: 87 dB
- SINAD: 82 dB
- THD: –85 dB
- SNR: 84 dB
- ENOB: 13.3 bits
- Offset Error: ±0.6 mV typical
- Gain Error: ±0.02% typical
- Offset Drift: 0.1 mV/°C typical
- FIFO Buffer: 8 K-sample (16 KB)

Digital I/O
- Channels: 4 programmable I/O lines
- Logic Compatibility: TTL/CMOS (3.3 V or 5 V tolerant)
- Input Low/High: 0.8 V max / 2.0 V min
- Output Low/High: 0.4 V max / 2.8 V min
- Drive Capability: ±24 mA
- Power-on State: Input mode, pull-low with 10 kΩ resistor

Timer/Counter
- Channels: 2 independent 32-bit up/down counters
- Clock Source: Internal 20 MHz or external TTL clock
- Modes: 8 programmable modes (event counting, pulse generation, period/pulse-width measurement, gated operations)
- Input/Output Compatibility: 3.3 V TTL

Auto-Calibration
- Reference Voltage: +5.000 V onboard reference (ADR02)
- Warm-up Time: 15 minutes recommended
- Temperature Drift: ±3 ppm/°C
- Stability: 50 ppm/1000 hours

General
- Dimensions: 100 mm (H) × 160 mm (L) (excluding connector)
- Connector: 68-pin VHDCI female (ACL-10568-1)
- Operating Temperature: 0 to 55°C
- Storage Temperature: –20 to 80°C
- Humidity: 10–90% RH (operating), 5–95% RH (storage), non-condensing
- Power Requirements: +3.3 V @ 1.5 A, +5 V @ 1.3 A, +12 V @ 0.35 A

---

### 4. Functionality

Operation Principle:
The PXI-2022 performs simultaneous analog-to-digital conversion across all 16 channels using dedicated ADCs. Each channel’s signal passes through a programmable gain amplifier and anti-aliasing filter before digitization. The card supports both internal and external timebase sources, enabling precise control of sampling rates and synchronization across multiple modules.

Triggering and Timing:
- Trigger Sources: Software, external digital (SMB TRG I/O), PXI Star Trigger, PXI Trigger Bus (line 5).
- Trigger Modes: Pre-trigger, post-trigger, middle-trigger, and delay-trigger.
- Minimum Trigger Pulse Width: 12.5 ns.
- Timebase Sources: Internal 80 MHz oscillator or external clock (1–20 MHz TTL).
- Sampling Rate Control: Adjustable via 32-bit scan interval counter (Sampling Rate = TIMEBASE / ScanIntrv).

Use Cases:
- Automotive and cable testing
- Transient signal measurement
- Automated Test Equipment (ATE)
- Laboratory and industrial automation
- Biotech and medical instrumentation

Compatibility:
- PXI backplane synchronization via PXI Trigger Bus and PXI Star Trigger.
- Software integration with ADLINK DAQPilot, LabVIEW™, MATLAB®, and DAQBench.

---

### 5. Components & Accessories

Included Items:
- PXI-2022 DAQ Card
- ADLINK All-in-One DVD (drivers and utilities)
- Software Installation Guide
- User’s Manual

Optional Accessories:
- SMB-SMB-1M: 1 m SMB-to-SMB cable
- SMB-BNC-1M: 1 m SMB-to-BNC cable
- DIN-68S-01: Terminal board with one 68-pin SCSI-II connector and DIN-rail mounting
- ACL-10568-1: 68-pin VHDCI SCSI cable (1 m) for SSI synchronization

Connectors:
- Front Panel SMB Ports:
- TRG IO (bidirectional trigger input/output)
- CLK IN (external clock input, 50 Ω AC-coupled, 1–2 Vp-p)
- CLK OUT0/OUT1 (50 Ω DC-coupled TTL outputs)
- VHDCI 68-pin Connector: Provides analog input, digital I/O, AFI, and timer/counter signals.

---

### 6. Installation & Setup

Requirements:
- PXI chassis compliant with PXI Specification Rev. 2.2
- Compatible operating system (Windows 2000/XP/Vista/2003 or Linux)
- Anti-static handling precautions during installation

Installation Steps:
1. Power off the PXI chassis and disconnect power.
2. Align the PXI-2022 with the chassis guide rails.
3. Insert the module until the ejector latch clicks.
4. Secure the front panel screw.
5. Power on the chassis; the system will auto-configure the card (Plug and Play).

Software Setup:
- Install drivers from ADLINK All-in-One DVD.
- Supported APIs: D2K-DASK, DAQPilot, DAQ-MTLB, and DAQBench.
- Compatible programming environments: VB.NET, VC++, Delphi, LabVIEW™, MATLAB®.

---

### 7. Performance & Capabilities

Analog Performance:
- Resolution: 16 bits (1 in 65,535)
- Sampling Rate: 250 kS/s per channel
- Bandwidth: 1 MHz (gain=1), 700 kHz (gain=4)
- SFDR: 87 dB, SINAD: 82 dB, THD: –85 dB, SNR: 84 dB
- Effective Number of Bits (ENOB): 13.3 bits

Triggering Performance:
- Minimum Pulse Width: 12.5 ns
- Trigger Polarity: Software-selectable (rising/falling edge)
- Re-trigger Capability: Supported for segmented acquisitions

Synchronization:
- PXI Trigger Bus and PXI Star Trigger for multi-module synchronization
- SSI_TIMEBASE, SSI_AD_TRIG, and SSI_ADCONV signals for inter-card timing alignment

Limitations:
- Maximum sampling rate limited by 80 MHz internal timebase
- External clock input limited to 20 MHz TTL
- Operates within 0–55°C ambient temperature

---

### 8. Standards & Compliance

- PXI Specification: Revision 2.2 compliant
- Electrical Interface: Supports both 3.3 V and 5 V PCI signaling
- Safety & Environmental:
- Operating temperature: 0–55°C
- Storage temperature: –20–80°C
- Humidity: 10–90% non-condensing
- Quality Assurance: Factory-calibrated with onboard EEPROM storage for calibration constants
- Regulatory Compliance: Designed to meet industrial and laboratory safety standards

---

### 9. Additional Information

Calibration & Maintenance:
- Factory-calibrated with stored constants in EEPROM
- Auto-calibration feature compensates for gain and offset drift
- Recommended warm-up: 15 minutes before calibration
- User can store up to three calibration profiles in EEPROM

Warranty & Support:
- Manufacturer: ADLINK Technology Inc.
- Global support network with offices in Taiwan, USA, China, Europe, Japan, Korea, Singapore, and India
- Technical support via email: service@adlinktech.com / info@adlinktech.com
- Warranty: Standard ADLINK hardware warranty (refer to product documentation)

Maintenance Recommendations:
- Avoid exposure to moisture and static discharge
- Use anti-static wrist strap during handling
- Periodic recalibration recommended for long-term accuracy

Software Updates:
- Driver and firmware updates available through ADLINK’s official website (www.adlinktech.com)
- Compatible with DAQPilot and D2K-DASK libraries for continuous software support

---

### Summary

The ADLINK PXI-2022 is a precision-engineered, 16-channel, 16-bit simultaneous-sampling data acquisition card optimized for PXI systems. It delivers high-speed, low-noise analog input performance with flexible triggering, synchronization, and calibration capabilities. Designed for demanding test and measurement environments, it supports a wide range of industrial, scientific, and automation applications. With robust PXI compliance, comprehensive software support, and advanced timing features, the PXI-2022 provides a scalable, reliable foundation for synchronized, high-resolution data acquisition across multiple modules and systems.
