Comprehensive Product Summary: ADLINK PXIe‑3987/M8G/SSD PXI Express Embedded Controller

---

### 1. Product Overview

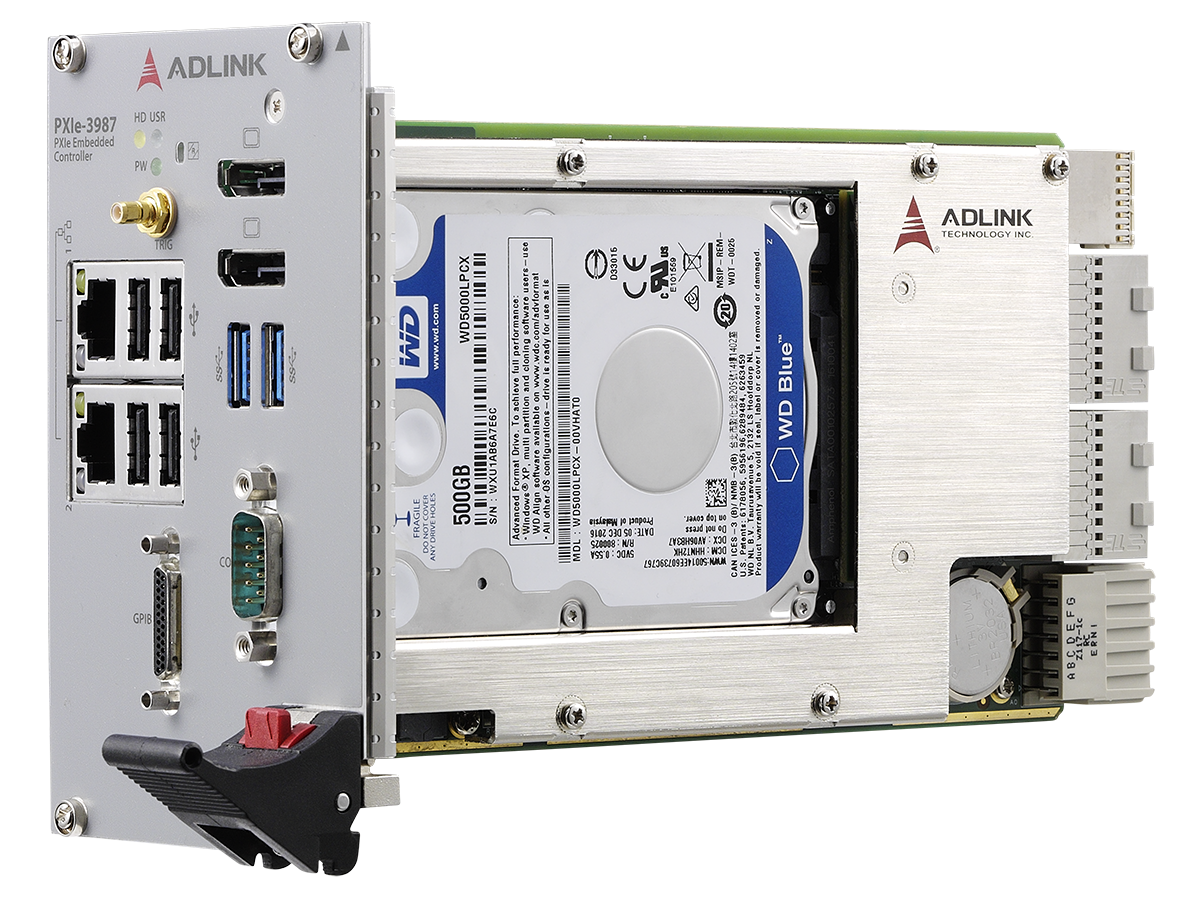

Product Name: PXIe‑3987 PXI Express Embedded Controller
Model: PXIe‑3987/M8G/SSD
Series: PXIe‑3987/3977/3937 PXI Express Embedded Controller Series
Article Number: PXIe‑3987/M8G/SSD
Manufacturer: ADLINK Technology Inc.
Part Number: 50‑17056‑1010
Manual Revision: 1.1 (December 24, 2019)
Product Category: 3U PXI Express Gen3 System Controller

The ADLINK PXIe‑3987 is a high‑performance 3U PXI Express embedded controller designed for modular instrumentation and automated test systems. It integrates a 7th‑generation Intel® Core™ i7‑7820EQ processor and supports PCI Express Gen3 technology, delivering up to 16 GB/s system bandwidth. The controller provides a rugged, stable computing platform for PXI Express‑based measurement, data acquisition, and control applications.

---

### 2. Key Features

- Processor: Intel® Core™ i7‑7820EQ, 3.0 GHz base / 3.7 GHz Turbo, 45 W/35 W configurable TDP, 4 cores, GT2 graphics.
- Memory: Dual‑channel DDR4 SO‑DIMM, up to 32 GB, 2133/2400 MHz, non‑ECC, unbuffered.
- System Bandwidth: Up to 16 GB/s via PCI Express 3.0 bus.
- PXI Express Link Configurations:
- 4‑link configuration: x4 × 4 × 4 × 4
- 2‑link configuration: x16 + x8
- Storage: Preinstalled 240 GB SATA 6 Gb/s SSD; supports 2.5″ HDD/SSD with AHCI.
- Integrated I/O:
- Dual Gigabit Ethernet ports (Intel® I219‑LM and I210)
- Two DisplayPort outputs (up to 3840 × 2160 @ 60 Hz)
- Two USB 3.0 and four USB 2.0 ports
- Built‑in IEEE 488 GPIB controller (Micro‑D 25‑pin)
- RS‑232/422/485 serial port (D‑sub 9)
- SMB PXI Trigger I/O connector for advanced trigger routing
- Operating System: Microsoft® Windows 10 64‑bit preinstalled; other OS support available on request.
- Compliance: PXI‑5 PXI Express Hardware Specification Rev. 1.0.
- Environmental Robustness: Designed for industrial and laboratory environments with extended temperature and vibration tolerance.

---

### 3. Technical Specifications

Processor:
- Intel® Core™ i7‑7820EQ (7th Gen, Kaby Lake)
- 4 cores / 8 threads, 3.0 GHz base, 3.7 GHz Turbo
- DMI 3.0 interface, 8 GT/s per direction

Chipset:
- Mobile Intel® QM175/HM175

Memory:
- Two × 260‑pin DDR4 SO‑DIMM sockets
- 2133/2400 MHz, up to 32 GB total
- Non‑ECC, unbuffered

Video:
- Dual DisplayPort outputs
- Max resolution: 3840 × 2160 @ 60 Hz
- DVI via passive DP‑to‑DVI adapter: 1920 × 1200 @ 60 Hz

Storage:
- 2.5″ SATA 6 Gb/s interface
- Preinstalled 240 GB SSD (optional 500 GB HDD)
- AHCI support

Networking:
- Dual × Gigabit Ethernet (RJ‑45)
- Intel® I219‑LM and I210 controllers
- Wake‑on‑LAN support

USB:
- 2 × USB 3.0 (Type‑A)
- 4 × USB 2.0 (Type‑A)

GPIB:
- IEEE 488 compliant
- Micro‑D 25‑pin connector
- Up to 1.5 MB/s transfer rate
- 2 KB FIFO buffer
- Compatible with NI‑488.2 API
- Supports up to 14 instruments

Trigger I/O:
- 1 × SMB connector for PXI trigger bus routing
- TTL‑compatible, edge‑sensitive signals
- Programmable routing modes via driver API

Serial Communication:
- 1 × D‑sub 9 COM port
- RS‑232/422/485 selectable in BIOS

Form Factor:
- 3U PXI Express module, 4‑slot width

Dimensions & Weight:
- Standard 3U PXI form factor
- Weight: 1.0 kg (without packaging)

Environmental Conditions:
- Operating temperature (SSD): 0 – 55 °C
- Operating temperature (HDD): 0 – 50 °C
- Storage temperature: –20 – 70 °C
- Relative humidity: 5 – 95 % (non‑condensing)
- Shock: 30 G, 11 ms half‑sine pulse
- Vibration: 0.21 Grms (operating), 2.46 Grms (non‑operating)

Power Requirements:
| Mode | +3.3 V | +5 V | +12 V |
|-------|--------|------|-------|
| Typical (idle) | 5 A | 2.5 A | 2 A |
| Heavy load | 5 A | 2.8 A | 8 A |

---

### 4. Functionality

The PXIe‑3987 serves as the central computing and control unit in PXI Express test and measurement systems. It manages data acquisition, signal processing, and instrument control through its high‑speed PCIe Gen3 backplane interface. The controller supports multiple PXI Express link configurations, enabling flexible system topologies for high‑throughput applications.

Typical Use Cases:
- Automated test equipment (ATE) and validation systems
- Data acquisition and signal analysis
- RF and mixed‑signal testing
- Industrial automation and control
- Research and development instrumentation

Compatibility:
- Fully compliant with PXI Express Rev. 1.0
- Compatible with PXI hybrid and PXIe chassis
- Supports Windows 10 64‑bit; drivers available for other OSs

Operation:
- Dual DisplayPort outputs for multi‑monitor setups
- Integrated GPIB and serial interfaces for legacy instrument control
- Trigger I/O for synchronization between PXI modules
- BIOS‑configurable serial modes and boot options

---

### 5. Components & Accessories

Included Items:
- PXIe‑3987 controller (with preinstalled RAM and SSD/HDD)
- Quick Start Guide
- Preinstalled Windows 10 64‑bit OS

Optional Accessories:
- ACL‑IEEE488‑MD1‑A GPIB cable (Micro‑D 25 to standard IEEE‑488)
- DisplayPort‑to‑DVI/VGA/HDMI adapters
- Replacement SSD/HDD bracket
- PXI Trigger I/O driver and MAPS Core software suite

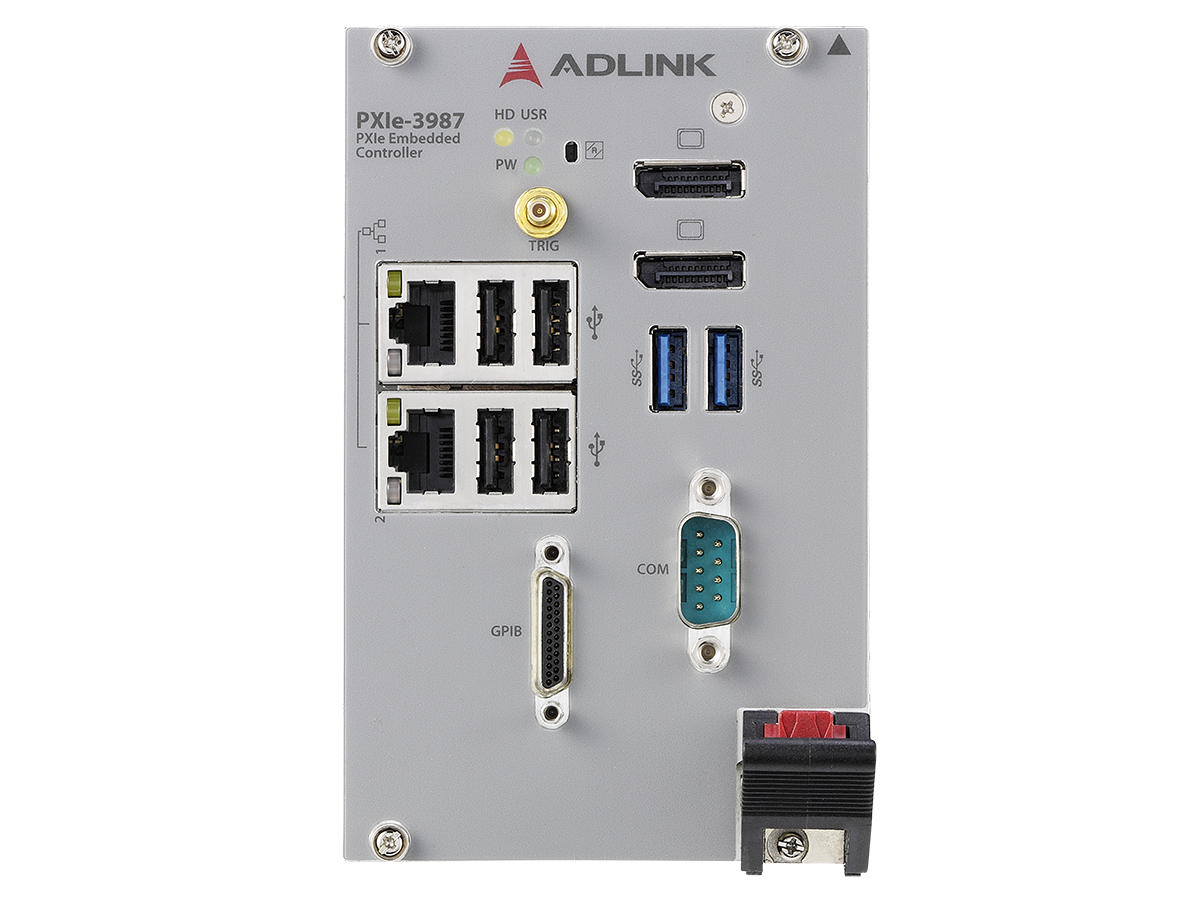

Connectors:
- Front panel:
- 2 × DisplayPort
- 2 × USB 3.0
- 4 × USB 2.0
- 2 × RJ‑45 Ethernet
- 1 × D‑sub 9 COM port
- 1 × Micro‑D 25 GPIB
- 1 × SMB Trigger I/O
- Reset button and LED indicators

LED Indicators:
- PW (Green): System power status
- HD (Yellow): Storage activity
- USR (Blue): User‑programmable indicator

---

### 6. Installation & Setup

Requirements:
- PXI Express chassis with system controller slot (Slot 1)
- Anti‑static handling precautions
- Phillips screwdriver and anti‑static wrist strap

Installation Steps:
1. Power off the PXI chassis and remove slot covers.
2. Align the controller with the chassis card guides.
3. Insert the module into Slot 1 until fully seated.
4. Secure the faceplate screws and connect peripherals.
5. Power on the chassis and configure BIOS/OS settings.

Storage Replacement:
- Remove five screws securing the drive housing.
- Replace the 2.5″ SATA HDD/SSD and reassemble.

Battery Replacement:
- Replace with CR2032 3 V lithium coin cell.
- Observe polarity and anti‑static precautions.

CMOS Reset:
- Toggle the onboard CMOS clear switch (SW1) to “Clear” for 5 s, then return to “Normal.”

Operating System Installation:
- Supports USB CD‑ROM, USB flash, or external HDD boot.
- Configure boot order in BIOS.
- Install Windows 10 64‑bit or other supported OS.

---

### 7. Performance & Capabilities

Processing Performance:
- Quad‑core Intel® i7 CPU with Hyper‑Threading and Turbo Boost.
- Supports simultaneous multi‑task execution for parallel test operations.

Memory Performance:
- Dual‑channel DDR4 2400 MHz memory architecture.
- Up to 32 GB capacity for large data sets and high‑speed buffering.

I/O Throughput:
- PCIe Gen3 x16 + x8 or x4 × 4 × 4 × 4 link configurations.
- Maximum system throughput: 16 GB/s.

Graphics:
- Integrated Intel® HD Graphics 630 (GT2).
- Dual independent 4K DisplayPort outputs.

Storage:
- SATA 6 Gb/s interface ensures fast data access and logging.

Networking:
- Dual Gigabit Ethernet for LAN and LXI instrument control.

Triggering:
- Programmable PXI trigger routing via SMB connector.
- Supports software‑generated and hardware‑routed triggers.

Limitations:
- Memory addressing above 4 GB requires 64‑bit OS.
- USB 3.0 may not be supported during OS installation (use USB 2.0).

---

### 8. Standards & Compliance

PXI & PCI Express Standards:
- PXI‑5 PXI Express Hardware Specification Rev. 1.0
- PCI Express Gen3 compliant

Electromagnetic Compatibility (EMC):
- EN 61326‑1 (IEC 61326‑1): Class A emissions, basic immunity
- EN 55011 (CISPR 11): Group 1, Class A
- EN 55032 (2015/AC:2016) Class A and B
- EN 55024 (2010 + A1:2015) Immunity
- EN 61000‑3‑2:2014 (Class A)
- EN 61000‑3‑3:2013 (Class A)
- FCC 47 CFR Part 15 Subpart A/B (Class A/B)
- ICES‑001 Class A, ICES‑003 Issue 6‑2016
- AS/NZS CISPR 11 and 32 (Class A/B)

Environmental & Safety Compliance:
- RoHS and WEEE compliant
- California Proposition 65 warning labeling
- CE and FCC certified

Reliability Features:
- Dual BIOS architecture for automatic recovery from boot failure
- Hardware health monitoring via BIOS (temperature, voltage, runtime statistics)

---

### 9. Additional Information

Warranty & Support:
- Standard ADLINK limited warranty (contact regional office for terms).
- Technical support via [Ask an Expert](http://askanexpert.adlinktech.com).
- Global service centers in Taiwan, USA, China, and Germany.

Maintenance:
- Keep ventilation unobstructed; operate within specified temperature range.
- Replace CMOS battery (CR2032) every 3–5 years as needed.
- Use only ADLINK‑approved SSD/HDD for guaranteed vibration/shock compliance.

Software & Drivers:
- Windows 10 64‑bit drivers available for:
- Chipset, Graphics, Ethernet/LAN, PXI Trigger I/O, Intel ME, GPIB, Intel RST
- Optional utilities:
- MAPS Core Windows Software Suite
- PXI Platform Services

BIOS Features:
- AMI UEFI BIOS with graphical interface
- Secure Boot, TPM 2.0, and virtualization support
- Advanced power management and PXIe link control
- Dual BIOS redundancy and recovery mechanism

Safety & Handling:
- Operate only on stable, grounded surfaces.
- Avoid exposure to moisture, heat, or conductive debris.
- Observe anti‑static precautions during installation or service.
- Disconnect power before removing or installing the controller.

End‑of‑Life & Environmental Responsibility:
- Designed for minimal environmental impact.
- Dispose of electronic components per local WEEE regulations.

---

### Summary

The ADLINK PXIe‑3987/M8G/SSD is a robust, high‑bandwidth PXI Express embedded controller engineered for demanding test and measurement environments. With its Intel® Core™ i7‑7820EQ processor, dual‑channel DDR4 memory, and PCIe Gen3 architecture, it delivers exceptional computational and data‑transfer performance. Comprehensive I/O—including dual Gigabit Ethernet, USB 3.0/2.0, DisplayPort, GPIB, and serial interfaces—ensures seamless integration with both modern and legacy instrumentation.

Its rugged 3U PXI form factor, extended environmental tolerance, and compliance with global EMC and safety standards make it ideal for industrial, laboratory, and research applications requiring reliable, high‑speed embedded control. The inclusion of dual BIOS, TPM 2.0 security, and extensive BIOS configurability further enhances system resilience and manageability, ensuring long‑term stability in mission‑critical PXI Express systems.
