Comprehensive Product Summary – ORing RGPS‑7084GP‑P Industrial Managed Gigabit PoE Switch
*(Approx. 12,000 characters / ~3,000 tokens)*

---

### 1. Product Overview

Product Name: RGPS‑7084GP‑P
Model: RGPS‑7084GP‑P
Series: ORing Thunder Series – Industrial Managed Gigabit Ethernet Switches
Article Number: RGPS‑7084GP‑P
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 3F., No.542‑2, Jhongjheng Rd., Sindian District, New Taipei City 23145, Taiwan, R.O.C.
Website: [www.oring‑networking.com](http://www.oring-networking.com)
Support Contact: support@oring‑networking.com

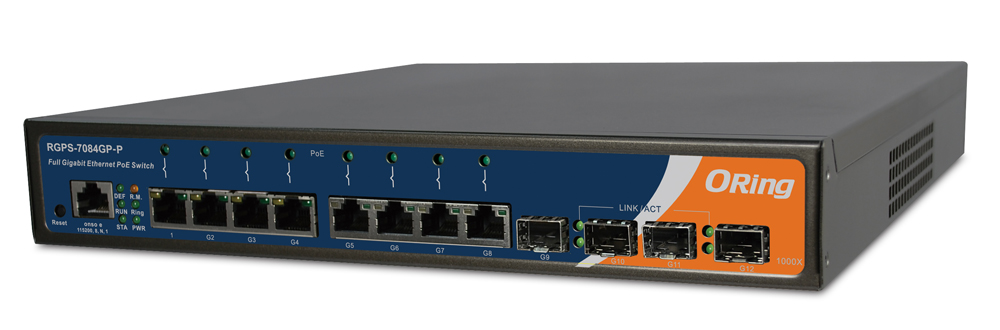

The ORing RGPS‑7084GP‑P is a fully managed, industrial‑grade, rack‑mountable Gigabit Ethernet switch designed for high‑availability networks requiring Power over Ethernet (PoE) and advanced redundancy. It integrates eight 10/100/1000Base‑T(X) PoE P.S.E. ports and four 1000Base‑X SFP fiber ports, supporting IEEE 802.3at PoE standards with up to 30 W per port. The switch is engineered for mission‑critical industrial automation, surveillance, and transportation networks, offering robust redundancy, security, and management capabilities under extreme environmental conditions.

---

### 2. Key Features

- High‑Performance Managed Gigabit Switching:
8×10/100/1000Base‑T(X) RJ‑45 ports with PoE (P.S.E.) and 4×1000Base‑X SFP slots for fiber uplinks.
Store‑and‑forward architecture with 24 Gbps switching bandwidth and 7 µs latency.

- Industrial‑Grade PoE Power Sourcing:
Fully compliant with IEEE 802.3at (PoE+) standard, delivering up to 30 W per port, total PoE budget up to 240 W (derated above 60 °C).

- Redundant Ethernet Ring Technology:
ORing’s proprietary O‑Ring redundancy with recovery time < 30 ms across up to 250 nodes. Supports O‑Chain, Coupling Ring, Dual Homing, and standard MSTP/RSTP/STP (IEEE 802.1s/w/D).

- Advanced Network Security:
Includes 802.1x authentication, Access Control Lists (ACL), IP/MAC binding, DoS/DDoS auto‑prevention, and SNMPv3 encrypted management.

- Comprehensive Management Interfaces:
Web‑based GUI, Telnet, SSH, SNMP v1/v2c/v3, CLI via RS‑232 console, and centralized management through ORing Open‑Vision v3.0 or later.

- Quality of Service (QoS) and Traffic Control:
Application‑based QoS, IP‑based bandwidth management, 4 priority queues, port rate limiting, and storm control for unicast/multicast/broadcast traffic.

- Robust Environmental Design:
Operating temperature –40 °C to +70 °C, IP‑20 metal enclosure, 19‑inch 1U rack‑mount form factor, and full compliance with industrial EMC and shock/vibration standards.

- Comprehensive Monitoring and Diagnostics:
System log, SNMP traps, e‑mail/SYSLOG alerts, cable diagnostics (VeriPHY), SFP DDM monitoring, and PoE auto‑ping recovery.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|------------------|
| Ethernet Ports | 8 × 10/100/1000Base‑T(X) RJ‑45 (Auto MDI/MDIX, PoE P.S.E.) |
| Fiber Ports | 4 × 1000Base‑X SFP (LC connector, multi‑mode 0–550 m @ 850 nm or single‑mode) |
| Switching Capacity | 24 Gbps |
| Forwarding Rate | 17.8 Mpps (64‑byte packets) |
| MAC Address Table | 8,192 entries |
| Priority Queues | 4 hardware queues |
| Jumbo Frame Support | Up to 9 KB |
| Processing Type | Store‑and‑Forward |
| Latency | < 7 µs |
| VLANs | Up to 256 IEEE 802.1Q VLANs |
| IGMP Groups | 128 per VLAN |
| PoE Standard | IEEE 802.3at (PoE+) / IEEE 802.3af compatible |
| PoE Power Output | 30 W per port (max), 240 W total @ –40 to 60 °C (derate 12 W/°C to 70 °C) |
| Power Input | 100–240 VAC, 50–60 Hz internal power supply (1000 W rated) |
| Power Consumption | 22 W (typical, without PD load) |
| Protection | Overload current protection present |
| Dimensions (W × D × H) | 443.7 × 230 × 44 mm (17.46 × 9.06 × 1.73 in) |
| Weight | 3,554 g |
| Enclosure | 19‑inch rack‑mount metal (IP‑20 rated) |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5 % – 95 % non‑condensing |
| EMI/EMS Compliance | FCC Part 15 Class A, EN55022 Class A, EN61000‑4‑2/3/4/5/6/8/11 |
| Shock/Vibration/Free Fall | IEC 60068‑2‑27 / ‑2‑6 / ‑2‑32 |
| Warranty | 5 years |

---

### 4. Functionality and Applications

Operational Concept:
The RGPS‑7084GP‑P functions as a managed Layer 2 switch providing both data and power transmission over Ethernet. Each PoE P.S.E. port supplies up to 30 W DC power to connected Powered Devices (PDs) such as IP cameras, VoIP phones, or wireless APs, eliminating separate power wiring. The integrated management firmware supports configuration, monitoring, and diagnostics through web, CLI, or SNMP interfaces.

Typical Use Cases:
- Industrial automation and control networks
- IP surveillance systems (PoE cameras + NVRs)
- Intelligent transportation and traffic control
- Utility and energy substation networking
- Building automation and access control
- Redundant fiber‑ring backbone for factory or campus networks

Compatibility:
Compliant with IEEE 802.3 series standards, interoperable with third‑party Ethernet devices, SFP transceivers, and PoE PDs. Supports IPv4/IPv6 management, LLDP discovery, and integration with network management systems via SNMP v1/v2c/v3.

---

### 5. Components & Accessories

Included Items:
- RGPS‑7084GP‑P switch unit
- AC power cord (US or EU type depending on model)
- Rack‑mount kit (L & R brackets + M3×4 screws)
- RJ‑45 console cable (DB9‑F to RJ‑45)
- Dust covers for RJ‑45 and SFP ports
- CD with manual and Open‑Vision utility
- Quick Installation Guide (QIG)

Optional Accessories:
- SFP transceivers (multi‑mode or single‑mode)
- DIN‑rail mount adapter (optional)
- Replacement power cords and console cables

Connectors:
- 8 × RJ‑45 PoE ports (Auto MDI/MDIX)
- 4 × SFP slots (LC connector)
- 1 × RJ‑45 console port (RS‑232, 115200 bps, 8‑N‑1)
- AC power socket (IEC C14)
- Reset button (3 s = reboot, 5 s = factory defaults)

---

### 6. Installation & Setup

Mounting Options:
- Standard 19‑inch rack mount (1U height) using included brackets.
- Optional DIN‑rail mount kit for industrial cabinets.

Power Requirements:
Connect to 100–240 VAC 50/60 Hz supply via rear IEC socket. Ensure proper grounding and adequate ventilation.

Network Cabling:
- 10/100 Mbps: Cat 5 UTP (100 m max)
- 1000 Mbps: Cat 5e or Cat 6 UTP (100 m max)
- Fiber SFP: Multi‑mode (50/125 µm or 62.5/125 µm) up to 550 m @ 850 nm; Single‑mode for long distance.

Initial Configuration:
Default IP 192.168.10.1 / 24, gateway 192.168.10.254, username/password admin/admin.
Accessible via web browser (HTTP/HTTPS), Telnet, or console.
Supports firmware upgrade and configuration backup/restore through web interface or CLI.

Management Interfaces:
- Web GUI: Full configuration and monitoring.
- CLI: RS‑232 or Telnet/SSH command line.
- SNMP: v1/v2c/v3 for integration with NMS.
- Open‑Vision Utility: Windows‑based centralized management for multiple ORing devices.

---

### 7. Performance & Capabilities

- Switching Fabric: 24 Gbps non‑blocking throughput.
- Redundancy: O‑Ring recovery < 30 ms over 250 nodes; supports O‑Chain and MSTP for multi‑ring topologies.
- QoS: 4 hardware queues with 802.1p priority mapping, DiffServ/ToS support, and port‑based rate limiting.
- Security: 802.1x authentication, RADIUS/TACACS+, ACL filtering by MAC/IP/TCP/UDP, DoS/DDoS hardware protection, device binding and port isolation.
- PoE Management: Per‑port enable/disable, priority (Critical/High/Low), power budget allocation (Allocated/Class/LLDP‑MED modes), auto‑ping reboot for PD recovery, and PoE scheduling by time and date.
- Diagnostics: Cable testing (VeriPHY), SFP DDM monitoring, port statistics, MAC table inspection, and system logging.
- Bandwidth Control: Ingress/egress rate limiting (500 kbps – 1 Gbps), port trunking (LACP IEEE 802.3ad), and storm control for broadcast/multicast traffic.
- Multicast Support: IGMP v2/v3 snooping with per‑VLAN querier and fast leave function.
- IPv6 Support: IPv6 addressing, SNTP, and management over IPv6.
- System Recovery: Fast reboot and factory reset options; firmware upgrade via web or TFTP.

Limitations:
Layer 2 switching only (no Layer 3 routing); PoE budget limited to 240 W total (derated above 60 °C); fanless design requires adequate airflow in high‑temperature environments.

---

### 8. Standards & Compliance

Ethernet Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3ab (1000Base‑T), 802.3z (1000Base‑X), 802.3x (flow control), 802.3ad (LACP), 802.1D (STP), 802.1w (RSTP), 802.1s (MSTP), 802.1p (CoS), 802.1Q (VLAN tagging), 802.1x (authentication), 802.3at (PoE+).

EMC/EMI/EMS:
- FCC Part 15 Class A
- EN 55022 Class A (CISPR A)
- EN 61000‑4‑2 (ESD ±4 kV contact, ±8 kV air)
- EN 61000‑4‑3 (RS)
- EN 61000‑4‑4 (EFT)
- EN 61000‑4‑5 (Surge 2 kV DC power, 4 kV Ethernet ESD)
- EN 61000‑4‑6 (CS)
- EN 61000‑4‑8 (Magnetic field)
- EN 61000‑4‑11 (Voltage dips and interruptions)

Environmental Tests:
IEC 60068‑2‑27 (Shock), IEC 60068‑2‑6 (Vibration), IEC 60068‑2‑32 (Free Fall).

Safety and Reliability:
Designed for industrial operation with extended temperature range and high EMC immunity.

Regulatory Compliance:
Meets CE and FCC industrial networking equipment requirements.

---

### 9. Additional Information

Warranty: 5 years limited hardware warranty covering defects in materials and workmanship. Excludes damage from misuse, improper installation, or unauthorized modification.

Technical Support: Email support and firmware updates available from ORing Industrial Networking Corp.

Maintenance:
- Periodic firmware updates via web interface or TFTP.
- Configuration backup and restore supported (XML format).
- PoE port status and power usage monitoring recommended for long‑term stability.
- Replace SFP modules as required for fiber link integrity.

Software Utilities:
- Open‑Vision v3.0 or later: Windows‑based centralized management tool for monitoring multiple ORing switches, topology visualization, and event notification.
- Web Management: Supports HTTPS, SSH, SNMP, and LLDP for secure remote configuration.

Firmware Capabilities:
- DHCP client/server, IPv4/IPv6 management, SNTP time sync.
- VLAN configuration (802.1Q, Private VLAN, Q‑in‑Q).
- Port trunking and LACP aggregation.
- Redundancy protocols (O‑Ring, O‑Chain, MSTP).
- Security features (ACL, 802.1x, RADIUS, DoS protection).
- PoE management (LLDP‑MED, scheduling, auto‑ping reboot).
- System warnings via SYSLOG and SMTP e‑mail.
- Monitoring tools (MAC table, port statistics, mirroring, cable diagnostics).

LED Indicators:
- PWR: Power status (Green)
- STA: System ready (Green)
- RUN: System running (blinking Green)
- R.M.: Ring Master (Green)
- Ring: O‑Ring status (Green steady = active, blinking = ring broken)
- DEF: Factory default indicator (Green)
- PoE: Blue LED per port indicating PoE status
- RJ‑45 Ports: Green (Link/Activity), Amber (Duplex/Collision)
- SFP Ports: Green (Link/Activity)

Reliability and Uptime:
The switch is engineered for continuous operation in industrial environments with redundant ring topologies and fast recovery mechanisms (< 30 ms). Hardware‑based DoS protection and PoE auto‑recovery ensure network stability for critical applications such as video surveillance and process control.

---

### Summary

The ORing RGPS‑7084GP‑P is a high‑reliability, industrial‑grade, managed Gigabit Ethernet switch integrating PoE P.S.E. functionality and advanced redundancy. With eight PoE ports and four SFP uplinks, it delivers robust performance for industrial automation, transportation, and surveillance networks. Its comprehensive management suite (Web, CLI, SNMP, Open‑Vision), security framework (802.1x, ACL, DoS protection), and redundant ring technologies (O‑Ring, MSTP) make it ideal for mission‑critical deployments requiring high availability and remote management under harsh conditions. The device meets stringent industrial EMC and environmental standards and is backed by a 5‑year manufacturer warranty.
