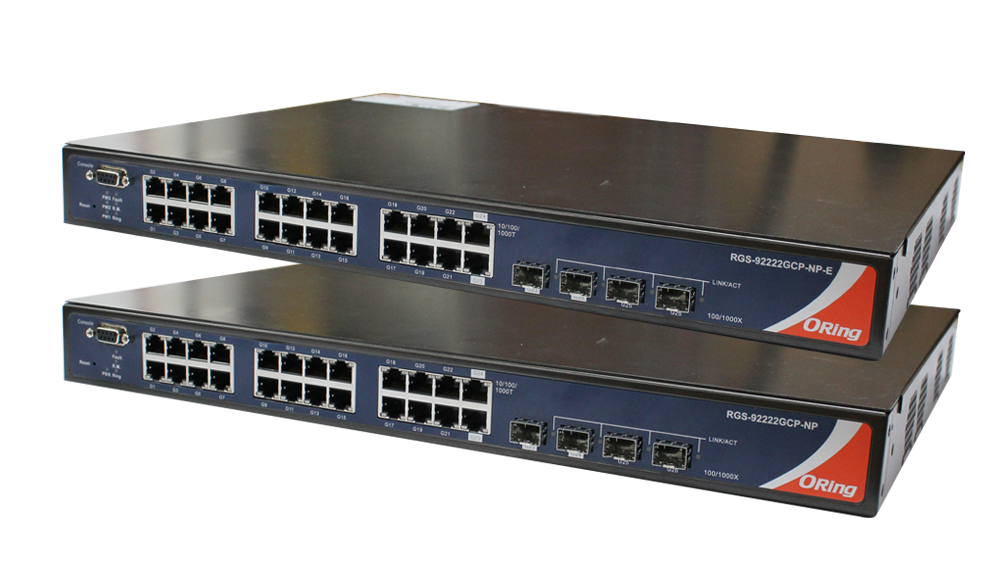

RGS-92222GCP-NP-E
Managed Rack Mount Switch 4*SFP1000 24*1000TX AC/DC In
1190,00 EUR
including VAT 1,416.10 EUR
- High‑Density Gigabit Switching:
22 × 10/100/1000Base‑T(X) RJ‑45 ports, 2 × Gigabit combo ports (10/100/1000Base‑T(X) + 100/1000Base‑X SFP), and 2 × dedicated 100/1000Base‑X SFP ports.
Total of 26 Gigabit interfaces for copper and fiber connectivity.
- Industrial‑Grade Managed Platform:
Designed for mission‑critical industrial Ethernet, power substations, and rolling‑stock applications.
Rugged 19‑inch rack‑mount steel enclosure with extended temperature operation from –40 °C to +75 °C.
- Advanced Redundancy Technologies:
Supports ORing’s proprietary O‑Ring (< 30 ms recovery over 250 nodes), Open‑Ring (interoperability with third‑party rings), O‑Chain (multi‑ring chaining), MRP (IEC 62439‑2 Media Redundancy Protocol), Fast Recovery, and MSTP/RSTP/STP for multi‑layer redundancy.
- Comprehensive Management:
Web GUI, Telnet, RS‑232 CLI, and Open‑Vision Windows utility for centralized monitoring.
SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, NTP, DHCP Server/Client/Relay, and SMTP alarm notification.
- Enhanced Security Suite:
IEEE 802.1x authentication (single/multiple), MAC‑based authentication, TACACS+, RADIUS, HTTPS/SSH, SNMPv3 encryption, IP Source Guard, Device Binding, and hardware‑based DoS/DDoS auto‑prevention.
- Quality of Service & Traffic Control:
8 priority queues, 802.1p CoS, DiffServ/ToS, application‑based QoS, IP‑based bandwidth management, storm control, and DSCP translation.
- Energy Efficiency:
IEEE 802.3az Energy‑Efficient Ethernet reduces power consumption during low data activity.
- Diagnostics & Alerts:
Fault relay output (1 A @ 24 V DC), LED status indicators, system log, e‑mail/SNMP/Syslog alerts, and cable diagnostics (VeriPHY).
- Dual Power Inputs:
100–240 V AC input plus dual 36–72 V DC redundant inputs with overload and reverse‑polarity protection.
22 × 10/100/1000Base‑T(X) RJ‑45 ports, 2 × Gigabit combo ports (10/100/1000Base‑T(X) + 100/1000Base‑X SFP), and 2 × dedicated 100/1000Base‑X SFP ports.
Total of 26 Gigabit interfaces for copper and fiber connectivity.
- Industrial‑Grade Managed Platform:
Designed for mission‑critical industrial Ethernet, power substations, and rolling‑stock applications.
Rugged 19‑inch rack‑mount steel enclosure with extended temperature operation from –40 °C to +75 °C.
- Advanced Redundancy Technologies:
Supports ORing’s proprietary O‑Ring (< 30 ms recovery over 250 nodes), Open‑Ring (interoperability with third‑party rings), O‑Chain (multi‑ring chaining), MRP (IEC 62439‑2 Media Redundancy Protocol), Fast Recovery, and MSTP/RSTP/STP for multi‑layer redundancy.
- Comprehensive Management:
Web GUI, Telnet, RS‑232 CLI, and Open‑Vision Windows utility for centralized monitoring.
SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, NTP, DHCP Server/Client/Relay, and SMTP alarm notification.
- Enhanced Security Suite:
IEEE 802.1x authentication (single/multiple), MAC‑based authentication, TACACS+, RADIUS, HTTPS/SSH, SNMPv3 encryption, IP Source Guard, Device Binding, and hardware‑based DoS/DDoS auto‑prevention.
- Quality of Service & Traffic Control:
8 priority queues, 802.1p CoS, DiffServ/ToS, application‑based QoS, IP‑based bandwidth management, storm control, and DSCP translation.
- Energy Efficiency:
IEEE 802.3az Energy‑Efficient Ethernet reduces power consumption during low data activity.
- Diagnostics & Alerts:
Fault relay output (1 A @ 24 V DC), LED status indicators, system log, e‑mail/SNMP/Syslog alerts, and cable diagnostics (VeriPHY).
- Dual Power Inputs:
100–240 V AC input plus dual 36–72 V DC redundant inputs with overload and reverse‑polarity protection.
Comprehensive Product Summary – ORing RGS‑92222GCP‑NP‑E Managed Industrial Rack‑Mount Gigabit Ethernet Switch
### 1. Product Overview
Product Name: RGS‑92222GCP‑NP‑E
Model / Article Number: RGS‑92222GCP‑NP‑E
Series: RGS‑92222GCP‑NP Series
Manufacturer: ORing Industrial Networking Corp.
Product Type: Managed Industrial Rack‑Mount Gigabit Ethernet Switch
Version: Hardware/firmware v1.0 (October 2015)
Manufacturer Contact:
ORing Industrial Networking Corp., 3F., No.542‑2, JhongJheng Rd., Sindian District, New Taipei City 231, Taiwan
Tel: +886‑2‑2218‑1066 Fax: +886‑2‑2218‑1014 Website: [www.oring-networking.com](http://www.oring-networking.com)
### 2. Key Features
- High‑Density Gigabit Switching:
22 × 10/100/1000Base‑T(X) RJ‑45 ports, 2 × Gigabit combo ports (10/100/1000Base‑T(X) + 100/1000Base‑X SFP), and 2 × dedicated 100/1000Base‑X SFP ports.
Total of 26 Gigabit interfaces for copper and fiber connectivity.
- Industrial‑Grade Managed Platform:
Designed for mission‑critical industrial Ethernet, power substations, and rolling‑stock applications.
Rugged 19‑inch rack‑mount steel enclosure with extended temperature operation from –40 °C to +75 °C.
- Advanced Redundancy Technologies:
Supports ORing’s proprietary O‑Ring (< 30 ms recovery over 250 nodes), Open‑Ring (interoperability with third‑party rings), O‑Chain (multi‑ring chaining), MRP (IEC 62439‑2 Media Redundancy Protocol), Fast Recovery, and MSTP/RSTP/STP for multi‑layer redundancy.
- Comprehensive Management:
Web GUI, Telnet, RS‑232 CLI, and Open‑Vision Windows utility for centralized monitoring.
SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, NTP, DHCP Server/Client/Relay, and SMTP alarm notification.
- Enhanced Security Suite:
IEEE 802.1x authentication (single/multiple), MAC‑based authentication, TACACS+, RADIUS, HTTPS/SSH, SNMPv3 encryption, IP Source Guard, Device Binding, and hardware‑based DoS/DDoS auto‑prevention.
- Quality of Service & Traffic Control:
8 priority queues, 802.1p CoS, DiffServ/ToS, application‑based QoS, IP‑based bandwidth management, storm control, and DSCP translation.
- Energy Efficiency:
IEEE 802.3az Energy‑Efficient Ethernet reduces power consumption during low data activity.
- Diagnostics & Alerts:
Fault relay output (1 A @ 24 V DC), LED status indicators, system log, e‑mail/SNMP/Syslog alerts, and cable diagnostics (VeriPHY).
- Dual Power Inputs:
100–240 V AC input plus dual 36–72 V DC redundant inputs with overload and reverse‑polarity protection.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ethernet Ports | 22 × 10/100/1000Base‑T(X) RJ‑45 Auto MDI/MDIX |
| Combo Ports | 2 × Gigabit Combo (10/100/1000Base‑T(X) + 100/1000Base‑X SFP) |
| SFP Ports | 2 × 100/1000Base‑X SFP slots with DDM |
| Switching Capacity | 52 Gbps non‑blocking |
| Switching Latency | 7 µs (store‑and‑forward) |
| MAC Address Table | 8 K entries |
| Priority Queues | 8 |
| VLANs | 4095 (max), VID 1–4094 |
| IGMP Groups | 256 per VLAN |
| Jumbo Frame | Up to 9.6 KB |
| Processing | Store‑and‑Forward architecture |
| Power Input | 100–240 V AC (50/60 Hz) and dual 36–72 V DC inputs via 6‑pin terminal block |
| Power Consumption | 23 W typical |
| Protection | Overload current protection; reverse polarity protection on DC inputs |
| Enclosure | 19‑inch rack‑mount metal housing |
| Dimensions (W × D × H) | 431 × 342 × 44 mm (17 × 13.46 × 1.73 in) |
| Weight | 4.36 kg |
| Operating Temperature | –40 °C to +75 °C (–40 °F to +167 °F) |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Humidity | 5 % – 95 % non‑condensing |
| EMI Compliance | FCC Part 15 Class A, EN 55022 Class A |
| EMS Compliance | EN 61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11 |
| Shock / Vibration / Drop | IEC 60068‑2‑27 / ‑6 / ‑32 |
| Safety | EN 60950‑1 |
| Warranty | 5 years limited hardware warranty |
### 4. Functionality and Applications
Operation Principle:
The RGS‑92222GCP‑NP‑E functions as a Layer 2 managed Gigabit switch providing high‑speed packet forwarding, VLAN segmentation, redundancy, and security for industrial networks. It supports store‑and‑forward switching with full‑duplex flow control and link aggregation.
Typical Use Cases:
- Power substation automation and SCADA backbones
- Railway and rolling‑stock Ethernet networks
- Industrial control systems and factory automation
- IP surveillance and NVR deployments
- Energy and utility communication networks
- Redundant fiber‑ring topologies for mission‑critical uptime
Compatibility:
Compliant with IEEE 802.3 standards; interoperable with standard Ethernet devices, SFP transceivers, and third‑party ring protocols via Open‑Ring.
### 5. Components & Accessories
Included in Package:
- RGS‑92222GCP‑NP‑E switch unit
- Rack‑mount kit (L & R brackets + screws)
- AC power cord
- RS‑232 console cable (DB‑9 female to RJ‑45)
- Quick Installation Guide and CD manual
Optional Accessories:
- SFP transceivers (100 M or 1 G fiber modules)
- DC power terminal connectors
- Open‑Vision management software license
Connectors:
- 26 × RJ‑45/SFP network interfaces
- 1 × DB‑9 RS‑232 console port (115200 bps, 8‑N‑1)
- 6‑pin terminal block for dual DC inputs and relay output
- Standard IEC AC inlet
### 6. Installation & Setup
Mounting:
Standard 1U 19‑inch rack mount. Attach the supplied brackets to each side and secure to rack rails with screws. Ensure adequate airflow and ambient temperature below 75 °C.
Power Connection:
- AC Input: Connect 100–240 V AC power cord to rear IEC socket.
- DC Input (RGS‑92222GCP‑NP‑E only): Connect 36–72 V DC redundant inputs to V+/V– terminals (PWR1/PWR2). Tighten screws to secure wires.
- Relay Contact: 1 A @ 24 V DC dry contact for fault alarm integration.
- Grounding: Connect chassis ground to earth to reduce EMI.
Network Cabling:
- 10/100/1000Base‑T(X): Cat 5e UTP ≤ 100 m.
- 100/1000Base‑X SFP: fiber per SFP specification.
- Auto MDI/MDI‑X supported on all RJ‑45 ports.
Configuration Access:
- Default IP: 192.168.10.1 / 255.255.255.0
- Default Gateway: 192.168.10.254
- Username/Password: admin / admin
Access via Web browser, Telnet, or RS‑232 console. Supports CLI commands for advanced configuration.
### 7. Performance & Capabilities
- Throughput: 52 Gbps switching fabric ensures wire‑speed forwarding on all ports.
- Latency: 7 µs typical for 64‑byte frames.
- Redundancy Recovery: < 30 ms (O‑Ring) across 250 nodes.
- QoS: 8 hardware queues with strict priority or weighted round‑robin scheduling.
- Bandwidth Control: Per‑port rate limiting and IP‑based bandwidth allocation.
- Security Throughput: Hardware DoS/DDoS filtering and MAC/IP binding without performance degradation.
- Jumbo Frame Support: Up to 9.6 KB for high‑throughput data streams.
- Reliability: Dual power inputs and fault relay ensure continuous operation in industrial environments.
Limitations:
Layer 2 switching only (no Layer 3 routing); SFP modules not included; maximum 250 nodes per O‑Ring topology.
### 8. Standards & Compliance
IEEE Standards Supported:
- 802.3 (10Base‑T)
- 802.3u (100Base‑TX/FX)
- 802.3ab (1000Base‑T)
- 802.3z (1000Base‑X)
- 802.3x (Flow Control)
- 802.3ad (Link Aggregation Control Protocol)
- 802.1p (Class of Service)
- 802.1Q (VLAN Tagging)
- 802.1w (RSTP) / 802.1s (MSTP)
- 802.1x (Port Authentication)
- 802.1AB (LLDP)
- 802.3az (Energy‑Efficient Ethernet)
Environmental & Safety Compliance:
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2/‑3/‑4/‑5/‑6/‑8/‑11
- Shock/Vibration: IEC 60068‑2‑27/‑6/‑32
- Safety: EN 60950‑1
- Operating Temperature: –40 °C to +75 °C industrial grade
Industry Protocols:
O‑Ring, Open‑Ring, O‑Chain, MRP (IEC 62439‑2), MSTP, RSTP, STP, Modbus TCP, SNMP v3, LLDP, NTP, DHCP, DNS, SMTP.
### 9. Additional Information
Warranty & Support:
5‑year limited hardware warranty covering defects in materials and workmanship. Repairs or replacements handled through authorized distributors. Warranty void for misuse or unauthorized modifications.
Maintenance:
Periodic firmware updates available via Web interface or CLI. Supports configuration backup/restore (XML format) and factory reset via front panel button or software command.
Monitoring & Diagnostics:
- Real‑time port statistics and MAC table monitoring
- Cable diagnostics (VeriPHY) for pair status and length
- SFP DDM temperature and optical power monitoring
- System log and event notification via Syslog or SMTP
- Ping and loop protection tools for network troubleshooting
Firmware Management:
Supports HTTP/TFTP firmware upgrade and Open‑Vision centralized update utility.
Security Maintenance:
802.1x and RADIUS authentication for user access; HTTPS/SSH for encrypted management; SNMPv3 for secure monitoring.
Support Resources:
Technical support via [support@oring-networking.com](mailto:support@oring-networking.com)
Sales inquiries via [sales@oring-networking.com](mailto:sales@oring-networking.com)
### Summary
The ORing RGS‑92222GCP‑NP‑E is a fully managed, industrial‑grade, rack‑mount Gigabit Ethernet switch engineered for high‑availability networks in harsh environments. With 26 Gigabit ports, dual AC/DC redundant power, and comprehensive management and security features, it delivers deterministic performance and rapid recovery (< 30 ms) for mission‑critical applications. Compliance with IEEE and IEC standards, robust EMC immunity, and a wide temperature range ensure reliable operation in industrial automation, transportation, and energy systems. Its combination of redundant ring technologies, advanced QoS, and secure management interfaces makes it a versatile core or aggregation switch for industrial Ethernet deployments.
### 1. Product Overview
Product Name: RGS‑92222GCP‑NP‑E
Model / Article Number: RGS‑92222GCP‑NP‑E
Series: RGS‑92222GCP‑NP Series
Manufacturer: ORing Industrial Networking Corp.
Product Type: Managed Industrial Rack‑Mount Gigabit Ethernet Switch
Version: Hardware/firmware v1.0 (October 2015)
Manufacturer Contact:
ORing Industrial Networking Corp., 3F., No.542‑2, JhongJheng Rd., Sindian District, New Taipei City 231, Taiwan
Tel: +886‑2‑2218‑1066 Fax: +886‑2‑2218‑1014 Website: [www.oring-networking.com](http://www.oring-networking.com)
### 2. Key Features
- High‑Density Gigabit Switching:
22 × 10/100/1000Base‑T(X) RJ‑45 ports, 2 × Gigabit combo ports (10/100/1000Base‑T(X) + 100/1000Base‑X SFP), and 2 × dedicated 100/1000Base‑X SFP ports.
Total of 26 Gigabit interfaces for copper and fiber connectivity.
- Industrial‑Grade Managed Platform:
Designed for mission‑critical industrial Ethernet, power substations, and rolling‑stock applications.
Rugged 19‑inch rack‑mount steel enclosure with extended temperature operation from –40 °C to +75 °C.
- Advanced Redundancy Technologies:
Supports ORing’s proprietary O‑Ring (< 30 ms recovery over 250 nodes), Open‑Ring (interoperability with third‑party rings), O‑Chain (multi‑ring chaining), MRP (IEC 62439‑2 Media Redundancy Protocol), Fast Recovery, and MSTP/RSTP/STP for multi‑layer redundancy.
- Comprehensive Management:
Web GUI, Telnet, RS‑232 CLI, and Open‑Vision Windows utility for centralized monitoring.
SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, NTP, DHCP Server/Client/Relay, and SMTP alarm notification.
- Enhanced Security Suite:
IEEE 802.1x authentication (single/multiple), MAC‑based authentication, TACACS+, RADIUS, HTTPS/SSH, SNMPv3 encryption, IP Source Guard, Device Binding, and hardware‑based DoS/DDoS auto‑prevention.
- Quality of Service & Traffic Control:
8 priority queues, 802.1p CoS, DiffServ/ToS, application‑based QoS, IP‑based bandwidth management, storm control, and DSCP translation.
- Energy Efficiency:
IEEE 802.3az Energy‑Efficient Ethernet reduces power consumption during low data activity.
- Diagnostics & Alerts:
Fault relay output (1 A @ 24 V DC), LED status indicators, system log, e‑mail/SNMP/Syslog alerts, and cable diagnostics (VeriPHY).
- Dual Power Inputs:
100–240 V AC input plus dual 36–72 V DC redundant inputs with overload and reverse‑polarity protection.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ethernet Ports | 22 × 10/100/1000Base‑T(X) RJ‑45 Auto MDI/MDIX |
| Combo Ports | 2 × Gigabit Combo (10/100/1000Base‑T(X) + 100/1000Base‑X SFP) |
| SFP Ports | 2 × 100/1000Base‑X SFP slots with DDM |
| Switching Capacity | 52 Gbps non‑blocking |
| Switching Latency | 7 µs (store‑and‑forward) |
| MAC Address Table | 8 K entries |
| Priority Queues | 8 |
| VLANs | 4095 (max), VID 1–4094 |
| IGMP Groups | 256 per VLAN |
| Jumbo Frame | Up to 9.6 KB |
| Processing | Store‑and‑Forward architecture |
| Power Input | 100–240 V AC (50/60 Hz) and dual 36–72 V DC inputs via 6‑pin terminal block |
| Power Consumption | 23 W typical |
| Protection | Overload current protection; reverse polarity protection on DC inputs |
| Enclosure | 19‑inch rack‑mount metal housing |
| Dimensions (W × D × H) | 431 × 342 × 44 mm (17 × 13.46 × 1.73 in) |
| Weight | 4.36 kg |
| Operating Temperature | –40 °C to +75 °C (–40 °F to +167 °F) |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Humidity | 5 % – 95 % non‑condensing |
| EMI Compliance | FCC Part 15 Class A, EN 55022 Class A |
| EMS Compliance | EN 61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11 |
| Shock / Vibration / Drop | IEC 60068‑2‑27 / ‑6 / ‑32 |
| Safety | EN 60950‑1 |
| Warranty | 5 years limited hardware warranty |
### 4. Functionality and Applications
Operation Principle:
The RGS‑92222GCP‑NP‑E functions as a Layer 2 managed Gigabit switch providing high‑speed packet forwarding, VLAN segmentation, redundancy, and security for industrial networks. It supports store‑and‑forward switching with full‑duplex flow control and link aggregation.
Typical Use Cases:
- Power substation automation and SCADA backbones
- Railway and rolling‑stock Ethernet networks
- Industrial control systems and factory automation
- IP surveillance and NVR deployments
- Energy and utility communication networks
- Redundant fiber‑ring topologies for mission‑critical uptime
Compatibility:
Compliant with IEEE 802.3 standards; interoperable with standard Ethernet devices, SFP transceivers, and third‑party ring protocols via Open‑Ring.
### 5. Components & Accessories
Included in Package:
- RGS‑92222GCP‑NP‑E switch unit
- Rack‑mount kit (L & R brackets + screws)
- AC power cord
- RS‑232 console cable (DB‑9 female to RJ‑45)
- Quick Installation Guide and CD manual
Optional Accessories:
- SFP transceivers (100 M or 1 G fiber modules)
- DC power terminal connectors
- Open‑Vision management software license
Connectors:
- 26 × RJ‑45/SFP network interfaces
- 1 × DB‑9 RS‑232 console port (115200 bps, 8‑N‑1)
- 6‑pin terminal block for dual DC inputs and relay output
- Standard IEC AC inlet
### 6. Installation & Setup
Mounting:
Standard 1U 19‑inch rack mount. Attach the supplied brackets to each side and secure to rack rails with screws. Ensure adequate airflow and ambient temperature below 75 °C.
Power Connection:
- AC Input: Connect 100–240 V AC power cord to rear IEC socket.
- DC Input (RGS‑92222GCP‑NP‑E only): Connect 36–72 V DC redundant inputs to V+/V– terminals (PWR1/PWR2). Tighten screws to secure wires.
- Relay Contact: 1 A @ 24 V DC dry contact for fault alarm integration.
- Grounding: Connect chassis ground to earth to reduce EMI.
Network Cabling:
- 10/100/1000Base‑T(X): Cat 5e UTP ≤ 100 m.
- 100/1000Base‑X SFP: fiber per SFP specification.
- Auto MDI/MDI‑X supported on all RJ‑45 ports.
Configuration Access:
- Default IP: 192.168.10.1 / 255.255.255.0
- Default Gateway: 192.168.10.254
- Username/Password: admin / admin
Access via Web browser, Telnet, or RS‑232 console. Supports CLI commands for advanced configuration.
### 7. Performance & Capabilities
- Throughput: 52 Gbps switching fabric ensures wire‑speed forwarding on all ports.
- Latency: 7 µs typical for 64‑byte frames.
- Redundancy Recovery: < 30 ms (O‑Ring) across 250 nodes.
- QoS: 8 hardware queues with strict priority or weighted round‑robin scheduling.
- Bandwidth Control: Per‑port rate limiting and IP‑based bandwidth allocation.
- Security Throughput: Hardware DoS/DDoS filtering and MAC/IP binding without performance degradation.
- Jumbo Frame Support: Up to 9.6 KB for high‑throughput data streams.
- Reliability: Dual power inputs and fault relay ensure continuous operation in industrial environments.
Limitations:
Layer 2 switching only (no Layer 3 routing); SFP modules not included; maximum 250 nodes per O‑Ring topology.
### 8. Standards & Compliance
IEEE Standards Supported:
- 802.3 (10Base‑T)
- 802.3u (100Base‑TX/FX)
- 802.3ab (1000Base‑T)
- 802.3z (1000Base‑X)
- 802.3x (Flow Control)
- 802.3ad (Link Aggregation Control Protocol)
- 802.1p (Class of Service)
- 802.1Q (VLAN Tagging)
- 802.1w (RSTP) / 802.1s (MSTP)
- 802.1x (Port Authentication)
- 802.1AB (LLDP)
- 802.3az (Energy‑Efficient Ethernet)
Environmental & Safety Compliance:
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2/‑3/‑4/‑5/‑6/‑8/‑11
- Shock/Vibration: IEC 60068‑2‑27/‑6/‑32
- Safety: EN 60950‑1
- Operating Temperature: –40 °C to +75 °C industrial grade
Industry Protocols:
O‑Ring, Open‑Ring, O‑Chain, MRP (IEC 62439‑2), MSTP, RSTP, STP, Modbus TCP, SNMP v3, LLDP, NTP, DHCP, DNS, SMTP.
### 9. Additional Information
Warranty & Support:
5‑year limited hardware warranty covering defects in materials and workmanship. Repairs or replacements handled through authorized distributors. Warranty void for misuse or unauthorized modifications.
Maintenance:
Periodic firmware updates available via Web interface or CLI. Supports configuration backup/restore (XML format) and factory reset via front panel button or software command.
Monitoring & Diagnostics:
- Real‑time port statistics and MAC table monitoring
- Cable diagnostics (VeriPHY) for pair status and length
- SFP DDM temperature and optical power monitoring
- System log and event notification via Syslog or SMTP
- Ping and loop protection tools for network troubleshooting
Firmware Management:
Supports HTTP/TFTP firmware upgrade and Open‑Vision centralized update utility.
Security Maintenance:
802.1x and RADIUS authentication for user access; HTTPS/SSH for encrypted management; SNMPv3 for secure monitoring.
Support Resources:
Technical support via [support@oring-networking.com](mailto:support@oring-networking.com)
Sales inquiries via [sales@oring-networking.com](mailto:sales@oring-networking.com)
### Summary
The ORing RGS‑92222GCP‑NP‑E is a fully managed, industrial‑grade, rack‑mount Gigabit Ethernet switch engineered for high‑availability networks in harsh environments. With 26 Gigabit ports, dual AC/DC redundant power, and comprehensive management and security features, it delivers deterministic performance and rapid recovery (< 30 ms) for mission‑critical applications. Compliance with IEEE and IEC standards, robust EMC immunity, and a wide temperature range ensure reliable operation in industrial automation, transportation, and energy systems. Its combination of redundant ring technologies, advanced QoS, and secure management interfaces makes it a versatile core or aggregation switch for industrial Ethernet deployments.
-
RGS-92222GCP-NP-E.pdf
PDF Catalog
No accessories available.
