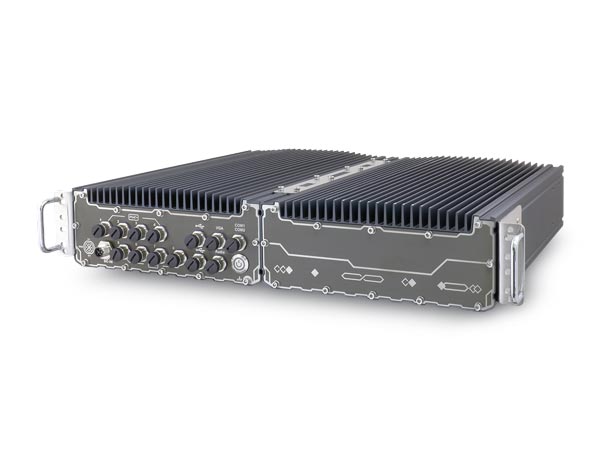

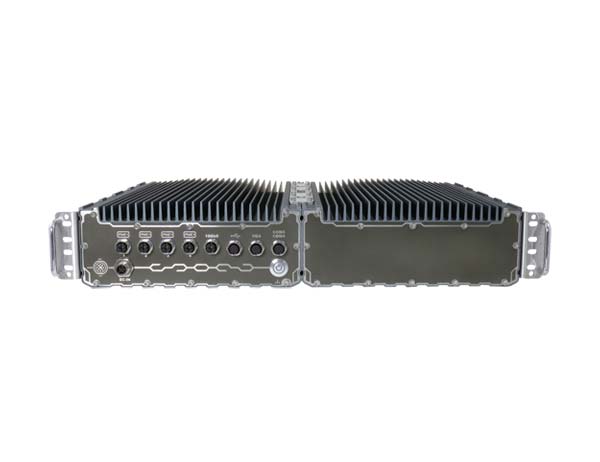

IP67 fanless edge AI computer with NVIDIA L4 and eight M12 PoE+ ports.

SEMIL-1748GC-ADA

IP67 fanless edge AI computer with NVIDIA L4 and eight M12 PoE+ ports.

Request a quote

Manufacturer Neousys Technology
Category: Industrial Computer
The SEMIL-1748GC-ADA combines an NVIDIA L4 with a fanless, waterproof IP67 platform for powerful AI inference at the edge. Support for Intel Xeon E or 9th/8th Gen Core processors complements the GPU acceleration. Eight Gigabit PoE+ ports using M12 X-coded connectors accommodate extensive camera and sensor configurations. VGA, USB, COM and audio are also available through M12 connections. The 2U 19-inch system supports up to 64 GB DDR4 plus NVMe, mSATA and SATA storage, and provides an 8 to 48 VDC input with ignition control.

IP67 waterproof and dustproof fanless GPU computer with NVIDIA L4, Intel Xeon E or 9th/8th Gen Core CPU support, eight Gigabit PoE+ ports, M12 connectivity, up to 64 GB DDR4, NVMe and SATA storage, 8–48 VDC input, ignition control and rack or wall mounting.

GPU NVIDIA L4
Gigabit PoE+ Ports 8 ports
External USB 2.0 Ports 4 ports
Audio Interfaces Microphone input and speaker output
Ingress Protection IP67
Maximum System Memory 64 GB
Weight 12.2 kg
Form Factor Fanless 2U 19-inch rack/wall-mount computer
Connector M12 X-coded Ethernet; M12 A-coded VGA/USB/COM/audio; M12 S-coded DC input
Dimensions 440 x 310 x 90.5 mm
Humidity Range 10–90 non-condensing % RH
Operating Temperature -40°C to 70°C with 35 W CPU; up to 50°C with specified CPUs at 65 W mode
Bus Interface 2x full-size mini PCIe; M.2 PCIe Gen3 x4
Analog Input Microphone input via M12 A-coded connector
Analog Output Speaker output via M12 A-coded connector
Resolution VGA up to 1920 x 1200
Key Features IP67 waterproof and dustproof;NVIDIA L4;8x Gigabit PoE+;fanless operation;audio I/O;8–48 VDC input;MIL-STD-810G;EN 50155 EMC;M12 connectors
Accessories PA-280W-ET2, Cblkit-M12
