Comprehensive Product Summary – RAYON SP2401 PoE Splitter IEEE 802.3at 24W
### 1. Product Overview
Product Name: Power over Ethernet (PoE) Splitter
Model: SP2401
Series: RAYON PoE Product Line
Article Number: SP2401
Manufacturer: RAYON Technology Co., Ltd.
Manufacturer Address: 2F, No. 177, Chung Shan 2 Rd., Lu Chou City, Taipei Hsien, Taiwan
Contact:
- Tel: +886-2-82858362
- Fax: +886-2-82857065
- Email: rayon@ms1.hinet.net
- Websites: [www.computex.com.tw/rayon](http://www.computex.com.tw/rayon), [www.rayontech.com](http://www.rayontech.com)
Product Description:
The RAYON SP2401 is a high-performance IEEE 802.3at-compliant Power over Ethernet (PoE) splitter designed to deliver up to 24W of DC power to non-PoE network devices. It enables legacy or non-PoE equipment to be powered through a PoE-enabled network infrastructure, eliminating the need for separate power adapters. The SP2401 supports Gigabit Ethernet (GbE) data throughput and provides a regulated 12.5VDC output at up to 1.9A. It is engineered for reliability, safety, and ease of integration in industrial, commercial, and embedded network applications.
### 2. Key Features
- IEEE 802.3at PD Class 4 Compliance:
Fully compliant with IEEE 802.3at (PoE+) standard, supporting up to 24W output power for high-demand devices.
- High Power Output:
Provides up to 1.9A at 12.5VDC, suitable for powering devices such as IP cameras, wireless access points, embedded controllers, and industrial sensors.
- Wide Input Voltage Range:
Accepts DC input from 36V to 57V, ensuring compatibility with a broad range of PoE power sourcing equipment (PSE).
- Embedded Passive Gigabit RJ45 Interface:
Integrated RJ45 connectors support 10/100/1000 Mbps Ethernet data transmission without signal degradation.
- Dual Power Architecture Support:
Compatible with both “Power over Spare Lines” and “Power over Data Lines” configurations, ensuring flexibility across different network infrastructures.
- Advanced Auto-Sensing Algorithm:
Automatically detects IEEE 802.3at-compliant power sources and draws power only from compatible PoE hubs, preventing damage from non-PoE connections.
- Short Circuit Protection:
Built-in protection circuitry ensures safe operation and prevents damage to connected devices in case of electrical faults.
- Compact Design:
PCB dimensions of 50.8 mm × 102 mm (5.08 × 10.2 cm) allow easy integration into space-constrained systems.
- Operating Temperature Range:
Designed for reliable operation in environments from -15°C to +50°C.
- Event Classification Indication:
Supports IEEE 802.3at D4.1 event classification indication pin for advanced power negotiation and monitoring.
- High Reliability and Safety:
Industrial-grade design ensures stable performance under continuous operation.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | SP2401 |
| Type | Power over Ethernet (PoE) Splitter |
| Standard Compliance | IEEE 802.3at (PoE+), PD Class 4 |
| Input Voltage Range | 36VDC – 57VDC |
| Output Voltage | 12.5VDC |
| Maximum Output Current | 1.9A |
| Maximum Output Power | 24W |
| Ethernet Interface | Embedded Passive Gigabit RJ45 (10/100/1000 Mbps) |
| Power Architecture | Power over Spare Lines / Power over Data Lines |
| Protection Features | Short circuit protection, auto-sensing power detection |
| Event Classification | IEEE 802.3at D4.1 Event Classification Indication |
| Operating Temperature | -15°C to +50°C |
| Dimensions | 50.8 mm × 102 mm |
| Weight | (Not specified; compact lightweight PCB design) |
| Material | PCB-based assembly with integrated RJ45 connectors |
| Mounting Type | Embedded or external inline installation |
| Manufacturer | RAYON Technology Co., Ltd. |
### 4. Functionality
The SP2401 PoE Splitter functions as an intermediary device that separates power and data transmitted over a single Ethernet cable. When connected to a PoE-enabled switch, injector, or hub, it extracts the DC power supplied through the Ethernet cable and converts it into a regulated 12.5VDC output suitable for powering non-PoE devices.
Operational Process:
1. Input Connection: The SP2401 receives combined power and data signals through its RJ45 PoE input port.
2. Power Extraction: The internal PoE interface identifies the presence of an IEEE 802.3at-compliant power source using an auto-sensing algorithm.
3. Voltage Conversion: The device converts the 36–57VDC input to a stable 12.5VDC output.
4. Data Pass-Through: Ethernet data is passed through to the output RJ45 port without interference.
5. Output Delivery: The regulated DC output is provided via a dedicated power connector to the connected non-PoE device.
Use Cases and Applications:
- Powering non-PoE IP cameras, VoIP phones, and wireless access points.
- Supplying power to embedded systems, industrial controllers, and IoT gateways.
- Enabling PoE functionality in legacy network devices.
- Integration into custom hardware designs requiring compact PoE power modules.
- Suitable for office networks, industrial automation, and remote monitoring systems.
Compatibility:
- Compatible with IEEE 802.3at (PoE+) and backward-compatible with IEEE 802.3af (PoE) systems.
- Works with RAYON PoE injectors (FPI400, FPI401, GPI4000, GPI4001) and PoE switches (GPS8075, GPS8180).
- Can be paired with RAYON PD1301 or PD2401 modules for integrated PoE device design.
### 5. Components & Accessories
Included Components:

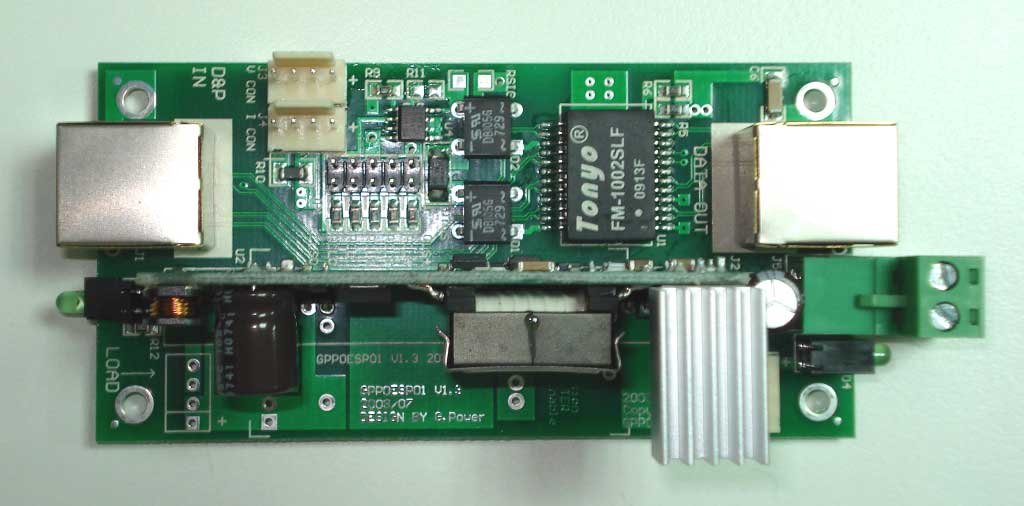

- SP2401 PoE Splitter main unit (PCB assembly with RJ45 connectors)
- Integrated RJ45 input/output ports for data and power separation
- DC output connector (12.5VDC)
Optional Accessories:
- PoE Injectors:
- *FPI400 / FPI401* – 10/100 Mbps injectors (Power over Spare Lines)
- *GPI4000 / GPI4001* – 10/100/1000 Mbps injectors (Power over Data Lines)
- PoE Switches:
- *GPS8075* – 8-port Gigabit PoE switch with 75W total power budget
- *GPS8180* – 8-port Gigabit PoE switch with 180W total power budget
- PoE Device Modules:
- *PD1301* – 13W IEEE 802.3af Class 0 module
- *PD2401* – 24W IEEE 802.3at Class 4 module
- Companion Splitter:
- *SP1301* – 13W PoE splitter for lower-power applications
Connectors:
- RJ45 (PoE In)
- RJ45 (Data Out)
- DC output terminal (12.5VDC)
### 6. Installation & Setup
Requirements:
- IEEE 802.3at-compliant PoE switch or injector as power source
- Standard Cat5e or Cat6 Ethernet cable
- Non-PoE device requiring 12.5VDC input
Installation Steps:
1. Connect PoE Input: Plug the Ethernet cable from the PoE switch or injector into the SP2401’s PoE input port.
2. Connect Data Output: Connect the SP2401’s data output RJ45 port to the non-PoE device’s Ethernet port.
3. Connect Power Output: Attach the 12.5VDC output connector to the device’s power input.
4. Power On: Once connected, the SP2401 automatically detects the PoE source and begins supplying power and data.
Mounting Options:
- Can be embedded within a device enclosure due to its compact PCB form factor.
- Suitable for inline installation between network cabling and end devices.
Configuration:
- No software configuration required; plug-and-play operation.
- Auto-sensing ensures compatibility with PoE+ power sources.
### 7. Performance & Capabilities
Power Delivery:
- Delivers up to 24W of power at 12.5VDC, sufficient for most medium-power network devices.
Efficiency:
- High conversion efficiency ensures minimal power loss during voltage regulation.
- Stable output voltage under varying load conditions.
Speed and Data Integrity:
- Supports full Gigabit Ethernet throughput (10/100/1000 Mbps) with negligible latency or packet loss.
- Maintains data integrity across long cable runs.
Capacity:
- Designed for single-device power delivery; multiple units can be deployed for multi-device networks.
Thermal Performance:
- Operates reliably within -15°C to +50°C ambient temperature range.
- Passive cooling design suitable for continuous operation.
Limitations:
- Maximum output limited to 24W; higher-power devices require IEEE 802.3bt (PoE++) solutions.
- Requires IEEE 802.3at-compliant PSE for full power output.
### 8. Standards & Compliance
Compliance Standards:
- IEEE 802.3at (PoE+) Power over Ethernet standard
- IEEE 802.3af backward compatibility
- IEEE 802.3at D4.1 Event Classification Indication
Safety and Protection:
- Integrated short circuit protection
- Auto-sensing power negotiation prevents overcurrent or incorrect voltage application
Industry Standards:
- Compatible with standard Ethernet cabling (Cat5e/Cat6)
- Supports both Power over Spare Pairs (Mode B) and Power over Data Pairs (Mode A)
Regulatory Compliance:
- Designed to meet international electrical safety and EMC standards (specific certifications not listed in source)
### 9. Additional Information
Warranty:
Standard manufacturer warranty (details available from RAYON Technology upon request).
Technical Support:
RAYON provides technical assistance via email and phone for installation, integration, and troubleshooting.
Maintenance:
- No periodic maintenance required.
- Ensure connectors are clean and free from dust or corrosion.
- Operate within specified temperature and voltage ranges for optimal lifespan.
Firmware/Hardware Updates:
As a passive hardware device, the SP2401 does not require firmware updates. Hardware revisions may be released by RAYON to enhance performance or compliance.
Related Products for System Integration:
- SP1301: 13W PoE splitter (IEEE 802.3af Class 0)
- PD1301 / PD2401: Embedded PoE device modules for new product designs
- FPI400 / FPI401 / GPI4000 / GPI4001: PoE injectors for non-PoE networks
- GPS8075 / GPS8180: PoE switches for integrated network environments
Manufacturer’s Vision:
RAYON Technology specializes in advanced PoE solutions that bridge the gap between legacy and modern network infrastructures, offering modular, scalable, and reliable power delivery systems for industrial and commercial applications.
### Summary
The RAYON SP2401 PoE Splitter is a robust, IEEE 802.3at-compliant device that enables non-PoE equipment to operate seamlessly within PoE-enabled networks. Delivering up to 24W at 12.5VDC, it supports Gigabit Ethernet, auto-sensing power negotiation, and short circuit protection within a compact 50.8 × 102 mm form factor. Its compatibility with both Power over Data Lines and Power over Spare Lines architectures ensures broad applicability across diverse network environments. Designed for reliability and ease of integration, the SP2401 is ideal for upgrading existing devices, powering embedded systems, and simplifying network power management in industrial, commercial, and IoT applications.
### 1. Product Overview
Product Name: Power over Ethernet (PoE) Splitter
Model: SP2401
Series: RAYON PoE Product Line
Article Number: SP2401
Manufacturer: RAYON Technology Co., Ltd.
Manufacturer Address: 2F, No. 177, Chung Shan 2 Rd., Lu Chou City, Taipei Hsien, Taiwan
Contact:
- Tel: +886-2-82858362
- Fax: +886-2-82857065
- Email: rayon@ms1.hinet.net
- Websites: [www.computex.com.tw/rayon](http://www.computex.com.tw/rayon), [www.rayontech.com](http://www.rayontech.com)
Product Description:
The RAYON SP2401 is a high-performance IEEE 802.3at-compliant Power over Ethernet (PoE) splitter designed to deliver up to 24W of DC power to non-PoE network devices. It enables legacy or non-PoE equipment to be powered through a PoE-enabled network infrastructure, eliminating the need for separate power adapters. The SP2401 supports Gigabit Ethernet (GbE) data throughput and provides a regulated 12.5VDC output at up to 1.9A. It is engineered for reliability, safety, and ease of integration in industrial, commercial, and embedded network applications.
### 2. Key Features
- IEEE 802.3at PD Class 4 Compliance:
Fully compliant with IEEE 802.3at (PoE+) standard, supporting up to 24W output power for high-demand devices.
- High Power Output:
Provides up to 1.9A at 12.5VDC, suitable for powering devices such as IP cameras, wireless access points, embedded controllers, and industrial sensors.
- Wide Input Voltage Range:
Accepts DC input from 36V to 57V, ensuring compatibility with a broad range of PoE power sourcing equipment (PSE).
- Embedded Passive Gigabit RJ45 Interface:
Integrated RJ45 connectors support 10/100/1000 Mbps Ethernet data transmission without signal degradation.
- Dual Power Architecture Support:
Compatible with both “Power over Spare Lines” and “Power over Data Lines” configurations, ensuring flexibility across different network infrastructures.
- Advanced Auto-Sensing Algorithm:
Automatically detects IEEE 802.3at-compliant power sources and draws power only from compatible PoE hubs, preventing damage from non-PoE connections.
- Short Circuit Protection:
Built-in protection circuitry ensures safe operation and prevents damage to connected devices in case of electrical faults.
- Compact Design:
PCB dimensions of 50.8 mm × 102 mm (5.08 × 10.2 cm) allow easy integration into space-constrained systems.
- Operating Temperature Range:
Designed for reliable operation in environments from -15°C to +50°C.
- Event Classification Indication:
Supports IEEE 802.3at D4.1 event classification indication pin for advanced power negotiation and monitoring.
- High Reliability and Safety:
Industrial-grade design ensures stable performance under continuous operation.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | SP2401 |
| Type | Power over Ethernet (PoE) Splitter |
| Standard Compliance | IEEE 802.3at (PoE+), PD Class 4 |
| Input Voltage Range | 36VDC – 57VDC |
| Output Voltage | 12.5VDC |
| Maximum Output Current | 1.9A |
| Maximum Output Power | 24W |
| Ethernet Interface | Embedded Passive Gigabit RJ45 (10/100/1000 Mbps) |
| Power Architecture | Power over Spare Lines / Power over Data Lines |
| Protection Features | Short circuit protection, auto-sensing power detection |
| Event Classification | IEEE 802.3at D4.1 Event Classification Indication |
| Operating Temperature | -15°C to +50°C |
| Dimensions | 50.8 mm × 102 mm |
| Weight | (Not specified; compact lightweight PCB design) |
| Material | PCB-based assembly with integrated RJ45 connectors |
| Mounting Type | Embedded or external inline installation |
| Manufacturer | RAYON Technology Co., Ltd. |
### 4. Functionality
The SP2401 PoE Splitter functions as an intermediary device that separates power and data transmitted over a single Ethernet cable. When connected to a PoE-enabled switch, injector, or hub, it extracts the DC power supplied through the Ethernet cable and converts it into a regulated 12.5VDC output suitable for powering non-PoE devices.
Operational Process:
1. Input Connection: The SP2401 receives combined power and data signals through its RJ45 PoE input port.
2. Power Extraction: The internal PoE interface identifies the presence of an IEEE 802.3at-compliant power source using an auto-sensing algorithm.
3. Voltage Conversion: The device converts the 36–57VDC input to a stable 12.5VDC output.
4. Data Pass-Through: Ethernet data is passed through to the output RJ45 port without interference.
5. Output Delivery: The regulated DC output is provided via a dedicated power connector to the connected non-PoE device.
Use Cases and Applications:
- Powering non-PoE IP cameras, VoIP phones, and wireless access points.
- Supplying power to embedded systems, industrial controllers, and IoT gateways.
- Enabling PoE functionality in legacy network devices.
- Integration into custom hardware designs requiring compact PoE power modules.
- Suitable for office networks, industrial automation, and remote monitoring systems.
Compatibility:
- Compatible with IEEE 802.3at (PoE+) and backward-compatible with IEEE 802.3af (PoE) systems.
- Works with RAYON PoE injectors (FPI400, FPI401, GPI4000, GPI4001) and PoE switches (GPS8075, GPS8180).
- Can be paired with RAYON PD1301 or PD2401 modules for integrated PoE device design.
### 5. Components & Accessories
Included Components:
- SP2401 PoE Splitter main unit (PCB assembly with RJ45 connectors)
- Integrated RJ45 input/output ports for data and power separation
- DC output connector (12.5VDC)
Optional Accessories:
- PoE Injectors:
- *FPI400 / FPI401* – 10/100 Mbps injectors (Power over Spare Lines)
- *GPI4000 / GPI4001* – 10/100/1000 Mbps injectors (Power over Data Lines)
- PoE Switches:
- *GPS8075* – 8-port Gigabit PoE switch with 75W total power budget
- *GPS8180* – 8-port Gigabit PoE switch with 180W total power budget
- PoE Device Modules:
- *PD1301* – 13W IEEE 802.3af Class 0 module
- *PD2401* – 24W IEEE 802.3at Class 4 module
- Companion Splitter:
- *SP1301* – 13W PoE splitter for lower-power applications
Connectors:
- RJ45 (PoE In)
- RJ45 (Data Out)
- DC output terminal (12.5VDC)
### 6. Installation & Setup
Requirements:
- IEEE 802.3at-compliant PoE switch or injector as power source
- Standard Cat5e or Cat6 Ethernet cable
- Non-PoE device requiring 12.5VDC input
Installation Steps:
1. Connect PoE Input: Plug the Ethernet cable from the PoE switch or injector into the SP2401’s PoE input port.
2. Connect Data Output: Connect the SP2401’s data output RJ45 port to the non-PoE device’s Ethernet port.
3. Connect Power Output: Attach the 12.5VDC output connector to the device’s power input.
4. Power On: Once connected, the SP2401 automatically detects the PoE source and begins supplying power and data.
Mounting Options:
- Can be embedded within a device enclosure due to its compact PCB form factor.
- Suitable for inline installation between network cabling and end devices.
Configuration:
- No software configuration required; plug-and-play operation.
- Auto-sensing ensures compatibility with PoE+ power sources.
### 7. Performance & Capabilities
Power Delivery:
- Delivers up to 24W of power at 12.5VDC, sufficient for most medium-power network devices.
Efficiency:
- High conversion efficiency ensures minimal power loss during voltage regulation.
- Stable output voltage under varying load conditions.
Speed and Data Integrity:
- Supports full Gigabit Ethernet throughput (10/100/1000 Mbps) with negligible latency or packet loss.
- Maintains data integrity across long cable runs.
Capacity:
- Designed for single-device power delivery; multiple units can be deployed for multi-device networks.
Thermal Performance:
- Operates reliably within -15°C to +50°C ambient temperature range.
- Passive cooling design suitable for continuous operation.
Limitations:
- Maximum output limited to 24W; higher-power devices require IEEE 802.3bt (PoE++) solutions.
- Requires IEEE 802.3at-compliant PSE for full power output.
### 8. Standards & Compliance
Compliance Standards:
- IEEE 802.3at (PoE+) Power over Ethernet standard
- IEEE 802.3af backward compatibility
- IEEE 802.3at D4.1 Event Classification Indication
Safety and Protection:
- Integrated short circuit protection
- Auto-sensing power negotiation prevents overcurrent or incorrect voltage application
Industry Standards:
- Compatible with standard Ethernet cabling (Cat5e/Cat6)
- Supports both Power over Spare Pairs (Mode B) and Power over Data Pairs (Mode A)
Regulatory Compliance:
- Designed to meet international electrical safety and EMC standards (specific certifications not listed in source)
### 9. Additional Information
Warranty:
Standard manufacturer warranty (details available from RAYON Technology upon request).
Technical Support:
RAYON provides technical assistance via email and phone for installation, integration, and troubleshooting.
Maintenance:
- No periodic maintenance required.
- Ensure connectors are clean and free from dust or corrosion.
- Operate within specified temperature and voltage ranges for optimal lifespan.
Firmware/Hardware Updates:
As a passive hardware device, the SP2401 does not require firmware updates. Hardware revisions may be released by RAYON to enhance performance or compliance.
Related Products for System Integration:
- SP1301: 13W PoE splitter (IEEE 802.3af Class 0)
- PD1301 / PD2401: Embedded PoE device modules for new product designs
- FPI400 / FPI401 / GPI4000 / GPI4001: PoE injectors for non-PoE networks
- GPS8075 / GPS8180: PoE switches for integrated network environments
Manufacturer’s Vision:
RAYON Technology specializes in advanced PoE solutions that bridge the gap between legacy and modern network infrastructures, offering modular, scalable, and reliable power delivery systems for industrial and commercial applications.
### Summary
The RAYON SP2401 PoE Splitter is a robust, IEEE 802.3at-compliant device that enables non-PoE equipment to operate seamlessly within PoE-enabled networks. Delivering up to 24W at 12.5VDC, it supports Gigabit Ethernet, auto-sensing power negotiation, and short circuit protection within a compact 50.8 × 102 mm form factor. Its compatibility with both Power over Data Lines and Power over Spare Lines architectures ensures broad applicability across diverse network environments. Designed for reliability and ease of integration, the SP2401 is ideal for upgrading existing devices, powering embedded systems, and simplifying network power management in industrial, commercial, and IoT applications.
-
SP2401_Catalog.pdf
PDF Catalog
-
PoE_product_line.pdf
PDF Catalog
No accessories available.
