Below is a comprehensive, detailed product summary following your required structure. Formatting avoids Markdown tables and heavy markup as requested.
---------------------------------------------------------------------
1. Product Overview

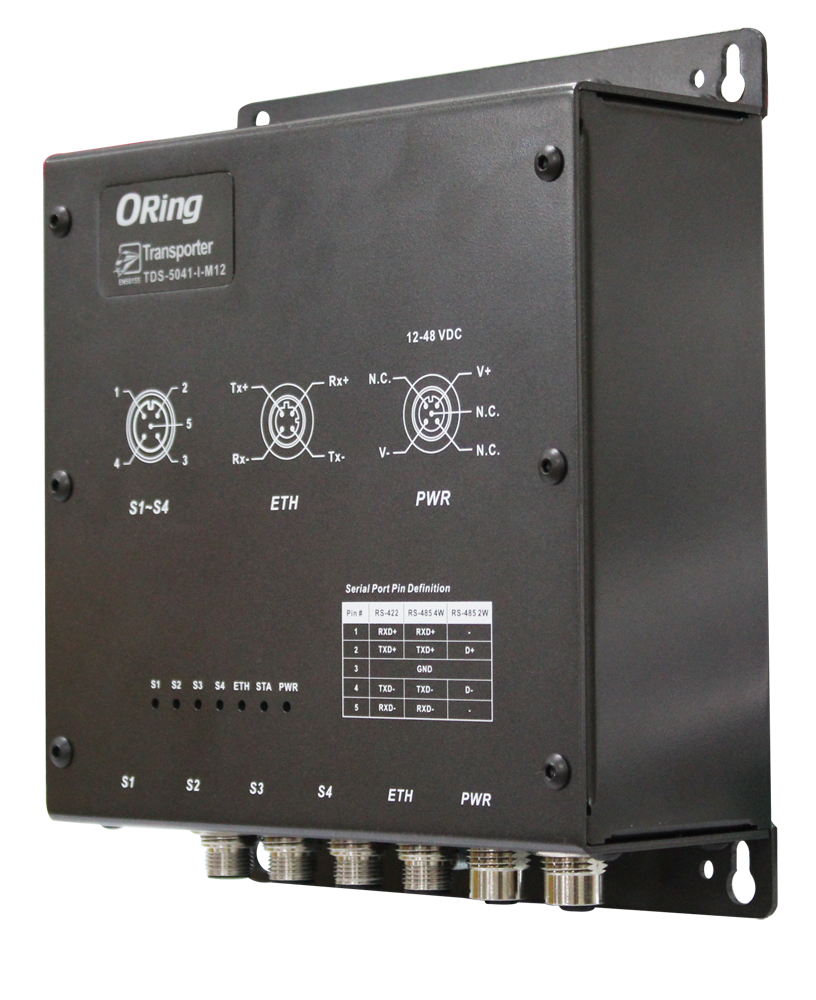

Product Name: TDS-5041-I-M12
Model: TDS-5041-I-M12
Series: ORing Industrial Device Server (TDS/IDS series)
Article Number: TDS-5041-I-M12
Manufacturer: ORing Industrial Networking Corp., Taiwan
Product Type: Industrial Secure Device Server with serial-to-Ethernet capability
Product Description: EN50155-compliant industrial secure device server with isolation, supporting 4 RS-422/485 serial ports and one 10/100Base‑T(X) Ethernet interface over an M12 connector. Designed for harsh environments, redundant power operation, serial‑to‑network integration, and secure remote management.
---------------------------------------------------------------------
2. Key Features
• Four isolated serial ports supporting RS‑422 and RS‑485 (2‑wire and 4‑wire) communication.
• One 10/100Base‑T(X) Ethernet port using M12 (D‑coding) for secure, vibration‑resistant industrial connections.
• Complies with EN50155 for railway applications and EN50121‑3‑2 for EMC railway standards.
• Designed for mission‑critical environments requiring redundant communication paths and serial device integration.
• Supports up to five simultaneous host connections via Virtual COM, TCP Server, or TCP Client modes.
• Security features include HTTPS, SSH, SSL data encryption, IP access control, and secure password protection.
• Robust NAT-pass-through function enabling remote management even behind NAT routers.
• Dual redundant 12–48 VDC input power via M12 connector with overload protection.
• Rugged IP40 metal enclosure suited for harsh, dusty, or electrically noisy environments.
• Wide operating temperature range: -40°C to 70°C; storage −40°C to 85°C.
• Configurable through DS‑Tool (Windows utility), web interface (HTTPS), or SSH/Telnet console.
• DIN rail or wall mounting for flexible industrial deployment.
• Event notification via SNMP trap, Syslog, Email, alarm relay, and beeper.
• Supports protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, PPPoE.
---------------------------------------------------------------------
3. Technical Specifications
Dimensions: 170 mm (W) x 65 mm (D) x 195 mm (H)
Weight: approximately 0.95 kg (950 g)
Enclosure Material: Metal, IP40-rated
Power Input: Dual 12–48 VDC (5‑pin M12 A‑coding, female)
Power Consumption: approx. 5.5 W
Serial Port Isolation: 2 kVDC
Serial Port Types:
• RS‑422 (4‑wire)
• RS‑485 (2‑wire and 4‑wire)
Serial Baud Rates: 110 bps to 460.8 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Mark, Space
Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
Serial Connector: M12 x 4 (5‑pin A‑coding, male)
Serial Pin Assignments:
• Pin 1: RXD+
• Pin 2: TXD+ or D+ (485)
• Pin 3: GND
• Pin 4: TXD– or D– (485)
• Pin 5: RXD–
Ethernet Connector: 4‑pin M12 D-coding (10/100Base‑T(X))
Network Cable Support: Cat 3/4/5/5e UTP (100 m max)
MDI/MDI-X: Auto sensing
Environmental Specs:
• Operating Temperature: −40°C to +70°C
• Storage Temperature: −40°C to +85°C
• Operating Humidity: 5 to 95%, non‑condensing
Shock and Vibration:
• Shock: IEC 60068‑2‑27, EN61373
• Vibration: IEC 60068‑2‑6, EN61373
• Free Fall: IEC60068‑2‑32
---------------------------------------------------------------------
4. Functionality
Operational Purpose: Enables legacy serial devices (e.g., sensors, PLCs, meters, controllers) to communicate over modern IP networks. Converts serial protocols to Ethernet TCP/UDP communications and supports remote management of industrial equipment.
Serial-to-Network Conversion Modes:
• Virtual COM Mode: Maps remote serial ports to local COM ports on a Windows host; supports up to 5 simultaneous COM users.
• TCP Server Mode: Listens for incoming TCP connections; up to 5 clients.
• TCP Client Mode: Initiates TCP connections based on startup or data‑trigger events.
• UDP Mode: Provides high‑speed low‑latency broadcast, unicast, or multicast transmission.
• Serial Tunnel Mode (via DS‑Tool): Transparent serial bridging over IP.
Data Handling:
• Configurable delimiters for packet framing (up to four hex delimiters).
• Configurable flush timers for Serial‑to‑Ethernet and Ethernet‑to‑Serial data buffers (0–65535 seconds).
• Force TX interval timer for transmission optimization.
• Performance modes optimized for throughput or latency.
Management & Configuration Interfaces:
• DS‑Tool Windows utility (discovery, grouping, firmware updates).
• Web browser via HTTPS.
• SSH console access (secure).
• Telnet (optional, can be disabled).
Use Cases:
• Railway and transportation systems (EN50155 certified).
• Industrial automation, SCADA, production lines.
• Energy and power monitoring systems.
• Remote device management across NAT networks.
• Machine‑to‑machine communication and data acquisition.
Compatibility:
• Windows OS: NT, 2000, XP, 2003, Vista (32/64), Windows 7 (32/64), Windows 8 (32/64).
• Supports DDNS, PPPoE, and multi-host environments.
---------------------------------------------------------------------
5. Components & Accessories
Included:
• TDS‑5041‑I‑M12 device server
• Wall‑mounting panel
• Documentation (user manual)
• LEDs indicating power, link/activity, serial TX/RX
• M12 connectors for Ethernet and power
Optional (not included but supported):
• DIN rail brackets
• M12-to-RJ45 adapters (industrial Ethernet deployment)
• Custom serial cables for RS‑422/485 wiring
• External power supply (12–48 VDC)
Connectors:
• Power: 5-pin M12 female (A-coding)
• Ethernet: 4-pin M12 female (D-coding)
• Serial: Four 5-pin M12 male (A-coding)
---------------------------------------------------------------------
6. Installation & Setup
Mounting Options:
• Wall mounting (mounting plate included)
• DIN rail mounting (optional accessory)
Setup Requirements:
• 12–48 VDC power input
• Appropriate M12 cabling for power and Ethernet
• Compatible RS‑422/485 wiring
• PC or laptop running DS‑Tool for discovery and configuration
Configuration Steps:
• Connect power and network.
• Discover via DS‑Tool (default IP: 192.168.10.2).
• Assign IP (Static or DHCP) and configure network parameters.
• Select serial mode and set baud rate, parity, flow control, delimiters, and buffer timers.
• Configure security: HTTPS, SSH, password, IP filters.
• Save configuration and reboot.
---------------------------------------------------------------------
7. Performance & Capabilities
Speed and Throughput:
• Serial data up to 460.8 kbps across four ports.
• Ethernet 10/100 Mbps with auto‑negotiation and auto‑MDI/MDI-X.
• Optimized performance modes for throughput or low latency.
Capacity:
• Up to 5 concurrent TCP or Virtual COM connections per serial port.
• Buffer sizes: 4 KB for data queues in both S2E and E2S directions.
Efficiency:
• Low power consumption (~5.5 W).
• Support for NAT pass‑through improves remote access efficiency.
• Event-driven connections reduce unnecessary network load.
Limitations:
• No RS‑232 DB9 port (RS‑232 available only through TxD/RxD/GND subset).
• IP40 protection; not waterproof.
• Requires M12 cables for all connections.
---------------------------------------------------------------------
8. Standards & Compliance
EMI/EMC Standards:
• FCC Part 15 Class A
• CISPR (EN55022) Class A
• EN50155 (railway applications)
• EN50121‑3‑2 (railway EMC)
EMS Immunity Standards:
• EN61000‑4‑2 (ESD)
• EN61000‑4‑3 (RS)
• EN61000‑4‑4 (EFT)
• EN61000‑4‑5 (Surge)
• EN61000‑4‑6 (CS)
• EN61000‑4‑8
• EN61000‑4‑11
Mechanical & Environmental:
• EN61373 (shock and vibration)
• IEC60068‑2‑27, IEC60068‑2‑6, IEC60068‑2‑32 (drop/free fall)
Networking Protocol Standards:
• TCP/IP, UDP, ICMP
• DHCP/BOOTP
• SNMP v1/v2c
• HTTPS, SSH
• PPPoE, DDNS
---------------------------------------------------------------------
9. Additional Information
Warranty:
• 5‑year limited warranty covering material and workmanship defects.
• Excludes unauthorized modifications, improper installation, and misuse.
Maintenance:
• Occasional firmware updates recommended.
• Configuration backup via DS‑Tool or web interface.
• Periodic inspection of M12 connectors for vibration-related loosening.
Support:
• Technical support available via support@oring-networking.com
• Sales contact available globally through ORing offices
• Additional documentation and firmware available on www.oring-networking.com
Updates:
• Firmware upgradeable via web interface or DS‑Tool.
• DS‑Tool offers group firmware updates for large installations.
---------------------------------------------------------------------
If you want, I can also generate:
• a shorter product sheet
• a version optimized for e-commerce
• a comparison against similar ORing models
• keyword sets for SEO or technical catalogs
---------------------------------------------------------------------
1. Product Overview
Product Name: TDS-5041-I-M12
Model: TDS-5041-I-M12
Series: ORing Industrial Device Server (TDS/IDS series)
Article Number: TDS-5041-I-M12
Manufacturer: ORing Industrial Networking Corp., Taiwan
Product Type: Industrial Secure Device Server with serial-to-Ethernet capability
Product Description: EN50155-compliant industrial secure device server with isolation, supporting 4 RS-422/485 serial ports and one 10/100Base‑T(X) Ethernet interface over an M12 connector. Designed for harsh environments, redundant power operation, serial‑to‑network integration, and secure remote management.
---------------------------------------------------------------------
2. Key Features
• Four isolated serial ports supporting RS‑422 and RS‑485 (2‑wire and 4‑wire) communication.
• One 10/100Base‑T(X) Ethernet port using M12 (D‑coding) for secure, vibration‑resistant industrial connections.
• Complies with EN50155 for railway applications and EN50121‑3‑2 for EMC railway standards.
• Designed for mission‑critical environments requiring redundant communication paths and serial device integration.
• Supports up to five simultaneous host connections via Virtual COM, TCP Server, or TCP Client modes.
• Security features include HTTPS, SSH, SSL data encryption, IP access control, and secure password protection.
• Robust NAT-pass-through function enabling remote management even behind NAT routers.
• Dual redundant 12–48 VDC input power via M12 connector with overload protection.
• Rugged IP40 metal enclosure suited for harsh, dusty, or electrically noisy environments.
• Wide operating temperature range: -40°C to 70°C; storage −40°C to 85°C.
• Configurable through DS‑Tool (Windows utility), web interface (HTTPS), or SSH/Telnet console.
• DIN rail or wall mounting for flexible industrial deployment.
• Event notification via SNMP trap, Syslog, Email, alarm relay, and beeper.
• Supports protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, PPPoE.
---------------------------------------------------------------------
3. Technical Specifications
Dimensions: 170 mm (W) x 65 mm (D) x 195 mm (H)
Weight: approximately 0.95 kg (950 g)
Enclosure Material: Metal, IP40-rated
Power Input: Dual 12–48 VDC (5‑pin M12 A‑coding, female)
Power Consumption: approx. 5.5 W
Serial Port Isolation: 2 kVDC
Serial Port Types:
• RS‑422 (4‑wire)
• RS‑485 (2‑wire and 4‑wire)
Serial Baud Rates: 110 bps to 460.8 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Mark, Space
Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
Serial Connector: M12 x 4 (5‑pin A‑coding, male)
Serial Pin Assignments:
• Pin 1: RXD+
• Pin 2: TXD+ or D+ (485)
• Pin 3: GND
• Pin 4: TXD– or D– (485)
• Pin 5: RXD–
Ethernet Connector: 4‑pin M12 D-coding (10/100Base‑T(X))
Network Cable Support: Cat 3/4/5/5e UTP (100 m max)
MDI/MDI-X: Auto sensing
Environmental Specs:
• Operating Temperature: −40°C to +70°C
• Storage Temperature: −40°C to +85°C
• Operating Humidity: 5 to 95%, non‑condensing
Shock and Vibration:
• Shock: IEC 60068‑2‑27, EN61373
• Vibration: IEC 60068‑2‑6, EN61373
• Free Fall: IEC60068‑2‑32
---------------------------------------------------------------------
4. Functionality
Operational Purpose: Enables legacy serial devices (e.g., sensors, PLCs, meters, controllers) to communicate over modern IP networks. Converts serial protocols to Ethernet TCP/UDP communications and supports remote management of industrial equipment.
Serial-to-Network Conversion Modes:
• Virtual COM Mode: Maps remote serial ports to local COM ports on a Windows host; supports up to 5 simultaneous COM users.
• TCP Server Mode: Listens for incoming TCP connections; up to 5 clients.
• TCP Client Mode: Initiates TCP connections based on startup or data‑trigger events.
• UDP Mode: Provides high‑speed low‑latency broadcast, unicast, or multicast transmission.
• Serial Tunnel Mode (via DS‑Tool): Transparent serial bridging over IP.
Data Handling:
• Configurable delimiters for packet framing (up to four hex delimiters).
• Configurable flush timers for Serial‑to‑Ethernet and Ethernet‑to‑Serial data buffers (0–65535 seconds).
• Force TX interval timer for transmission optimization.
• Performance modes optimized for throughput or latency.
Management & Configuration Interfaces:
• DS‑Tool Windows utility (discovery, grouping, firmware updates).
• Web browser via HTTPS.
• SSH console access (secure).
• Telnet (optional, can be disabled).
Use Cases:
• Railway and transportation systems (EN50155 certified).
• Industrial automation, SCADA, production lines.
• Energy and power monitoring systems.
• Remote device management across NAT networks.
• Machine‑to‑machine communication and data acquisition.
Compatibility:
• Windows OS: NT, 2000, XP, 2003, Vista (32/64), Windows 7 (32/64), Windows 8 (32/64).
• Supports DDNS, PPPoE, and multi-host environments.
---------------------------------------------------------------------
5. Components & Accessories
Included:
• TDS‑5041‑I‑M12 device server
• Wall‑mounting panel
• Documentation (user manual)
• LEDs indicating power, link/activity, serial TX/RX
• M12 connectors for Ethernet and power
Optional (not included but supported):
• DIN rail brackets
• M12-to-RJ45 adapters (industrial Ethernet deployment)
• Custom serial cables for RS‑422/485 wiring
• External power supply (12–48 VDC)
Connectors:
• Power: 5-pin M12 female (A-coding)
• Ethernet: 4-pin M12 female (D-coding)
• Serial: Four 5-pin M12 male (A-coding)
---------------------------------------------------------------------
6. Installation & Setup
Mounting Options:
• Wall mounting (mounting plate included)
• DIN rail mounting (optional accessory)
Setup Requirements:
• 12–48 VDC power input
• Appropriate M12 cabling for power and Ethernet
• Compatible RS‑422/485 wiring
• PC or laptop running DS‑Tool for discovery and configuration
Configuration Steps:
• Connect power and network.
• Discover via DS‑Tool (default IP: 192.168.10.2).
• Assign IP (Static or DHCP) and configure network parameters.
• Select serial mode and set baud rate, parity, flow control, delimiters, and buffer timers.
• Configure security: HTTPS, SSH, password, IP filters.
• Save configuration and reboot.
---------------------------------------------------------------------
7. Performance & Capabilities
Speed and Throughput:
• Serial data up to 460.8 kbps across four ports.
• Ethernet 10/100 Mbps with auto‑negotiation and auto‑MDI/MDI-X.
• Optimized performance modes for throughput or low latency.
Capacity:
• Up to 5 concurrent TCP or Virtual COM connections per serial port.
• Buffer sizes: 4 KB for data queues in both S2E and E2S directions.
Efficiency:
• Low power consumption (~5.5 W).
• Support for NAT pass‑through improves remote access efficiency.
• Event-driven connections reduce unnecessary network load.
Limitations:
• No RS‑232 DB9 port (RS‑232 available only through TxD/RxD/GND subset).
• IP40 protection; not waterproof.
• Requires M12 cables for all connections.
---------------------------------------------------------------------
8. Standards & Compliance
EMI/EMC Standards:
• FCC Part 15 Class A
• CISPR (EN55022) Class A
• EN50155 (railway applications)
• EN50121‑3‑2 (railway EMC)
EMS Immunity Standards:
• EN61000‑4‑2 (ESD)
• EN61000‑4‑3 (RS)
• EN61000‑4‑4 (EFT)
• EN61000‑4‑5 (Surge)
• EN61000‑4‑6 (CS)
• EN61000‑4‑8
• EN61000‑4‑11
Mechanical & Environmental:
• EN61373 (shock and vibration)
• IEC60068‑2‑27, IEC60068‑2‑6, IEC60068‑2‑32 (drop/free fall)
Networking Protocol Standards:
• TCP/IP, UDP, ICMP
• DHCP/BOOTP
• SNMP v1/v2c
• HTTPS, SSH
• PPPoE, DDNS
---------------------------------------------------------------------
9. Additional Information
Warranty:
• 5‑year limited warranty covering material and workmanship defects.
• Excludes unauthorized modifications, improper installation, and misuse.
Maintenance:
• Occasional firmware updates recommended.
• Configuration backup via DS‑Tool or web interface.
• Periodic inspection of M12 connectors for vibration-related loosening.
Support:
• Technical support available via support@oring-networking.com
• Sales contact available globally through ORing offices
• Additional documentation and firmware available on www.oring-networking.com
Updates:
• Firmware upgradeable via web interface or DS‑Tool.
• DS‑Tool offers group firmware updates for large installations.
---------------------------------------------------------------------
If you want, I can also generate:
• a shorter product sheet
• a version optimized for e-commerce
• a comparison against similar ORing models
• keyword sets for SEO or technical catalogs
-
Datasheet_TDS-5041-I-M12_V1.0_HQ.pdf
PDF Catalog
No accessories available.
