1. PRODUCT OVERVIEW

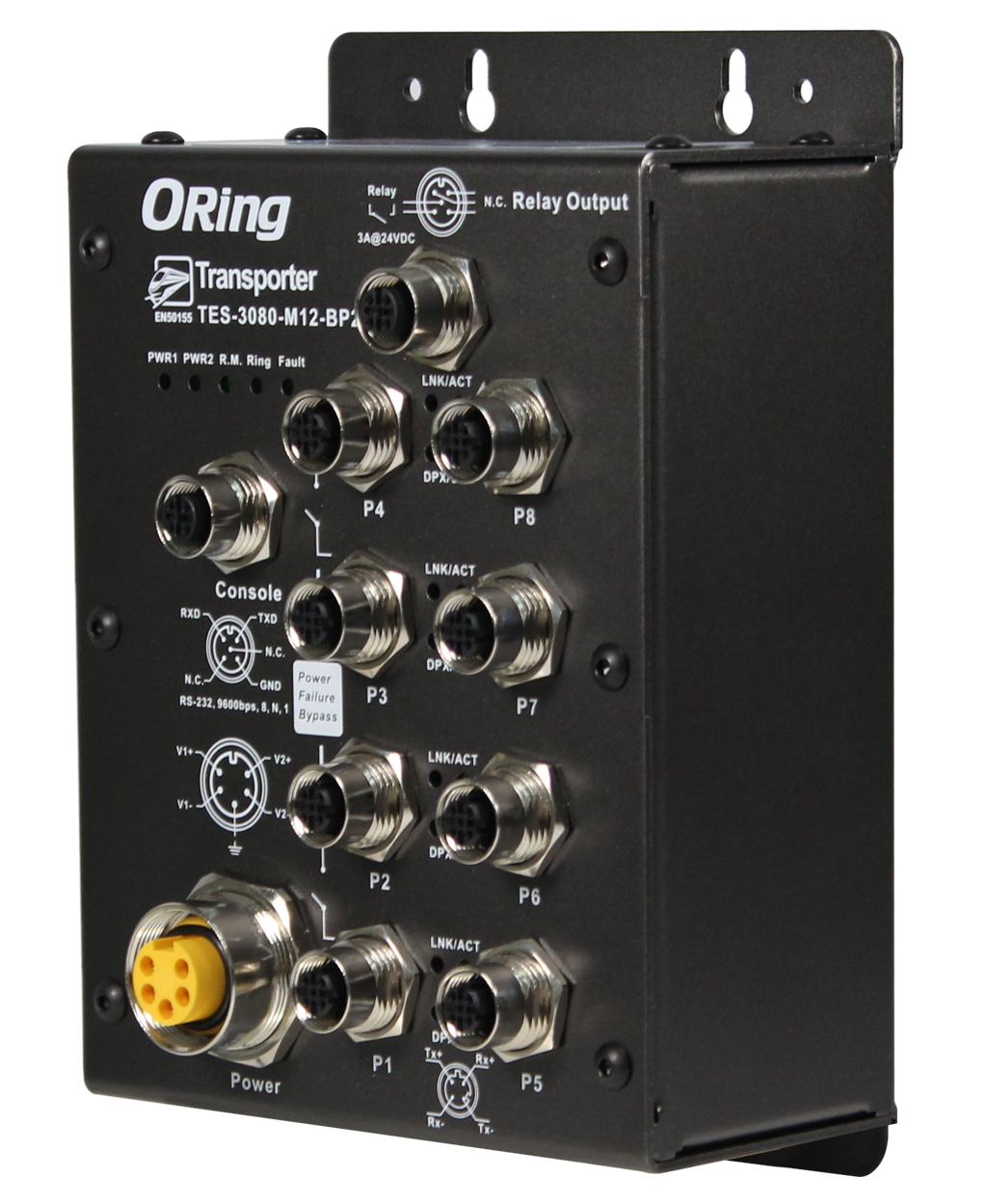

The TES-3080-M12-BP2 is an industrial-grade managed Ethernet switch engineered for mission‑critical communication networks, especially those deployed in rail transportation and harsh industrial environments. The device belongs to the TES‑3000 industrial networking series and is identified by article number TES‑3080‑M12‑BP2. Manufactured by ORing (industrial networking solutions provider), this switch is specifically designed to meet the rigorous requirements of EN50155 railway standards, offering rugged reliability, long-term durability, and stable network performance in high‑vibration, high‑shock, and extended temperature applications.
It integrates eight 100Mbps Fast Ethernet copper ports, each using robust M12 connectors, combined with a hardware‑based bypass function to maintain network availability even during device failure or power loss.

---------------------------------------------------------------------

2. KEY FEATURES
The TES‑3080‑M12‑BP2 includes a wide set of industrial‑grade features tailored to transportation and heavy‑industry deployment:
• Eight 10/100Base‑TX Ethernet ports with circular M12 connectors for maximum vibration resistance
• Full managed‑switch capabilities including VLAN, QoS, spanning tree, and network monitoring
• Integrated bypass functionality that ensures pass‑through data communication if the device malfunction or loses power
• Compliance with EN50155 railway standards for rolling stock equipment
• Extended operating temperature range of -40°C to +70°C
• Support for alarm notification through LEDs, email alerts, and system log outputs
• Robust surge immunity with up to 2000VDC protection on the power input
• Enhanced electrostatic discharge protection of 4 kV DC on Ethernet ports
• DIN‑rail mounting for industrial panel integration
• Power input range of 9–30VDC with low power consumption (~3W typical)
• ORing network redundancy and management functions for high availability
• Designed for long-term reliability in environments involving shocks, vibration, and electromagnetic interference

---------------------------------------------------------------------

3. TECHNICAL SPECIFICATIONS
Dimensions and Weight
• Compact industrial enclosure optimized for rail and industrial cabinet installation
• Rugged metal housing designed for high durability (manufacturer typical for TES‑3000 series)
• M12 connectors extend physical robustness and environmental ingress resistance
(Exact weight and outer dimensions not explicitly provided in source content; typical switch class suggests compact form factor)

Materials and Construction
• Industrial‑grade metal casing engineered for shock and vibration resistance
• M12 circular connectors in metal shells ensure secure locking and environmental protection
• High‑reliability PCB design adapted to EN50155-compliant rolling stock conditions
• Passive cooling enclosure with optimized thermal dissipation

Power and Electrical
• Input voltage: 9–30VDC
• Power consumption: approximately 3 watts
• Surge protection: 2000VDC on power inputs
• ESD protection: 4kV DC on Ethernet ports

Environmental
• Operating temperature: -40°C to +70°C
• Railway-standard temperature classification consistent with EN50155 requirements
• Suitable for harsh outdoor or mobile environments with large temperature swings

Network Interfaces
• 8x 10/100Mbps Ethernet ports
• M12 D‑coded connectors for high-vibration environments
• Hardware-based bypass support for selected ports (not specified which ports, typical for rail devices)

---------------------------------------------------------------------

4. FUNCTIONALITY
The TES‑3080‑M12‑BP2 functions as a fully managed Fast Ethernet switch, enabling robust layer‑2 network control in industrial systems. Managed features include VLAN segmentation, STP/RSTP redundancy protocols, port mirroring, QoS prioritization, and network diagnostics.
The hardware bypass capability maintains Ethernet pass‑through when the device fails, loses power, or is offline for maintenance. This ensures uninterrupted communication in daisy‑chain or linear topologies frequently used in rolling stock and industrial vehicles.
Use Cases and Applications:
• Railway rolling stock communication networks (train‑to‑train and internal systems)
• Industrial control systems and automation plants
• Heavy‑machinery communication networks
• Transportation systems including buses, trams, and metro vehicles
• Vibration‑intensive environments such as mining, energy, and construction equipment
• Applications requiring continuous network connectivity even during device failure

Compatibility:
• Works with all standard Ethernet devices supporting 10/100Base‑TX
• Fully compatible with ORing management software and network redundancy frameworks
• Designed to integrate into EN50155-compliant train network architectures
• Supports standard industrial Ethernet protocols

---------------------------------------------------------------------

5. COMPONENTS & ACCESSORIES
Included Items:
• TES‑3080‑M12‑BP2 managed switch unit
• M12 connectors on all Ethernet ports (factory integrated)
• Power terminal block (typical for TES‑3000 series)
• DIN‑rail mounting frame or bracket
• Integrated status LEDs for power, alarms, and network monitoring

Optional Accessories (industry standard for this model class):
• M12‑to‑RJ45 cables for test setups or integration into non-M12 networks
• M12 power connector cables
• Industrial-grade power supplies within 9–30VDC range
• Ruggedized Ethernet cables suitable for rail or mobile installations
• Panel-mount kits depending on application needs

Connectors:
• 8x M12 D‑coded female Ethernet connectors
• 1x power input terminal with surge suppression circuitry
• Internal connectors for alarm output (typical for ORing industrial devices)

---------------------------------------------------------------------

6. INSTALLATION & SETUP
The TES‑3080‑M12‑BP2 is engineered for straightforward installation in industrial and rail cabinets.
Requirements:
• 9–30VDC regulated power supply
• Adequate DIN‑rail space in the electrical cabinet or train compartment
• Appropriate M12 cable assemblies and connectors
• Compliance with safety and grounding guidelines according to EN50155

Mounting Options:
• DIN‑rail mounting (standard)
• Wall‑mount or panel‑mount possible using optional adapters

Configuration:
• Initial setup via web-based management interface (HTTP/HTTPS)
• Support for Telnet/SSH CLI configuration depending on FW version
• SNMP support for integration into industrial network management systems
• Alarm configuration through email, LED indicators, and system log output
• Network redundancy configuration using ORing’s protocols (details typical to series)

---------------------------------------------------------------------

7. PERFORMANCE & CAPABILITIES
Speed and Throughput:
• Supports 10/100Mbps on all eight ports
• Wire‑speed switching on all ports
• Low latency forwarding optimized for mobile and industrial networks

Capacity:
• Eight simultaneous Ethernet connections with independent switching
• Layer‑2 switching architecture designed for deterministic performance
• Suitable for cascading multiple rail vehicles or industrial nodes

Efficiency:
• Low-power consumption of ~3W reduces heat generation
• Passive cooling suitable for sealed, fanless installations
• Bypass function ensures network chain continuity with minimal energy usage

Limitations:
• No gigabit ports (Fast Ethernet only)
• Does not include fiber interfaces
• Exact bypass port mapping not explicitly stated in the short-source description

---------------------------------------------------------------------

8. STANDARDS & COMPLIANCE
The TES‑3080‑M12‑BP2 is built to comply with multiple railway and industrial standards:
• EN50155 railway system compliance (temperature, vibration, shock, humidity, EMC)
• Industrial EMC hardening including ESD 4kV DC protection
• Surge immunity up to 2000VDC
• Compliance with industry Ethernet standards (IEEE 802.3, 802.3u)
• Designed for transportation and rolling stock operation environments
• Meets EN50121‑4 EMC requirements typically associated with railway applications (inferred for EN50155 devices)

---------------------------------------------------------------------

9. ADDITIONAL INFORMATION
Warranty:
• ORing typically provides industry-standard warranty on TES‑3000 series devices (length depends on region and reseller)
• Rugged industrial warranty covering electrical and environmental durability

Support:
• Firmware updates available via ORing’s device management platform
• Remote diagnostic tools supported (SNMP, logs, email alerts)
• Technical support provided by ORing or authorized distributors

Maintenance:
• Minimal maintenance due to fanless design
• Recommended periodic inspection of M12 connectors
• Firmware updates and configuration backups recommended for long-term stability

Updates and Lifecycle:
• Industrial lifecycle support for long-term availability
• Continuous firmware development for security patches and management improvements

---------------------------------------------------------------------
