1. Product Overview
Product Name: TGAR-1662+-3GS-M12
Model: TGAR-1662+-3GS-M12
Series: TGAR-1062/2062/1662+ Industrial Cellular Router Series
Article Number: TGAR-1662+-3GS-M12
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Cellular 3G Router with Dual 802.11a/b/g/n Wi-Fi, Dual Gigabit Ethernet (M12), PoE PD, GPS, and EN50155 Railway Certification

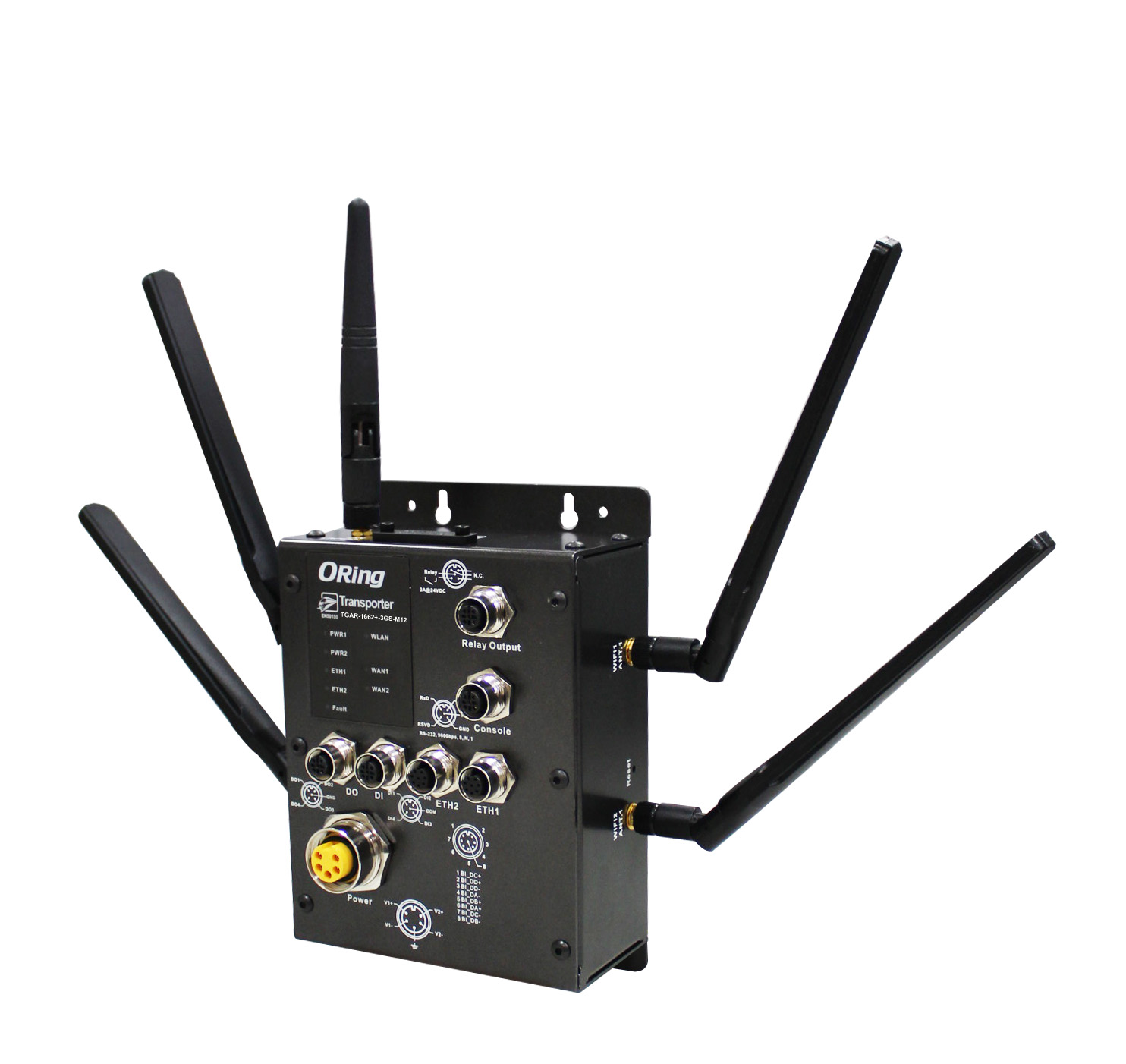

The ORing TGAR-1662+-3GS-M12 is a ruggedized industrial-grade cellular router designed for mission-critical wireless communication in railway and transportation systems. It integrates 3G cellular connectivity, dual-band Wi-Fi (2.4GHz/5GHz), dual Gigabit Ethernet ports with M12 connectors, and GPS functionality. The device complies with EN50155 railway standards, ensuring reliability under vibration, shock, and temperature extremes. It supports Power over Ethernet (PoE PD) on ETH2, redundant DC power inputs, and advanced network management features such as VPN, NAT, firewall, and event notification.
2. Key Features
- Industrial 3G Cellular Router: Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA standards for wide-area mobile connectivity.
- Dual-Band Wi-Fi: IEEE 802.11a/b/g/n compliant, offering up to 300 Mbps throughput with 4 external reverse SMA antenna connectors.
- Dual Gigabit Ethernet Ports: Two 10/100/1000Base-T(X) M12 D-coded connectors with auto MDI/MDIX; ETH2 supports IEEE 802.3af PoE PD.
- GPS Functionality: Integrated GPS receiver (1575.42 MHz) with external SMA antenna connector for location tracking.
- EN50155 Railway Compliance: Certified for railway and rolling stock applications, meeting vibration, shock, and EMC standards.
- Rugged Design: IP40-rated metal enclosure, wide operating temperature (-25°C to 70°C), and redundant 12–48 VDC power inputs.
- Advanced Security: WPA/WPA2, 802.1X authentication, VPN (OpenVPN, PPTP), firewall, and MAC/IP filtering.
- Event Notification: Supports system log, SNMP trap, e-mail alerts, and relay output for fault indication.
- Flexible Mounting: Wall-mount and DIN-rail installation options.
- Comprehensive Management: Web-based GUI, HTTPS, SNMP, and ORing Open-Vision management utility.
3. Technical Specifications
Dimensions: 125.6 (W) × 65 (D) × 196.1 (H) mm (4.94 × 2.55 × 7.72 in)
Weight: Approx. 1030 g
Enclosure: IP40-rated metal housing
Mounting: Wall-mount or DIN-rail
Power Input: Dual 12–48 VDC via M23 5-pin connector (24 VDC typical)
Power Consumption: 13 W (typical)
PoE: IEEE 802.3af PD on ETH2 port
Protection: Overload current and reverse polarity protection
Environmental Conditions:
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% non-condensing
Wireless Interface:
- Standards: IEEE 802.11a/b/g/n
- Frequency Bands:
- 2.4 GHz: 2.412–2.472 GHz (13 channels, ETSI)
- 5 GHz: 5.180–5.240 GHz & 5.745–5.825 GHz (FCC)
- Modulation: DSSS, OFDM (BPSK, QPSK, 16QAM, 64QAM)
- Data Rate: Up to 300 Mbps (802.11n)
- Transmit Power:
- 802.11b: 18 dBm ±1.5 dBm
- 802.11g: 15 dBm ±1.5 dBm
- 802.11a/n: 12–13 dBm ±1.5 dBm
- Receiver Sensitivity:
- 802.11b: -85 dBm @11 Mbps
- 802.11g/a: -68 dBm @54 Mbps
- 802.11n: -68 dBm @150 Mbps
- Security: WEP (64/128-bit), WPA/WPA2 (TKIP/AES), 802.1X authentication
Cellular Interface:
- Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA
- Frequency Bands:
- US: GSM 850/900/1800/1900 MHz; UMTS 800/850/1900/2100 MHz
- EU: GSM 900/1800 MHz; UMTS 900/2100 MHz
- Antenna Connector: 1 × Reverse SMA Female
- SIM Slot: 1 × SIM card slot
GPS:
- Frequency: 1575.42 MHz
- Connector: 1 × SMA Female
Ethernet Ports:
- 2 × 10/100/1000Base-T(X) M12 D-coded connectors
- Auto MDI/MDIX, PoE PD on ETH2
Digital I/O:
- 4 × Digital Inputs, 4 × Digital Outputs (M12 5-pin A-coded)
Relay Output:
- 1 × Relay, 1A @ 24VDC
Console Port:
- RS-232 (M12 5-pin A-coded), 115200 bps, 8N1
4. Functionality
The TGAR-1662+-3GS-M12 functions as a multi-interface industrial router combining cellular, Wi-Fi, and Ethernet connectivity. It supports three routing modes:
- Dynamic/Static IP Routing
- PPPoE Authentication
- Cellular Modem Dial-Up
The router can operate as an access point, wireless client, or WDS master, enabling flexible deployment in mobile or fixed networks. It supports VPN tunneling (OpenVPN, PPTP), NAT, DHCP, and firewall configurations for secure communication. The integrated GPS provides real-time location data for fleet or train tracking.
Use Cases:
- Railway and rolling stock communication systems
- Mobile surveillance and telemetry
- Industrial automation and SCADA networks
- Remote monitoring and control over cellular networks
Compatibility:
- IEEE 802.3af PoE devices
- Standard M12 connectors for railway-grade Ethernet
- ORing Open-Vision network management software
5. Components & Accessories
Included Items:
- TGAR-1662+-3GS-M12 Router
- 4 × 2.4/5GHz Wi-Fi Antennas (Reverse SMA)
- 1 × 3G Cellular Antenna (SMA)
- 1 × GPS Antenna (SMA)
- Wall-mount kit and screws
- Allen key
- Quick Installation Guide (QIG)
- CD with documentation and utilities
Optional Accessories:
- DIN-rail mounting kit
- External RF extension cables
- M12 Ethernet and power cables
Connectors:
- M12 D-coded for Ethernet
- M12 A-coded for DI/DO and relay
- M23 for power input
- SMA/Reverse SMA for antennas
6. Installation & Setup
Mounting Options:
- Wall-mount: Secure with four screws through keyhole slots.
- DIN-rail: Optional kit available for industrial cabinets.
Power Connection:
- Dual redundant 12–48 VDC inputs via M23 5-pin connector.
- ETH2 port supports PoE PD (IEEE 802.3af).
Grounding:
- Connect grounding pin to chassis ground to minimize EMI.
Configuration:
1. Connect PC to ETH1 port.
2. Access web interface via default IP 192.168.10.1.
3. Login credentials: admin / admin.
4. Configure WAN, LAN, WLAN, and cellular settings.
5. Save and reboot to apply configurations.
Reset:
- Press reset button for several seconds until power LED flashes to restore factory defaults.
7. Performance & Capabilities
- Wi-Fi Throughput: Up to 300 Mbps (802.11n)
- Ethernet Speed: 10/100/1000 Mbps auto-negotiation
- Cellular Data Rate: Up to HSDPA 7.2 Mbps / HSUPA 5.76 Mbps (3G)
- VPN Performance: Supports OpenVPN and PPTP with encryption
- Redundancy: Dual power inputs and VRRP protocol for failover
- Reliability: Recovery time <10 ms in redundant mode
- Event Handling: Syslog, SNMP trap, e-mail, and relay output
- Limitations: LTE not supported on 3GS model (available on 4GS variant)
8. Standards & Compliance
Certifications:
- EN50155: Railway applications – electronic equipment used on rolling stock
- EN50121-3-2 / EN50121-4: Railway EMC standards
- EN55022 Class A / FCC Part 15: EMI compliance
- EN61000-4-2/3/4/5/6/8/11: EMS immunity (ESD, surge, EFT, etc.)
- EN60950-1: Electrical safety
- EN61373 / IEC60068-2-27 / -2-6 / -2-32: Shock, vibration, and free-fall tests
- IP40: Dust protection for industrial environments
Regulatory Compliance:
- FCC and Industry Canada (RSS)
- CE Marking (EMC and Safety)
- RF exposure compliant (minimum 20 cm separation)
9. Additional Information
Warranty: 5 years limited warranty covering defects in materials and workmanship.
Maintenance:
- Periodic inspection of connectors and grounding.
- Firmware updates available via ORing website.
- Configuration backup and restore supported via web interface.
Support:
- Technical Support: support@oring-networking.com
- Website: [www.oring-networking.com](http://www.oring-networking.com)
- Headquarters: ORing Industrial Networking Corp., New Taipei City, Taiwan
- Tel: +886-2-2218-1066 | Fax: +886-2-2218-1014
Firmware & Updates:
- Web-based firmware upgrade supported.
- Configuration export/import for backup.
- Compatible with ORing Open-Vision management software for centralized monitoring.
Summary:
The ORing TGAR-1662+-3GS-M12 is a high-performance, railway-certified industrial router integrating cellular, Wi-Fi, and Ethernet connectivity in a compact, rugged form factor. With EN50155 compliance, redundant power, PoE support, and advanced network security, it is ideal for mobile and fixed industrial applications requiring reliable, secure, and flexible communication. Its comprehensive management interface, GPS tracking, and event notification features make it a robust solution for transportation, automation, and remote monitoring systems.
