Comprehensive Product Summary – ORing TGPS-1080-M12-24V Industrial Unmanaged Gigabit PoE Switch
*(Approx. 12,000 characters / ~3,000 tokens)*

---

### 1. Product Overview

Product Name: TGPS-1080-M12-24V
Model: TGPS-1080-M12-24V
Series: TGPS-1080-M12 Series (Transporter™ Industrial Ethernet Switches)
Article Number: TGPS-1080-M12-24V
Manufacturer: ORing Industrial Networking Corp.
Product Type: Unmanaged Industrial Gigabit PoE Ethernet Switch
Compliance: EN50155-certified for railway and rolling stock applications

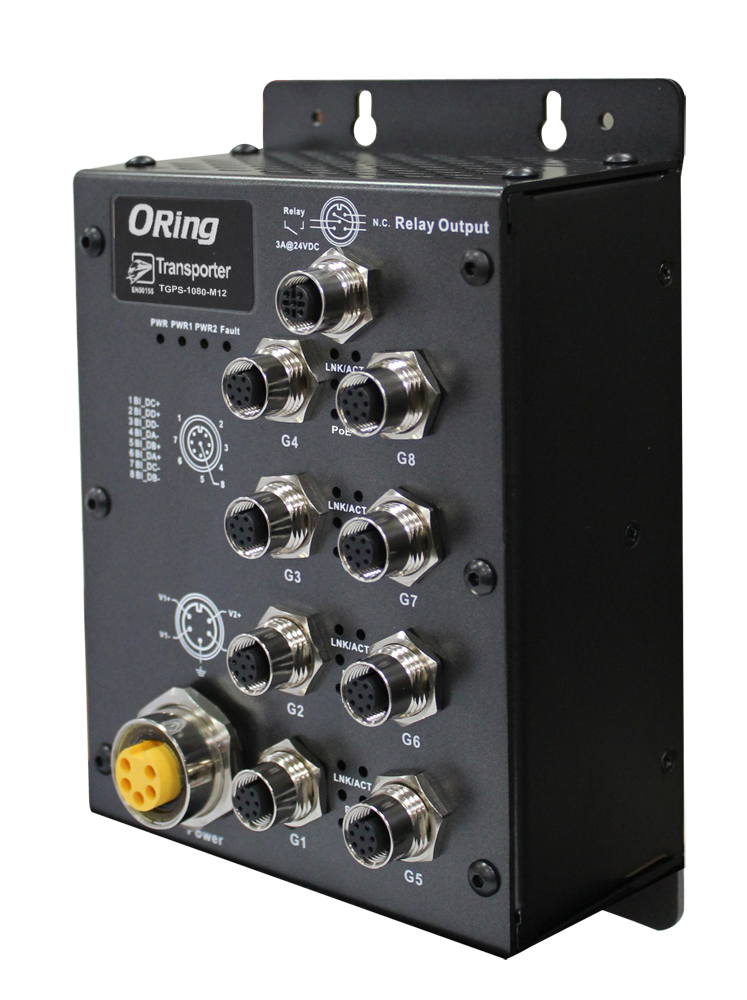

The ORing TGPS-1080-M12-24V is an unmanaged 8-port Gigabit Ethernet switch designed for rugged industrial environments, particularly in transportation, rolling stock, and vehicle systems. It belongs to ORing’s Transporter™ series, engineered to meet stringent EN50155 railway standards. The switch integrates Power over Ethernet (PoE) functionality, providing both data and electrical power through standard Ethernet cabling. Its M12 connectors ensure vibration-resistant, secure connections suitable for harsh conditions.

---

### 2. Key Features

- 8-Port Gigabit PoE Switch:
Equipped with eight 10/100/1000Base-T(X) M12 ports supporting Power Sourcing Equipment (P.S.E.) functionality. Each port can deliver up to 30 W of power per IEEE 802.3at standards.

- Ruggedized Design:
Fully compliant with EN50155 for railway applications, ensuring resistance to vibration, shock, and temperature extremes.

- M12 Connectors:
All Ethernet ports use 8-pin A-coded M12 connectors, providing secure, vibration-proof connections ideal for mobile and industrial environments.

- Dual Redundant Power Inputs:
Supports dual DC power inputs (12–57 VDC) via a 5-pin M23 connector, ensuring uninterrupted operation during power source failure.

- Wide Operating Temperature Range:
Operates reliably from -40°C to +70°C, suitable for outdoor and in-vehicle installations.

- High Power Budget:
Total PoE output power up to 60 W (at 12–24 VDC input) or 120 W (at 24–57 VDC input).

- Robust Electrical Protection:
Includes overload current protection and relay output for fault detection (3A @ 24VDC).

- Compact Industrial Enclosure:
IP40-rated metal housing with wall-mount capability for flexible installation.

- Plug-and-Play Operation:
Unmanaged design requires no configuration—ideal for simple, reliable network expansion.

- Advanced Traffic Support:
Supports IGMP v2/v3 snooping for multicast filtering and DOS/DDOS auto-prevention for enhanced network stability.

---

### 3. Technical Specifications

Ethernet Ports:
- 8 × 10/100/1000Base-T(X) M12 connectors (8-pin A-coding)
- IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T)
- IEEE 802.3x flow control
- IEEE 802.3at PoE standard (up to 30 W per port)

MAC Table: 8K MAC addresses
Switching Method: Store-and-Forward

LED Indicators:
- Power LEDs (x3): Green (Power, PWR1, PWR2)
- Fault LED: Amber (indicates PWR1 or PWR2 failure)
- Port LEDs:
- Top: Link/Activity (Green for 1 Gbps, Amber for 10/100 Mbps)
- Middle: Duplex/Collision (Amber)
- Bottom: PoE status (Blue)

Power Input:
- Dual DC inputs via 5-pin M23 connector
- Input voltage: 12–57 VDC (nominal 24 VDC)
- Power consumption (typical): 6 W (excluding PoE load)
- PoE power budget: 60 W (12–24 VDC input) / 120 W (24–57 VDC input)
- Overload current protection: Present
- Reverse polarity protection: Not present

Relay Output:
- 3A @ 24VDC capacity on M12 5-pin A-coded connector

Enclosure:
- IP40-rated metal housing
- Dimensions: 125 mm (W) × 65 mm (D) × 196 mm (H)
- Weight: 988 g

Environmental Conditions:
- Operating temperature: -40°C to +70°C (-40°F to +158°F)
- Storage temperature: -40°C to +85°C (-40°F to +185°F)
- Operating humidity: 5%–95% non-condensing

---

### 4. Functionality

The TGPS-1080-M12-24V functions as an unmanaged Ethernet switch, automatically detecting and forwarding Ethernet frames between connected devices. Each of its eight M12 ports supports auto-negotiation for 10/100/1000 Mbps speeds and full/half-duplex operation.

Power over Ethernet (PoE):
Each port acts as a Power Sourcing Equipment (PSE), delivering DC power to connected Powered Devices (PDs) such as IP cameras, wireless access points, or VoIP phones. This eliminates the need for separate power cabling, simplifying installation in mobile or remote environments.

Redundant Power Inputs:
The switch features dual DC power inputs. If the primary power source fails, the secondary input automatically takes over, ensuring continuous operation.

Use Cases and Applications:
- Railway and rolling stock communication systems
- Onboard IP surveillance and passenger information systems
- Industrial automation and control networks
- Vehicle-based networking (buses, trams, service vehicles)
- Harsh-environment Ethernet connectivity

Compatibility:
Compliant with IEEE Ethernet and PoE standards, compatible with all standard Ethernet devices and PoE-powered equipment.

---

### 5. Components & Accessories

Included Items:
- 1 × TGPS-1080-M12-24V switch unit
- 1 × Quick Installation Guide

Optional Accessories:
- M12C: M12 cable accessories (for Ethernet and power connections)

Connectors:
- Ethernet Ports: 8-pin M12 A-coded female connectors
- Power Input: 5-pin M23 connector (dual DC input)
- Relay Output: 5-pin M12 A-coded male connector

Pin Definitions (M12 Ethernet Port):
1. BI_DC+
2. BI_DD+
3. BI_DD–
4. BI_DA– / PoE Vout+
5. BI_DB+ / PoE Vout–
6. BI_DA+ / PoE Vout+
7. BI_DC–
8. BI_DB– / PoE Vout–

---

### 6. Installation & Setup

Mounting Options:
- Wall-mount installation using four screws through keyhole apertures.
- Ensure approximately 2 mm clearance for sliding the unit into position before tightening.

Power Connection:
- Connect dual DC power cables to the 5-pin M23 connector.
- Rotate the outer ring of the connector until snug to ensure a secure fit.

Grounding:
- Connect the grounding pin on the power connector to a grounding surface to minimize EMI effects.

Relay Output Connection:
- Use an M12 A-coded 5-pin female connector to connect to the relay output port.
- Relay contacts open when a user-defined fault event occurs.

Network Cabling:
- 10BASE-T: Cat.3/4/5 UTP, 100 m max
- 100BASE-TX: Cat.5 UTP, 100 m max
- 1000BASE-T: Cat.5/Cat.5e UTP, 100 m max
- Connector type: 8-pin M12 A-coded

Startup Procedure:
1. Connect power and network cables.
2. Verify Power LEDs (PWR, PWR1, PWR2) illuminate green.
3. Check port LEDs for link/activity and PoE status.

Safety Considerations:
- Ensure adequate airflow and ambient temperature below 70°C.
- Avoid mechanical stress or uneven loading during mounting.
- Prevent circuit overloading by verifying supply ratings.

---

### 7. Performance & Capabilities

Switching Performance:
- Store-and-forward architecture ensures reliable frame transmission.
- 8K MAC address table supports large network topologies.
- Full-duplex flow control (IEEE 802.3x) prevents packet loss.

PoE Performance:
- IEEE 802.3at compliant, up to 30 W per port.
- Total PoE power budget: 60 W (12–24 VDC input) / 120 W (24–57 VDC input).
- Supports simultaneous data and power transmission over standard Ethernet cabling.

Reliability:
- Dual redundant power inputs ensure continuous operation.
- Relay output provides fault notification for power failures.
- M12 connectors maintain signal integrity under vibration and shock.

Efficiency:
- Low power consumption (6 W typical without PoE load).
- Passive cooling design with no moving parts for silent, maintenance-free operation.

Limitations:
- Unmanaged design—no VLAN, QoS, or SNMP management features.
- Reverse polarity protection not included; correct wiring required.

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (PoE, up to 30 W per port)

Regulatory & Safety Compliance:
- EN50155: Railway applications – electronic equipment used on rolling stock
- EN50121-3-2 / EN50121-4: Railway EMC standards
- EN55022 / CISPR Class A: EMI emissions
- EN55011: Industrial, scientific, and medical equipment emissions
- FCC Part 15 Class A: Electromagnetic interference compliance
- EN61000-4 Series (EMS):
- EN61000-4-2 (ESD immunity)
- EN61000-4-3 (Radiated susceptibility)
- EN61000-4-4 (EFT/Burst)
- EN61000-4-5 (Surge immunity)
- EN61000-4-6 (Conducted susceptibility)
- EN61000-4-8 (Magnetic field immunity)
- EN61000-4-11 (Voltage dips and interruptions)
- Mechanical Durability:
- IEC60068-2-27 (Shock)
- IEC60068-2-32 (Free fall)
- IEC60068-2-6 (Vibration)
- Safety: EN60950-1 (Information technology equipment safety)

Environmental Protection:
- IP40 enclosure rating for dust protection and limited ingress.

---

### 9. Additional Information

Warranty:
- 5-year limited hardware warranty from ORing Industrial Networking Corp.

Maintenance:
- No internal serviceable parts; maintenance-free design.
- Periodic inspection recommended for connector integrity and cable condition.

Support & Contact:
- Manufacturer: ORing Industrial Networking Corp.
- Website: [www.oring-networking.com](http://www.oring-networking.com)
- Email: support@oring-networking.com
- Tel: +886-2-2218-1066
- Fax: +886-2-2218-1014

Product Version: 1.0
Document Reference: 1907-2-29-TGPS1080M12-1.0

Ordering Information:
- TGPS-1080-M12: 8-port unmanaged Gigabit PoE switch, standard model
- TGPS-1080-M12-24V: 8-port unmanaged Gigabit PoE switch, 24VDC power input
- TGPS-1080-M12-BP2-24V: 8-port unmanaged Gigabit PoE switch with bypass ports and 24VDC input

Summary:
The ORing TGPS-1080-M12-24V is a robust, railway-grade unmanaged Gigabit PoE switch engineered for mission-critical industrial and transportation networks. Its combination of M12 connectors, EN50155 compliance, dual redundant power inputs, and wide temperature tolerance ensures reliable operation in harsh, vibration-prone environments. With eight Gigabit PoE ports delivering up to 30 W each, it supports high-power devices such as IP cameras and wireless access points without additional power infrastructure. The switch’s plug-and-play design, compact IP40 enclosure, and comprehensive EMC and safety certifications make it a dependable solution for rolling stock, vehicle, and industrial Ethernet applications.

---
End of Product Summary – ORing TGPS-1080-M12-24V
