Comprehensive Product Summary – TWIN232DB-I RS-232 to RS-232/RS-422/RS-485 Converter & Isolator

---

### 1. Product Overview

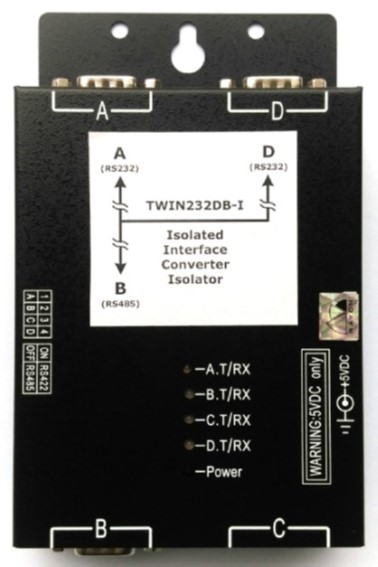

Product Name: TWIN232DB-I
Model: TWIN232DB-I
Series: TWIN232 Series
Article Number: TWIN232DBI
Manufacturer: Rayon Technology Co., Ltd.
Product Type: RS-232 to RS-232 / RS-422 / RS-485 Converter and Isolator
Product Category: Serial Communication Interface Converter and Isolator

The TWIN232DB-I is a high-performance, multi-interface serial converter and isolator designed for industrial and commercial communication systems. It provides a flexible and reliable solution for connecting RS-232 devices to RS-232, RS-422, or RS-485 networks while maintaining full electrical isolation between ports. This device is engineered for both local and remote serial communication, offering robust protection against ground loops, signal interference, and electrical noise.

Manufactured by Rayon Technology Co., Ltd., a Taiwan-based company specializing in industrial communication hardware, the TWIN232DB-I integrates multiple serial interface standards into a single, compact, and easy-to-deploy unit.

---

### 2. Key Features

- Multi-Interface Conversion: Supports RS-232 to RS-232, RS-232 to RS-422, and RS-232 to RS-485 conversions in one device.
- Full Ground Isolation: Each communication port is fully isolated to prevent ground potential differences and protect connected equipment.
- Auto Data Direction Control (RS-485): Automatically manages data flow direction on RS-485 networks, eliminating the need for manual RTS control.
- LED Indicators: Dedicated LEDs for power and data transmission (TX/RX) on each port provide real-time communication status.
- Flexible Configuration: DIP switch settings allow users to select interface modes (RS-422 or RS-485) and operational parameters.
- Compact and Durable Design: Housed in a robust enclosure measuring 90 × 150 × 27 mm, suitable for desktop or panel installation.
- Wide Power Compatibility: Operates from a 5V DC supply (typical 400 mA consumption) with included 100–240V AC adapter options.
- Environmental Resilience: Designed for industrial environments with an operating temperature range of 0°C to 55°C and humidity tolerance up to 95% RH.
- Universal Serial Compatibility: Supports standard DTE-type RS-232 pin assignments for seamless integration with PCs, PLCs, and other serial devices.
- Optional Accessories: Includes optional null modem cables and terminal block adapters for flexible connectivity.

---

### 3. Technical Specifications

Physical Dimensions:
- Width: 90 mm
- Length: 150 mm
- Height: 27 mm

Weight: Approximately 250–300 g (typical, depending on configuration and accessories).

Material: Industrial-grade enclosure (metallic or reinforced plastic, depending on production batch) designed for EMI/RFI shielding and durability.

Power Requirements:
- Input Voltage: 5 VDC
- Typical Current Consumption: 400 mA
- Power Adapter: UP110/UP220 (US/EU type)
- Adapter Input: 100–240 VAC, 50/60 Hz
- Adapter Output: 5 VDC, 1000 mA

Environmental Conditions:
- Operating Temperature: 0°C to 55°C
- Storage Temperature: 0°C to 65°C
- Operating Humidity: 0% to 95% RH (non-condensing)
- Storage Humidity: 5% to 95% RH

Interfaces:
- Master RS-232 Port (Port A): DB9 Male, DTE type
- Slave RS-232 Port (Port D): DB9 Male, DTE type
- Slave RS-422/RS-485 Port (Port B): DB9 Male, configurable via DIP switch

Signal Definitions:
- RS-232: Standard DTE pinout
- RS-422: TX+, TX-, RX+, RX-, Isolated GND
- RS-485: Data+ (shorted pins 2 & 3), Data– (shorted pins 4 & 6), Isolated GND

Isolation:
- Full galvanic isolation between all ports and power input.
- Isolated ground reference for each communication interface.

Indicators:
- Power LED: Indicates DC power status.
- AT/RX LED: RS-232 Port A transmit/receive activity.
- BT/RX LED: RS-422/RS-485 Port B transmit/receive activity.
- DT/RX LED: RS-232 Port D transmit/receive activity.
- CT/RX LED: Reserved (not used).

---

### 4. Functionality

The TWIN232DB-I functions as a versatile serial communication bridge and isolator. It allows a single RS-232 master device (such as a PC, PLC, or controller) to communicate with multiple slave devices using RS-232, RS-422, or RS-485 interfaces.

Operating Modes:
1. RS-232 to RS-232 Isolator (Local Connection):
- Provides electrical isolation between two RS-232 devices.
- Ideal for protecting sensitive equipment from ground loops or voltage spikes.

2. RS-232 to RS-422 Converter (Remote Connection):
- Converts RS-232 signals to RS-422 differential signals for long-distance communication (up to 1200 meters).
- Suitable for point-to-point serial links in industrial automation or instrumentation systems.

3. RS-232 to RS-485 Converter (Multi-Drop Connection):
- Enables RS-485 multi-drop communication with up to 32 devices on a single bus.
- Auto Data Direction Control automatically manages transmit and receive switching.

Data Flow Behavior:
- Data received on the master RS-232 port (Port A) is retransmitted to all slave ports (RS-232 and RS-422/485).
- Data received on any slave port is retransmitted to the master port.
- This bidirectional data flow ensures transparent communication between connected devices.

Compatibility:
- Compatible with standard RS-232, RS-422, and RS-485 devices.
- Works with PCs, industrial controllers, data loggers, modems, and serial sensors.
- Supports asynchronous serial communication protocols.

---

### 5. Components & Accessories

Included Components:
- TWIN232DB-I Converter Unit
- Power Adapter (UP110 or UP220, depending on region)
- User Manual / Quick Start Guide

Optional Accessories:
- A101 Cable: 6-foot DB9 female-to-female null modem cable for PC COM port connection.
- TB485 Module: Terminal block adapter for RS-485 three-wire connection.
- Mounting Hardware: Optional brackets or DIN-rail clips (depending on installation requirements).

Connectors:
- Three DB9 male connectors (Ports A, B, D).
- Power input jack for 5V DC supply.

---

### 6. Installation & Setup

Installation Requirements:
- Power supply: 5V DC regulated source (included adapter recommended).
- Proper grounding and isolation to prevent electrical interference.
- Adequate ventilation for heat dissipation.

Mounting Options:
- Desktop placement for laboratory or office environments.
- Panel or wall mounting using optional brackets.
- DIN-rail mounting (with optional adapter).

Configuration Steps:
1. Set Interface Mode:
- Use DIP switch bit 2 to select RS-422 or RS-485 mode for Port B.
- Other DIP switch bits are reserved.

2. Connect Devices:
- Connect the master RS-232 device to Port A.
- Connect the slave RS-232 device to Port D or RS-422/485 device to Port B.

3. Power On:
- Connect the 5V DC power adapter.
- Verify the Power LED is illuminated.

4. Check Communication:
- Observe TX/RX LEDs for data activity.
- Ensure proper signal wiring and termination (especially for RS-485 networks).

Maintenance:
- Periodically inspect connectors and cables for wear or oxidation.
- Keep the device free from dust and moisture.
- Avoid exposure to excessive heat or vibration.

---

### 7. Performance & Capabilities

Data Transmission:
- Transparent data pass-through between ports.
- Supports standard asynchronous serial data rates (typically up to 115.2 kbps or higher depending on cable quality and distance).

Distance Capabilities:
- RS-232: Up to 15 meters (standard).
- RS-422: Up to 1200 meters (depending on cable and environment).
- RS-485: Up to 1200 meters with proper termination and twisted-pair cabling.

Isolation Performance:
- Full galvanic isolation between ports prevents ground potential differences.
- Protects connected devices from surges and electrical noise.

Efficiency:
- Low power consumption (400 mA typical).
- Auto Data Direction Control reduces latency and simplifies RS-485 communication.

Limitations:
- DIP switch configuration limited to RS-422/RS-485 mode selection.
- Not designed for environments exceeding 55°C or high vibration zones without additional protection.

---

### 8. Standards & Compliance

Electrical Standards:
- Complies with EIA/TIA-232, EIA/TIA-422, and EIA/TIA-485 interface standards.

Safety & EMC Compliance:
- Designed for industrial-grade isolation and signal integrity.
- Meets general CE and FCC requirements for electromagnetic compatibility (depending on regional certification).

Quality Assurance:
- Manufactured under Rayon Technology’s quality management system.
- Each unit tested for isolation integrity, signal accuracy, and power stability.

Industry Applications:
- Industrial automation and control systems.
- Building management and HVAC systems.
- SCADA and telemetry networks.
- Laboratory instrumentation and data acquisition.
- Serial device networking and integration.

---

### 9. Additional Information

Warranty:
- Standard manufacturer warranty (typically 1 year, subject to regional terms).
- Covers defects in materials and workmanship under normal use.

Technical Support:
- Provided by Rayon Technology Co., Ltd.
- Support channels include email and telephone assistance.

Maintenance & Updates:
- Firmware updates not typically required (hardware-based operation).
- Periodic inspection recommended for connectors and power supply.

Manufacturer Contact Information:
Rayon Technology Co., Ltd.
2F, No. 177, Chung Shan 2 Rd., Lu Chou, New Taipei City, Taiwan
Tel: +886-2-82858362
Fax: +886-2-82857065
Email: rayon@ms1.hinet.net / info@rayontech.com.tw
Web: [http://www.rayontech.com.tw](http://www.rayontech.com.tw) | [http://www.rayontech.com](http://www.rayontech.com)

Related Products:
- TWIN485 Box: Dual-port isolated RS-232 to RS-422/485 converter with RS-422 repeater and RS-485 bridge functions.
- UP422I PCI Port Card: Two ground-isolated RS-422/485 ports per card.
- UP485I PCI Port Card: Four ground-isolated RS-422/485 ports per card.
- RS4232-4 Box: Four-port RS-232 to isolated RS-232/422/485 converter.
- RS4232-8 Box: Eight-port RS-232 to isolated RS-422/485 converter.

---

### Summary

The TWIN232DB-I from Rayon Technology Co., Ltd. is a robust, industrial-grade serial converter and isolator that integrates RS-232, RS-422, and RS-485 communication standards into a single, compact unit. It provides full galvanic isolation between ports, ensuring safe and reliable data transmission across diverse serial networks. With its auto data direction control, LED indicators, and flexible configuration options, the TWIN232DB-I is ideal for engineers and system integrators seeking a dependable solution for serial communication in industrial, laboratory, and automation environments.

Its combination of performance, safety, and versatility makes it a key component for modern serial communication infrastructures requiring both local and remote connectivity with electrical isolation.
