Comprehensive Product Summary: ADLINK USB-3488A IEEE-488.2/488.1 (GPIB) USB Adapter

---

### 1. Product Overview

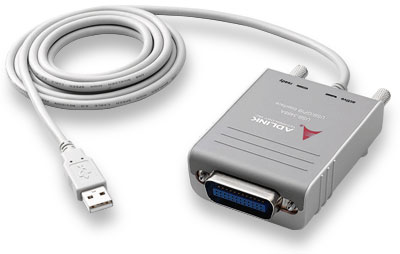

Product Name: USB-3488A
Model Number: USB-3488A
Series: LPCIe/LPCI/USB-3488A GPIB Interface Series
Article Number: USB-3488A
Manufacturer: ADLINK Technology Inc.
Product Type: USB IEEE-488.2 and 488.1 (GPIB) Adapter
Description: High-performance USB-to-GPIB interface controller compliant with IEEE-488.1 and IEEE-488.2 standards, designed for instrument control and communication in automated test environments (ATE).

Manufacturer Contact:
ADLINK Technology Inc., 9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Website: [www.adlinktech.com](http://www.adlinktech.com)
Email: service@adlinktech.com

---

### 2. Key Features

- Full IEEE-488.1 and IEEE-488.2 Compliance: Ensures compatibility with a wide range of GPIB instruments and systems.
- USB 2.0 Interface: Provides plug-and-play connectivity for desktop and laptop computers without requiring external power.
- High Data Throughput: Supports data transfer rates up to 1.2 MB/s in programmed I/O mode.
- Large Onboard FIFO: Equipped with a 32 KB FIFO buffer for optimized read/write operations and reduced latency.
- Driver and API Compatibility: Fully compatible with NI-488.2 driver software and supports VISA libraries for seamless integration with existing instrument drivers.
- Cross-Platform Software Support: Works with Visual Studio .NET, Borland C++ Builder, LabVIEW™, MATLAB®, and Delphi.
- Interactive Diagnostic Utility: Includes ADLINK GPIB Utility for testing, configuration, and troubleshooting.
- No External Power Supply Required: Draws power directly from the USB port.
- Compact and Portable Design: Ideal for mobile test setups and field applications.
- LED Indicators:
- Ready (Green): Device active and connected.
- Active (Amber, blinking): Data transfer in progress.
- Backward Compatibility: Command set (e.g., ibdev, ibrd, ibwrt) compatible with ADLINK PCI-3488 series without recompilation.
- Supports up to 14 Instruments: Can control multiple GPIB devices in linear, star, or mixed topologies.

---

### 3. Technical Specifications

Physical Characteristics:
- Dimensions: 81.6 mm (L) × 61.5 mm (W) × 27.8 mm (H)
- Weight: Approx. 150 g (including cable)
- Enclosure Material: Industrial-grade ABS housing with integrated shielding
- Cable: Built-in 2-meter USB 2.0 cable

Electrical and Power Requirements:
- Power Supply: +5 V DC (from USB bus)
- Current Consumption: 190 mA (typical), 500 mA (maximum)
- No external power adapter required

Environmental Conditions:
- Operating Temperature: 0°C to +55°C (32°F to 131°F)
- Storage Temperature: -20°C to +80°C (-4°F to 176°F)
- Relative Humidity: 5% to 95%, non-condensing
- Vibration Resistance:
- Operating: 1 G, 3 axes
- Non-operating: 2.5 G, 3 axes

Interface and Connectivity:
- GPIB Connector: IEEE-488 standard 24-pin connector
- USB Connector: USB Type-A plug (integrated cable)
- Data Transfer Mode: 8-bit parallel
- Handshake Protocol: 3-wire handshake (DAV, NRFD, NDAC)
- Maximum Cable Length:
- 2 meters between instruments (recommended)
- 20 meters total bus length

Performance:
- Maximum Data Transfer Rate: 1.2 MB/s (USB-3488A)
- FIFO Buffer: 32 KB onboard
- Supported Devices: Up to 14 instruments per controller

---

### 4. Functionality

Operating Principle:
The USB-3488A acts as a bridge between a computer’s USB port and the IEEE-488 (GPIB) instrumentation bus. It enables the host system to communicate with and control multiple instruments using standard GPIB commands. The onboard microcontroller and FIFO buffer manage data flow between the USB and GPIB buses, ensuring efficient and reliable communication.

Use Cases and Applications:
- Automated Test Equipment (ATE) systems
- Laboratory instrumentation control
- Data acquisition and measurement automation
- Calibration and diagnostics setups
- Portable test systems for field engineers

Compatibility:
- Software Environments: Visual Studio .NET, Borland C++ Builder, LabVIEW™, MATLAB®, Delphi
- Driver Libraries: ADL-GPIB (ADLINK), NI-VISA, Agilent-VISA
- Operating Systems: Windows XP, Windows 7, Windows 8 (x86/x64)
- API Compatibility: Binary-compatible with NI GPIB-32.DLL

Supported Commands:
Standard IEEE-488.2 functions such as `ibdev`, `ibrd`, `ibwrt`, `ibclr`, `ibtrg`, `ibwait`, and `ibconfig` are supported, ensuring seamless migration from other GPIB controllers.

---

### 5. Components & Accessories

Included Items:
- USB-3488A GPIB Adapter (with integrated 2 m USB cable)
- ADLINK GPIB Driver CD (ADL-GPIB)
- User’s Manual (PDF and printed versions)

Optional Accessories:
- ACL-IEEE488-1: 1-meter IEEE-488 standard cable
- ACL-IEEE488-2: 2-meter IEEE-488 standard cable
- ACL-IEEE488-4: 4-meter IEEE-488 standard cable

Connectors:
- GPIB: 24-pin IEEE-488 standard connector
- USB: Integrated USB 2.0 Type-A plug

---

### 6. Installation & Setup

System Requirements:
- Available USB 2.0 port
- Windows XP/7/8 operating system
- Administrator privileges for driver installation

Installation Procedure:
1. Software Installation:
- Insert the ADLINK GPIB Driver CD.
- Run `Setup.exe` from the ADL-GPIB directory.
- Follow the InstallShield® wizard instructions.
- Reboot the system after installation.

2. Hardware Connection:
- Connect the USB-3488A to an available USB port.
- The “Ready” LED will turn green when the device is recognized.
- No external power supply is required.

3. Verification:
- Launch the ADLINK GPIB Utility (`GPIB Utility.exe`) to verify device detection and test communication.
- Use the “GPIB Preference” dialog to configure interface parameters.

Mounting Options:
- Portable desktop use
- Bench-top integration with test instruments
- Can be used with powered USB hubs (recommended for multi-device setups)

---

### 7. Performance & Capabilities

Data Throughput:
- Up to 1.2 MB/s in programmed I/O mode
- Optimized for block data transfers with minimal latency

FIFO Buffering:
- 32 KB onboard FIFO ensures smooth data flow between USB and GPIB buses, minimizing data loss and improving throughput.

Bus Topology:
- Supports linear, star, or hybrid configurations.
- Maximum of 14 instruments per controller.
- Recommended maximum cable length: 2 m between devices, 20 m total.

Efficiency and Limitations:
- Designed for high-speed instrument communication.
- Performance may vary depending on USB host controller and system load.
- For optimal performance, ensure at least two-thirds of connected instruments are powered on.

---

### 8. Standards & Compliance

Regulatory Certifications:
- CE (Conformité Européenne)
- FCC Class A (Electromagnetic Compatibility)

Industry Standards:
- IEEE-488.1 (Electrical and Mechanical Specifications)
- IEEE-488.2 (Protocol and Command Set)
- USB 2.0 Specification

Environmental Compliance:
- RoHS (Restriction of Hazardous Substances) compliant
- WEEE (Waste Electrical and Electronic Equipment) directive compliant

Safety Standards:
- Designed and tested according to international EMC/EMI safety requirements.

---

### 9. Additional Information

Warranty:
- Standard Warranty: 2 years (1 year for products purchased in China)
- Coverage: Manufacturing defects and hardware failures under normal use
- Exclusions: Damage due to misuse, unauthorized repair, or environmental factors

Support & Maintenance:
- Technical Support: service@adlinktech.com
- RMA Service: [http://rma.adlinktech.com/policy](http://rma.adlinktech.com/policy)
- Software Updates: Latest drivers and utilities available at [www.adlinktech.com](http://www.adlinktech.com)

Maintenance Guidelines:
- Avoid exposure to moisture, dust, or extreme temperatures.
- Use anti-static precautions when handling.
- Clean with a dry, lint-free cloth only.

Software Updates & SDK:
- ADL-GPIB driver package includes:
- Diagnostic utility
- Programming samples for C/C++, VB, and LabVIEW
- VISA library support for NI and Agilent environments
- Compatible with NI-VISA (v2.6.1–4.5) and Agilent-VISA libraries.

Service Centers:
ADLINK maintains global service offices in Taiwan, USA, China, Japan, Germany, France, Korea, Singapore, India, and Israel for regional support and RMA processing.

---

### Summary

The ADLINK USB-3488A is a compact, high-performance USB-to-GPIB interface designed for modern test and measurement environments requiring reliable, portable, and standards-compliant instrument control. With full IEEE-488.1/488.2 compliance, 32 KB onboard FIFO, and up to 1.2 MB/s transfer rates, it provides robust connectivity for up to 14 instruments. Its plug-and-play USB 2.0 interface, compatibility with NI and Agilent VISA libraries, and comprehensive software support make it an ideal solution for laboratory automation, ATE systems, and portable test setups.

The USB-3488A combines ADLINK’s proven hardware design with extensive software compatibility, ensuring seamless integration into existing test infrastructures while maintaining high data integrity, low latency, and ease of use.
