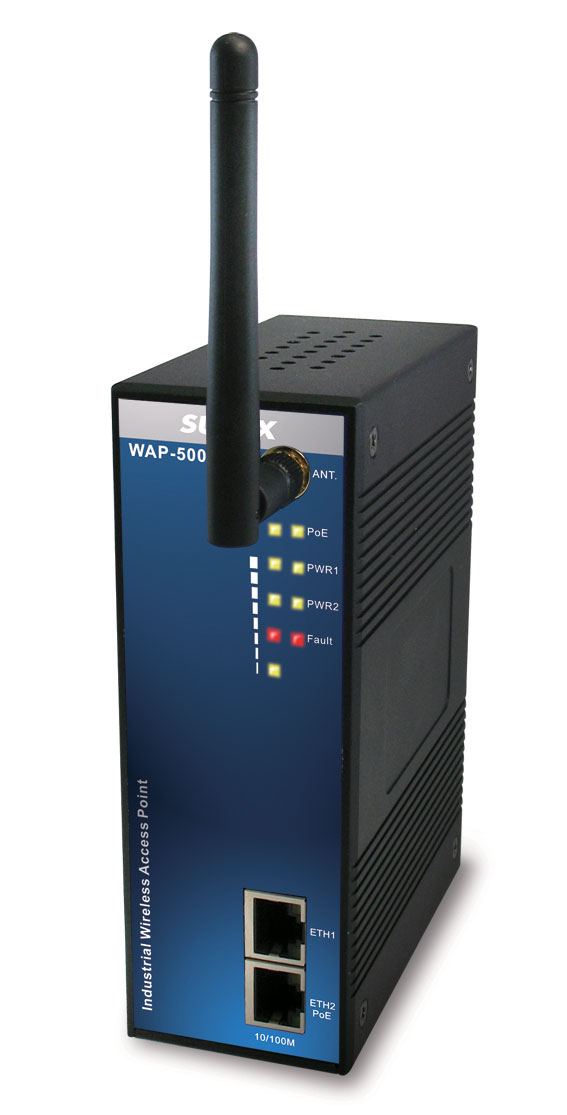

Comprehensive Product Summary – SUNIX WAP‑5002P Industrial Wireless LAN Access Point

---

### 1. Product Overview

Product Name: Industrial Wireless LAN Access Point
Model: WAP‑5002P
Series: WAP‑5000 Series
Article Number: WAP‑5002P
Manufacturer: SUNIX Co., Ltd. (Taiwan)
Product Category: Industrial Wireless Networking / WLAN Access Point
Product Type: IEEE 802.11b/g Wireless LAN Access Point with Dual 10/100Base‑T(X) LAN Ports (one PoE PD‑enabled)

The SUNIX WAP‑5002P is an industrial‑grade wireless access point designed to extend Ethernet connectivity over IEEE 802.11b/g wireless networks. It integrates two 10/100Base‑T(X) LAN ports, one of which supports IEEE 802.3af Power‑over‑Ethernet (PD) functionality. The device is engineered for robust, secure, and flexible wireless communication in industrial environments, supporting Access Point (AP), Bridge, and Repeater modes. It is housed in a rugged IP30 metal enclosure suitable for DIN‑rail or wall mounting.

---

### 2. Key Features

- IEEE 802.11b/g Wireless Connectivity: Supports data rates up to 54 Mbps (802.11g) and 11 Mbps (802.11b) in the 2.4 GHz band.
- Dual Ethernet Ports: Two 10/100Base‑T(X) RJ‑45 ports with built‑in 1.5 kV magnetic isolation; switch mode supports daisy‑chain topology to reduce switch port usage.
- PoE PD Functionality: ETH2 port fully compliant with IEEE 802.3af standard, accepting up to 8 W power input with 1 kV isolation protection.
- Multiple Operating Modes: Configurable as Access Point, Bridge, or Repeater for flexible network deployment.
- High Security: Supports WEP 64/128‑bit, WPA, WPA2, 802.1X, TKIP, AES, and RADIUS authentication; SSID broadcast disable and MAC/IP filtering.
- Redundant Power Inputs: Dual 12–48 V DC inputs via 6‑pin removable terminal block with reverse polarity protection.
- Industrial‑Grade Design: Metal IP30 enclosure, DIN‑rail or wall‑mountable, operating temperature −10 °C to 55 °C.
- Comprehensive Management: Web‑based GUI, SSH console, and Windows utility (WAP‑Tools) for configuration and monitoring.
- Event Notification: Syslog, SNMP trap, email alert, relay output, and beeper for fault and link‑down events.
- Secure Management: HTTPS and SSH protocols for encrypted configuration sessions.
- Status Monitoring: Real‑time wireless client list, DHCP mappings, system logs, and link status.
- Long‑Term Reliability: 5‑year manufacturer warranty and compliance with industrial EMC and environmental standards.

---

### 3. Technical Specifications

LAN Interface:
- Ports: 2 × 10/100Base‑T(X) RJ‑45, Auto MDI/MDI‑X
- Protection: 1.5 kV magnetic isolation
- Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH, SNMP v1/v2, Trap, Private MIB
- PoE PD: IEEE 802.3af compliant (ETH2)
- Power Consumption (PoE): 8 W max
- Isolation Voltage: 1000 V DC min
- Isolation Resistance: 10⁸ Ω min
- Overload & short‑circuit protection

WLAN Interface:
- Operating Modes: Access Point / Bridge / Repeater
- Antenna Connector: Reverse SMA (2.4 GHz 2 dBi antenna included)
- Radio Type: DSSS (802.11b) / OFDM (802.11g)
- Modulation:
- 802.11b – CCK, DQPSK, DBPSK
- 802.11g – BPSK, QPSK, 16QAM, 64QAM
- Frequency Bands:
- FCC (US): 2.412 – 2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412 – 2.472 GHz (13 channels)
- Transmission Rates:
- 802.11b – 1/2/5.5/11 Mbps
- 802.11g – 6/9/12/18/24/36/48/54 Mbps
- Transmit Power: 18 dBm typical
- Receiver Sensitivity: −81 dBm @ 11 Mbps (PER < 8 %), −64 dBm @ 54 Mbps (PER < 10 %)
- Wireless Security: SSID broadcast disable, WEP 64/128‑bit, WPA/WPA2 (PSK and 802.1X), TKIP/AES encryption, RADIUS authentication

Power Requirements:
- Input Voltage: 12 – 48 V DC (dual inputs)
- Connector: 6‑pin removable terminal block
- Reverse Polarity Protection: Yes
- Power Consumption: 6 W max (DC input)
- Alarm Contact: 1 × configurable relay output (1 A @ 24 V DC)

Environmental:
- Operating Temperature: −10 °C to 55 °C
- Storage Temperature: −20 °C to 85 °C
- Operating Humidity: 5 % – 95 % RH (non‑condensing)

Mechanical:
- Dimensions (W × D × H): 52 × 106 × 144 mm (without connectors)
- Enclosure: Metal (IP30 protection)
- Mounting: DIN rail or wall mount
- Weight: approx. 0.8 kg (typical)

LED Indicators:
- PWR1/PWR2: Green = Power OK; Red Blink = IP conflict or DHCP failure
- PoE: Green = PoE active; Red Blink = network error
- Fault: Amber = Power failure or link down
- ETH1/ETH2: Amber = 10 Mbps link; Green = 100 Mbps link; Blink = activity
- WLAN: Green = link active; Blink = data transfer
- WLAN Strength: 1–4 LEDs indicating signal strength (25 % increments)

---

### 4. Functionality

The WAP‑5002P functions as a wireless bridge between wired Ethernet networks and wireless clients. It can operate in three primary modes:

- Access Point (AP): Provides wireless connectivity for multiple clients, bridging them to the wired LAN.
- Bridge Mode: Connects two or more wired LAN segments over wireless links using Wireless Distribution System (WDS).
- Repeater Mode: Extends wireless coverage by relaying signals between APs and clients.

Use Cases & Applications:
- Industrial automation and SCADA systems
- Wireless connectivity for PLCs, HMIs, and sensors
- Remote monitoring and control in manufacturing plants
- Integration with IP cameras, VoIP phones, and mobile robots
- Temporary or hard‑to‑wire installations in warehouses or outdoor facilities

Compatibility:
- IEEE 802.11b/g compliant clients
- IEEE 802.3 and 802.3u Ethernet networks
- IEEE 802.3af PoE power sources (PSE)
- Compatible with Windows NT/2000/XP/2003/Vista and Linux systems for management utilities

---

### 5. Components & Accessories

Included Items:
- WAP‑5002P unit
- 2.4 GHz 2 dBi antenna with reverse SMA connector
- DIN‑rail mount kit (pre‑installed)
- Wall‑mount kit with 6 × M3 × 5 screws
- 6‑pin removable terminal block for power and relay connections
- Quick Installation Guide (QIG)
- CD with WAP‑Tools management utility and user manual
- Dust covers for unused ports

Optional Accessories:
- External high‑gain antenna (2.4 GHz)
- DC power adapter (12–48 V DC)
- PoE injector (IEEE 802.3af compliant)

Connectors:
- 2 × RJ‑45 Ethernet ports (ETH1, ETH2/PoE PD)
- 1 × Reverse SMA antenna connector
- 1 × 6‑pin terminal block (PWR1, PWR2, Relay)
- 1 × Reset button (bottom panel)

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail: Attach the rear metal spring clip to a standard DIN rail; press until a “click” is heard.
- Wall Mount: Remove the DIN rail kit, attach the wall mount plate using six screws, and secure to the wall.

Power Connection:
- Connect 12–48 V DC to PWR1 and/or PWR2 terminals for redundant power.
- Alternatively, supply power via PoE on ETH2 (IEEE 802.3af PSE required).
- Relay output (1 A @ 24 V DC) can be wired to external alarm systems.

Network Cabling:
- Use Cat. 5/5e UTP cables for 10/100Base‑T(X) connections (up to 100 m).
- Auto MDI/MDI‑X eliminates the need for crossover cables.

Configuration:
- Default IP address: 192.168.1.1
