- **Four‑Drive Hardware RAID Subsystem:** Supports RAID 0 (striping), RAID 1 (mirroring), and RAID 10 (striped mirror) for performance and redundancy optimization. - **Drive Compatibility:** Accommodates up to four 2.5‑inch SATA HDDs or SSDs, enabling flexible storage configurations for performance or fault tolerance. - **Hardware‑Based RAID Engine:** Offloads RAID processing from the host CPU, ensuring consistent performance and reduced system overhead. - **Cassette‑Style Modular Design:** Utilizes Neousys’ patented Cassette architecture (R.O.C. Patent No. M456527) for easy installation, maintenance, and thermal management. - **Ruggedized Construction:** Designed for industrial environments with wide temperature operation when paired with the Nuvo‑5000E platform. - **Fanless Operation:** The module supports fanless operation within the Nuvo‑5000E’s thermal envelope; optional fan integration is available for high‑power configurations. - **Seamless Integration:** Fully compatible with Nuvo‑5000E and Nuvo‑5000E‑series controllers, leveraging the system’s PCIe interface and internal power distribution. - **High Reliability:** Designed for continuous 24/7 operation in harsh industrial conditions, with vibration and shock resistance compliant with IEC60068‑2‑64 and IEC60068‑2‑27 standards.

Manufacturer: Neousys Technology

Category: Nuvo-5000-Series

- **High‑Density USB Expansion:** Eight SuperSpeed USB 3.0 ports compliant with USB 3.0 specification, each supporting up to 5 Gb/s link speed. - **Aggregate Bandwidth:** 2 GB/s total throughput across all ports, ensuring full‑speed operation for multiple high‑bandwidth peripherals. - **PCI Express Interface:** Integrated Neousys PCIe‑USB380 card utilizing PCIe Gen 2 ×4 interface for high‑performance data transfer. - **Rugged Cassette Integration:** Installed within Neousys’ patented expansion cassette, providing mechanical isolation and optimized thermal management. - **Passive Cooling Design:** Back‑to‑back heat‑sink structure dissipates heat from both the controller and the expansion card without active fans. - **Fanless Operation:** Fully fanless configuration supports 0 °C – 55 °C ambient operating temperature. - **Seamless System Integration:** Designed for direct installation into Nuvo‑5000E or Nuvo‑5000LP series controllers, maintaining system compactness and reliability. - **Industrial‑Grade Reliability:** Engineered for continuous operation in harsh industrial environments with vibration and shock resistance per IEC 60068‑2‑64/‑27 standards. - **Plug‑and‑Play Compatibility:** Fully recognized by operating systems supporting USB 3.0/xHCI drivers; backward compatible with USB 2.0/1.1 devices. - **Optimized for Embedded Applications:** Ideal for machine vision, data acquisition, and industrial automation requiring multiple high‑speed USB 3.0 connections.

Manufacturer: Neousys Technology

Category: Nuvo-5000-Series

- **Integrated NVIDIA® GT 730 GPU:** PCI Express x16 graphics card pre‑installed and thermally coupled to the cassette’s dual‑sided heat‑sink assembly. Provides hardware‑accelerated graphics, CUDA® compute capability, and multi‑monitor support. - **Neousys Patented Cassette Design (R.O.C. Patent No. M456527):** A modular, isolated compartment that houses the add‑on card separately from the system motherboard. This design improves thermal management, simplifies installation, and protects the main system from heat and vibration. - **Back‑to‑Back Thermal Heat‑Sink Solution:** Dual heat‑sink plates conduct heat from both the GPU and the system CPU outward to the chassis exterior, enabling efficient passive dissipation and maintaining fanless reliability. - **Smart Fan Option:** Integrated intelligent fan module provides active airflow when higher‑power cards are used or when ambient temperature exceeds passive cooling limits. Fan speed is automatically regulated for optimal thermal balance. - **Rugged Embedded Construction:** Designed for industrial environments with wide operating temperature range (fanless temperature TBD, typically matching Nuvo‑5000E’s –25 °C to 70 °C capability), vibration resistance, and shock tolerance per IEC 60068‑2‑64/‑27. - **Seamless Integration with Nuvo‑5000E Series:** Electrically and mechanically compatible with Nuvo‑5002E/5006E fanless controllers. The cassette slides into the dedicated expansion bay and interfaces through the system’s PCIe Gen3 x16 slot. - **Field‑Replaceable Module:** The cassette can be removed or swapped without disassembling the entire system, simplifying maintenance and upgrades.

Manufacturer: Neousys Technology

Category: Nuvo-5000-Series

- **Integrated GPU Solution:** Incorporates an NVIDIA® GTX 750 graphics card directly into Neousys’ patented cassette enclosure, providing plug‑and‑play GPU acceleration for Nuvo‑5000E systems. - **Patented Cassette Design:** The Neousys expansion cassette isolates the GPU from the main system chamber, improving thermal management and simplifying maintenance. The cassette design (R.O.C. Patent No. M456527) allows easy installation and replacement of add‑on cards without disturbing the main system. - **Back‑to‑Back Thermal Heat Sink:** Dual‑sided heat‑sink structure ensures efficient heat dissipation from both the GPU and system CPU, maintaining stable operation in fanless or semi‑fanless environments. - **Smart Fan Integration:** Equipped with a compact, intelligent fan assembly (25×25×10 mm) to provide targeted airflow within the cassette compartment, ensuring optimal GPU temperature under sustained load. - **Rugged Embedded Compatibility:** Designed for use with Nuvo‑5000E Series fanless controllers, which support ‑25 °C to 70 °C operation, 8–35 V DC input, and industrial‑grade shock/vibration tolerance. - **High‑Performance Graphics:** The NVIDIA® GTX 750 GPU delivers advanced CUDA® compute capability, DirectX 11/12 and OpenGL 4.x support, and hardware‑accelerated video decoding for industrial vision, AI inference, and multi‑display applications. - **Plug‑and‑Play Expansion:** Utilizes the PCIe x16 Gen3 (8‑lane) interface available in the Nuvo‑5000E cassette bay, ensuring full‑bandwidth GPU communication with the host CPU. - **Optimized for Industrial Environments:** The sealed cassette structure protects the GPU from dust and contaminants, while the modular design simplifies field replacement and upgrades.

Manufacturer: Neousys Technology

Category: Nuvo-5000-Series

- **Integrated PCIe‑PoE354at Controller:** Provides four independent IEEE 802.3at PoE+ ports, each capable of delivering up to 25.5 W, with a total power budget of 80 W. - **Patented Expansion Cassette Design:** Neousys’ modular cassette isolates add‑on cards thermally and mechanically from the main system, improving heat dissipation and serviceability. - **Back‑to‑Back Thermal Heat‑Sink Solution:** Conductive cooling path transfers heat from the PoE controller to the system chassis, maintaining fanless operation up to 50 °C ambient. - **Smart Fan Integration:** A compact 25 × 25 × 10 mm fan (Fankit‑25) provides active airflow when required, ensuring stable operation under high PoE load. - **Rugged Industrial Construction:** Designed for vibration, shock, and temperature extremes consistent with Nuvo‑5000E environmental ratings (‑25 °C ~ 50 °C fanless). - **Plug‑and‑Play Compatibility:** Fully compatible with Nuvo‑5000E embedded controllers via PCIe x16 Gen3 interface; recognized automatically by system BIOS and drivers. - **Per‑Port Power Control:** Supported through Neousys WDT_DIO driver library, allowing software‑controlled on/off switching of individual PoE ports for device reset or power management. - **High‑Reliability Power Delivery:** Complies with IEEE 802.3at PSE standards, providing stable 48 VDC output to connected powered devices such as IP cameras, sensors, or wireless access points. - **Industrial‑Grade Components:** Utilizes extended‑temperature components and reinforced connectors for long‑term field deployment.

Manufacturer: Neousys Technology

Category: Nuvo-5000-Series

- **Fanless Industrial Design:** Completely fanless architecture ensures silent operation and high reliability in dusty or vibration-prone environments. - **Intel® Ivy Bridge Platform:** Powered by Intel® Celeron® 1020E (2.2 GHz, 2 MB cache) with HM76 PCH, supporting up to 16 GB DDR3 1333/1600 MHz memory. - **Flexible Expansion:** - 1× PCIe x16 slot (8 lanes, 48W power budget) - 1× PCIe x4 slot - 2× 32-bit/33 MHz PCI slots - **Triple Independent Display:** Integrated Intel® HD Graphics supports DVI-I and DVI-D outputs, each up to 1920×1080 resolution, enabling DVI+DVI+VGA triple display configurations. - **Rich I/O Interfaces:** - 2× Intel® I210 Gigabit Ethernet ports - 4× USB 3.0 ports and 2× internal USB 2.0 (10-pin header) - 2× RS-232/422/485 (software-programmable) + 1× RS-232 - 1× Speaker-out audio jack - Optional 8× isolated DI + 8× isolated DO channels - **Storage Flexibility:** Dual 2.5" SATA III HDD/SSD bays and one external CFast slot. - **Rugged Environmental Tolerance:** - Operating temperature: -25°C to +60°C at 100% CPU load - Vibration: 5 Grms (5–500 Hz, 3 axes, with SSD) - Shock: 50 Grms (half-sine, 11 ms, with SSD) - **Compact and Durable Construction:** 164 mm (W) × 225 mm (D) × 180 mm (H), 4.0 kg including HDD and RAM. - **Wide Power Input Range:** 8–25 VDC input via 3-pin terminal block or 4-pin mini-DIN connector. - **Optional Enhancements:** 80 mm auxiliary fan, DIN-rail mounting kit, and AC/DC adapters (120W or 160W).

Manufacturer: Neousys Technology

Category: Nuvo-4000-Series

- **Fanless Industrial Design:** Completely fanless architecture ensures silent operation and eliminates mechanical failure points, ideal for harsh or dusty environments. - **Intel® Celeron® 1020E Processor:** Dual-core 2.2 GHz CPU with 2 MB cache, offering efficient performance for embedded and industrial workloads. - **Intel® HM76 Chipset:** Provides stable platform control, supporting DDR3 memory, SATA III, USB 3.0, and PCI Express interfaces. - **Dual Storage Support:** Accommodates one 2.5” SATA III HDD/SSD and one 3.5” SATA HDD/SSD via an integrated cassette with shock-absorbing bracket. - **Triple Gigabit Ethernet:** Three Intel® I210 GbE ports for high-speed networking, redundancy, or multi-camera streaming. - **Rich Display Options:** Integrated Intel® HD Graphics supports VGA (2048×1536) and dual DVI-I outputs (up to 2560×1600 via DP, 1920×1080 via DVI/HDMI). - **Wide Operating Temperature:** Reliable operation from -25°C to +70°C at 100% CPU load (with SSD), suitable for outdoor or vehicle-mounted systems. - **High Shock and Vibration Resistance:** 5 Grms vibration and 50 Grms shock tolerance per IEC60068-2-64/27 standards. - **Flexible Expansion:** Two Mini PCI Express slots (one with SIM socket) for wireless, GPS, or I/O expansion. - **Comprehensive I/O:** 4× USB 3.0, 4× USB 2.0, 2× RS-232/422/485, PS/2, audio I/O, and external CFast slot. - **Rugged Power Design:** 8–25 VDC wide-range input with optional ignition control for in-vehicle applications. - **Long MTBF:** Mean Time Between Failures of 93,732 hours ensures long-term reliability in mission-critical deployments.

Manufacturer: Neousys Technology

Category: Nuvo-3000-Series

- **Intel® Celeron™ 1020E Processor (2.2 GHz, 2 MB cache)** Dual‑core CPU delivering efficient performance for automation, vision, and control tasks. - **Fanless Thermal Design** Operates silently and reliably in ‑25 °C to +70 °C ambient temperature under full CPU load. - **Intel® HM76 Chipset** Provides stable platform support for 3rd‑generation Intel® Core™ and Celeron® processors. - **Triple Gigabit Ethernet Ports** Three Intel® I210 GbE controllers with dedicated PCIe lanes for high‑throughput networking. - **Dual Independent Display Outputs** VGA (2048 × 1536) and dual DVI‑D (1920 × 1200) outputs support simultaneous multi‑display configurations. - **Flexible Expansion Architecture** - One PCI slot via integrated Cassette module - Two Mini‑PCIe slots (one with SIM socket) for wireless, GPS, or I/O expansion - Optional isolated digital I/O (8 DI + 8 DO) with Change‑of‑State interrupt - Optional ignition power control for vehicle integration - **Comprehensive I/O Connectivity** 2 × USB 3.0, 2 × USB 2.0, 1 × RS‑232/422/485, PS/2, audio I/O, and external CFast slot. - **Rugged Reliability** - Vibration resistance: 5 Grms (5–500 Hz, 3 axes, SSD) - Shock resistance: 50 Grms (half‑sine, 11 ms, SSD) - MTBF: 93,732 hours - **Wide‑Range DC Power Input (8–25 VDC)** Built‑in DC input with optional 120 W AC/DC adapter; supports ignition control and remote on/off. - **Compact Industrial Form Factor** 240 mm (W) × 225 mm (D) × 69 mm (H), 3.4 kg including HDD and RAM.

Manufacturer: Neousys Technology

Category: Nuvo-3000-Series

- **Intel® Celeron® 1020E Processor (2.2 GHz, 2 MB Cache):** Dual-core CPU offering a balance of performance and power efficiency for industrial control, automation, and embedded applications. - **Fanless Design:** Completely fanless thermal architecture ensures silent operation and long-term reliability in dusty or vibration-prone environments. - **Intel® HM76 Chipset:** Provides stable platform support for 3rd-Gen Intel® processors and advanced I/O capabilities. - **Memory Support:** Two 204-pin DDR3 SODIMM sockets supporting up to 16 GB DDR3 1333/1600 MHz SDRAM. - **Triple Gigabit Ethernet Ports:** Three Intel® I210-based GbE ports, each with dedicated PCIe lanes for maximum throughput and network isolation. - **Dual Independent Display Outputs:** Integrated Intel® HD Graphics supports VGA (2048×1536) and dual DVI-D (1920×1200) outputs for multi-display configurations. - **Flexible Expansion:** - 1× PCIe x8 slot via integrated Cassette (8-lane Gen2 signals). - 2× Mini PCIe slots (one with SIM socket for 3G/4G modules). - Optional isolated DIO (8DI + 8DO) and ignition power control. - **Storage Options:** - 1× internal 2.5" SATA III HDD/SSD bay. - 1× external CFast slot for removable storage. - **Wide Operating Temperature:** -25°C to +70°C at 100% CPU load (with SSD). - **Rugged Reliability:** - Vibration resistance: 5 Grms (5–500 Hz, 3 axes, IEC60068-2-64). - Shock resistance: 50 Grms (half-sine, 11 ms, IEC60068-2-27). - MTBF: 93,732 hours. - **Compact and Durable Construction:** Aluminum chassis with dimensions 240 × 225 × 69 mm and weight 3.4 kg (with HDD and RAM). - **Power Flexibility:** 8–25 VDC wide-range input with optional 120W or 160W AC/DC adapter.

Manufacturer: Neousys Technology

Category: Nuvo-3000-Series

- **Fanless Industrial Design:** Completely fanless architecture ensures silent operation and long-term reliability in dusty or vibration-prone environments. - **Intel® Celeron® 1020E Processor:** Dual-core 2.2 GHz CPU (Ivy Bridge architecture) with 2 MB cache, offering stable performance for embedded and industrial workloads. - **Intel® HM76 Chipset:** Provides robust I/O and expansion capabilities, supporting SATA III, USB 3.0, and PCI interfaces. - **4x PCI Expansion Slots:** Supports four 33 MHz/32-bit 5V PCI cards for industrial control, data acquisition, or legacy interface applications. - **Dual Gigabit Ethernet Ports:** Two Intel® I210 GbE controllers for high-speed, independent network connections. - **Triple Independent Display Support:** Integrated Intel® HD Graphics 4000 engine with DVI-I and DVI-D outputs, each supporting 1920×1080 resolution. - **Wide Operating Temperature:** Reliable operation from -25°C to +60°C at 100% CPU load. - **High Shock and Vibration Resistance:** 5 Grms vibration and 50 Grms shock tolerance (with SSD), compliant with IEC60068-2-64 and IEC60068-2-27 standards. - **Flexible Power Input:** 8–25 VDC wide-range input with built-in power circuitry; optional 120W or 160W AC/DC adapters available. - **Compact and Rugged Chassis:** 164 × 225 × 180 mm aluminum enclosure, wall-mountable or DIN-rail mountable. - **Optional Isolated DIO:** 8-channel isolated digital input and 8-channel isolated digital output (2500 Vrms isolation). - **Optional Smart Fan Module:** 80 mm auxiliary fan for additional cooling when high-power PCI cards are installed.

Manufacturer: Neousys Technology

Category: Nuvo-4000-Series

- **Intel® Celeron™ 1020E Processor (2.2 GHz, 2 MB Cache):** Dual-core CPU providing efficient computing for industrial and embedded applications. - **Intel® HM76 Platform Controller Hub:** Ensures stable chipset performance and compatibility with 3rd-Gen Intel® Core™ and Celeron™ processors. - **Fanless Operation:** Passive cooling design supports -25°C to +70°C operation at 100% CPU load, ensuring silent and maintenance-free operation. - **Low-Profile Chassis:** Compact 240 mm (W) × 225 mm (D) × 69 mm (H) form factor for installation in confined spaces. - **Dual 2.5” SATA III Storage:** One internal 2.5” SATA III HDD/SSD and one external 2.5” SATA III HDD/SSD in a hot-swappable tray for easy maintenance. - **Triple Intel® I210 Gigabit Ethernet Ports:** Three independent GbE interfaces supporting 9.5 KB jumbo frames for high-throughput networking. - **Dual Independent Display Outputs:** VGA (2048×1536) and dual DVI-D (1920×1080) outputs for multi-display configurations. - **Rich I/O Connectivity:** 2× USB 3.0, 2× USB 2.0, 1× RS-232/422/485 (software-programmable), PS/2, audio I/O, and external CFast slot. - **Expansion Capability:** Two Mini PCI Express slots (one with SIM card socket) for wireless, GPS, or I/O expansion. - **Rugged Design:** Vibration resistance up to 5 Grms and shock resistance up to 50 Grms (with SSD), compliant with IEC60068-2-64 and IEC60068-2-27. - **Wide DC Input Range:** 8–25 VDC input with optional 120W AC/DC adapter. - **High Reliability:** MTBF of 93,732 hours, ensuring long-term continuous operation. - **Optional Features:** Ignition power control, DIN-rail mounting kit, and 120W power adapter.

Manufacturer: Neousys Technology

Category: Nuvo-3000-Series

- **Intel® Celeron® J1900 Quad‑Core Processor (2.42 GHz, 2 MB Cache):** Delivers efficient computing performance with low power consumption. - **Fanless Design:** Passive cooling architecture ensures silent operation and long‑term reliability in dusty or vibration‑prone environments. - **Patented Expansion Cassette:** Provides one PCI slot (33 MHz/32‑bit) for add‑on cards up to 173 mm × 121 mm, thermally isolated from the main system to minimize heat impact. - **Dual Independent Display:** VGA and DVI‑D outputs support resolutions up to 2560 × 1600 pixels each. - **Dual Intel® I210 Gigabit Ethernet Ports:** Industrial‑grade network interfaces for reliable data communication and remote management. - **Rich I/O Connectivity:** - 4 × COM ports (2 × software‑programmable RS‑232/422/485, 2 × RS‑232) - 1 × USB 3.0 and 3 × USB 2.0 ports - 1 × Mic‑in and 1 × Speaker‑out - **Flexible Storage Options:** - 1 × 2.5″ SATA III HDD/SSD bay - 1 × half‑size mSATA slot - **Mini‑PCIe Expansion:** Two full‑size Mini‑PCIe sockets (one with SIM card holder) for wireless modules such as Wi‑Fi, 3G, LTE, or GPS. - **Optional MCU‑Controlled Auxiliary I/O:** 4 × DI, 8 × DO, 6 × PWM, 1 × quadrature encoder, and 2 × analog inputs via DB‑37 connector. - **Wide‑Range DC Power Input:** 8 – 35 V DC with built‑in protection; optional 60 W AC/DC adapter available. - **Rugged Environmental Tolerance:** - Operating temperature: –25 °C to +70 °C (with SSD, 100 % CPU load) - Vibration: 5 Grms, 5–500 Hz, 3 axes (IEC 60068‑2‑64) - Shock: 50 Grms, 11 ms half‑sine (IEC 60068‑2‑27) - **Compact and Durable Construction:** 205 × 145 × 73 mm aluminum chassis, 2.3 kg including HDD and RAM. - **Mounting Flexibility:** Standard wall‑mount; optional DIN‑rail kit. - **Compliance:** CE/FCC Class A, EN 55022 & EN 55024.

Manufacturer: Neousys Technology

Category: Nuvo-2000-Series and others

- **Processor:** Intel® Celeron® J1900 Quad‑Core Bay Trail (2.42 GHz, 2 MB cache) - **Fanless Architecture:** Passive cooling for silent, maintenance‑free operation - **Compact Design:** 205 mm (W) × 145 mm (D) × 73 mm (H) - **Dual Independent Display:** VGA and DVI‑D outputs, each supporting up to 2560 × 1600 resolution - **Dual Gigabit Ethernet:** Two Intel® I210 GbE ports for high‑speed networking - **Flexible Expansion:** - One PCIe x4 slot (1‑lane Gen2 signal) via patented expansion cassette - One full‑size Mini‑PCIe slot with USIM holder - One full‑size Mini‑PCIe slot (USB signal only) - One half‑size mSATA slot - **Rich I/O Interface:** - 4 × COM ports (2 × RS‑232/422/485 software‑selectable, 2 × RS‑232) - 1 × USB 3.0 and 3 × USB 2.0 ports - 1 × Mic‑in and 1 × Speaker‑out - **Optional Auxiliary I/O (MAIO):** 4 × DI, 8 × DO, 6 × PWM, 1 × Encoder, 2 × ADC via DB‑37 connector - **Wide‑Range DC Input:** 8 – 35 V DC with built‑in power circuitry - **Rugged Reliability:** - Operating temperature: –25 °C to +70 °C (100 % CPU load, SSD) - Vibration: 5 Grms, 5–500 Hz, 3 axes (IEC 60068‑2‑64) - Shock: 50 Grms, 11 ms half‑sine (IEC 60068‑2‑27) - **Mounting Options:** Wall‑mount (standard) or DIN‑rail (optional) - **Optional Accessories:** PoE modules, fan kits, DIN‑rail kits, and 60 W AC/DC adapter

Manufacturer: Neousys Technology

Category: Nuvo-2000-Series and others

- **Intel® Celeron® J1900 Quad‑Core Processor (2.42 GHz, 2 MB cache)** Provides efficient multi‑threaded performance with low power consumption. - **Fanless, Rugged Design** Passive cooling architecture ensures silent operation and high reliability in dusty or vibration‑prone environments. - **Compact Form Factor** Dimensions of 205 mm (W) × 145 mm (D) × 73 mm (H) enable installation in confined industrial spaces. - **Dual Independent Display Outputs** VGA and DVI‑D interfaces support resolutions up to 2560 × 1600 for dual‑monitor configurations. - **Flexible Expansion via Patented Cassette** Supports one PCI (Nuvo‑2500P) or PCIe x4 (Nuvo‑2500E) slot for add‑on cards up to 173 × 121 mm. The cassette isolates heat from expansion cards, maintaining system stability. - **Rich I/O Connectivity** Includes 2 × Intel® I210 Gigabit Ethernet, 4 × COM ports (2 × RS‑232/422/485 software‑selectable, 2 × RS‑232), 1 × USB 3.0, 3 × USB 2.0, audio I/O, and optional auxiliary digital/analog I/O. - **Dual Storage Capability** 1 × 2.5″ SATA III port and 1 × half‑size mSATA slot allow separation of system and data drives. - **Wide DC Input Range (8–35 VDC)** Accepts industrial power sources; optional 60 W AC/DC adapter available. - **Extended Operating Temperature** ‑25 °C to +70 °C at 100 % CPU load with SSD; suitable for outdoor or factory environments. - **High Shock and Vibration Resistance** 5 Grms vibration and 50 Grms shock compliance per IEC 60068‑2‑64/‑27 standards. - **Optional MCU‑Controlled Auxiliary I/O (DB‑37)** Provides 4 × DI, 8 × DO, 6 × PWM, 1 × encoder, and 2 × ADC channels for motion or process control. - **Wireless Expansion Support** Full‑size Mini‑PCIe slot with SIM socket supports 3G/LTE/Wi‑Fi/Bluetooth modules.

Manufacturer: Neousys Technology

Category: Nuvo-2000-Series and others

- **Intel® Atom™ E3845 Quad‑Core Processor (1.91 GHz, 2 MB Cache):** Delivers efficient performance for embedded and vehicular computing with low power consumption. - **Fanless Thermal Design:** Passive cooling ensures silent operation and long‑term reliability in dusty or vibration‑prone environments. - **Dual IEEE 802.3at PoE+ Gigabit Ethernet Ports:** Two Intel® I210 GbE controllers provide up to 25.5 W per port for powering IP cameras or wireless access points directly via CAT‑5e/6 cables. - **Integrated CAN Bus Interface:** One DB‑9 connector compliant with CAN 2.0A and 2.0B standards for vehicle network communication. - **Intelligent Ignition Power Control:** MCU‑based ignition sensing with programmable on/off delay, low‑battery protection, and smart power‑off logic for automotive integration. - **Rich I/O Connectivity:** - 4 × COM ports (2 × software‑programmable RS‑232/422/485, 2 × RS‑232) - 1 × USB 3.0 and 3 × USB 2.0 ports - 1 × DVI‑I (digital output) and 1 × VGA port - 1 × Mic‑in and 1 × Speaker‑out - **Expansion Capability:** Two full‑size Mini‑PCI Express slots (one with internal USIM socket, one with external USIM socket) for 3G/4G/LTE, GPS, or Wi‑Fi modules. - **Storage Flexibility:** One 2.5″ SATA III bay for HDD/SSD and one half‑size mSATA slot. - **Wide‑Range DC Power Input (8–35 VDC):** Supports direct connection to 12 V or 24 V vehicle batteries. - **Compact and Rugged Construction:** 205 × 145 × 44 mm aluminum chassis with patented shock‑absorbing wall‑mount brackets. - **Environmental Hardening:** Operates from –25 °C to +70 °C (SSD configuration) with 5 Grms vibration and 50 Grms shock resistance. - **Certifications:** E‑Mark, CE/FCC Class A for vehicular and industrial compliance.

Manufacturer: Neousys Technology

Category: Nuvo-2000-Series and others

- **Intel® Celeron® Bay Trail J1900 Quad‑Core Processor (2.42 GHz, 2 MB Cache)** Provides a balance of performance and energy efficiency with a 10 W TDP, delivering roughly three times the performance of previous Atom D525/D2550 platforms. - **Fanless, Rugged Design** Operates reliably in ‑25 °C to +70 °C ambient temperature at 100 % CPU load. The sealed aluminum chassis ensures passive heat dissipation and silent operation. - **Triple Expansion Capability** Offers two 32‑bit PCI slots (33 MHz) and one PCI Express x4 slot (Gen 2, single‑lane signal) for add‑on cards such as data acquisition, motion control, or frame grabbers. - **Dual Independent Display Outputs** A DVI‑I connector supports both VGA and DVI/HDMI outputs, enabling dual‑display configurations up to 2560 × 1600 resolution. - **Dual Intel® I210 Gigabit Ethernet Ports** Support PXE boot, teaming, and Wake‑on‑LAN for network redundancy and remote management. - **Rich I/O Connectivity** Includes 1 × USB 3.0, 3 × USB 2.0, 4 × COM ports (2 × software‑configurable RS‑232/422/485, 2 × RS‑232), 1 × parallel port, audio I/O, and optional isolated digital I/O. - **Optional 8‑Channel Isolated Digital Input and Output** 3750 Vrms isolation, 24 V DC rated, compatible with industrial sensors and actuators. - **Dual 2.5‑inch SATA Storage Bays** Two internal SATA 2.0 ports allow installation of HDDs or SSDs for system and data separation. - **Wide‑Range DC Power Input (8 – 25 V DC)** Integrated power circuitry with 3‑pin pluggable terminal block for direct field wiring. - **Compact “Shoe‑Box” Form Factor** Dimensions 139 × 160 × 225 mm, weight 2.2 kg, supporting wall‑mount or optional DIN‑rail installation. - **Industrial‑Grade Reliability** Vibration tolerance 5 Grms (5–500 Hz, 3 axes) and shock resistance 50 Grms (11 ms half‑sine) per IEC 60068‑2‑64/‑27.

Manufacturer: Neousys Technology

Category: Atom Powered Embedded

- **Intel® Celeron® Bay Trail J1900 Quad-Core Processor (2.42 GHz, 2 MB Cache)** Provides a balance of performance and energy efficiency with a 10W TDP, delivering approximately three times the performance of older Intel Atom D525/D2550 processors. - **Fanless, Rugged Design** Operates silently and reliably in environments ranging from -25°C to +70°C under full CPU load, ensuring long-term stability without active cooling. - **Triple PCI Expansion Slots** Offers 3× PCI slots (33 MHz, 32-bit) for add-on cards such as data acquisition, communication, or frame grabber modules, enhancing system flexibility. - **Dual Independent Display Outputs** DVI-I connector supports both VGA and DVI/HDMI outputs, enabling dual-display configurations up to 2560×1600 resolution. - **Dual Intel® I210 Gigabit Ethernet Ports** Supports PXE boot and teaming for redundancy or bandwidth aggregation, ideal for networked industrial systems. - **Rich I/O Connectivity** Includes 4× COM ports (2× RS-232/422/485 configurable, 2× RS-232), 1× USB 3.0, 3× USB 2.0, 1× Mic-in, and 1× Speaker-out. - **Optional Isolated Digital I/O** 8-channel isolated digital input and 8-channel isolated digital output (3750 Vrms isolation, 24VDC rated) for direct connection to industrial sensors and actuators. - **Dual 2.5" SATA Storage Bays** Supports two internal SATA 2.0 drives for system and data separation, enhancing reliability and storage capacity. - **Wide-Range DC Power Input (8–25 VDC)** Built-in DC input via 3-pin pluggable terminal block for field deployment. - **Compact and Durable Chassis** Dimensions: 139 mm (W) × 160 mm (H) × 225 mm (D); Weight: 2.2 kg. Supports wall-mounting (standard) or DIN-rail mounting (optional).

Manufacturer: Neousys Technology

Category: Atom Powered Embedded

- **Fanless Industrial Design:** Passive cooling architecture ensures silent operation and high reliability in harsh environments, eliminating moving parts and reducing maintenance. - **Intel® Celeron™ P4500 Processor:** Dual‑core 1.86 GHz CPU with 2 MB cache, optimized for embedded and industrial workloads. - **Intel® HM55 Platform Controller Hub:** Provides integrated Intel® HD Graphics and advanced I/O management. - **Triple Gigabit Ethernet Ports:** Three independent Intel® 82574L GbE controllers, each with dedicated PCIe lanes for maximum throughput—ideal for networking, machine vision, or surveillance systems. - **Dual Independent Display Outputs:** Supports simultaneous VGA (DB‑15) and DVI‑D/HDMI outputs up to 2560×1600 (VGA) and 1920×1080 (HDMI). - **Rich I/O Connectivity:** Six USB 2.0 ports, four serial ports (one software‑selectable RS‑232/422/485 and three RS‑232), PS/2 keyboard/mouse, audio I/O, CompactFlash slot, and two eSATA ports. - **Expansion Flexibility:** One internal Mini‑PCIe slot with SIM card socket for wireless or communication modules; optional PCI‑104 expansion and isolated digital I/O module. - **Wide‑Range DC Power Input:** Built‑in 8–26 V DC input with both terminal block and DC jack options; supports AT/ATX power modes and remote on/off control. - **Rugged Environmental Tolerance:** Operating temperature −20 °C to +60 °C (with airflow), vibration 5 Grms, and shock 50 Grms (SSD configuration). - **Compact, Durable Chassis:** Aluminum alloy enclosure, 240 × 195 × 78 mm, 2.7 kg, wall‑mountable. - **Optional 8‑in/8‑out Isolated DIO:** 2500 Vrms isolation, 5–24 V logic, 100 mA sustained sink current per channel. - **Integrated Watchdog Timer:** Hardware watchdog via ITE8783 Super I/O for system recovery and reliability monitoring. - **Operating System Support:** Windows XP/7 (32/64‑bit) and Ubuntu Linux distributions verified.

Manufacturer: Neousys Technology

Category: Nuvo-2000-Series and others

Compact edge AI GPU computer with AMD Ryzen PRO 8640U and 70W GPU support

Ultra-compact x86-based GPU computer with AMD Ryzen PRO 8640U processor (6C/12T, 3.5/4.9 GHz, 15W-30W TDP), AMD Radeon RDNA3 graphics with Ryzen AI, support for NVIDIA low-profile GPU up to 70W via low-profile PCIe x16 Gen4 slot with 8 PCIe lanes, up to 32 GB DDR5-5600 SDRAM in one SODIMM socket, 1x M.2 2280 M-key PCIe Gen3 x4 for NVMe SSD, 2x full-size Mini-PCIe with 1x internal micro SIM, 1x 2.5GbE, 4x GbE, 4x USB 3.2 Gen 2, 1x HDMI 2.0b, 1x software-programmable RS-232/422/485, 4-CH isolated DI and 4-CH isolated DO, 12-35V DC input, wall-mount, -25°C to 60°C operating temperature depending on configuration.

Manufacturer: Neousys Technology

Category: No category

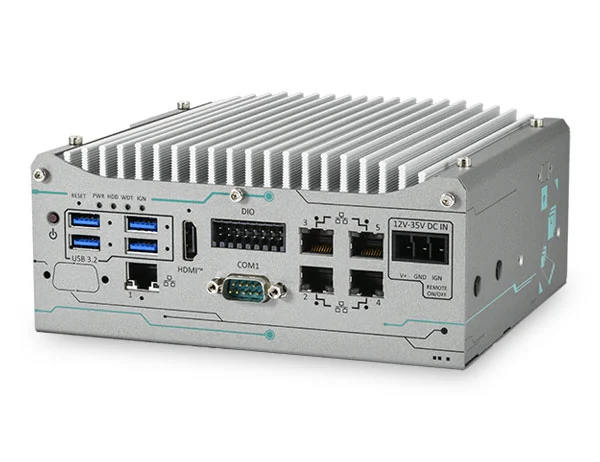

Compact edge AI GPU computer with AMD Ryzen PRO 8640U and PoE+

Compact GPU computer based on AMD Ryzen PRO 8640U processor with support for NVIDIA low-profile GPU up to 70W, up to 32 GB DDR5-5600 SDRAM, 1x M.2 2280 NVMe slot, 2x full-size Mini-PCIe, 1x 2.5GbE, 4x GbE with IEEE 802.3at PoE+ option on ports 2 to 5, 4x USB 3.2 Gen 2, 1x HDMI 2.0b, 1x software-programmable RS-232/422/485, 4-CH isolated DI and 4-CH isolated DO, 12-35V DC input, and wall-mount chassis for compact edge AI and machine vision deployments.

Manufacturer: Neousys Technology

Category: No category

Compact fanless computer with 2x 2.5GbE and 4x USB 3.2

Intel 14th/13th/12th-Gen Core compact fanless embedded computer with Intel H610E chipset, LGA1700 35W/65W CPU support, up to 32GB DDR4-3200 non-ECC SODIMM, 2x 2.5GbE, 4x USB 3.2 Gen1, 2x USB 2.0, VGA and DisplayPort, 1x M.2 2280 M-key PCIe Gen4 x4 NVMe, 1x internal SATA for 2.5"/3.5" HDD/SSD, 2x full-size mini PCIe, 1x M.2 2230 E-key, 8-35V DC input, and fanless operation from -10°C to 60°C.

Manufacturer: Neousys Technology

Category: No category

Compact fanless computer with 2x 2.5GbE, 4x USB 3.2 and isolated DIO

Intel 14th/13th/12th-Gen Core compact fanless embedded computer with Intel H610E chipset, LGA1700 35W/65W CPU support, up to 32GB DDR4-3200 non-ECC SODIMM, 2x 2.5GbE, 4x USB 3.2 Gen1, 2x USB 2.0, VGA and DisplayPort, 1x M.2 2280 M-key PCIe Gen4 x4 NVMe, 1x internal SATA for 2.5"/3.5" HDD/SSD, 2x full-size mini PCIe, 1x M.2 2230 E-key, 4-CH isolated DI, 4-CH isolated DO, 8-35V DC input, and fanless operation from -25°C to 60°C.

Manufacturer: Neousys Technology

Category: No category

Compact fanless computer with 4x PoE+ 2.5GbE and external SlimSAS PCIe Gen4x8

Compact fanless embedded computer with Intel Core Ultra 200S series LGA1851 processors (35W/65W), Intel Q870 chipset, integrated Intel Xe LPG graphics, integrated NPU, up to 64GB DDR5-6400 via 1x SODIMM, 4x 2.5GBASE-T Ethernet with optional PoE+ PSE, 4x USB 3.2 Gen1, 2x USB 2.0, HDMI, DisplayPort, 8x isolated DI and 8x isolated DO, 4x serial ports, 1x external PCIe Gen4x8 via SlimSAS 8i (SFF-8654), 1x M.2 2280 M-key PCIe Gen4x4 NVMe, 1x easy-swappable 2.5-inch SATA HDD/SSD tray, 2x mini PCIe, 1x M.2 2230 E-key, 8V to 48V DC input, -25°C to 60°C operation.

Manufacturer: Neousys Technology

Category: No category

Compact fanless controller with Intel Celeron 1020E and rich I/O

Fanless embedded controller in compact 212 x 165 x 62 mm chassis with Intel Celeron 1020E processor, Intel HM76 chipset, up to 8 GB DDR3 SO-DIMM memory, dual Gigabit Ethernet, 4x USB 3.0, 2x USB 2.0, 2x RS-232/422/485, 4x isolated DI and 4x isolated DO, DVI-I plus 2x DisplayPort triple display outputs, 1x internal SATA for 2.5 in HDD/SSD, 1x full-size mSATA with USIM, 1x full-size mini PCIe with USIM, 1x half-size mini PCIe, 8 to 35 VDC input, optional ignition control.

Manufacturer: Neousys Technology

Category: No category

Compact fanless controller with Intel Core i5-3610ME and rich I/O

Fanless embedded controller in compact 212 x 165 x 62 mm chassis with Intel Core i5-3610ME processor, Intel HM76 chipset, up to 8 GB DDR3 SO-DIMM memory, dual Gigabit Ethernet, 4x USB 3.0, 2x USB 2.0, 2x RS-232/422/485, 4x isolated DI and 4x isolated DO, DVI-I plus 2x DisplayPort triple display outputs, 1x internal SATA for 2.5 in HDD/SSD, 1x full-size mSATA with USIM, 1x full-size mini PCIe with USIM, 1x half-size mini PCIe, 8 to 35 VDC input, optional ignition control.

Manufacturer: Neousys Technology

Category: No category
