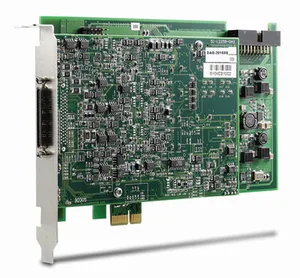

- **PCI Express Interface:** x1 lane PCIe® interface ensuring high‑speed data throughput and plug‑and‑play configuration. - **Simultaneous Sampling:** Four differential analog input channels sampled simultaneously at up to **500 kS/s per channel**. - **High Resolution:** 16‑bit analog‑to‑digital conversion with no missing codes for precise signal measurement. - **Programmable Input Ranges:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V and unipolar 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V. - **Dual Analog Outputs:** Two 12‑bit voltage outputs with 1 MS/s update rate, ±10 V or 0–10 V ranges, and waveform generation capability. - **Digital I/O:** 24‑channel TTL‑compatible programmable digital I/O (8255 PIO compatible). - **Timer/Counter:** Two 16‑bit general‑purpose up/down counters with 40 MHz internal or up to 10 MHz external clock. - **Triggering:** Supports software, external analog, external digital, and SSI (System Synchronization Interface) triggers. - **Auto‑Calibration:** Fully automatic calibration of analog input and output channels using on‑board precision reference (5.000 V ±2 ppm/°C). - **Scatter‑Gather DMA:** High‑speed bus‑mastering DMA with scatter/gather capability for efficient data transfer without CPU overhead. - **Synchronization:** Multiple‑card synchronization via SSI bus for scalable multi‑channel systems. - **Software Support:** Drivers and SDKs for Windows and Linux; compatible with LabVIEW®, MATLAB®, Visual C++, Visual Basic, and .NET environments. - **Compact Design:** 168 mm × 107 mm half‑size PCIe card with VHDCI‑68 connector. - **Operating Range:** 0 °C – 55 °C, 5 – 95 % RH non‑condensing.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **PCI Express x1 Interface:** Fully compliant with PCI Express architecture, supporting both 3.3 V and 5 V signaling environments. - **Simultaneous Sampling:** Four differential analog input channels sampled simultaneously at up to **250 kS/s per channel** with 16‑bit resolution. - **High‑Resolution Analog Input:** 16‑bit A/D conversion with no missing codes, ensuring precise signal digitization. - **Programmable Input Ranges:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V and unipolar 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V. - **Analog Output Capability:** Two 12‑bit voltage outputs with waveform generation up to **1 MS/s** update rate, supporting ±10 V or 0–10 V ranges. - **Digital I/O:** 24‑channel TTL‑compatible programmable I/O (8255‑compatible). - **Timer/Counter:** Two 16‑bit up/down general‑purpose counters with 40 MHz internal or up to 10 MHz external clock. - **Triggering:** Software, external analog, external digital, or SSI‑bus triggers; supports pre‑trigger, post‑trigger, middle‑trigger, delay‑trigger, and repeated trigger modes. - **Auto‑Calibration:** Fully automatic calibration of analog input and output channels using on‑board precision reference (5.000 V, ±2 ppm/°C). - **High Noise Immunity:** Differential inputs and isolated analog/digital sections minimize interference. - **Scatter‑Gather DMA:** High‑speed bus‑mastering DMA with scatter/gather capability for efficient data transfer without CPU overhead. - **Multiple‑Card Synchronization:** SSI bus allows synchronization of up to four cards for expanded channel count. - **Software Support:** Drivers and SDKs for Windows and Linux; compatible with LabVIEW®, MATLAB®, Visual C/C++, Visual Basic, and .NET environments. - **Compact Form Factor:** 168 mm × 107 mm half‑size PCIe card suitable for industrial PCs and embedded systems.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

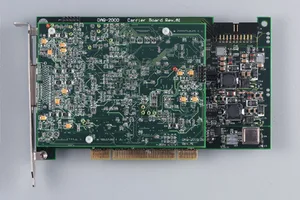

- **High‑speed simultaneous sampling:** 4 differential AI channels, 14‑bit resolution, 2 MS/s aggregate rate. - **Dual analog outputs:** 2 × 12‑bit voltage outputs (±10 V or 0–10 V ranges) with 1 MS/s update rate and 2 k‑sample FIFO. - **Digital I/O:** 24 TTL/CMOS‑compatible lines (8255 PIO architecture). - **Timer/Counter:** 2 × 16‑bit general‑purpose up/down counters (40 MHz base clock, external up to 10 MHz). - **Triggering:** software, external analog or digital, and SSI bus trigger sources with pre‑, post‑, middle‑, delay‑, and re‑trigger modes. - **Auto‑calibration:** on‑board 5 V reference (±2 ppm/°C) with digital trim DACs for gain/offset correction. - **Scatter‑gather DMA:** bus‑mastering DMA for high‑throughput data transfer without CPU intervention. - **Multiple‑card synchronization:** System Synchronization Interface (SSI) for clock and trigger sharing among up to four cards. - **Comprehensive software support:** Windows 7/8 x86/x64 and Linux drivers; SDKs for LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Compact design:** low‑noise analog/digital segregation and half‑size PCB for space‑constrained systems.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **Simultaneous Sampling:** Four differential analog input channels sampled simultaneously at up to **800 kS/s per channel**, ensuring phase‑accurate acquisition across multiple signals. - **High Resolution:** 16‑bit analog‑to‑digital conversion with no missing codes for precise signal representation. - **Flexible Input Ranges:** Programmable bipolar ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V and unipolar ranges of 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V. - **Dual Analog Outputs:** Two 12‑bit voltage outputs (0–10 V, ±10 V, or external reference) with 1 MS/s update rate and waveform generation capability. - **Digital I/O:** 24 programmable TTL/CMOS‑compatible digital I/O lines (8255 PIO compatible). - **Timer/Counter:** Two 16‑bit up/down general‑purpose counters with 40 MHz internal or up to 10 MHz external clock. - **Triggering:** Supports software, external analog, external digital, and SSI (System Synchronization Interface) triggers with multiple trigger modes: pre‑trigger, post‑trigger, middle‑trigger, delay‑trigger, and repeated trigger. - **Auto‑Calibration:** On‑board precision 5.000 V reference with ±2 ppm/°C drift and 6 ppm/1000 h stability; automatic gain and offset calibration eliminates manual trimpot adjustment. - **High Noise Immunity:** Piggy‑back analog/digital board design and dedicated DC/DC regulation minimize digital noise coupling. - **Bus‑Mastering DMA with Scatter‑Gather:** High‑speed data transfer directly to system memory without CPU overhead, supporting fragmented memory blocks. - **Multiple‑Card Synchronization:** SSI bus allows synchronization of up to four cards for expanded channel counts and coherent sampling. - **Software Support:** Compatible with ADLINK D2K‑DASK (Windows), D2K‑DASK/X (Linux), LabVIEW® (D2K‑LVIEW), and ActiveX (D2K‑OCX) drivers.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **High‑Speed Analog Input:** 64 single‑ended or 32 differential analog input channels with 12‑bit resolution and up to 3 MS/s sampling rate. Supports mixed‑mode channel configuration (SE/DI selectable per channel). - **Analog Output:** Two 12‑bit analog output channels with ±10 V or 0–10 V ranges, 1 MS/s update rate, and 1 k‑sample FIFO per channel. - **Digital I/O:** 24‑channel TTL‑compatible programmable digital I/O (8255 PIO). - **Counter/Timer:** Two 16‑bit general‑purpose up/down counters with 40 MHz internal or up to 10 MHz external clock. - **Triggering:** Supports software, external analog, and digital triggers, as well as synchronization via SSI (System Synchronization Interface) bus. - **Auto‑Calibration:** Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C). - **High Bandwidth and Accuracy:** 2 MHz small‑signal bandwidth, 1 µs settling time to 0.1% error, ±0.06% FSR gain error, ±2 mV offset error. - **Scatter‑Gather DMA:** High‑speed bus‑mastering DMA with scatter/gather capability for efficient data transfer. - **Synchronization:** Multi‑card synchronization through SSI or PXI trigger bus. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; drivers for LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET. - **Utility Software:** Includes AD‑Logger for data logging and monitoring.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

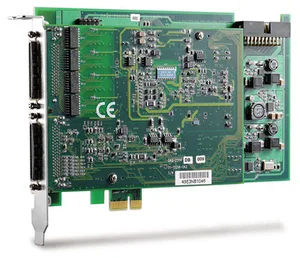

- **PCI Express Interface:** x1 lane PCIe bus for high‑speed data throughput and plug‑and‑play configuration. - **Analog Input Channels:** 64 single‑ended (SE) or 32 differential (DI) channels, software‑selectable per channel. - **Resolution and Sampling:** 16‑bit resolution, maximum sampling rate of 500 kS/s. - **Analog Input Ranges:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V; unipolar 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V. - **Programmable Gain:** x1, x2, x4, x8. - **Auto‑Calibration:** Fully automatic calibration with onboard 5 V reference (±2 ppm/°C). - **FIFO Buffers:** 1 k‑sample A/D FIFO and 1 k‑sample D/A FIFO for efficient data streaming. - **Analog Output:** Two 12‑bit voltage output channels (0–10 V or ±10 V) with 1 MS/s update rate. - **Digital I/O:** 24‑channel TTL‑compatible programmable I/O (8255 PIO). - **Timer/Counter:** Two 16‑bit general‑purpose counters with 40 MHz base clock. - **Triggering:** Supports software, external analog, and digital triggers; pre‑trigger, post‑trigger, middle‑trigger, delay‑trigger, and repeated trigger modes. - **Synchronization:** Multi‑card synchronization via SSI (System Synchronization Interface) or PXI trigger bus. - **Software Support:** Drivers for Windows and Linux; SDKs for LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET. - **Operating Systems:** Windows 7/8 x86/x64, Linux kernels 2.4.x and later. - **Form Factor:** PCIe half‑length card, 175 mm × 107 mm. - **Connectors:** Two 68‑pin VHDCI female connectors for analog/digital I/O and timing signals.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **PCI Express x1 Interface:** High‑speed, plug‑and‑play PCIe connectivity for modern PC platforms. - **High‑Resolution Analog Input:** 64 single‑ended or 32 differential channels, 16‑bit resolution, up to 250 kS/s sampling rate. - **Flexible Input Ranges:** Bipolar ±10 V to ±1.25 V and unipolar 0–10 V to 0–1.25 V ranges, software‑selectable per channel. - **Programmable Gain:** x1, x2, x4, x8 gain settings for optimized signal scaling. - **Dual Analog Outputs:** Two 12‑bit voltage outputs (0–10 V or ±10 V) with 1 MS/s update rate and 20 V/µs slew rate. - **Digital I/O:** 24‑channel TTL‑compatible programmable I/O via Intel 8255 PIO architecture. - **Timer/Counter:** Two independent 16‑bit general‑purpose counters with 40 MHz base clock and external clock input up to 10 MHz. - **Triggering:** Supports software, external analog/digital, and SSI (System Synchronization Interface) triggers with multiple trigger modes (pre‑, post‑, middle‑, delay‑trigger). - **Auto‑Calibration:** Fully automatic calibration with onboard 5 V reference (±2 ppm/°C). - **FIFO Buffers:** 1 k‑sample A/D FIFO and 1 k‑sample D/A FIFO for continuous data streaming. - **Scatter‑Gather DMA:** Efficient high‑speed data transfer with minimal CPU overhead. - **Synchronization:** Multi‑card synchronization via SSI bus or PXI trigger bus. - **Software Support:** Drivers and SDKs for Windows and Linux; compatible with LabVIEW, MATLAB, C/C++, Visual Basic, and Visual Studio.NET. - **Utility Software:** AD‑Logger for data logging and monitoring.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **PCI Express Interface:** x1 lane PCIe interface for high‑speed data throughput and plug‑and‑play configuration. - **High Channel Density:** 96 single‑ended (SE) or 48 differential (DI) analog input channels; mixed‑mode operation supported. - **High Sampling Rate:** Up to 3 MS/s maximum sampling rate (single‑channel). - **12‑bit Resolution:** No missing codes; precise A/D conversion for accurate signal representation. - **Programmable Gain:** 10 selectable gains (×1, ×2, ×4, ×5, ×8, ×10, ×20, ×40, ×50, ×200). - **Wide Input Range:** Bipolar ranges from ±0.05 V to ±10 V; unipolar ranges from 0–0.1 V to 0–10 V. - **Auto‑Calibration:** Fully automatic calibration with onboard 5 V reference (±2 ppm/°C). - **FIFO Buffer:** 1 k‑sample A/D FIFO for continuous high‑speed acquisition. - **Triggering:** Software, external analog, external digital, and SSI (System Synchronization Interface) triggers. - **Trigger Modes:** Pre‑trigger, post‑trigger, middle‑trigger, delay‑trigger, and repeated trigger. - **Scatter‑Gather DMA:** High‑speed bus‑mastering DMA with scatter/gather support for efficient data transfer. - **Digital I/O:** 24‑channel TTL‑compatible programmable I/O (8255 PIO). - **Synchronization:** Multi‑card synchronization via SSI or PXI trigger bus. - **Software Support:** Drivers and SDKs for Windows 7/8 (x86/x64) and Linux; compatible with LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Utility Software:** AD‑Logger for data logging and monitoring. - **Compact Design:** 168 mm × 107 mm PCB with dual 68‑pin VHDCI connectors.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

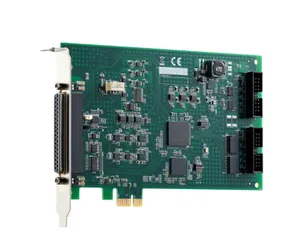

- **PCI Express x1 Interface:** Fully compliant with PCIe x1 lane, supporting both 3.3 V and 5 V signaling environments. - **High‑Resolution Analog Input:** 16‑bit A/D converter with no missing codes, supporting 16 single‑ended or 8 differential channels. - **Sampling Rate:** Up to 250 kS/s aggregate throughput. - **Programmable Input Ranges:** Bipolar ±10 V, ±5 V, ±2.5 V, ±1.25 V and unipolar 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V. - **Programmable Gain:** x1, x2, x4, x8 with per‑channel configuration via a 512‑entry channel gain queue. - **Auto‑Calibration:** Fully automatic calibration with onboard 5 V reference (±2 ppm/°C). - **Triggering:** Supports software, external analog, external digital, and SSI triggers with multiple trigger modes (pre‑, post‑, middle‑, delay‑trigger). - **FIFO Buffers:** 1 k‑sample A/D FIFO for efficient data buffering. - **Digital I/O:** 24‑channel TTL‑compatible programmable I/O (8255 PIO). - **Timers/Counters:** Two 16‑bit general‑purpose up/down counters with 40 MHz base clock and external clock up to 10 MHz. - **Scatter‑Gather DMA:** High‑speed bus‑mastering DMA with scatter/gather capability for efficient data transfer. - **System Synchronization Interface (SSI):** Enables multi‑card synchronization for simultaneous sampling. - **Software Support:** Drivers and SDKs for Windows 7/8 x86/x64 and Linux; compatible with LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Utility Software:** AD‑Logger for data logging and configuration. - **Plug‑and‑Play Configuration:** No jumpers required; automatic resource allocation.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **PCI Express x1 Interface:** Fully compliant with 3.3 V and 5 V PCIe bus signaling; plug‑and‑play configuration. - **High‑Resolution Analog Input:** 16‑bit resolution, no missing codes, up to 250 kS/s sampling rate. - **Flexible Channel Configuration:** 16 single‑ended or 8 differential analog input channels, software‑selectable per channel. - **Programmable Gain and Range:** Gains of ×1, ×2, ×4, ×8; bipolar ranges (±10 V, ±5 V, ±2.5 V, ±1.25 V) and unipolar ranges (0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V). - **Auto‑Calibration:** Fully automatic calibration for both A/D and D/A circuits using onboard 5 V reference (±2 ppm/°C). - **Analog Output:** Two 12‑bit multiplying DACs with waveform generation capability, 1 MS/s update rate, ±10 V or 0–10 V output range. - **Digital I/O:** 24‑channel programmable TTL I/O via 8255 PIO interface. - **Timer/Counter:** Two 16‑bit general‑purpose up/down counters with 40 MHz base clock and external clock up to 10 MHz. - **Triggering:** Supports software, external analog, and digital triggers; pre‑trigger, post‑trigger, middle‑trigger, delay‑trigger, and repeated trigger modes. - **DMA Support:** Scatter‑gather bus‑mastering DMA for high‑speed data transfer with minimal CPU load. - **FIFO Buffers:** 1 k‑sample A/D FIFO and 1 k‑sample D/A FIFO for continuous streaming. - **Synchronization:** System Synchronization Interface (SSI) for multi‑card synchronization. - **Software Support:** Drivers and SDKs for Windows 7/8 x86/x64 and Linux; compatible with LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Utility Software:** AD‑Logger for data logging and configuration. - **Compact Form Factor:** 168 mm × 107 mm PCB with dual 68‑pin VHDCI connectors.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **High-Resolution Analog Input:** 16-bit resolution with up to 250 kS/s sampling rate for single-channel operation, ensuring precise signal capture and analysis. - **Flexible Channel Configuration:** Supports 16 single-ended (SE) or 8 differential (DI) analog input channels, allowing users to adapt to various measurement topologies. - **Wide Input Range:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V accommodate diverse signal levels. - **High Signal Integrity:** 10 MΩ input impedance and 90 dB signal-to-noise ratio (SNR) deliver accurate, low-noise measurements. - **Dual 16-bit Analog Outputs:** Two analog output channels with ±10 V range and 10 V/μs slew rate for precise waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz frequency operation. - **Advanced Triggering:** Multiple trigger sources including software, digital, and analog triggers for flexible synchronization. - **Efficient Data Handling:** Onboard FIFO buffers for analog input (4K samples), analog output (1K samples shared), and digital I/O (512 samples each) ensure smooth data throughput. - **High-Speed Data Transfer:** Supports both polling and DMA (Direct Memory Access) modes for optimized system performance. - **Integrated Timer/Counter:** Two 32-bit general-purpose timer/counter channels with internal and external clock options up to 32 MHz. - **Compact PCIe Form Factor:** Designed for easy integration into modern PC-based systems with a standard PCI Express interface. - **Robust Overvoltage Protection:** Continuous ±20 V protection on analog input channels safeguards against accidental overvoltage conditions.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **High-Resolution Analog Input:** 16-bit resolution with up to 500 kS/s sampling rate for precise signal measurement and analysis. - **Flexible Channel Configuration:** Supports **32 single-ended (SE)** or **16 differential (DI)** analog input channels, allowing users to balance between channel count and noise immunity. - **Wide Input Range:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V accommodate a variety of signal levels. - **High Signal Integrity:** Input impedance of 10 MΩ and DC coupling ensure accurate signal capture with minimal loading effect. Continuous overvoltage protection up to ±15 V enhances durability. - **Onboard FIFO Buffer:** 4 k-sample onboard FIFO buffer supports efficient data streaming and reduces data loss during high-speed acquisition. - **Multiple Trigger Sources:** Supports software, digital, and analog triggering for flexible synchronization with external events or system processes. - **Isolated Digital I/O:** 16 isolated digital input channels and 16 isolated digital output channels provide robust protection against ground loops and electrical interference. - **High-Speed Data Transfer:** Supports both **Polling** and **Direct Memory Access (DMA)** modes for optimized data throughput and reduced CPU load. - **Precision Timer/Counter:** One 32-bit general-purpose timer/counter with internal and external clock options for timing, frequency measurement, and event counting. - **Compact PCIe Form Factor:** Designed for standard PCI Express slots, ensuring compatibility with modern PC-based control and monitoring systems. - **Industrial-Grade Reliability:** Isolation, overvoltage protection, and high signal-to-noise ratio (SNR) of 90 dB ensure stable operation in electrically noisy environments.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **High-Resolution Analog Input:** 14-bit resolution with up to 800 kS/s sampling rate for single-channel operation, ensuring precise signal capture and analysis. - **Flexible Channel Configuration:** Supports **16 single-ended (SE)** or **8 differential (DI)** analog input channels, allowing users to adapt to various signal configurations and noise environments. - **Wide Input Voltage Range:** Programmable input ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V accommodate diverse signal levels. - **High Signal Integrity:** Input impedance of 10 MΩ and DC coupling minimize loading effects and preserve signal fidelity. Overvoltage protection up to ±20 V ensures robust operation in industrial environments. - **Dual 16-bit Analog Outputs:** Two analog output channels with ±10 V range, 16-bit resolution, and 10 V/μs slew rate for precise waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz signal frequency for high-speed digital control and monitoring. - **Integrated Timer/Counter:** Two 32-bit general-purpose timer/counter channels with internal and external clock sources up to 33 MHz and 8 MHz respectively, enabling precise timing, event counting, and frequency measurement. - **High-Speed Data Transfer:** Supports both **Polling** and **Direct Memory Access (DMA)** modes for efficient data throughput and reduced CPU overhead. - **Multiple Trigger Sources:** Software, digital, and analog trigger options for flexible synchronization of data acquisition and generation tasks. - **Compact PCIe Form Factor:** Designed for standard PCI Express slots, offering high bandwidth and reliable connectivity for modern PCs and industrial computers.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **Multifunction DAQ Card:** Combines analog input, analog output, digital I/O, and counter/timer functions on a single PCIe board. - **High-Resolution Analog Input:** 16-bit resolution with up to 1 MS/s sampling rate for single-channel acquisition, ensuring precise signal capture. - **Flexible Channel Configuration:** Supports 16 single-ended (SE) or 8 differential (DI) analog input configurations. - **Wide Input Range:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V for versatile signal compatibility. - **High Signal Integrity:** 90 dB signal-to-noise ratio (SNR) and 14.5-bit effective number of bits (ENOB) for accurate analog measurements. - **Dual 16-bit Analog Outputs:** Two independent analog output channels with ±10 V range and 10 V/μs slew rate for waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz switching frequency. - **High-Speed Data Transfer:** Supports both **Polling** and **Direct Memory Access (DMA)** modes for efficient data throughput. - **Multiple Trigger Sources:** Software, digital, and analog triggering options for flexible synchronization and event-driven acquisition. - **Onboard FIFO Buffers:** Dedicated FIFO memory for each subsystem—4K samples for analog input, 1K samples (shared) for analog output, and 512 samples for digital I/O—to ensure continuous data streaming without loss. - **Precision Timing:** Two 32-bit general-purpose timer/counter channels with internal and external clock options up to 32 MHz. - **Compact PCIe Form Factor:** Designed for easy integration into standard PCI Express slots in desktop or industrial PCs. - **Robust Electrical Design:** ±20 V continuous overvoltage protection on analog inputs and low output impedance (

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

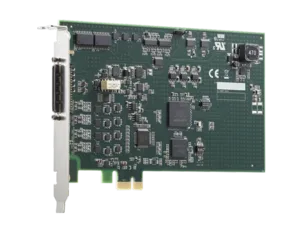

- **Simultaneous 4-Channel Analog Input:** Four differential analog input channels with simultaneous sampling capability, ensuring accurate multi-channel signal acquisition without phase delay. - **High Resolution and Speed:** 16-bit resolution with a maximum sampling rate of 1 MS/s per channel, suitable for high-precision measurement applications. - **Flexible Input Ranges:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V to accommodate a wide variety of signal levels. - **Robust Overvoltage Protection:** Continuous ±30 V overvoltage protection ensures long-term reliability and protection against accidental signal surges. - **Large Onboard FIFO Buffers:** Dedicated onboard FIFO buffers for each subsystem—4K samples for analog input, 1K samples shared for analog output, and 512 samples for digital I/O—support efficient data streaming and reduce CPU overhead. - **Dual 16-bit Analog Outputs:** Two analog output channels with ±10 V range, 10 V/μs slew rate, and 2 μs settling time for precise waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz frequency operation for high-speed digital control and monitoring. - **Advanced Triggering and Synchronization:** Multiple trigger sources (software, digital, analog) for flexible acquisition and generation control. - **High Signal Integrity:** 80 dB signal-to-noise ratio (SNR) and 13-bit effective number of bits (ENOB) ensure accurate and low-noise signal measurement. - **Versatile Timer/Counter Functions:** Two 32-bit general-purpose timer/counter channels with internal and external clock options up to 33 MHz internal or 8 MHz external, supporting frequency measurement, pulse generation, and event counting. - **PCI Express Interface:** High-speed PCIe connectivity for reliable data transfer and compatibility with modern PC-based systems. - **Compact Form Factor:** Slim, space-efficient design suitable for integration into industrial PCs and embedded systems.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

- **Simultaneous Analog Input:** Eight differential analog input channels with simultaneous sampling capability, ensuring accurate time alignment across all channels. - **High Resolution and Speed:** 16-bit resolution with a maximum sampling rate of 1 MS/s per channel, enabling precise signal capture for dynamic and transient events. - **Wide Input Range:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V to accommodate a variety of signal amplitudes. - **High Input Impedance:** 10 GΩ input impedance minimizes loading effects on measured circuits. - **Robust Overvoltage Protection:** Continuous overvoltage protection up to ±30 V ensures long-term reliability and protection against accidental signal surges. - **Dual Analog Outputs:** Two 16-bit analog output channels with ±10 V range, 10 V/μs slew rate, and 2 μs settling time for precise waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz frequency operation. - **Flexible Triggering:** Supports software, digital, and analog trigger sources for both input and output operations, allowing synchronized and event-driven data acquisition. - **Efficient Data Transfer:** Supports both polling and Direct Memory Access (DMA) modes for optimized data throughput and reduced CPU overhead. - **Integrated FIFO Buffers:** Onboard FIFO buffers for each subsystem (analog input, analog output, digital I/O) ensure stable, continuous data streaming without loss. - **Timer/Counter Functionality:** Two 32-bit general-purpose timer/counter channels with internal and external clock sources for timing, frequency, and pulse measurement applications. - **Compact PCIe Form Factor:** Designed for standard PCI Express slots, providing high-speed communication with host systems. - **High Signal Integrity:** Signal-to-noise ratio (SNR) of 80 dB and effective number of bits (ENOB) of 13 bits for accurate analog performance.

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

PCIe 32SE/16DI AI 16bit 4MHz SE Scanning 1MS/s FIFO 4k, Range ±10/±5/±2,5/±1,25/±0,625/±0,3125V, 4DA 16bit ±10V 4k FIFO, 16TTL DI/DO, Timer/Counter 432bit, driver/SDK Windows 7/10/11 x86/x64 or later, Linux Driver and SDK, LabVIEW C/C++ Visual Basic Visual Studio.NET, Software Utility ACE Soft-Front Panel, LH 181,05mm * 126,72mm, 68-pin SCSI-type female connector, Adlink

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe

PCIe 64SE/32DI AI 16bit 4MHz SE Scanning 1MS/s FIFO 4k, Range ±10/±5/±2,5/±1,25/±0,625/±0,3125V, 4DA 16bit ±10V 4k FIFO, 16TTL DI/DO, Timer/Counter 432bit, driver/SDK Windows 7/10/11 x86/x64 or later, Linux Driver and SDK, LabVIEW C/C++ Visual Basic Visual Studio.NET, Software Utility ACE Soft-Front Panel, LH 181,05mm * 126,72mm, 68-pin SCSI-type female connector, Adlink

Hersteller: Adlink Technology Inc.

Kategorie: A/D Intelligent PCIe
