• Full EN50155 compliance for railway and rolling stock environments • Support for IEEE 802.11a/b/g/n WLAN with link speeds up to 300 Mbps • Integrated 3G/3.5G HSDPA cellular modem with GSM/GPRS/EDGE/WCDMA/HSUPA/HSDPA support • Dual 10/100Base‑T(X) Ethernet ports via M12 D‑coding connectors with auto MDI/MDIX • PoE PD support on ETH2 with 1 kV isolation protection (PoE model) • Ruggedized enclosure rated IP40 with shock- and vibration-resistant design • Wide DC power input range from 72–110 VDC (operational range 43–160 VDC) using a 5‑pin 7/8" male connector • Supports multiple routing modes including Dynamic IP, Static IP, PPPoE, and Cellular modem dial‑up • VPN support including OpenVPN and PPTP VPN for secure communication • NAT and firewall features including Virtual Server, Port Trigger, DMZ, UPnP, and configurable IP access tables • Event warning via Syslog, Email, SNMP Trap, and physical relay output • Supports HTTPS secure management and 802.1X authentication • WLAN security including WEP, WPA, WPA2, TKIP, AES, and PSK modes • DIN‑rail and wall mounting support • Redundant Ethernet mode with recovery

Hersteller: Oring

Kategorie: EN50155 Cellular

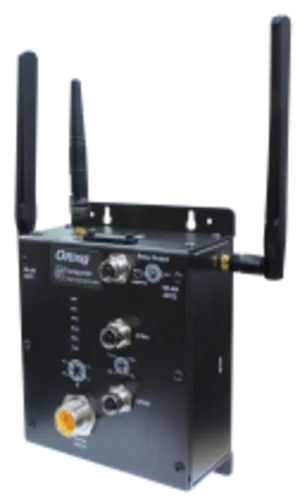

• Dual 10/100/1000Base‑T(X) Ethernet ports in M12 D‑coding with Auto‑MDI/MDIX • ETH2 supports PoE PD (IEEE 802.3af compliant) • 3G cellular modem supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA • GPS positioning with external SMA antenna • 2× external reverse‑SMA WLAN antenna connectors (2.4/5 GHz) • IEEE 802.11 a/b/g/n WLAN up to 300 Mbps • Supports AP, Client, WDS‑Master modes • VPN support: OpenVPN, PPTP VPN server/client • WAN modes: Static/Dynamic IP, PPPoE, Cellular dial‑up, Wireless WAN client • Daisy‑chain Ethernet switching mode • DI/DO: 4× digital inputs + 4× digital outputs (M12, D‑coding) • Redundant power: 12–48 VDC on M23 connector • Built‑in event warning (Syslog, Email, SNMP trap, relay output) • RS‑232 console via M12 (115200bps, 8‑N‑1) • Railway standard compliance: EN50155, EN61373 • Surge, ESD, EFT protection on power and Ethernet • Alarm relay output rated 1A@24VDC • Web‑based management via HTTP/HTTPS • System monitoring: SNMP, traffic statistics, logs, wireless link list

Hersteller: Oring

Kategorie: EN50155 Cellular

- **Industrial‑grade 4G LTE Router:** Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE for global cellular connectivity. - **Wi‑Fi Access Point:** IEEE 802.11a/b/g/n dual‑band (2.4 GHz and 5 GHz) wireless interface with up to 300 Mbps throughput. - **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base‑T(X) M12 D‑coded connectors with auto MDI/MDIX; ETH2 supports IEEE 802.3af PoE PD. - **GPS Functionality:** Integrated GPS receiver (1575.42 MHz) for location tracking and synchronization. - **EN50155 Railway Compliance:** Designed for rolling‑stock and transportation systems, meeting vibration, shock, and EMC standards. - **Wide Power Input Range:** Dual redundant 12–48 V DC inputs via M23 connector with reverse polarity and overload protection. - **Rugged Construction:** IP40 metal enclosure, extended temperature range (‑25 °C to 70 °C), and high EMI/ESD immunity. - **Comprehensive Security:** WPA/WPA2, 802.1X authentication, VPN (OpenVPN, PPTP), firewall, NAT, and MAC/IP filtering. - **Flexible Routing Modes:** Supports dynamic/static IP, PPPoE, and cellular dial‑up routing. - **Event & Alarm System:** Fault relay output (1 A @ 24 V DC), LED indicators, e‑mail/SNMP/syslog alerts. - **Management Interfaces:** Web‑based GUI (HTTP/HTTPS), SNMP, and console (RS‑232 M12). - **Mounting Options:** Wall‑mount and DIN‑rail installation supported.

Hersteller: Oring

Kategorie: EN50155 Cellular

Industrial Cellular 3G 802.11a/b/g/n to 2*1000/100/10TX Router, M12 connector, Railway system standard EN50155, alarm LED e-mail warning system log output, DIN-rail mounting, ESD 4kV DC Ethernet ports, surge 2000VDC power, extended -25°..70°C operating temperature, ~985gr, 125*65*196mm, Oring

Hersteller: Oring

Kategorie: EN50155 Cellular

- **Industrial 4G LTE Router:** Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE cellular standards for global connectivity. - **Wi-Fi Access Point:** IEEE 802.11a/b/g/n compliant, dual-band operation (2.4GHz and 5GHz) with up to 300 Mbps throughput. - **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base-T(X) M12 D-coded ports with auto MDI/MDIX and PoE (IEEE 802.3af) support on ETH2. - **EN50155 Certified:** Fully compliant with railway system standards for vibration, shock, and temperature resilience. - **Redundant Power Inputs:** Dual 12–48 VDC inputs via M23 connector with overload and reverse polarity protection. - **Rugged Design:** IP40-rated metal enclosure, wall-mountable, designed for harsh industrial environments. - **Advanced Security:** WPA/WPA2, 802.1X authentication, TKIP/AES encryption, VPN (OpenVPN, PPTP), and firewall protection. - **Event Notification:** Supports Syslog, SNMP trap, e-mail alerts, and relay output for fault indication. - **Comprehensive Management:** Web-based GUI, HTTPS management, SNMP, and ORing Open-Vision utility compatibility. - **GPS Functionality:** Integrated GPS receiver (1575.42 MHz) for location tracking and data reporting. - **Wide Operating Range:** Operates from -25°C to +70°C with humidity tolerance of 5–95% non-condensing.

Hersteller: Oring

Kategorie: EN50155 Cellular

Industrial Cellular Dual 3G 802.11a/b/g/n to 2*1000/100/10TX PoE PD Router, M12 connector, PoE PD present at ETH2, Railway system standard EN50155, alarm LED e-mail warning system log output, DIN-rail mounting, ESD 4kV DC Ethernet ports, surge 2000VDC power, DC power input 50..57VDC, extended -25°..70°C operating temperature, ~1.030gr, 125*65*196mm, Oring

Hersteller: Oring

Kategorie: EN50155 Cellular

- **Industrial 3G Cellular Router:** Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA standards for wide-area mobile connectivity. - **Dual-Band Wi-Fi:** IEEE 802.11a/b/g/n compliant, offering up to 300 Mbps throughput with 4 external reverse SMA antenna connectors. - **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base-T(X) M12 D-coded connectors with auto MDI/MDIX; ETH2 supports IEEE 802.3af PoE PD. - **GPS Functionality:** Integrated GPS receiver (1575.42 MHz) with external SMA antenna connector for location tracking. - **EN50155 Railway Compliance:** Certified for railway and rolling stock applications, meeting vibration, shock, and EMC standards. - **Rugged Design:** IP40-rated metal enclosure, wide operating temperature (-25°C to 70°C), and redundant 12–48 VDC power inputs. - **Advanced Security:** WPA/WPA2, 802.1X authentication, VPN (OpenVPN, PPTP), firewall, and MAC/IP filtering. - **Event Notification:** Supports system log, SNMP trap, e-mail alerts, and relay output for fault indication. - **Flexible Mounting:** Wall-mount and DIN-rail installation options. - **Comprehensive Management:** Web-based GUI, HTTPS, SNMP, and ORing Open-Vision management utility.

Hersteller: Oring

Kategorie: EN50155 Cellular

Industrial Cellular 4G Dual 802.11a/b/g/n to 2*1000/100/10TX PoE PD GPS Router, M12 connector, PoE PD present at ETH2, Railway system standard EN50155, alarm LED e-mail warning system log output, DIN-rail mounting, ESD 4kV DC Ethernet ports, surge 2000VDC power, DC power input 50..57VDC, extended -25°..70°C operating temperature, ~1.035gr, 125*65*196mm, Oring

Hersteller: Oring

Kategorie: EN50155 Cellular

- **Dual 3G Cellular Connectivity:** Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA standards for redundant mobile broadband access. - **High-Speed Wireless LAN:** IEEE 802.11a/b/g/n compliant with data rates up to 300 Mbps. - **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base-T(X) M12 D-coded ports with auto MDI/MDIX and PoE PD on ETH2 (IEEE 802.3af compliant). - **Integrated GPS Receiver:** External SMA antenna connector, 1575.42 MHz frequency for precise location tracking. - **EN50155 Compliance:** Designed for railway and rolling stock applications, meeting vibration, shock, and EMC standards. - **Wide Power Input Range:** Dual redundant 12–48 VDC inputs via M23 connector with reverse polarity and overload protection. - **Rugged Construction:** IP40-rated metal enclosure, DIN-rail and wall-mountable, suitable for harsh industrial environments. - **Advanced Security:** Supports WEP, WPA/WPA2, WPA-PSK, 802.1X authentication, and AES/TKIP encryption. - **Comprehensive Management:** Web-based GUI, HTTPS, SNMP, Syslog, e-mail alerts, and ORing Open-Vision management support. - **VPN Support:** Integrated OpenVPN and PPTP VPN for secure remote access. - **Event Notification:** Fault relay output (1A @ 24VDC), LED indicators, and e-mail/SNMP trap alerts. - **Extended Temperature Operation:** -25°C to +70°C operating range, -40°C to +85°C storage.

Hersteller: Oring

Kategorie: EN50155 Cellular

- **Dual 4G LTE Connectivity:** Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE for high-speed cellular communication. - **Wi-Fi 802.11a/b/g/n:** Dual-band wireless access point with up to 300 Mbps throughput. - **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base-T(X) M12 D-coded ports with auto MDI/MDIX; ETH2 supports IEEE 802.3af PoE PD. - **GPS Functionality:** Integrated GPS receiver (1575.42 MHz) for location tracking and synchronization. - **EN50155 Compliance:** Certified for railway and rolling stock environments, ensuring vibration, shock, and temperature resilience. - **Rugged Design:** IP40-rated metal enclosure, M12 connectors for secure industrial connections, and redundant 12–48 VDC power inputs. - **Advanced Security:** WPA/WPA2, 802.1X authentication, VPN (OpenVPN, PPTP), firewall, NAT, and MAC/IP filtering. - **Comprehensive Management:** Web-based GUI, HTTPS, SNMP, Syslog, e-mail alerts, and ORing Open-Vision management support. - **Event Notification:** Fault relay output (1A@24VDC), LED indicators, and system log for diagnostics. - **Flexible Mounting:** DIN-rail and wall-mount options for industrial deployment.

Hersteller: Oring

Kategorie: EN50155 Cellular

- **Dual 3G Cellular Connectivity:** Two independent 3.5G (HSDPA/HSUPA) modems for redundancy or load balancing. - **Wireless LAN:** IEEE 802.11a/b/g/n compliant, supporting up to 300 Mbps throughput. - **Gigabit Ethernet Ports:** Two 10/100/1000Base‑T(X) M12 D‑coded ports with Auto MDI/MDIX; ETH2 supports IEEE 802.3af PoE PD. - **Industrial‑Grade Design:** IP‑40 metal enclosure, EN50155 and EN61373 compliance for railway and rolling‑stock applications. - **Wide Temperature Range:** Operates from ‑25 °C to +70 °C; storage from ‑40 °C to +85 °C. - **Redundant Power Inputs:** Dual 12–48 VDC inputs via M23 connector with reverse polarity and overload protection. - **Integrated VPN Support:** OpenVPN and PPTP VPN for secure remote access. - **Advanced Network Functions:** NAT, DHCP, DDNS, VRRP, dynamic/static routing, and firewall filtering. - **Event Notification:** Syslog, SNMP trap, e‑mail alerts, and relay output for fault indication. - **Mounting Options:** Wall‑mount and DIN‑rail installation supported. - **Comprehensive Management:** Web‑based GUI, HTTPS, SNMP, and ORing Open‑Vision utility compatibility.

Hersteller: Oring

Kategorie: EN50155 Cellular

- **Dual 4G LTE Cellular Connectivity:** Two independent 4G modems supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE for redundancy and load balancing. - **IEEE 802.11 a/b/g/n Wireless Access Point:** Dual‑band 2.4 GHz/5 GHz Wi‑Fi with up to 300 Mbps throughput. - **Industrial‑Grade Design:** EN50155 and EN50121‑3‑2 certified for railway use; IP‑40 metal enclosure; vibration, shock, and free‑fall tested per IEC 60068‑2‑6/27/32. - **M12 Connectors:** All Ethernet, power, and I/O interfaces use vibration‑resistant M12 connectors for secure connections in mobile environments. - **Dual Gigabit Ethernet Ports:** 2 × 10/100/1000 Base‑T(X) M12 ports with Auto MDI/MDIX; ETH2 supports IEEE 802.3af PoE PD. - **Redundant Power Inputs:** Dual 12–48 V DC inputs via M23 connector with reverse polarity and overload protection. - **Comprehensive VPN Support:** OpenVPN and PPTP VPN for secure remote access; supports encryption, authentication, and tunneling. - **Advanced Routing Functions:** Dynamic/static IP routing, PPPoE authentication, cellular dial‑up, NAT, DMZ, UPnP, and DHCP server/relay. - **Event & Alarm System:** Fault relay output (1 A @ 24 V DC), LED indicators, e‑mail/SNMP/syslog alerts. - **Wide Temperature Range:** Operates from –25 °C to +70 °C; storage –40 °C to +85 °C. - **DIN‑Rail or Wall Mounting:** Flexible installation options for industrial cabinets or vehicle interiors. - **Management & Security:** HTTPS/HTTP web management, SNMP, RADIUS authentication, MAC/IP filtering, and WPA/WPA2 wireless security. - **GPS Support:** Integrated GPS receiver (1575.42 MHz) for location tracking and time synchronization. - **Firmware & Configuration Tools:** Web‑based GUI, ORing Open‑Vision management utility, and firmware upgrade capability.

Hersteller: Oring

Kategorie: EN50155 Cellular

• Cellular Support: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA (3G model) • WLAN: IEEE 802.11a/b/g/n with speeds up to 300 Mbps • Industrial Rugged Design: – IP67 housing (waterproof, weatherproof) – EN50155 railway compliance – M12 rugged connectors – ESD 4 kV protection, surge 2000 VDC • Power: – Dual DC 12–48 V inputs via M12 connector – PoE PD fully compliant with IEEE 802.3af • Antennas: – 2 × N-type female WLAN antenna connectors – 1 × N-type female cellular antenna connector • Software Features: – VPN (OpenVPN, PPTP server/client) – NAT routing, virtual server, DMZ, UPnP, NAT-PMP – Firewall (IP filter, MAC filter) – Wireless security: WEP, WPA/WPA2, WPA-PSK, 802.1X – HNAT for accelerated LAN-WAN routing – Event warning via Syslog, e-mail, SNMP traps, beeper – DDNS, LLDP, DHCP server/relay – HTTPS secure management • Alerts and Indicators: Dedicated LEDs for PWR1, PWR2, PoE, WAN, WLAN, LAN • Extended Operating Temperature: -25 to 70 °C • Web‑based management with default IP 192.168.10.1

Hersteller: Oring

Kategorie: EN50155 Cellular

Industrial Waterproof Cellular Dual 3G 802.11a/b/g/n to 1*1000/100/10TX PoE PD Router with M12 connector, PoE PD present, Railway system standard EN50155, alarm LED e-mail warning system log output, IP67 Wall Mount, ESD 4kV DC Ethernet ports, surge 2000VDC power, DC power input 12..48VDC, extended -25°..70°C operating temperature, ~3.990gr, 310*310*87mm, Oring

Hersteller: Oring

Kategorie: EN50155 Cellular

Industrial Waterproof Cellular Dual 4G 802.11a/b/g/n to 1*1000/100/10TX PoE PD Router with RJ45 connector, PoE PD present, Railway system standard EN50155, alarm LED e-mail warning system log output, IP67 Wall Mount, ESD 4kV DC Ethernet ports, surge 2000VDC power, DC power input 50..57VDC, extended -25°..70°C operating temperature, ~3.990gr, 310*310*87mm, Oring

Hersteller: Oring

Kategorie: EN50155 Cellular

• Cellular connectivity: High‑performance GSM/GPRS/EDGE/WCDMA/HSPA/HSPA+/LTE modem depending on region (US/EU band options). • WLAN capabilities: Dual‑antenna 802.11a/b/g/n AP supporting up to 300 Mbps. • Industrial housing: Full IP‑67 waterproof enclosure designed for harsh outdoor environments and railway rolling‑stock conditions. • Rugged connectors: M12 8‑pin A‑coded Gigabit Ethernet; M12 5‑pin power connector; N‑type RF antenna connectors. • PoE PD: LAN port supports IEEE 802.3af PoE power input with isolation, overload, and short‑circuit protection. • Dual power input: 12–48 VDC redundant inputs on M12 connector with reverse‑polarity and overload protection. • Environmental immunity: Surge protection (EN61000‑4‑5), ESD immunity (EN61000‑4‑2), vibration/shock resistance (EN61373), extended temperature operation. • Railway compliance: EN50155, meeting vibration, shock, EMI/EMC, power, and environmental requirements for rolling stock. • Alarm and management: System log, e‑mail warnings, SNMP traps, HTTPS management, event warnings, reboot scheduling. • WAN operating modes: Static IP, dynamic IP, PPPoE, modem dial‑up (3G/4G), WAN fallback, and wireless client mode. • VPN: OpenVPN (client/server), PPTP VPN (client/server). • Advanced routing: RIP v1/v2 support, static routing, NAT (virtual server, DMZ, UPnP/NAT‑PMP), DHCP server/relay, DDNS. • Setup flexibility: Wall mount and pole mount options using included hardware. • LEDs: Status indicators for power, PoE, WLAN, WAN, and Ethernet link/activity.

Hersteller: Oring

Kategorie: EN50155 Cellular
