PRODUCT SUMMARY

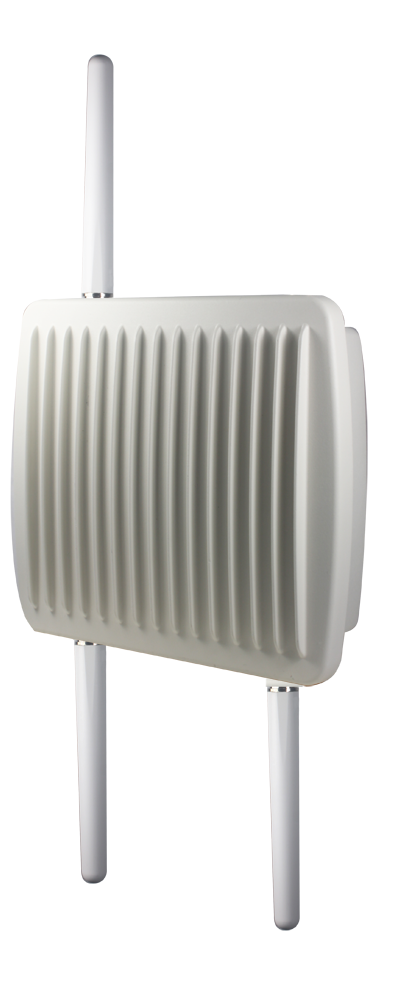

TGAR-W1061+-3G
Cellular Outdoor 3G Router 802.11abgn 1000TX PoE EN50155

1. PRODUCT OVERVIEW
• Product Name: TGAR‑W1061+-3G
• Article Number: TGAR‑W1061+-3G
• Series: TGAR‑W1061+ Series (part of the TGAR‑W1601+ / TGAP-W1601+ family)
• Manufacturer: ORing Industrial Networking Corp.
• Product Type: Industrial-grade outdoor cellular router with WLAN 802.11a/b/g/n and Gigabit Ethernet
• Functional Class: 3G cellular router with PoE PD, M12 connectors, dual-DC power input, and railway-certified ruggedization
• Main Application Domains: Rolling stock, outdoor industrial installations, transportation systems, harsh environments

2. KEY FEATURES
• Cellular Support: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA (3G model)
• WLAN: IEEE 802.11a/b/g/n with speeds up to 300 Mbps
• Industrial Rugged Design:
– IP67 housing (waterproof, weatherproof)
– EN50155 railway compliance
– M12 rugged connectors
– ESD 4 kV protection, surge 2000 VDC
• Power:
– Dual DC 12–48 V inputs via M12 connector
– PoE PD fully compliant with IEEE 802.3af
• Antennas:
– 2 × N-type female WLAN antenna connectors
– 1 × N-type female cellular antenna connector
• Software Features:
– VPN (OpenVPN, PPTP server/client)
– NAT routing, virtual server, DMZ, UPnP, NAT-PMP
– Firewall (IP filter, MAC filter)
– Wireless security: WEP, WPA/WPA2, WPA-PSK, 802.1X
– HNAT for accelerated LAN-WAN routing
– Event warning via Syslog, e-mail, SNMP traps, beeper
– DDNS, LLDP, DHCP server/relay
– HTTPS secure management
• Alerts and Indicators: Dedicated LEDs for PWR1, PWR2, PoE, WAN, WLAN, LAN
• Extended Operating Temperature: -25 to 70 °C
• Web‑based management with default IP 192.168.10.1

3. TECHNICAL SPECIFICATIONS
• Dimensions: 310 × 310 × 87 mm (12.2 × 12.2 × 3.4 inches)
• Weight: 3990 g (approx. 3.99 kg)
• Enclosure: Industrial-grade IP67, resistant to water, dust, shock, vibration
• Ethernet Interface:
– 1 × 10/100/1000 Base‑T(X) M12 8‑pin A‑coded
– Auto MDI/MDIX
• Optional Power:
– Dual DC input 12–48 V
– PoE PD, IEEE 802.3af compliant
– Power consumption: approx. 9 W
• Cellular Bands (3G Model):
– HSUPA: 1900/2100 MHz
– GSM/GPRS/EDGE quad-band: 850/900/1800/1900 MHz
– WCDMA/HSDPA: 850/900/1900/2100 MHz
• Wireless Performance:
– IEEE 802.11b: 1/2/5.5/11 Mbps
– IEEE 802.11a/g: 6–54 Mbps
– IEEE 802.11n: up to 300 Mbps
• Transmit Power:
– 802.11b: 18 dBm ±1.5 dBm
– 802.11g: 15 dBm ±1.5 dBm
– 802.11a: 12 dBm ±1.5 dBm
– 802.11n HT20/40: 12–13 dBm depending on band
• Receiver Sensitivity:
– 802.11b: –82 dBm
– 802.11g/a: –68 dBm
– 802.11n HT20: –64 dBm
– 802.11n HT40: –60 dBm
• Environmental:
– Operating: -25 to 70 °C
– Storage: -40 to 85 °C
– Humidity: 5–95% non-condensing

4. FUNCTIONALITY
• Operation Modes:
– Static/dynamic routing
– PPPoE
– Cellular modem dial-up (3G)
– Wireless AP mode
– Wireless client mode
– Backup WAN with cellular fallback
• VLAN/NAT: Supports advanced NAT rules, DMZ, port forwarding, UPnP/NAT-PMP
• Wireless Features:
– Multi-SSID
– MAC filtering
– WDS master mode
– AP isolation
– Adjustable beacon interval, DTIM, fragmentation threshold, RTS
• VPN Capabilities:
– OpenVPN server/client
– PPTP server/client
• Monitoring:
– System logs
– Wireless link clients list
– Traffic statistics
• Management:
– Browser interface (HTTP/HTTPS)
– Default address 192.168.10.1, admin/admin
– SNMP support for remote monitoring

5. COMPONENTS & ACCESSORIES
Included:
• TGAR‑W1061+-3G industrial router
• 2 × WLAN antennas (2.4/5 GHz)
• 1 × Cellular antenna
• Stainless steel tie straps × 2 (for pole mounting)
• Mounting plate (wall and pole)
• Wood screws × 4, wall plugs × 4
• CD with documentation
• Quick Installation Guide (QIG)

Connectors:
• Ethernet: M12 8‑pin A-coded
• Power: M12 5‑pin
• SIM card slot: 1 × standard SIM
• Antennas: N‑type female (2 × WiFi, 1 × cellular)

6. INSTALLATION & SETUP
• Mounting Options:
– Wall mount (vertical/horizontal orientation)
– Pole mount using metal straps
• Installation Guidelines:
– Antenna connectors must face downward for waterproof protection
– Minimum 20 cm distance to people for RF safety
– Do not remove waterproof housing
– Grounding required to reduce EMI
• Setup Process:
– Connect power via DC or PoE
– Connect LAN via M12 Ethernet
– Access via web at 192.168.10.1
– Configure WAN, LAN, wireless, security, and cellular parameters
• Reset:
– Use reset button for factory defaults (hold until LED flashes)

7. PERFORMANCE & CAPABILITIES
• Throughput:
– WLAN up to 300 Mbps
– Gigabit Ethernet LAN uplink
• Routing:
– High-performance HNAT for improved LAN-WAN routing efficiency
• Cellular Operation:
– 3G modem dial‑up with APN, PIN, auto-reconnect
– Backup WAN capabilities with failover
• Wireless:
– Long-range industrial WLAN with robust N-type connectors
– Operation in 2.4 GHz and 5 GHz industrial bands
• Limitations:
– Cellular speeds limited to 3G technologies (not LTE on this model)
– Requires M12 cabling
– High power consumption for PoE environments (~9 W)

8. STANDARDS & COMPLIANCE
• Railway Certification:
– EN50155 railway applications
– EN50121-3-2, EN50121-4
– EN61373 shock and vibration
• Environmental:
– IEC60068-2-27 shock
– IEC60068-2-6 vibration
– IEC60068-2-32 free fall
• EMI/EMS:
– FCC Part 15
– CISPR EN55022 Class A
– EN61000-4-2 ESD
– EN61000-4-3 RS
– EN61000-4-4 EFT
– EN61000-4-5 Surge
– EN61000-4-6 CS
– EN61000-4-8, EN61000-4-11
• Safety:
– EN60950-1
• RF Regulations:
– FCC/IC compliance (with RF exposure guidelines)
– Restricted indoor usage in 5.15–5.25 GHz band (North America)

9. ADDITIONAL INFORMATION
• Warranty:
– 5-year manufacturer warranty
• Maintenance:
– Firmware upgradable via web interface
– Configuration backup and restore supported
• Support:
– Technical support via support@oring-networking.com
– Documentation and firmware on www.oring-networking.com
• Logging & Alerts:
– Syslog remote server support
– Email alerts for events
– SNMP traps for network monitoring systems
– Beeper alerts for alarms
• Management Security:
– HTTPS recommended
– Configurable login name, password, and ports
– Optional periodic router restart scheduling

------------------------------------------------------------
