- **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base‑T(X) RJ‑45 ports (ETH1 for LAN, ETH2 for WAN) with auto‑negotiation and Auto MDI/MDI‑X. - **VPN Functionality:** Supports OpenVPN, PPTP, and IPsec VPN protocols for secure remote connectivity. - **Advanced Security:** 802.1X authentication, IP and MAC filtering, NAT configuration (Virtual Server, Port Trigger, DMZ, UPnP), and firewall protection against DoS, spoofing, and ICMP flooding. - **Redundant Power Inputs:** Dual 12–48 VDC inputs on a 6‑pin terminal block with reverse polarity and overload protection. - **PoE PD Support (IGR‑20+ only):** ETH2 port compliant with IEEE 802.3af Power Device specification, 1 kV isolation, and up to 100 m cable length. - **Digital I/O:** 4 digital inputs and 4 digital outputs for event monitoring and control. - **Event Notification:** Syslog, SNMP Trap, Email, Relay output, and Beeper alerts. - **Rugged Design:** IP‑30 metal enclosure, DIN‑rail and wall‑mount installation options. - **Wide Temperature Range:** Operates from ‑40 °C to +75 °C; storage from ‑40 °C to +85 °C. - **Web‑based Management:** HTTPS‑secured interface for configuration and monitoring. - **Comprehensive Networking Support:** Dynamic/Static IP, PPPoE, Modem Dial‑up, DHCP server/relay, DDNS, NTP synchronization, and VRRP redundancy. - **Industrial Reliability:** Designed for harsh environments with vibration, shock, and EMI/EMS compliance.

Hersteller: Oring

Kategorie: M2M Gateway

- **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base‑T(X) RJ‑45 ports with auto‑negotiation and Auto MDI/MDI‑X support. ETH1 is typically configured as LAN, ETH2 as WAN. - **PoE PD Capability:** ETH2 supports IEEE 802.3af PoE PD functionality, allowing the router to be powered via PoE up to 100 m cable length. - **Redundant Power Inputs:** Dual 12–48 V DC inputs on a 6‑pin terminal block with reverse polarity and overload protection. - **Industrial‑Grade Design:** IP‑30 metal enclosure, DIN‑rail and wall‑mount options, and extended operating temperature range (‑40 °C to 75 °C). - **Comprehensive VPN Support:** Supports OpenVPN, PPTP, and IPsec VPN protocols for secure remote access and site‑to‑site tunneling. - **Advanced Firewall and NAT:** Includes IP/MAC filtering, NAT (Virtual Server, Port Trigger, DMZ, UPnP), and IP table access control. - **Event and Alarm Management:** Event warnings via Syslog, SNMP Trap, email, relay output, and audible beeper. - **Digital I/O Interfaces:** 4 Digital Inputs (DI) and 4 Digital Outputs (DO) via two 5‑pin terminal blocks for integration with external sensors or alarms. - **Secure Management:** HTTPS web interface, SNMP v1/v2, and remote Syslog support. - **High Reliability:** Redundant power design, fault relay output (1 A @ 24 V DC), and 1 kV isolation on PoE PD port. - **Regulatory Compliance:** Meets FCC Part 15 Class A, EN55022 Class A, EN61000‑4‑2/3/4/5/6/8/11, and IEC 60068‑2‑27/‑32/‑6 standards. - **Warranty:** 5‑year manufacturer warranty.

Hersteller: Oring

Kategorie: M2M Gateway

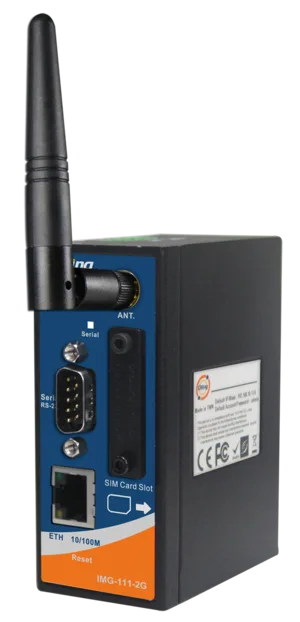

- **Integrated Cellular Connectivity:** Built‑in GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA modem supporting dual‑band (1900/2100 MHz) and quad‑band (850/900/1800/1900 MHz) operation. The IMG‑111‑2G variant supports GSM/GPRS dual‑band (900/1800 MHz or 850/900/1800/1900 MHz). - **Serial‑to‑IP Communication:** One RS‑232 port (DB9 male) enables transparent data transmission between serial devices and IP networks through TCP, UDP, or Virtual COM modes. - **Ethernet Interface:** One 10/100Base‑T(X) RJ‑45 port with auto MDI/MDI‑X detection for LAN connectivity. - **VPN and Security:** Supports OpenVPN and PPTP VPN for secure remote access. Includes IP/MAC filtering, NAT, DMZ, and UPnP/NAT‑PMP for flexible network configuration. - **Event and Alarm Management:** Provides event notifications via Syslog, SNMP Trap, Email, and relay output. Supports versatile event alarms and system logging. - **Redundant Host Support:** Up to five simultaneous host connections in Virtual COM, TCP Server, or TCP Client modes; four IP ranges supported in UDP mode. - **Dynamic DNS (DDNS):** Allows dynamic IP addresses to be mapped to a fixed domain name for remote access. - **Industrial Design:** Rugged IP‑30 metal enclosure, DIN‑rail and wall‑mount options, wide operating temperature range (‑10 °C to 60 °C), and dual 12–48 VDC power inputs. - **Management Interfaces:** Web‑based GUI, DS‑Tool utility, and remote management via WAN. Supports firmware upgrades, configuration backup/restore, and system monitoring. - **Reliability and Safety:** Complies with FCC, CE, and EN industrial standards for EMI/EMS, vibration, and shock resistance.

Hersteller: Oring

Kategorie: M2M Gateway

- **Integrated GSM/GPRS 2G Modem:** Built‑in dual‑band/quadriband GSM/GPRS module supporting 900/1800 MHz or 850/900/1800/1900 MHz operation for global compatibility. - **Versatile Connectivity:** 1 × 10/100Base‑T(X) Ethernet port (RJ‑45, auto MDI/MDI‑X) and 1 × RS‑232 serial port (DB9 male). - **VPN Support:** Built‑in OpenVPN and PPTP VPN for secure remote access and encrypted data tunnels. - **Dynamic DNS (DDNS):** Allows mapping of dynamic IP addresses to a fixed domain name for easy remote access. - **Event Notification System:** Supports Syslog, SNMP Trap, Email alerts, and relay output for fault or event reporting. - **Multi‑Host Communication:** Supports up to 5 simultaneous host connections in Virtual COM, TCP Server, or TCP Client modes; up to 4 IP ranges in UDP mode. - **Flexible Power Input:** Dual 12 – 48 V DC power inputs with reverse polarity protection. - **Industrial Design:** IP‑30 rated metal housing, DIN‑rail and wall‑mount installation options. - **Wide Temperature Range:** Operates from –10 °C to +60 °C; storage –40 °C to +85 °C. - **Comprehensive Management:** Web‑based GUI, DS‑Tool utility, and remote management via WAN. - **Security and NAT Functions:** IP/MAC filtering, port forwarding, DMZ, UPnP, and NAT‑PMP support. - **Serial‑to‑Ethernet Conversion:** Configurable modes for Virtual COM, TCP Server/Client, and UDP communication with SSL encryption. - **Firmware Upgrade and Configuration Backup:** Web‑based firmware update, configuration save/restore, and factory reset options. - **Event Logging and Diagnostics:** System log, traffic statistics, and ping test utilities for network diagnostics.

Hersteller: Oring

Kategorie: M2M Gateway

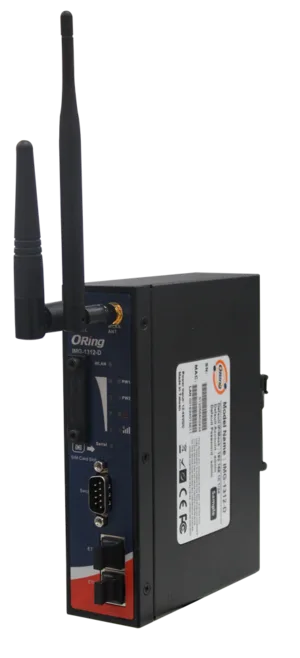

- **Integrated GSM/3G HSUPA Cellular Connectivity:** Supports GSM, GPRS, EDGE, WCDMA, HSDPA, and HSUPA standards for wide-area wireless communication. - **Dual Ethernet Ports:** Two 10/100Base-T(X) RJ45 ports with auto MDI/MDI-X for flexible LAN/WAN configuration. - **Multi-Protocol Serial Interface:** One DB9 male port configurable for RS-232, RS-422, or RS-485 (2-wire/4-wire) operation. - **Wireless LAN Capability:** IEEE 802.11b/g compliant Wi-Fi interface supporting up to 54 Mbps data rate with WPA/WPA2 and 802.1X security. - **Redundant Power Inputs:** Dual 12–48 VDC inputs on a 6-pin terminal block for power reliability. - **Industrial-Grade Design:** IP-40 metal enclosure, DIN-rail and wall-mount options, and wide operating temperature range (-10°C to 60°C). - **Comprehensive Security:** Advanced firewall, VPN (OpenVPN, PPTP), NAT, IP/MAC filtering, and DDNS support. - **Flexible Serial-to-Ethernet Modes:** Supports Virtual COM, TCP Server/Client, and UDP modes for transparent serial data transmission. - **Advanced Management:** Web-based GUI, SNMP, Syslog, Email notification, and firmware upgrade via browser. - **Digital I/O:** Four digital inputs and four digital outputs (5V TTL) for remote monitoring and control.

Hersteller: Oring

Kategorie: M2M Gateway

- **Integrated Cellular Connectivity:** Built‑in 3G/4G LTE cellular modem supporting GSM, GPRS, EDGE, WCDMA, HSDPA, HSUPA, and LTE standards. Supports multiple regional band options (US, EU, TW) for global deployment. - **Multi‑Interface Design:** - **2 × 10/100Base‑T(X)** Ethernet ports (Auto MDI/MDIX) - **1 × RS‑232/422/485** serial port (DB9 connector) - **1 × IEEE 802.11b/g/n** Wi‑Fi interface (up to 150 Mbps) - **1 × PoE PD port** (IEEE 802.3af compliant) - **Redundant Power Inputs:** Dual 12–48 VDC inputs on a 4‑pin terminal block for uninterrupted operation. - **Industrial‑Grade Construction:** IP‑30 metal enclosure, DIN‑rail and wall‑mount options, wide operating temperature range (‑10°C to +60°C). - **Advanced Networking Protocols:** Supports ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, and PPPoE. - **Wi‑Fi Security:** WEP (64/128‑bit), WPA/WPA2, WPA‑PSK (256‑bit), 802.1X authentication, TKIP/AES encryption, SSID broadcast disable. - **PoE Power Device Functionality:** ETH1 port can receive power via Ethernet cable (IEEE 802.3af PD compliant), simplifying installation. - **High Reliability:** Overload, short‑circuit, and reverse polarity protection; isolation voltage ≥1000 VDC. - **Comprehensive LED Indicators:** LEDs for power, Ethernet link/activity, Wi‑Fi, WAN, serial TX/RX, and PoE status.

Hersteller: Oring

Kategorie: M2M Gateway

- **Integrated 4G LTE Cellular Connectivity:** Built‑in GSM/3G/4G LTE module supporting multiple regional frequency bands (US, EU, TW variants) for global deployment. - **Dual Ethernet Ports:** Two 10/100Base‑T(X) auto‑negotiating ports with Auto‑MDI/MDI‑X support for flexible LAN/WAN configuration. - **Multi‑Protocol Serial Port:** One DB9 serial port configurable for RS‑232, RS‑422, or RS‑485 operation, supporting baud rates from 110 bps to 115.2 Kbps. - **Wi‑Fi Interface:** IEEE 802.11b/g/n wireless LAN with up to 150 Mbps throughput, supporting WPA/WPA2, WEP, and 802.1X authentication. - **PoE PD Functionality:** ETH1 port supports IEEE 802.3af Power Device (PD) input, allowing the router to be powered via Ethernet cable. - **Redundant Power Inputs:** Dual 12–48 VDC inputs on a 4‑pin terminal block for power redundancy and reliability. - **Industrial Design:** IP‑30 metal enclosure, DIN‑rail and wall‑mount options, and extended operating temperature range (‑10°C to +60°C). - **Comprehensive Protocol Support:** Supports ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, and PPPoE. - **High Reliability:** Overload, short‑circuit, and reverse polarity protection; isolation voltage ≥1000 VDC; designed for continuous operation in industrial environments. - **Regulatory Compliance:** Certified for FCC Part 15, EN55022 Class A, EN61000‑4‑x EMC standards, and EN60950‑1 safety compliance.

Hersteller: Oring

Kategorie: M2M Gateway

- **Multi‑Interface Connectivity:** - Two 10/100Base‑T(X) Ethernet ports with Auto MDI/MDI‑X support. - One serial port configurable as RS‑232, RS‑422, or RS‑485. - One SIM card slot for cellular network access. - Integrated IEEE 802.11b/g/n Wi‑Fi interface with speeds up to 150 Mbps. - **Cellular Communication:** - Embedded 2G/3G/4G LTE modem supporting GSM, GPRS, EDGE, WCDMA, HSDPA, HSUPA, and LTE standards. - Supports multiple regional frequency bands (US, EU, and Taiwan variants). - **Power Flexibility:** - Dual redundant DC power inputs (12–48 VDC) via 4‑pin terminal block. - PoE P.D. (Powered Device) function on ETH1 port compliant with IEEE 802.3af standard. - **Industrial Design:** - Compact IP‑30 metal enclosure. - Wide operating temperature range: ‑10°C to +60°C. - Storage temperature: ‑40°C to +85°C. - Vibration, shock, and free‑fall tested per IEC60068 and EN61373 standards. - **Network Protocol Support:** - ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, PPPoE. - **Wi‑Fi Security:** - WEP (64/128‑bit), WPA/WPA2 (TKIP/AES), WPA‑PSK (256‑bit), 802.1X authentication, and SSID broadcast disable. - **Ease of Deployment:** - DIN‑rail and wall‑mount installation options. - Web‑based configuration interface (compatible with Internet Explorer 6.0 or later). - LED indicators for power, Ethernet, Wi‑Fi, WAN, and serial activity. - **Reliability and Safety:** - Overload, short‑circuit, and reverse polarity protection. - Redundant power design ensures continuous operation.

Hersteller: Oring

Kategorie: M2M Gateway

- **4G LTE Cellular Connectivity:** Integrated GSM/3G/4G LTE module supporting multiple regional frequency bands (US, EU, TW variants). - **Dual Ethernet Ports:** Two 10/100Base‑T(X) RJ‑45 ports with Auto‑MDI/MDIX for flexible LAN/WAN configuration. - **Serial Communication:** One DB9 serial port configurable for RS‑232, RS‑422, or RS‑485 operation. - **Wi‑Fi Interface:** IEEE 802.11b/g/n wireless access point/client with up to 150 Mbps throughput. - **Redundant Power Inputs:** Dual 12–48 VDC inputs on a 4‑pin terminal block for power reliability. - **PoE Power Device (PD):** IEEE 802.3af‑compliant PoE input on ETH1 (IMG‑4312+ variant). - **Industrial Design:** IP‑30 metal housing, DIN‑rail and wall‑mount options, and vibration/shock resistance per IEC standards. - **Wide Temperature Range:** Operates from −10 °C to +60 °C; storage from −40 °C to +85 °C. - **Comprehensive Protocol Support:** TCP/IP, UDP, DHCP, SNMP, HTTPS, SSH, SMTP, DDNS, PPPoE, and more. - **Security:** WPA/WPA2, 802.1X authentication, WEP/AES/TKIP encryption, and SSID broadcast control. - **M2M Gateway Functionality:** Supports simultaneous data transfer to up to five host PCs for redundancy and backup. - **LED Indicators:** Status LEDs for power, Ethernet link/activity, Wi‑Fi, WAN, serial TX/RX, and PoE (where applicable). - **Compact and Lightweight:** 45 × 81 × 95 mm, approximately 372 g. - **Long‑Term Reliability:** 5‑year manufacturer warranty.

Hersteller: Oring

Kategorie: M2M Gateway

- **Multi‑Interface Connectivity:** - 2 × 10/100Base‑T(X) Ethernet ports (RJ‑45, auto MDI/MDIX) - 1 × RS‑232/422/485 serial port (DB9 male) - 1 × SIM card slot for LTE Cat‑M1/Cat‑NB1 - 1 × SMA female connector for cellular antenna - 1 × RP‑SMA female connector for Wi‑Fi antenna - **Wireless Communication:** - LTE Cat‑M1/Cat‑NB1 modem supporting FDD and TDD bands - Wi‑Fi IEEE 802.11 b/g/n up to 150 Mbps link speed - **Industrial Protocols:** - Modbus TCP/RTU for industrial automation - MQTT and LWM2M IoT protocols (MQTT fully supported, LWM2M under development) - **Network & Security:** - Supports DHCP, NAT, VPN (OpenVPN), DDNS, SNMP, HTTPS, SSH - Multiple WAN connection types: Dynamic/Static IP, PPPoE, Modem Dial‑up - Advanced firewall, IP/MAC filtering, and 802.1X authentication - **Redundant Power Design:** - Dual DC inputs (12–48 VDC) with reverse polarity and overload protection - Optional PoE P.D. (IEEE 802.3af) on ETH1 for IMG‑4312+‑MN - **Rugged Construction:** - IP‑30 metal enclosure - Extended operating temperature range (‑10 °C to +60 °C) - DIN‑rail and wall‑mount installation options - **Event & Alarm Management:** - Syslog, SNMP Trap, and Email notifications - Event alarm configuration via web interface - **Software Platform:** - OpenWRT SDK support for custom project development - Web‑based management interface with HTTPS access

Hersteller: Oring

Kategorie: M2M Gateway

- **Multi‑interface Connectivity:** - Two 10/100/1000Base‑T(X) Ethernet ports (RJ‑45, Auto MDI/MDIX) - One RS‑232/422/485 serial port (DB9 male) - One RS‑422/485 serial port (terminal block) - One SIM card slot for 3G cellular connectivity - Dual reverse SMA connectors for WLAN and one SMA connector for cellular antenna - **Wireless Communication:** - IEEE 802.11 a/b/g/n compliant WLAN supporting up to 300 Mbps throughput - Dual‑band operation (2.4 GHz and 5 GHz) - Advanced encryption: WEP (64/128‑bit), WPA/WPA2, WPA‑PSK, 802.1X authentication, TKIP/AES - **Cellular Connectivity:** - Built‑in 3.5G HSUPA modem supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA - Quad‑band GSM (850/900/1800/1900 MHz) and dual‑band HSUPA (1900/2100 MHz) - Reverse SMA female antenna connector - **Industrial Design:** - IP‑30 metal enclosure - Wide operating temperature range: ‑25 °C to +70 °C - Storage temperature: ‑40 °C to +85 °C - Operating humidity: 5 %–95 % non‑condensing - Dual 12–48 V DC redundant power inputs with reverse polarity and overload protection - **Protocol Support:** - Modbus TCP/RTU gateway functionality - VPN support (OpenVPN, PPTP, IPSec) - NAT, firewall, DHCP, DDNS, VRRP, and routing protocols (RIP v1/v2) - **Security & Reliability:** - SSL data encryption for serial‑to‑Ethernet communication - Event warning via Syslog, SNMP trap, e‑mail, and relay output - Supports up to five simultaneous host connections for redundancy - **Management & Configuration:** - Web‑based GUI (HTTP/HTTPS) - ORing Open‑Vision management utility - CLI via Telnet - Remote management and firmware upgrade support

Hersteller: Oring

Kategorie: M2M Gateway

- **Integrated 4G LTE Cellular Modem:** Supports GSM/GPRS/EDGE/WCDMA/HSPA+/LTE for global deployment (US and EU bands). - **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base‑T(X) RJ‑45 ports with auto MDI/MDIX for flexible LAN/WAN configuration. - **Dual Serial Interfaces:** One RS‑232/422/485 and one RS‑422/485 port, configurable via software utility. - **IEEE 802.11 a/b/g/n WLAN:** Dual-band wireless connectivity up to 300 Mbps with dual reverse SMA antenna connectors. - **VPN and Security:** Supports OpenVPN, PPTP, IPSec, SSL encryption, WPA/WPA2, 802.1X authentication, and TKIP/AES encryption. - **Modbus Gateway Functionality:** Converts between Modbus TCP and Modbus RTU protocols over wired or wireless interfaces. - **High Reliability:** Dual redundant 12–48 VDC power inputs with reverse polarity and overload protection. - **Rugged Design:** IP‑30 metal enclosure, DIN‑rail or wall‑mountable, operating temperature −25 °C to +70 °C. - **Comprehensive Management:** Web-based GUI, SNMP, Syslog, e‑mail alerts, and ORing’s M2M‑Tool for centralized monitoring. - **Event Notification:** Supports relay output, SNMP traps, and system log for fault detection. - **High MTBF:** Over 260,000 hours (EU) and 283,000 hours (US) for long-term industrial reliability.

Hersteller: Oring

Kategorie: M2M Gateway

- **Multi‑Interface Connectivity:** - 2 × 10/100/1000Base‑T(X) Ethernet ports (RJ‑45, auto MDI/MDI‑X) - 1 × RS‑232/422/485 serial port (DB9 male) - 1 × RS‑422/485 serial port (terminal block) - 1 × SIM card slot for cellular connectivity - **Wireless Communication:** - IEEE 802.11 a/b/g/n WLAN supporting up to 300 Mbps throughput - Dual reverse SMA connectors for 2.4 GHz/5 GHz antennas - WPA/WPA2, 802.1X, TKIP/AES encryption - **Cellular Connectivity:** - Integrated 3.5G/4G LTE modem (HSUPA/HSPA+/LTE) - Quad‑band GSM/GPRS/EDGE (850/900/1800/1900 MHz) - Multi‑band WCDMA/HSDPA/HSUPA (850/900/1900/2100 MHz) - LTE bands for US (700/1700/2100 MHz) and EU (800/900/1800/2100/2600 MHz) - Reverse SMA female antenna connector - **Industrial Design:** - IP‑30 metal enclosure - Wide operating temperature range: ‑40 °C ~ 70 °C - Dual redundant 12–48 VDC power inputs - DIN‑rail and wall‑mount installation options - **Protocol & Security Support:** - Modbus TCP/RTU gateway functionality - VPN (OpenVPN, PPTP, IPSec) - SSL data encryption for up to 5 simultaneous host connections - Event warning via Syslog, SNMP trap, e‑mail, and relay output - **Management & Configuration:** - Web‑based GUI (default IP: 192.168.10.1) - ORing M2M‑Tool and Open‑Vision management utilities - Remote management via HTTP/HTTPS, SNMP, and Telnet

Hersteller: Oring

Kategorie: M2M Gateway

- **Integrated Multi‑Interface Gateway:** Combines 1×10/100Base‑TX Ethernet port, 2×RS‑232/422/485 serial ports, and a built‑in GSM/3.5G cellular modem for versatile communication bridging between field devices and IP networks. - **Industrial‑Grade Design:** IP67 waterproof housing with robust mechanical construction for outdoor or factory‑floor installations. Designed to withstand vibration, shock, and wide temperature variations. - **Power Flexibility:** Supports **IEEE 802.3af PoE PD** (Powered Device) and **12–48 VDC dual redundant power inputs**, ensuring continuous operation even under power source failure. - **Advanced Networking & Security:** Includes VPN (OpenVPN, PPTP), NAT, DDNS, IP/MAC filtering, and firewall functions for secure remote access and data transmission. - **Serial‑to‑IP Communication Modes:** Supports **Virtual COM**, **TCP Server**, **TCP Client**, and **UDP** modes with up to **5 simultaneous host connections**, enabling flexible serial data routing. - **Event & Alarm Management:** Provides event notifications via **Syslog, SNMP Trap, Email**, and **relay output** for proactive system monitoring. - **Comprehensive Management Tools:** Web‑based GUI, Telnet, and **ORing DS‑Tool** utility for configuration, firmware upgrade, and remote management. - **Environmental Resilience:** Operating temperature range of **–10 °C to +60 °C**, storage temperature **–20 °C to +85 °C**, and humidity tolerance of **5–95 % non‑condensing**. - **High Reliability:** Designed for continuous operation in industrial automation, transportation, energy, and remote monitoring systems.

Hersteller: Oring

Kategorie: M2M Gateway

- **Integrated Multi-Interface Connectivity:** Combines one 10/100/1000Base-T(X) Ethernet port (M12 connector with PoE PD) and two RS-232 serial ports for simultaneous serial and network device communication. - **Wireless and Cellular Communication:** Supports IEEE802.11 a/b/g/n WLAN with dual-band operation (2.4GHz and 5GHz) and built-in 3G GSM/UMTS/HSDPA/HSUPA cellular modem for wide-area connectivity. - **High-Speed Wireless Performance:** Provides up to 300 Mbps wireless throughput with advanced modulation schemes (BPSK, QPSK, 16QAM, 64QAM). - **Industrial-Grade Design:** IP67-rated waterproof and dustproof aluminum enclosure suitable for outdoor and harsh industrial environments. - **Power over Ethernet (PoE PD):** IEEE802.3af-compliant PoE power input (48VDC) eliminates the need for separate power wiring. - **Wide Temperature Range:** Operates reliably from -25°C to +70°C; storage temperature from -40°C to +85°C. - **Advanced Security and VPN Support:** Supports WEP, WPA/WPA2, WPA-PSK, 802.1X/RADIUS authentication, OpenVPN, PPTP, and IPSec VPN for secure remote access. - **Flexible Mounting Options:** Wall and pole mounting kits included for versatile installation. - **Comprehensive Management:** Web-based configuration, SNMP, Syslog, email/SMS alerts, and ORing’s Open-Vision management utility. - **High Reliability:** Supports redundant host connections, SSL data encryption, and simultaneous data transfer to up to five host PCs.

Hersteller: Oring

Kategorie: M2M Gateway

- **Integrated Multi-Interface Connectivity:** Combines Ethernet, WLAN, and cellular interfaces for flexible communication. - 1 × 10/100/1000Base-T(X) M12 port with PoE PD (IEEE802.3af compliant) - 2 × RS-232 serial ports (8-pin M12 A-coded male connectors) - 1 × SIM card slot for 4G LTE connectivity - **Wireless Communication:** - IEEE802.11 a/b/g/n WLAN supporting up to 300 Mbps throughput - Dual-band operation (2.4 GHz and 5 GHz) - Supports DSSS and OFDM modulation schemes - WPA/WPA2, 802.1X, and RADIUS authentication for secure wireless access - **Cellular Connectivity:** - Built-in 4G LTE modem supporting GSM/GPRS/EDGE/WCDMA/HSPA+/LTE - Regional band options for America and Europe - N-type female antenna connectors for high-gain external antennas - **Industrial Design:** - IP67-rated waterproof and dustproof aluminum enclosure - Wide operating temperature range (-25°C to +70°C) - Dual power input (12–48 VDC) and PoE PD support - Designed for harsh outdoor and transportation environments - **Advanced Networking & Security:** - VPN support: OpenVPN, PPTP, IPSec - NAT, DMZ, MAC/IP filtering, and firewall rules - SSL data encryption for secure serial and network communication - Supports up to 5 simultaneous host connections - **Management & Monitoring:** - Web-based configuration (HTTP/HTTPS) - SNMP, Syslog, and email/SMS event notifications - ORing Open-Vision management utility compatibility - Remote firmware upgrade and configuration backup/restore - **Compliance & Reliability:** - EN50155 railway standard compliance - FCC Part 15, EN55022 Class A, EN60950-1 safety - 5-year manufacturer warranty

Hersteller: Oring

Kategorie: M2M Gateway

- **Multi-Interface Communication:** Equipped with **2 serial ports** (RS232/RS422/4-wire RS485/2-wire RS485) supporting baud rates up to **921.6 Kbps**. - **Wireless Connectivity Options:** Supports multiple wireless technologies by model variant, including **NB-IoT**, **CAT M1**, **CAT 1**, **ZigBee**, and **LoRa**. The LRM model specifically features **LoRa Master** functionality. - **Digital I/O Capability:** Provides **4 digital inputs (DI)** and **4 digital outputs (DO)** with configurable modes (dry/wet contact, event counter, or pulse output). - **Protocol Support:** Compatible with **Modbus RTU/TCP**, **MQTT**, and **CoAP** protocols for flexible integration with industrial control systems and cloud platforms. - **Data Logging:** Built-in data logging functionality for local data storage and transmission. - **USB Configuration Interface:** Micro USB (Type B) port for configuration, firmware updates, and diagnostics via a virtual COM interface. - **Rugged Design:** Wide operating temperature range (-40°C to 75°C), high isolation (3 kVDC), and industrial-grade EMC/EMI protection. - **LED Indicators:** Comprehensive LED indicators for power, serial communication, wireless activity, and signal strength. - **Compact Form Factor:** Dimensions of **144.3 × 94.9 × 26.1 mm**, suitable for DIN-rail or panel mounting in constrained industrial spaces. - **Long-Term Reliability:** Backed by a **5-year warranty** and designed for continuous operation in demanding environments.

Hersteller: Oring

Kategorie: M2M Gateway

- **Multi-interface Serial Communication:** Equipped with **2 serial ports** supporting **RS-232, RS-422, 4-wire RS-485, and 2-wire RS-485** modes, with baud rates up to **921.6 Kbps**. - **Flexible Wireless Options:** Supports multiple wireless communication standards by model, including **NB-IoT, CAT M1, CAT 1, ZigBee, and LoRa**. The ORIO-G30218LRS variant features **LoRa** connectivity for long-range, low-bandwidth data transmission. - **Digital I/O Capability:** Provides **4 digital inputs (DI)** and **4 digital outputs (DO)** with configurable modes (wet/dry contact for DI, sink type for DO). - **Protocol Support:** Compatible with **Modbus**, **MQTT**, and **CoAP** protocols, enabling seamless integration with industrial control systems and cloud-based IoT platforms. - **Data Logging and Cloud Integration:** Built-in data logging functionality and support for MQTT/CoAP protocols allow efficient data collection and transmission to cloud servers. - **Rugged Industrial Design:** Designed for extreme environments with an operating temperature range of **-40°C to +75°C** and storage temperature range of **-40°C to +85°C**. - **Wide Power Input Range:** Dual redundant power inputs supporting **12–48 VDC**, ensuring stable operation in industrial power systems. - **USB Configuration and Firmware Update:** Features a **Micro USB (Type B)** port for configuration via a virtual COM interface and firmware updates. - **High Electrical Isolation:** 3 kVDC or 2 kVrms isolation protection for digital I/O channels, ensuring reliable operation in electrically noisy environments. - **Compact and Durable Construction:** Compact dimensions of **144.3 × 94.9 × 26.1 mm**, suitable for space-constrained installations.

Hersteller: Oring

Kategorie: M2M Gateway

- **Multi-Interface Connectivity:** Equipped with 2 serial ports supporting RS232, RS422, 4-wire RS485, and 2-wire RS485 modes, allowing flexible integration with various industrial devices. - **Wireless Communication Options:** Supports multiple wireless technologies by model variant, including NB-IoT, CAT M1, CAT 1, ZigBee, and LoRa. The ORIO-G30218LRW specifically supports **LoRa 1.0.2** for long-range, low-power communication. - **Digital I/O Capability:** Provides 4 digital inputs (DI) and 4 digital outputs (DO), configurable for dry/wet contact sensing and sink-type output control. - **Protocol Support:** Compatible with **Modbus**, **MQTT**, and **CoAP** protocols, enabling integration with industrial control systems and IoT platforms. - **Data Logging and Cloud Integration:** Built-in data logging functionality and support for MQTT/Modbus gateway operation facilitate efficient data collection and cloud connectivity. - **Rugged Design:** Designed for industrial environments with an operating temperature range of **-40°C to +75°C**, storage temperature up to **+85°C**, and high isolation protection (3 kVDC). - **Flexible Configuration:** Configuration and firmware updates are performed via a **USB virtual COM port** using a Micro USB interface. - **High-Speed Serial Communication:** Supports baud rates up to **921.6 Kbps**, ensuring fast and reliable data transmission. - **Compact and Durable Construction:** Compact dimensions of **144.3 × 94.9 × 26.1 mm**, suitable for space-constrained installations. - **Power Flexibility:** Dual DC power input range from **12 to 48 VDC**, ensuring compatibility with various industrial power systems.

Hersteller: Oring

Kategorie: M2M Gateway
