Comprehensive Product Summary – ORing IMG‑W1321+ Industrial M2M Gateway
### 1. Product Overview
Product Name: IMG‑W1321+
Model Number: IMG‑W1321+
Series: IMG‑111 Series (Industrial M2M Gateway Family)
Article Number: IMG‑W1321+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Headquarters: 3F., No.542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Contact: Tel: +886‑2‑2218‑1066 | Fax: +886‑2‑2218‑1014 | Email: support@oring-networking.com

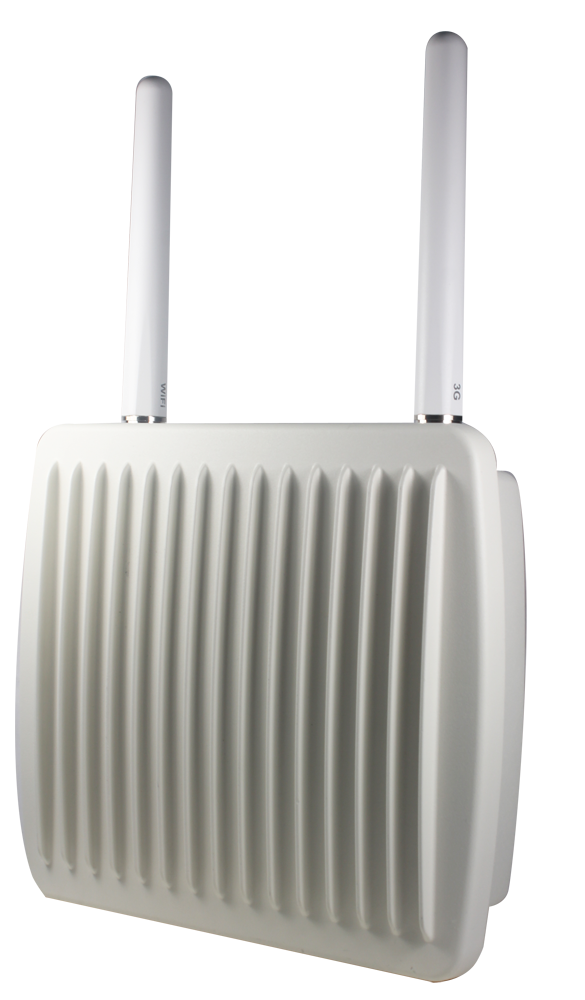

The ORing IMG‑W1321+ is a ruggedized, waterproof industrial M2M (Machine‑to‑Machine) gateway designed for remote data acquisition, serial‑to‑Ethernet conversion, and cellular network connectivity. It integrates Ethernet, serial, and GSM/3.5G communication interfaces in a single IP67‑rated enclosure, enabling reliable operation in harsh industrial and outdoor environments. The device supports Power over Ethernet (PoE) and dual DC power inputs, ensuring flexible deployment and high availability for mission‑critical applications.
### 2. Key Features
- Integrated Multi‑Interface Gateway:
Combines 1×10/100Base‑TX Ethernet port, 2×RS‑232/422/485 serial ports, and a built‑in GSM/3.5G cellular modem for versatile communication bridging between field devices and IP networks.
- Industrial‑Grade Design:
IP67 waterproof housing with robust mechanical construction for outdoor or factory‑floor installations. Designed to withstand vibration, shock, and wide temperature variations.
- Power Flexibility:
Supports IEEE 802.3af PoE PD (Powered Device) and 12–48 VDC dual redundant power inputs, ensuring continuous operation even under power source failure.
- Advanced Networking & Security:
Includes VPN (OpenVPN, PPTP), NAT, DDNS, IP/MAC filtering, and firewall functions for secure remote access and data transmission.
- Serial‑to‑IP Communication Modes:
Supports Virtual COM, TCP Server, TCP Client, and UDP modes with up to 5 simultaneous host connections, enabling flexible serial data routing.
- Event & Alarm Management:
Provides event notifications via Syslog, SNMP Trap, Email, and relay output for proactive system monitoring.
- Comprehensive Management Tools:
Web‑based GUI, Telnet, and ORing DS‑Tool utility for configuration, firmware upgrade, and remote management.
- Environmental Resilience:
Operating temperature range of –10 °C to +60 °C, storage temperature –20 °C to +85 °C, and humidity tolerance of 5–95 % non‑condensing.
- High Reliability:
Designed for continuous operation in industrial automation, transportation, energy, and remote monitoring systems.
### 3. Technical Specifications
| Category | Specification |
|---------------|-------------------|
| Ethernet Interface | 1 × 10/100Base‑TX (RJ‑45, Auto MDI/MDI‑X) |
| Serial Interfaces | 2 × RS‑232/422/485 (DB9 male connectors) |
| Cellular Interface | Built‑in GSM/3.5G modem supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA |
| Frequency Bands | Quad‑band GSM 850/900/1800/1900 MHz; WCDMA/HSDPA 850/900/1900/2100 MHz |
| Antenna Connector | Reverse SMA, 1 × GSM/DCS/UMT antenna |
| SIM Slot | 1 × SIM card slot (accessible under sealed cover) |
| Power Input | Dual 12–48 VDC inputs and PoE PD (IEEE 802.3af) |
| Power Consumption | Approx. 4.5 W |
| Enclosure Rating | IP67 waterproof (IMG‑W1321+); IP30 for base IMG‑111 models |
| Dimensions | 257 × 91 × 227 mm (W × D × H) |
| Weight | ~2450 g |
| Operating Temperature | –10 °C to +60 °C |
| Storage Temperature | –20 °C to +85 °C |
| Humidity | 5 % – 95 %, non‑condensing |
| LED Indicators | Power (Green), Status (Green), Fault (Amber), WAN (Green), Serial TX/RX (Red/Green), Ethernet Link/Act (Green/Amber) |
| Relay Output | 1 × relay output, 1 A @ 24 VDC |
| Mounting Options | DIN‑rail, wall‑mount, or panel‑mount |
| Certifications | FCC Part 15 Class A, EN55022 Class A, EN61000‑4‑2/3/4/5/6/8/11, IEC60068‑2‑6/27/32, EN60950‑1 |
| Warranty | 3 years standard (5 years for selected ORing products) |
### 4. Functionality
The IMG‑W1321+ functions as a multi‑protocol industrial gateway, bridging serial devices to IP networks and cellular infrastructures. It enables remote monitoring, control, and data acquisition from legacy RS‑232/422/485 equipment through Ethernet or GSM/3.5G connections.
Primary Functions:
- Serial‑to‑Ethernet Conversion: Converts serial data streams into TCP/IP packets for LAN/WAN transmission.
- Cellular Connectivity: Provides GSM/3.5G dial‑up for remote sites lacking wired infrastructure.
- VPN Tunneling: Establishes secure communication channels using OpenVPN or PPTP.
- Network Address Translation (NAT): Supports virtual servers, port triggering, DMZ, and UPnP for flexible network integration.
- Dynamic DNS (DDNS): Maintains consistent domain access for dynamic IP environments.
- Event Notification: Sends alerts via email, SNMP trap, or relay output upon link failure or system events.
- Remote Management: Accessible through web interface, Telnet, or DS‑Tool for configuration, firmware updates, and diagnostics.
Typical Applications:
- Industrial automation and SCADA systems
- Remote telemetry and data logging
- Transportation and fleet management
- Energy and utility monitoring
- Environmental and infrastructure control systems
Compatibility:
Supports standard Ethernet protocols (TCP/IP, UDP, DHCP, NAT, VPN) and serial communication standards (RS‑232/422/485). Compatible with Windows‑based DS‑Tool software for configuration and virtual COM port mapping.
### 5. Components & Accessories
Included Items:
- IMG‑W1321+ M2M Gateway unit
- GSM/DCS/UMT antenna (Reverse SMA)
- 4‑pin terminal block for power input
- DIN‑rail mounting kit
- Wall‑mount brackets and screws
- Power cable with DC jack
- Dust cover for RJ‑45 port
- Allen key for SIM card slot
- Quick Installation Guide (QIG) and user manual
Optional Accessories:
- External high‑gain GSM antenna
- PoE injector or PoE switch
- Additional mounting hardware
- Serial communication cables (DB9)
Connectors:
- RJ‑45 for Ethernet (pins 1/2 Tx, 3/6 Rx)
- DB9 male for serial (TxD, RxD, GND)
- Reverse SMA for antenna
- 4‑pin terminal block for DC power input
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation: Attach the DIN‑rail kit to the rear panel and snap onto a standard 35 mm rail.
- Wall Mounting: Use L‑shaped brackets and screws to secure the device to a flat surface.
- Panel Mounting: Optional for control cabinets or enclosures.
SIM Card Installation:
1. Power off the device.
2. Remove the sealed SIM cover using the provided Allen key.
3. Insert the SIM card into the slot.
4. Re‑seal the cover to maintain IP67 protection.
Power Connection:
- Connect 12–48 VDC to the terminal block (V+, V–).
- Alternatively, power via PoE (IEEE 802.3af) through the Ethernet port.
- Ensure proper grounding via the frame ground terminal.
Network Configuration:
1. Connect a PC to the Ethernet port using a straight‑through or crossover cable.
2. Access the web interface at http://192.168.10.1 (default IP).
3. Login with default credentials (admin/admin).
4. Configure WAN, LAN, DHCP, and serial parameters as required.
5. Save and reboot to apply settings.
Software Tools:
- Web GUI: Full configuration and monitoring interface.
- DS‑Tool: Windows utility for device discovery, firmware upgrade, and virtual COM mapping.
- Telnet/CLI: Optional command‑line configuration for advanced users.
### 7. Performance & Capabilities
Networking Performance:
- 10/100 Mbps Ethernet throughput with auto‑negotiation.
- Supports up to 5 concurrent host connections in Virtual COM or TCP modes.
- DHCP server and client functionality for flexible IP assignment.
- NAT, port forwarding, and routing (static and RIP v1/v2 dynamic routing).
Serial Communication:
- Baud rates: 110 bps – 115.2 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow control: None, XON/XOFF
- Modes: Throughput (high‑speed) or Latency (low‑delay) optimization
- Buffer size: 4 KB per direction with configurable flush timers (0–65535 s)
Cellular Performance:
- GSM/GPRS/EDGE/3.5G HSDPA/HSUPA connectivity
- Auto‑connect and auto‑recheck modem status every 28 s
- APN, PIN, and authentication configurable via web interface
- Supports dial‑up and always‑on modes
VPN & Security:
- OpenVPN: SSL‑based encryption with UDP/TCP tunneling, LZO compression, and certificate management.
- PPTP VPN: Supports CHAP/MS‑CHAP/MS‑CHAPv2 authentication and MPPE encryption.
- Firewall: IP and MAC filtering, DMZ, port triggering, and UPnP/NAT‑PMP.
- Encryption: SSL/TLS for data channels and management sessions (HTTPS).
System Management:
- Firmware upgrade via web or TFTP
- Configuration backup/restore
- Scheduled reboot and warm reset
- System log, traffic statistics, and event reporting
- Ping diagnostics and remote management port configuration
Limitations:
- Single Ethernet interface (no built‑in switch)
- Cellular throughput limited by 3.5G modem capability
- SIM card access requires power‑off for insertion/removal
### 8. Standards & Compliance
Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15 Class A, CISPR 22 (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
Environmental & Mechanical:
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Ingress Protection: IP67 (IMG‑W1321+), IP30 (base models)
Safety:
- EN60950‑1 (Information Technology Equipment Safety)
Industry Standards:
- IEEE 802.3 10/100Base‑TX
- IEEE 802.3af PoE PD
- GSM/3GPP cellular standards (GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA)
Regulatory Compliance Statement:
All ORing products comply with applicable international regulations and standards for industrial networking equipment.
### 9. Additional Information
Warranty:
Standard 3‑year limited warranty covering defects in materials and workmanship. Extended 5‑year warranty available for selected ORing products. Warranty excludes damage due to misuse, unauthorized modification, or improper installation.
Technical Support:
- Email: support@oring-networking.com
- Sales Contact: sales@oring-networking.com (Global) / sales@oring-networking.com.cn (China)
- Documentation: User Manual v2.0 (July 2014), Quick Installation Guide v1.1
Maintenance & Updates:
- Firmware updates available via ORing website.
- Configuration backup and restore supported through web interface or TFTP.
- Regular inspection of connectors and seals recommended for outdoor installations.
- Replace antenna or cables only with ORing‑approved accessories to maintain IP67 integrity.
Software Utilities:
- DS‑Tool: Device discovery, configuration, firmware upgrade, and virtual COM mapping.
- Web Management Interface: HTTPS‑secured configuration portal with status monitoring.
- SNMP & Syslog: Integration with network management systems for centralized monitoring.
Operational Best Practices:
- Ensure proper grounding to prevent ESD damage.
- Use shielded Ethernet cables for EMI‑sensitive environments.
- Maintain adequate ventilation or enclosure spacing for heat dissipation.
- Verify SIM card activation and APN settings before deployment.
### Summary
The ORing IMG‑W1321+ Industrial M2M Gateway is a high‑performance, rugged communication platform engineered for industrial IoT and remote automation applications. Combining Ethernet, serial, and cellular interfaces within an IP67‑rated enclosure, it provides reliable data connectivity between field devices and central control systems. Its dual power design, PoE support, and comprehensive VPN/security features make it ideal for mission‑critical deployments in harsh environments. With flexible configuration options, extensive protocol support, and robust management tools, the IMG‑W1321+ delivers dependable, secure, and scalable connectivity for modern industrial networks.
### 1. Product Overview
Product Name: IMG‑W1321+
Model Number: IMG‑W1321+
Series: IMG‑111 Series (Industrial M2M Gateway Family)
Article Number: IMG‑W1321+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Headquarters: 3F., No.542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Contact: Tel: +886‑2‑2218‑1066 | Fax: +886‑2‑2218‑1014 | Email: support@oring-networking.com
The ORing IMG‑W1321+ is a ruggedized, waterproof industrial M2M (Machine‑to‑Machine) gateway designed for remote data acquisition, serial‑to‑Ethernet conversion, and cellular network connectivity. It integrates Ethernet, serial, and GSM/3.5G communication interfaces in a single IP67‑rated enclosure, enabling reliable operation in harsh industrial and outdoor environments. The device supports Power over Ethernet (PoE) and dual DC power inputs, ensuring flexible deployment and high availability for mission‑critical applications.
### 2. Key Features
- Integrated Multi‑Interface Gateway:
Combines 1×10/100Base‑TX Ethernet port, 2×RS‑232/422/485 serial ports, and a built‑in GSM/3.5G cellular modem for versatile communication bridging between field devices and IP networks.
- Industrial‑Grade Design:
IP67 waterproof housing with robust mechanical construction for outdoor or factory‑floor installations. Designed to withstand vibration, shock, and wide temperature variations.
- Power Flexibility:
Supports IEEE 802.3af PoE PD (Powered Device) and 12–48 VDC dual redundant power inputs, ensuring continuous operation even under power source failure.
- Advanced Networking & Security:
Includes VPN (OpenVPN, PPTP), NAT, DDNS, IP/MAC filtering, and firewall functions for secure remote access and data transmission.
- Serial‑to‑IP Communication Modes:
Supports Virtual COM, TCP Server, TCP Client, and UDP modes with up to 5 simultaneous host connections, enabling flexible serial data routing.
- Event & Alarm Management:
Provides event notifications via Syslog, SNMP Trap, Email, and relay output for proactive system monitoring.
- Comprehensive Management Tools:
Web‑based GUI, Telnet, and ORing DS‑Tool utility for configuration, firmware upgrade, and remote management.
- Environmental Resilience:
Operating temperature range of –10 °C to +60 °C, storage temperature –20 °C to +85 °C, and humidity tolerance of 5–95 % non‑condensing.
- High Reliability:
Designed for continuous operation in industrial automation, transportation, energy, and remote monitoring systems.
### 3. Technical Specifications
| Category | Specification |
|---------------|-------------------|
| Ethernet Interface | 1 × 10/100Base‑TX (RJ‑45, Auto MDI/MDI‑X) |
| Serial Interfaces | 2 × RS‑232/422/485 (DB9 male connectors) |
| Cellular Interface | Built‑in GSM/3.5G modem supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA |
| Frequency Bands | Quad‑band GSM 850/900/1800/1900 MHz; WCDMA/HSDPA 850/900/1900/2100 MHz |
| Antenna Connector | Reverse SMA, 1 × GSM/DCS/UMT antenna |
| SIM Slot | 1 × SIM card slot (accessible under sealed cover) |
| Power Input | Dual 12–48 VDC inputs and PoE PD (IEEE 802.3af) |
| Power Consumption | Approx. 4.5 W |
| Enclosure Rating | IP67 waterproof (IMG‑W1321+); IP30 for base IMG‑111 models |
| Dimensions | 257 × 91 × 227 mm (W × D × H) |
| Weight | ~2450 g |
| Operating Temperature | –10 °C to +60 °C |
| Storage Temperature | –20 °C to +85 °C |
| Humidity | 5 % – 95 %, non‑condensing |
| LED Indicators | Power (Green), Status (Green), Fault (Amber), WAN (Green), Serial TX/RX (Red/Green), Ethernet Link/Act (Green/Amber) |
| Relay Output | 1 × relay output, 1 A @ 24 VDC |
| Mounting Options | DIN‑rail, wall‑mount, or panel‑mount |
| Certifications | FCC Part 15 Class A, EN55022 Class A, EN61000‑4‑2/3/4/5/6/8/11, IEC60068‑2‑6/27/32, EN60950‑1 |
| Warranty | 3 years standard (5 years for selected ORing products) |
### 4. Functionality
The IMG‑W1321+ functions as a multi‑protocol industrial gateway, bridging serial devices to IP networks and cellular infrastructures. It enables remote monitoring, control, and data acquisition from legacy RS‑232/422/485 equipment through Ethernet or GSM/3.5G connections.
Primary Functions:
- Serial‑to‑Ethernet Conversion: Converts serial data streams into TCP/IP packets for LAN/WAN transmission.
- Cellular Connectivity: Provides GSM/3.5G dial‑up for remote sites lacking wired infrastructure.
- VPN Tunneling: Establishes secure communication channels using OpenVPN or PPTP.
- Network Address Translation (NAT): Supports virtual servers, port triggering, DMZ, and UPnP for flexible network integration.
- Dynamic DNS (DDNS): Maintains consistent domain access for dynamic IP environments.
- Event Notification: Sends alerts via email, SNMP trap, or relay output upon link failure or system events.
- Remote Management: Accessible through web interface, Telnet, or DS‑Tool for configuration, firmware updates, and diagnostics.
Typical Applications:
- Industrial automation and SCADA systems
- Remote telemetry and data logging
- Transportation and fleet management
- Energy and utility monitoring
- Environmental and infrastructure control systems
Compatibility:
Supports standard Ethernet protocols (TCP/IP, UDP, DHCP, NAT, VPN) and serial communication standards (RS‑232/422/485). Compatible with Windows‑based DS‑Tool software for configuration and virtual COM port mapping.
### 5. Components & Accessories
Included Items:
- IMG‑W1321+ M2M Gateway unit
- GSM/DCS/UMT antenna (Reverse SMA)
- 4‑pin terminal block for power input
- DIN‑rail mounting kit
- Wall‑mount brackets and screws
- Power cable with DC jack
- Dust cover for RJ‑45 port
- Allen key for SIM card slot
- Quick Installation Guide (QIG) and user manual
Optional Accessories:
- External high‑gain GSM antenna
- PoE injector or PoE switch
- Additional mounting hardware
- Serial communication cables (DB9)
Connectors:
- RJ‑45 for Ethernet (pins 1/2 Tx, 3/6 Rx)
- DB9 male for serial (TxD, RxD, GND)
- Reverse SMA for antenna
- 4‑pin terminal block for DC power input
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation: Attach the DIN‑rail kit to the rear panel and snap onto a standard 35 mm rail.
- Wall Mounting: Use L‑shaped brackets and screws to secure the device to a flat surface.
- Panel Mounting: Optional for control cabinets or enclosures.
SIM Card Installation:
1. Power off the device.
2. Remove the sealed SIM cover using the provided Allen key.
3. Insert the SIM card into the slot.
4. Re‑seal the cover to maintain IP67 protection.
Power Connection:
- Connect 12–48 VDC to the terminal block (V+, V–).
- Alternatively, power via PoE (IEEE 802.3af) through the Ethernet port.
- Ensure proper grounding via the frame ground terminal.
Network Configuration:
1. Connect a PC to the Ethernet port using a straight‑through or crossover cable.
2. Access the web interface at http://192.168.10.1 (default IP).
3. Login with default credentials (admin/admin).
4. Configure WAN, LAN, DHCP, and serial parameters as required.
5. Save and reboot to apply settings.
Software Tools:
- Web GUI: Full configuration and monitoring interface.
- DS‑Tool: Windows utility for device discovery, firmware upgrade, and virtual COM mapping.
- Telnet/CLI: Optional command‑line configuration for advanced users.
### 7. Performance & Capabilities
Networking Performance:
- 10/100 Mbps Ethernet throughput with auto‑negotiation.
- Supports up to 5 concurrent host connections in Virtual COM or TCP modes.
- DHCP server and client functionality for flexible IP assignment.
- NAT, port forwarding, and routing (static and RIP v1/v2 dynamic routing).
Serial Communication:
- Baud rates: 110 bps – 115.2 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow control: None, XON/XOFF
- Modes: Throughput (high‑speed) or Latency (low‑delay) optimization
- Buffer size: 4 KB per direction with configurable flush timers (0–65535 s)
Cellular Performance:
- GSM/GPRS/EDGE/3.5G HSDPA/HSUPA connectivity
- Auto‑connect and auto‑recheck modem status every 28 s
- APN, PIN, and authentication configurable via web interface
- Supports dial‑up and always‑on modes
VPN & Security:
- OpenVPN: SSL‑based encryption with UDP/TCP tunneling, LZO compression, and certificate management.
- PPTP VPN: Supports CHAP/MS‑CHAP/MS‑CHAPv2 authentication and MPPE encryption.
- Firewall: IP and MAC filtering, DMZ, port triggering, and UPnP/NAT‑PMP.
- Encryption: SSL/TLS for data channels and management sessions (HTTPS).
System Management:
- Firmware upgrade via web or TFTP
- Configuration backup/restore
- Scheduled reboot and warm reset
- System log, traffic statistics, and event reporting
- Ping diagnostics and remote management port configuration
Limitations:
- Single Ethernet interface (no built‑in switch)
- Cellular throughput limited by 3.5G modem capability
- SIM card access requires power‑off for insertion/removal
### 8. Standards & Compliance
Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15 Class A, CISPR 22 (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
Environmental & Mechanical:
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Ingress Protection: IP67 (IMG‑W1321+), IP30 (base models)
Safety:
- EN60950‑1 (Information Technology Equipment Safety)
Industry Standards:
- IEEE 802.3 10/100Base‑TX
- IEEE 802.3af PoE PD
- GSM/3GPP cellular standards (GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA)
Regulatory Compliance Statement:
All ORing products comply with applicable international regulations and standards for industrial networking equipment.
### 9. Additional Information
Warranty:
Standard 3‑year limited warranty covering defects in materials and workmanship. Extended 5‑year warranty available for selected ORing products. Warranty excludes damage due to misuse, unauthorized modification, or improper installation.
Technical Support:
- Email: support@oring-networking.com
- Sales Contact: sales@oring-networking.com (Global) / sales@oring-networking.com.cn (China)
- Documentation: User Manual v2.0 (July 2014), Quick Installation Guide v1.1
Maintenance & Updates:
- Firmware updates available via ORing website.
- Configuration backup and restore supported through web interface or TFTP.
- Regular inspection of connectors and seals recommended for outdoor installations.
- Replace antenna or cables only with ORing‑approved accessories to maintain IP67 integrity.
Software Utilities:
- DS‑Tool: Device discovery, configuration, firmware upgrade, and virtual COM mapping.
- Web Management Interface: HTTPS‑secured configuration portal with status monitoring.
- SNMP & Syslog: Integration with network management systems for centralized monitoring.
Operational Best Practices:
- Ensure proper grounding to prevent ESD damage.
- Use shielded Ethernet cables for EMI‑sensitive environments.
- Maintain adequate ventilation or enclosure spacing for heat dissipation.
- Verify SIM card activation and APN settings before deployment.
### Summary
The ORing IMG‑W1321+ Industrial M2M Gateway is a high‑performance, rugged communication platform engineered for industrial IoT and remote automation applications. Combining Ethernet, serial, and cellular interfaces within an IP67‑rated enclosure, it provides reliable data connectivity between field devices and central control systems. Its dual power design, PoE support, and comprehensive VPN/security features make it ideal for mission‑critical deployments in harsh environments. With flexible configuration options, extensive protocol support, and robust management tools, the IMG‑W1321+ delivers dependable, secure, and scalable connectivity for modern industrial networks.
-
Datasheet_IMG-W1321+.pdf
PDF Catalog
-
Preliminary V1 1b Datasheet_IMG-W1321+.pdf
PDF Catalog
-
QIG-IMG111-1.1.pdf
Manual
Kein Zubehör vorhanden.
