1. Product Overview
Product Name: Fanless Cel M 600MHz Box PC
Model: ACS-2630
Series: ACS Industrial Embedded Box PC Series
Article Number: ACS-2630
Manufacturer: Aplex Technology Inc.

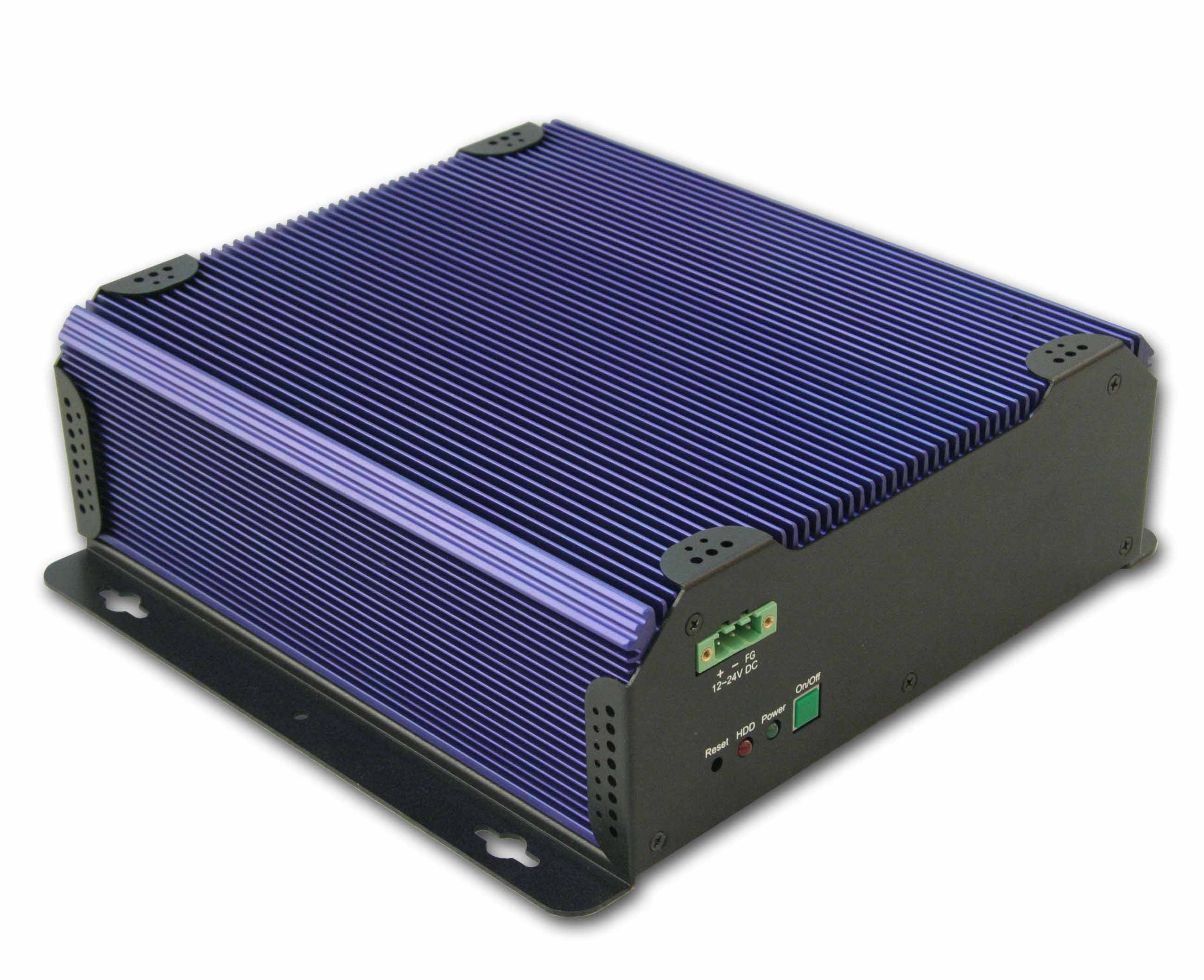

The Aplex ACS-2630 is a compact, fanless embedded box PC designed for industrial and embedded computing applications requiring reliable performance, low power consumption, and silent operation. Built around an Intel® Celeron® M 600 MHz processor and the Intel® 852GM chipset, the ACS-2630 provides a stable and efficient platform for automation, control, and data acquisition tasks. Its ruggedized design, wide DC input range, and flexible mounting options make it suitable for harsh environments and continuous operation in industrial settings.
2. Key Features
- Fanless Design: The ACS-2630 employs a completely fanless thermal solution, ensuring silent operation and enhanced reliability by eliminating moving parts susceptible to dust and mechanical wear.
- Intel® Celeron® M 600 MHz Processor: Optimized for low power consumption and stable performance, suitable for embedded and industrial control applications.
- Intel® 852GM + ICH4 Chipset: Provides integrated graphics and I/O control, ensuring compatibility with legacy and modern peripherals.
- Memory Support: One DDR266 SO-DIMM slot supporting up to 1 GB SDRAM, offering sufficient memory capacity for lightweight industrial applications.
- Flexible Storage Options: Supports one 2.5" HDD or optional CompactFlash (CF) storage for solid-state operation in vibration-prone environments.
- Rich I/O Connectivity:
- 3 × COM ports for serial communication (RS-232/422/485 depending on configuration)
- 2 × USB ports for peripheral connectivity
- 1 × 10/100 Mbps LAN port for network communication
- Wide Range DC Power Input: Operates from 11 VDC to 28 VDC, allowing direct connection to industrial power sources.
- Optional AC Adapter: 230 VAC external power adapter available for standard office or laboratory environments.
- Compact and Durable Construction: Designed for space-constrained installations with robust metal housing for industrial durability.
- Mounting Flexibility: Compatible with wall-mount kits for secure installation in control cabinets or machinery enclosures.
3. Technical Specifications
- Processor: Intel® Celeron® M 600 MHz (Fanless)
- Chipset: Intel® 852GM + ICH4
- Memory: 1 × DDR266 SO-DIMM slot, up to 1 GB SDRAM
- Storage:
- 1 × 2.5" HDD bay
- Optional CompactFlash (CF) slot for solid-state storage
- I/O Interfaces:
- Serial Ports: 3 × COM (configurable RS-232/422/485)
- USB Ports: 2 × USB 2.0
- LAN: 1 × 10/100 Mbps Ethernet (RJ45)
- Power Supply:
- Input Voltage: 11–28 VDC
- Optional 230 VAC external adapter
- Dimensions:
- Main Unit: 229.5 mm (W) × 221 mm (D) × 73.7 mm (H)
- With Wall Mount Kit: 240 mm (W) × 79.7 mm (H)
- Construction: Rugged aluminum or steel chassis for industrial durability
- Cooling System: Passive, fanless heat dissipation
- Operating Temperature: Typically 0°C to 50°C (depending on configuration and environment)
- Weight: Approx. 2–3 kg (depending on configuration and mounting accessories)
4. Functionality
The ACS-2630 functions as a compact embedded computing platform for industrial automation, control, and monitoring systems. Its fanless design and low-power Intel® Celeron® M processor make it ideal for continuous operation in environments where reliability and noise-free performance are critical.
Typical Use Cases:
- Factory automation and process control
- Machine vision and equipment monitoring
- Data acquisition and logging systems
- Kiosk and digital signage controllers
- Transportation and vehicle-mounted computing
- Building management and environmental monitoring
Operation:
The system boots from either a 2.5" HDD or CompactFlash card, depending on configuration. It supports standard operating systems compatible with the Intel® 852GM chipset, such as Windows XP Embedded, Windows CE, or Linux distributions optimized for embedded hardware.
Compatibility:
The ACS-2630 supports a wide range of industrial peripherals through its serial and USB interfaces. The Ethernet port allows integration into local networks or remote monitoring systems.
5. Components & Accessories
Included Components:
- ACS-2630 main unit (fanless box PC)
- Power terminal block or DC input connector
- Wall-mount kit (optional, depending on package)
- User manual and quick installation guide
Optional Accessories:
- 230 VAC external power adapter
- CompactFlash storage module
- 2.5" HDD or SSD (user-supplied or factory-installed)
- Additional mounting brackets or DIN-rail kits (depending on installation requirements)
- Serial and USB extension cables

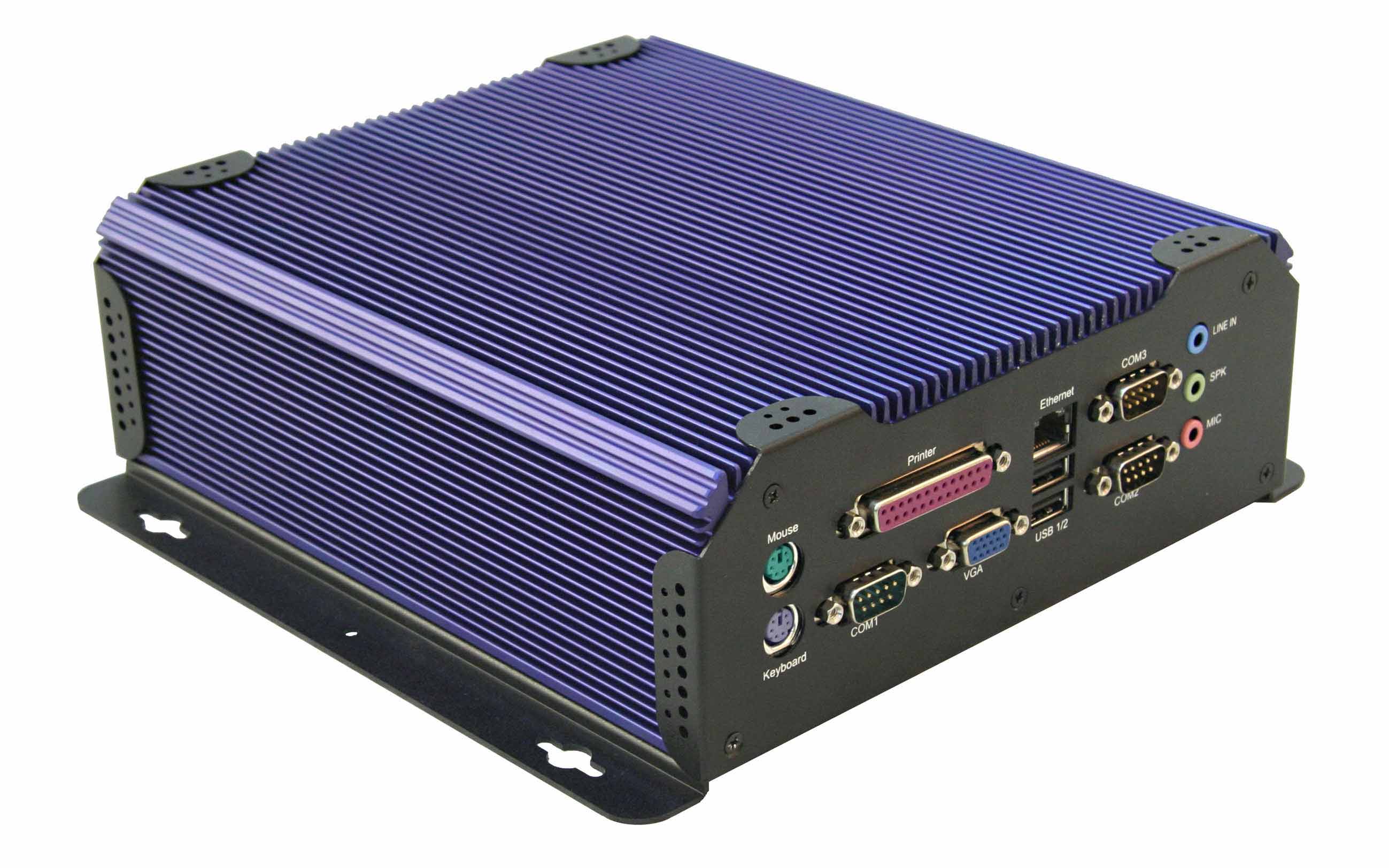

Connectors:
- DC power input terminal (11–28 VDC)
- RJ45 Ethernet port
- DB9 connectors for COM ports
- USB Type-A connectors
- Internal connectors for storage and memory modules
6. Installation & Setup
Requirements:
- DC power source within 11–28 VDC range or optional 230 VAC adapter
- Compatible operating system and drivers for Intel® 852GM chipset
- Adequate ventilation space for passive cooling
Mounting Options:
- Wall-mount installation using the provided or optional kit
- Panel or enclosure mounting for embedded integration
- Optional DIN-rail mounting (if supported by accessory kit)
Configuration Steps:
1. Install memory module (up to 1 GB DDR266 SO-DIMM).
2. Install storage device (2.5" HDD or CF card).
3. Connect power input and I/O peripherals (COM, USB, LAN).
4. Mount securely using wall-mount brackets or other fixtures.
5. Power on and install the desired operating system.
6. Configure BIOS and system settings as required for the application.
Maintenance:
The fanless design minimizes maintenance requirements. Periodic inspection of connectors and cleaning of external surfaces is recommended to ensure optimal thermal performance.
7. Performance & Capabilities
Processing Performance:
The Intel® Celeron® M 600 MHz processor provides stable, energy-efficient performance suitable for control logic, data collection, and lightweight computing tasks. While not designed for high-end graphics or intensive computation, it excels in reliability and low thermal output.
Memory and Storage:
With up to 1 GB DDR266 SDRAM, the system supports multitasking for embedded applications. The 2.5" HDD bay or CF slot allows flexible storage configurations, balancing capacity and durability.
Networking:
The integrated 10/100 Mbps Ethernet interface ensures reliable network connectivity for remote monitoring, data transfer, and system integration.
I/O Performance:
Three serial ports enable communication with industrial controllers, sensors, and legacy equipment. Two USB ports support modern peripherals such as keyboards, mice, or external storage devices.
Power Efficiency:
Operating from 11–28 VDC, the ACS-2630 consumes minimal power, making it suitable for battery-backed or vehicle-based systems.
Limitations:
Due to its low-power CPU and limited memory capacity, the ACS-2630 is not intended for high-performance computing, multimedia processing, or large-scale data analytics. It is optimized for stability, longevity, and embedded control tasks.
8. Standards & Compliance
The ACS-2630 is designed and manufactured according to industrial computing standards to ensure reliability and safety in demanding environments.
Certifications and Compliance (typical for Aplex industrial PCs):
- CE (Conformité Européenne) compliance for electromagnetic compatibility and safety
- FCC Class A compliance for industrial electronic devices
- RoHS (Restriction of Hazardous Substances) compliance for environmental safety
- ISO 9001:2015 certified manufacturing process
Industry Standards:
- Intel® architecture compatibility
- Standardized I/O interfaces (RS-232/422/485, USB, Ethernet)
- Compliance with embedded computing form factors and mounting standards
9. Additional Information
Warranty:
Typically covered by a 1-year limited manufacturer’s warranty (may vary by region or distributor). Warranty covers defects in materials and workmanship under normal operating conditions.
Technical Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Engineering support is available for system integration and customization.
Maintenance & Service:
The fanless design reduces maintenance frequency. Users should ensure adequate airflow around the chassis and periodically check for dust accumulation on external surfaces. Storage devices and memory modules can be replaced or upgraded as needed.
Software & Updates:
Compatible with multiple embedded operating systems, including Windows XP Embedded, Windows CE, and Linux. BIOS and driver updates are available from Aplex to ensure long-term compatibility and performance stability.
Lifecycle & Reliability:
The ACS-2630 is designed for long-term availability and stable operation in industrial environments. Its passive cooling system and solid-state storage options enhance mean time between failures (MTBF) and reduce downtime.
Summary
The Aplex ACS-2630 Fanless Celeron M 600 MHz Box PC is a robust, compact, and energy-efficient embedded computing solution tailored for industrial automation, control, and monitoring applications. Featuring a fanless Intel® Celeron® M processor, Intel® 852GM chipset, and a wide DC input range, it delivers reliable performance in harsh environments where noise, dust, and vibration are concerns. With flexible I/O options, support for both HDD and CF storage, and versatile mounting configurations, the ACS-2630 provides a dependable platform for OEMs, system integrators, and industrial users seeking a stable and maintenance-free embedded PC solution.
