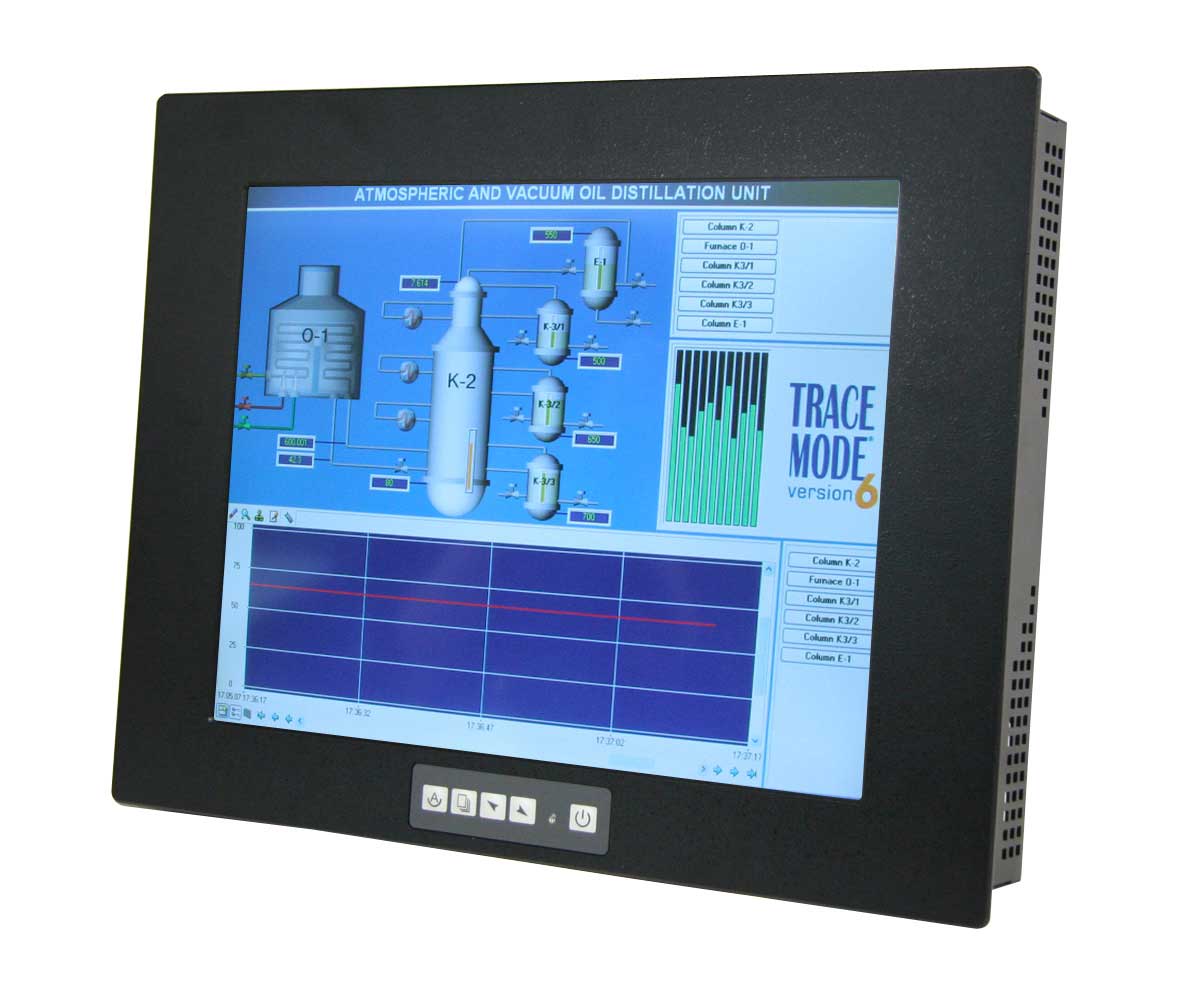

Comprehensive Product Summary – ADP-1154-15 Industrial LCD Panel Monitor
### 1. Product Overview
Product Name: ADP-1154-15 Industrial LCD Panel Monitor
Model Number: ADP-1154-15
Series: ADP Industrial Display Series
Article Number: ADP-1154-15
Manufacturer: [Manufacturer name not specified in source; typically produced by an industrial display solutions provider specializing in ruggedized panel monitors for automation and control environments.]
The ADP-1154-15 is a 15-inch XGA (1024 × 768) industrial-grade LCD panel monitor equipped with a touchscreen interface. Designed for demanding industrial and commercial applications, it combines robust mechanical construction, wide power input flexibility, and environmental resilience. The monitor is engineered for integration into control panels, kiosks, factory automation systems, and other mission-critical environments requiring reliable human–machine interaction.
### 2. Key Features
- 15-inch XGA Display: Provides a native resolution of 1024 × 768 pixels, delivering clear and detailed image quality suitable for industrial visualization and control interfaces.
- Touchscreen Functionality: Integrated touch capability allows intuitive operation, ideal for HMI (Human–Machine Interface) applications.
- Industrial-Grade Construction: Built with either an aluminum front bezel and steel chassis or an all-steel front bezel and chassis, ensuring mechanical durability and resistance to vibration and shock.
- Flexible Power Input: Supports AC 100–240 V input as standard, with an optional DC 11–28 V input configuration for system integration flexibility.
- Environmental Resilience: Designed to operate in a wide temperature range and withstand industrial environmental conditions, including vibration and shock.
- Mounting Versatility: Compatible with panel mount and VESA 75 mm mounting standards, allowing easy integration into various enclosures and equipment.
- Ingress Protection: The front bezel meets NEMA 4 / IP65 standards, providing protection against dust and water ingress.
- Regulatory Compliance: Certified to CE and FCC Class A standards, ensuring electromagnetic compatibility and safety compliance for industrial environments.
### 3. Technical Specifications
Display Characteristics:
- Screen Size: 15 inches (diagonal)
- Resolution: XGA 1024 × 768 pixels
- Aspect Ratio: 4:3
- Display Type: Industrial-grade LCD panel
- Touchscreen: Integrated (type not specified; typically resistive or capacitive depending on configuration)
Power Input:
- Standard Input: AC 100–240 V
- Optional Input: DC 11–28 V
Mechanical Specifications:
- Front Bezel Options:
- Aluminum front bezel with steel chassis
- Steel front bezel with steel chassis
- Overall Dimensions: 409 mm (W) × 309 mm (H) × 64.7 mm (D)
- Mounting Options: Panel mount / VESA 75 mm mount
- Construction: Ruggedized metal housing for industrial durability
Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration (11 ms duration)
- Ingress Protection: NEMA 4 / IP65 compliant front bezel
Certifications:
- CE Certified
- FCC Class A Compliant
### 4. Functionality
The ADP-1154-15 functions as a rugged industrial display interface designed for continuous operation in manufacturing, automation, and process control environments. Its touchscreen interface enables direct user interaction with control systems, SCADA interfaces, or embedded computers.
How It Works:
The monitor connects to a host system (such as an industrial PC, embedded controller, or workstation) via standard video and touch interface connections. Once powered, it displays graphical data, control dashboards, or process visualizations. The touch input allows operators to navigate menus, input commands, or adjust parameters directly on-screen.
Use Cases and Applications:
- Factory Automation: Machine control panels, production line monitoring, and process visualization.
- Industrial Control Systems: Integration into PLC or SCADA systems for real-time data display.
- Kiosk and Terminal Applications: Public information systems, ticketing, or self-service terminals.
- Transportation and Logistics: Vehicle-mounted or station-based control interfaces.
- Energy and Utilities: Power plant control rooms, substation monitoring, and environmental data systems.
- Marine and Outdoor Equipment: Applications requiring IP65 front protection against moisture and dust.
Compatibility:
The ADP-1154-15 is compatible with standard industrial PCs, embedded systems, and controllers supporting VGA or other common display interfaces. The touch interface is typically compatible with Windows, Linux, and other operating systems supporting standard HID touch drivers.
### 5. Components & Accessories
Included Items:
- ADP-1154-15 industrial LCD panel monitor with integrated touch screen
- Power input cable (AC 100–240 V)
- Mounting brackets or hardware for panel/VESA installation
- User manual and installation guide
Optional Accessories:
- DC Power Input Module: For systems requiring 11–28 V DC operation
- Touch Interface Cable: Depending on touch technology (USB or RS-232)
- Protective Film or Screen Cover: For additional surface protection in harsh environments
- Mounting Kits: Custom brackets or adapters for specific enclosures
- Signal Cables: VGA, DVI, or HDMI cables depending on configuration

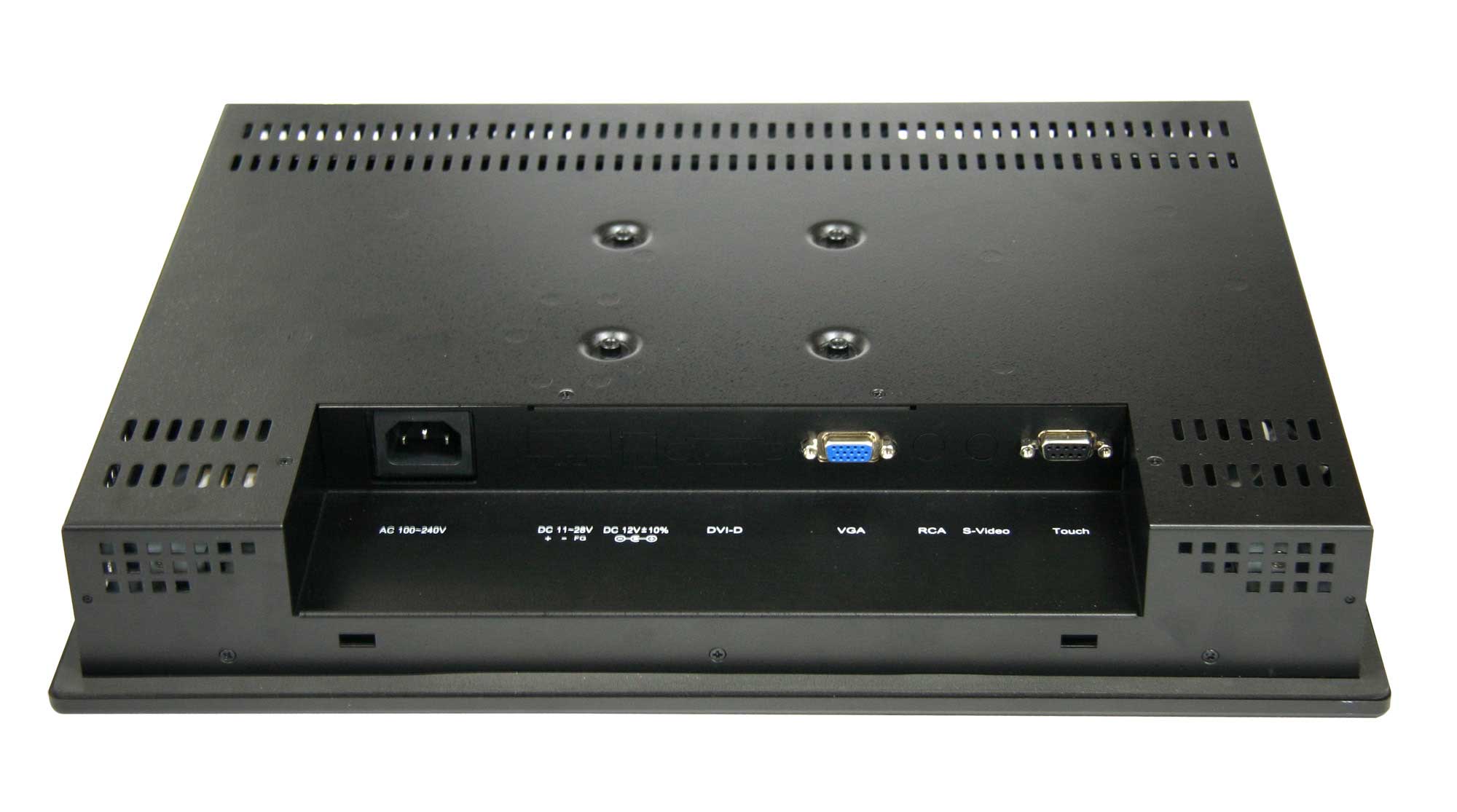

Connectors:
While not explicitly listed, typical configurations include:
- Video Input: VGA (D-Sub 15-pin) or optional DVI/HDMI
- Touch Interface: USB or RS-232 port
- Power Connector: AC input socket or DC terminal block (optional configuration)
### 6. Installation & Setup
Requirements:
- Power source: AC 100–240 V or DC 11–28 V (optional)
- Compatible host system with appropriate video output
- Mounting surface or enclosure supporting panel or VESA 75 mm mount
Mounting Options:
- Panel Mount: The monitor can be flush-mounted into a control panel or console using the provided brackets. This method ensures a sealed front surface compliant with IP65/NEMA 4 standards.
- VESA 75 Mount: The rear panel supports a 75 × 75 mm VESA pattern, allowing attachment to standard monitor arms, brackets, or wall mounts.
Configuration:
1. Secure the monitor using the chosen mounting method.
2. Connect the video cable (VGA/DVI/HDMI as applicable) to the host system.
3. Connect the touch interface cable (USB or RS-232).
4. Connect the power input (AC or DC).
5. Power on the system and install necessary touch drivers if required.
6. Calibrate the touch screen for accurate input response.
Setup Considerations:
- Ensure adequate ventilation around the chassis for heat dissipation.
- Avoid exposure to direct sunlight or extreme humidity beyond specified limits.
- Maintain front bezel sealing integrity when panel-mounted to preserve IP65 protection.
### 7. Performance & Capabilities
Display Performance:
The 15-inch XGA panel provides a balanced combination of resolution and size, suitable for displaying detailed process graphics, control schematics, and data dashboards. The display’s brightness, contrast, and viewing angles (not specified but typically industrial-grade) ensure visibility in various lighting conditions.
Touch Responsiveness:
The integrated touch screen enables precise and responsive control, supporting single-touch operation for menu navigation and parameter adjustment. Depending on configuration, it may support resistive or capacitive technology for gloved or bare-finger operation.
Power Efficiency:
The monitor’s design supports efficient power consumption, compatible with both AC and DC power sources, making it adaptable for energy-sensitive or mobile installations.
Mechanical Robustness:
The steel or aluminum-steel construction provides rigidity and protection against mechanical stress. The unit withstands vibration up to 1G and shock up to 15G, ensuring stable operation in environments with mechanical disturbances.
Environmental Endurance:
Operating temperature range from 0°C to 50°C and storage range from -20°C to 60°C allow deployment in diverse industrial settings. The IP65/NEMA 4 front bezel ensures resistance to dust and water spray, suitable for washdown or dusty environments.
Limitations:
- The display resolution (1024 × 768) may not be suitable for high-definition visualization requirements.
- Operating temperature limited to 50°C may require additional cooling in high-heat environments.
- Touch performance may vary depending on environmental conditions and touch technology type.
### 8. Standards & Compliance
Ingress Protection:
- NEMA 4 / IP65 Front Bezel: Ensures protection against dust ingress and low-pressure water jets from any direction, suitable for industrial and outdoor use.
Electromagnetic Compatibility (EMC):
- CE Certification: Conforms to European safety and EMC directives.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for industrial and commercial electronic equipment, ensuring minimal electromagnetic interference.
Mechanical and Environmental Standards:
- Designed to meet industrial-grade vibration and shock standards (1G vibration, 15G shock).
- Complies with general industrial safety and reliability requirements for continuous operation.
Quality Assurance:
Each unit is manufactured under strict quality control processes to ensure consistent performance, durability, and compliance with international industrial standards.
### 9. Additional Information
Warranty:
Typically supplied with a standard manufacturer’s warranty (duration not specified; commonly 1–3 years for industrial displays). Warranty covers defects in materials and workmanship under normal operating conditions.
Support:
Technical support is available through the manufacturer or authorized distributors, including assistance with installation, driver configuration, and troubleshooting.
Maintenance:
- Cleaning: Use a soft, dry cloth or mild cleaning solution for the front bezel and screen. Avoid abrasive materials or solvents.
- Inspection: Periodically check mounting integrity and cable connections.
- Firmware/Driver Updates: Touchscreen drivers and firmware updates may be available from the manufacturer’s support portal to ensure compatibility with new operating systems.
Serviceability:
The modular design allows for straightforward replacement of key components such as the touch panel or LCD module if required. Access to internal components should be performed by qualified personnel.
Lifecycle and Reliability:
The ADP-1154-15 is designed for long-term availability and stable supply, ensuring continuity for OEM and system integrator projects. Its industrial-grade components and construction contribute to extended operational life and reduced downtime.
### Summary
The ADP-1154-15 is a 15-inch industrial LCD panel monitor with XGA (1024 × 768) resolution and touchscreen capability, engineered for rugged environments and continuous operation. With AC 100–240 V standard power input and optional DC 11–28 V support, it offers installation flexibility across diverse industrial systems. Its robust steel or aluminum-steel construction, IP65/NEMA 4 front protection, and CE/FCC Class A compliance make it suitable for demanding applications in automation, control, and monitoring.
The monitor’s panel and VESA mounting options, wide environmental tolerance, and shock/vibration resistance ensure reliable performance in harsh conditions. Designed for integration into industrial control panels, kiosks, and embedded systems, the ADP-1154-15 delivers a balance of durability, functionality, and ease of use—making it a dependable choice for industrial display and HMI applications.
