Comprehensive Product Summary – ADP-1156 15" Stainless Steel Enclosure LCD Display
### 1. Product Overview

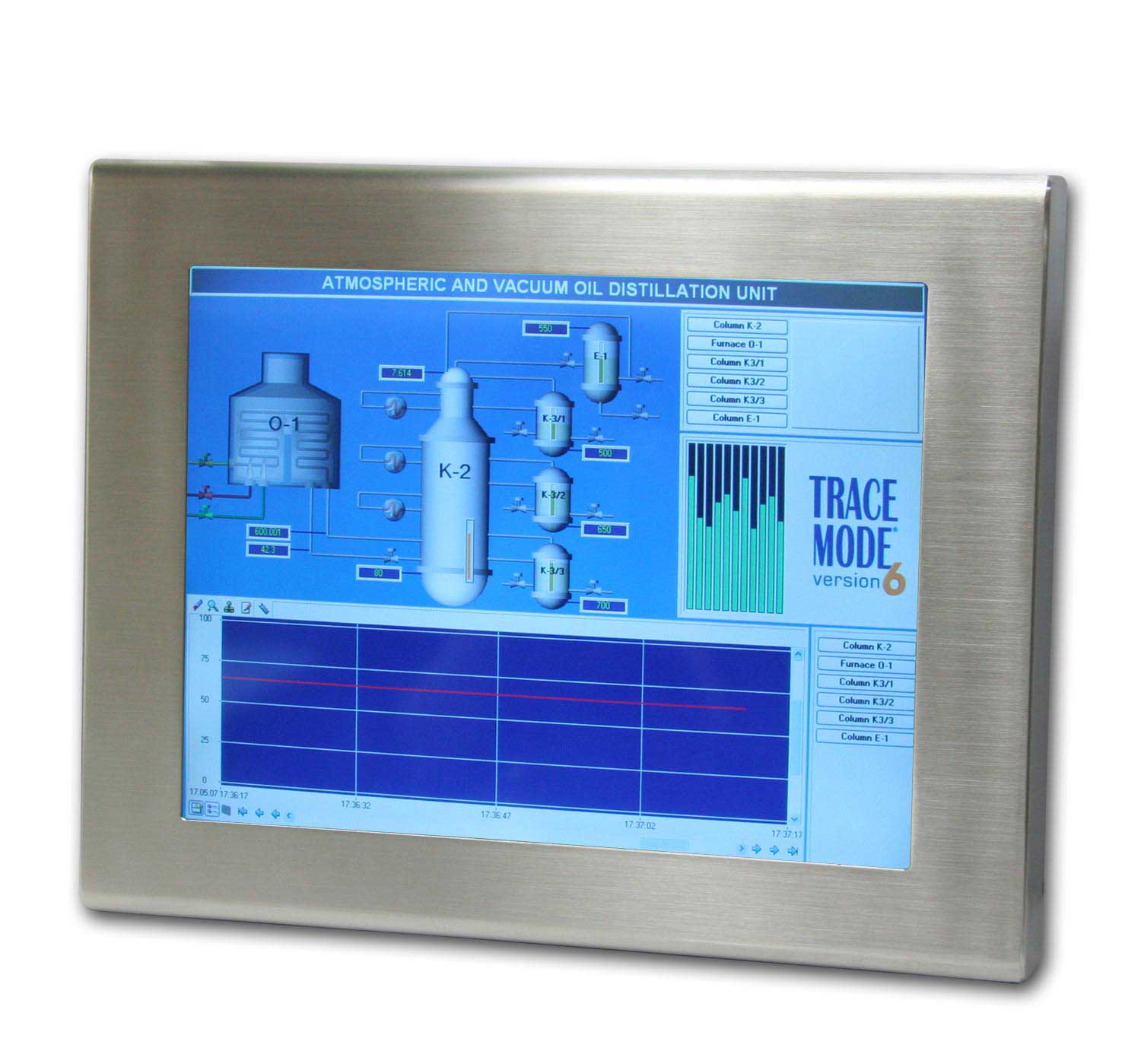

Product Name: ADP-1156 15" Stainless Steel Enclosure LCD Display
Model Number: ADP-1156
Series: Industrial Stainless Steel Display Series
Article Number: ADP-1156
Manufacturer: Aplex Technology Inc.
The Aplex ADP-1156 is a ruggedized industrial-grade 15-inch LCD display designed for demanding environments requiring durability, hygiene, and reliable visual performance. Engineered with a stainless steel enclosure and IP65-rated protection on five sides, the ADP-1156 is ideal for applications in food processing, pharmaceutical production, factory automation, and other industrial sectors where exposure to moisture, dust, and contaminants is common. The display features a rear-mounted On-Screen Display (OSD) control interface, flexible power input options, and a VESA 75 mounting pattern for versatile installation.
### 2. Key Features
- 15-inch XGA LCD Panel: Provides a native resolution of 1024 × 768 pixels, delivering clear and sharp image quality suitable for industrial monitoring and control interfaces.
- Stainless Steel Enclosure: Constructed from high-grade stainless steel, offering corrosion resistance and easy cleaning, ideal for hygienic or harsh environments.
- IP65 Protection (Front and Sides): Ensures protection against dust ingress and low-pressure water jets from any direction on five sides (excluding I/O side).
- Rear OSD Control: Convenient rear-mounted On-Screen Display buttons for brightness, contrast, and display adjustments without compromising the sealed front panel.
- Flexible Power Input: Supports a wide DC input range of 11–28 VDC, with an optional AC power adapter supporting 100–240 VAC input for global compatibility.
- VESA 75 Mounting Compatibility: Standard 75 × 75 mm VESA mount pattern allows easy integration into industrial panels, walls, or custom enclosures.
- Environmental Robustness: Designed to operate in a wide temperature range and withstand vibration and shock typical of industrial environments.
- Optional Black Finish: Available with an optional black-colored stainless steel enclosure for aesthetic or application-specific requirements.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
### 3. Technical Specifications
Display Characteristics:
- Display Size: 15 inches (diagonal)
- Resolution: XGA 1024 × 768 pixels
- Aspect Ratio: 4:3
- Display Type: TFT LCD
- Brightness / Contrast: (Not specified, typical for industrial XGA panels ~250–400 nits, 700:1 contrast ratio)
- Viewing Angle: (Not specified, typically 160°/140° for XGA panels)
- Color Support: 16.2 million colors (typical for 6-bit + FRC panels)
Mechanical Specifications:
- Enclosure Material: Stainless steel (industrial-grade, corrosion-resistant)
- Enclosure Protection: IP65 on five sides (front, top, bottom, left, right); I/O side excluded
- Dimensions (W × H × D): 398 × 316 × 53 mm
- Mounting Options: VESA 75 × 75 mm standard mount pattern
- Weight: 5.74 kg
Power Specifications:
- Input Voltage (Standard): DC 11–28 V
- Optional Power Input: AC 100–240 V (via external adapter)
- Power Consumption: (Not specified; estimated 20–30 W typical for 15" LCD)
Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel
Certifications:
- CE Certified
- FCC Class A Compliant
### 4. Functionality
The ADP-1156 functions as a standalone industrial display unit designed for integration with embedded systems, industrial PCs, or control terminals. It serves as a visual interface for monitoring, control, and data visualization in industrial automation systems.
How It Works:
The display receives video input from a connected system (typically via VGA, DVI, or HDMI depending on configuration). The rear OSD controls allow users to adjust display parameters such as brightness, contrast, and color balance. The stainless steel enclosure ensures that the display remains protected from environmental hazards, while the IP65-rated front and sides prevent ingress of dust and water.
Use Cases and Applications:
- Food and Beverage Processing: Hygienic design suitable for washdown environments.
- Pharmaceutical Manufacturing: Resistant to cleaning agents and contamination.
- Factory Automation: Reliable display for HMI (Human-Machine Interface) panels.
- Marine and Outdoor Installations: Corrosion-resistant housing for humid or saline conditions.
- Public Information Systems: Durable display for kiosks or terminals in exposed environments.
Compatibility:
The ADP-1156 is compatible with a wide range of industrial computers, embedded controllers, and automation systems supporting standard video outputs. It can be integrated into control cabinets, operator panels, or wall-mounted systems using the VESA 75 interface.
### 5. Components & Accessories
Included Items:
- ADP-1156 15" Stainless Steel Enclosure LCD Display unit
- Rear OSD control interface (integrated)
- Power input connector (DC 11–28 V)
- Mounting hardware compatible with VESA 75 pattern
Optional Accessories:
- AC Power Adapter: Converts 100–240 VAC to DC input for the display.
- Mounting Brackets: Optional wall or panel mounting kits for specific installation requirements.
- Protective Covers: Optional black stainless steel enclosure finish.
- Cables: Video and power cables (VGA/DVI/HDMI depending on configuration).

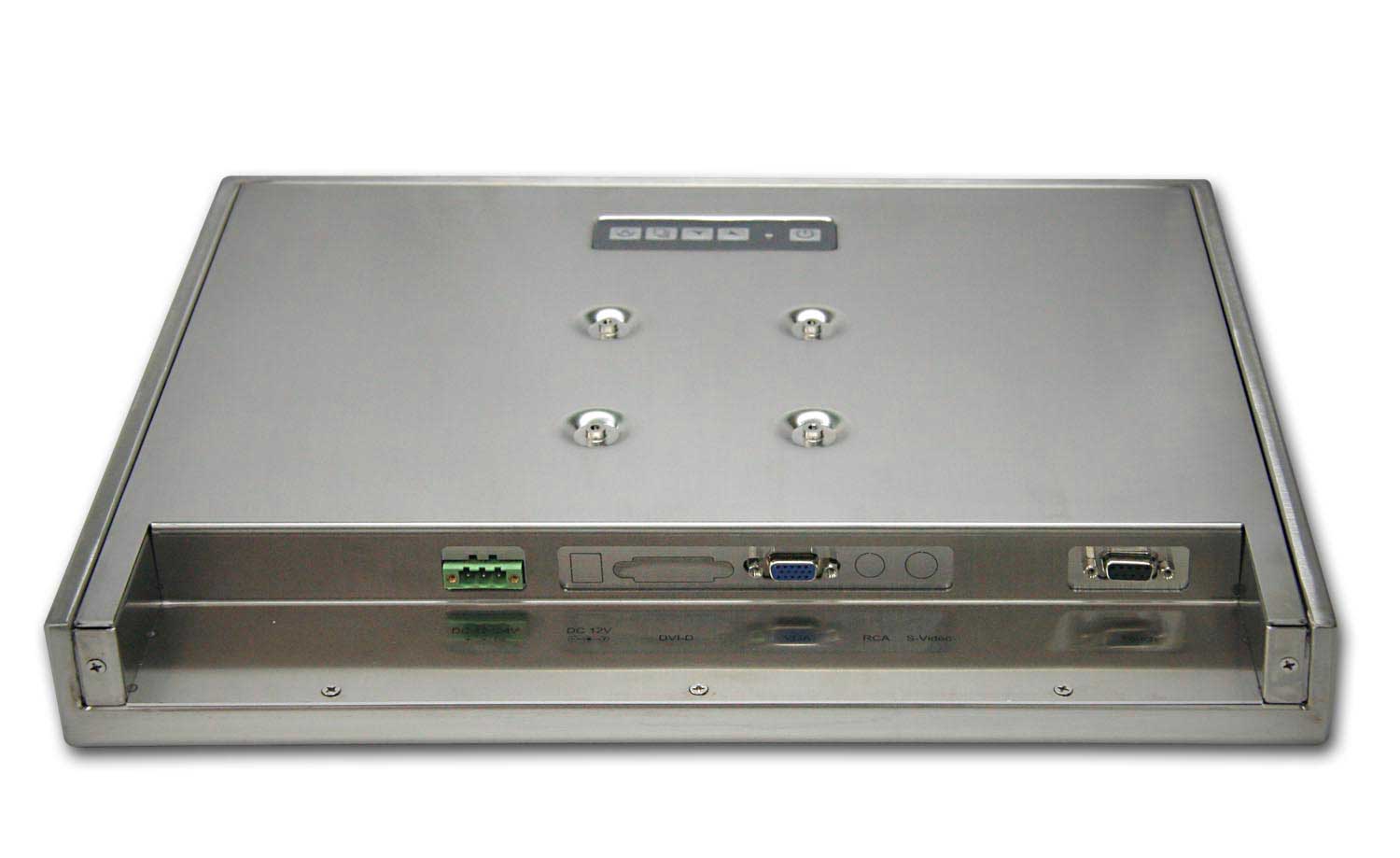

Connectors:
- Power Connector: DC input terminal (11–28 VDC)
- Video Input: (Not specified; typically VGA or DVI for Aplex industrial displays)
- OSD Controls: Rear-mounted tactile buttons
### 6. Installation & Setup
Requirements:
- Power source providing 11–28 VDC (or 100–240 VAC with optional adapter)
- Compatible video output from host system (VGA/DVI/HDMI depending on configuration)
- Mounting surface or bracket supporting VESA 75 × 75 mm pattern
Mounting Options:
- VESA 75 Mount: Standardized mounting holes allow attachment to arms, brackets, or panels.
- Panel or Wall Mounting: Suitable for fixed installations in control panels or operator stations.
Configuration:
- Connect power and video cables to the designated ports.
- Use rear OSD buttons to configure display settings (brightness, contrast, input source).
- Ensure proper grounding and cable management to maintain IP65 integrity.
Setup Considerations:
- Avoid blocking ventilation openings (if any).
- Maintain environmental conditions within specified operating range.
- For washdown environments, ensure all cable glands and connectors are properly sealed.
### 7. Performance & Capabilities
Display Performance:
The 15-inch XGA panel provides a balance between resolution and visibility, ideal for industrial control applications where clarity and reliability are critical. The display’s brightness and contrast ensure readability under various lighting conditions, while the rugged enclosure maintains consistent performance in harsh environments.
Speed and Response:
Typical LCD response times for industrial XGA panels range from 8–12 ms, sufficient for real-time monitoring and video playback in control systems.
Capacity and Efficiency:
The ADP-1156 consumes low power relative to its size, supporting energy-efficient operation in continuous-use environments. The wide DC input range allows integration with diverse power systems, including battery-backed or vehicle-mounted configurations.
Environmental Durability:
The unit’s stainless steel housing and IP65 protection ensure long-term reliability in environments with exposure to dust, moisture, and vibration. The display’s shock and vibration resistance ratings confirm its suitability for mobile or high-vibration installations.
Limitations:
- The I/O side is not IP65 protected; care must be taken to prevent exposure to liquids or contaminants.
- The display does not include a touch interface by default (non-touch configuration).
- Brightness and contrast specifications are not explicitly stated and may vary by panel revision.
### 8. Standards & Compliance
Ingress Protection:
- IP65 (Front and Sides): Dust-tight and protected against water jets from any direction.
- NEMA 4 Equivalent: Ensures protection suitable for industrial washdown environments.
Certifications:
- CE Marking: Conforms to European safety, health, and environmental protection standards.
- FCC Class A: Complies with U.S. Federal Communications Commission regulations for industrial and commercial electronic equipment.
Industry Standards:
- VESA Mounting Standard (75 × 75 mm): Ensures compatibility with standardized mounting systems.
- Environmental Testing: Meets industrial-grade vibration (1G, 5–500 Hz) and shock (15G, 11 ms) standards.
These certifications and standards confirm that the ADP-1156 meets the requirements for use in regulated industrial environments, ensuring safety, reliability, and electromagnetic compatibility.
### 9. Additional Information
Warranty:
Typically covered by Aplex’s standard industrial product warranty (duration varies by region and distributor, commonly 1–2 years). Warranty covers manufacturing defects and hardware failures under normal operating conditions.
Support:
Aplex provides technical documentation, installation guides, and customer support for integration and troubleshooting. Firmware or configuration updates may be available through authorized service channels.
Maintenance:
- Cleaning: Use non-abrasive, mild cleaning agents suitable for stainless steel surfaces. Avoid solvents that could damage seals or coatings.
- Inspection: Periodically check cable connections and mounting hardware for integrity.
- Environmental Care: Ensure that the display’s operating environment remains within specified temperature and humidity ranges.
Updates and Customization:
Aplex offers customization options such as alternative enclosure finishes (e.g., black stainless steel), optional touch screen integration, and tailored mounting solutions for OEM or system integrator projects.
### Summary
The Aplex ADP-1156 is a 15-inch XGA industrial LCD display housed in a stainless steel IP65-rated enclosure, engineered for rugged, hygienic, and demanding environments. With rear OSD controls, wide-range DC power input (11–28 VDC), and optional AC operation, it provides flexibility for diverse industrial applications. Its VESA 75 mounting compatibility, robust environmental tolerance, and compliance with CE and FCC Class A standards make it a reliable choice for factory automation, food processing, and industrial control systems.
The ADP-1156 combines durability, performance, and adaptability, offering a long-lasting display solution for mission-critical industrial operations where reliability and cleanliness are paramount.

### 1. Product Overview
Product Name: ADP-1156 15" Stainless Steel Enclosure LCD Display
Model Number: ADP-1156
Series: Industrial Stainless Steel Display Series
Article Number: ADP-1156
Manufacturer: Aplex Technology Inc.
The Aplex ADP-1156 is a ruggedized industrial-grade 15-inch LCD display designed for demanding environments requiring durability, hygiene, and reliable visual performance. Engineered with a stainless steel enclosure and IP65-rated protection on five sides, the ADP-1156 is ideal for applications in food processing, pharmaceutical production, factory automation, and other industrial sectors where exposure to moisture, dust, and contaminants is common. The display features a rear-mounted On-Screen Display (OSD) control interface, flexible power input options, and a VESA 75 mounting pattern for versatile installation.
### 2. Key Features
- 15-inch XGA LCD Panel: Provides a native resolution of 1024 × 768 pixels, delivering clear and sharp image quality suitable for industrial monitoring and control interfaces.
- Stainless Steel Enclosure: Constructed from high-grade stainless steel, offering corrosion resistance and easy cleaning, ideal for hygienic or harsh environments.
- IP65 Protection (Front and Sides): Ensures protection against dust ingress and low-pressure water jets from any direction on five sides (excluding I/O side).
- Rear OSD Control: Convenient rear-mounted On-Screen Display buttons for brightness, contrast, and display adjustments without compromising the sealed front panel.
- Flexible Power Input: Supports a wide DC input range of 11–28 VDC, with an optional AC power adapter supporting 100–240 VAC input for global compatibility.
- VESA 75 Mounting Compatibility: Standard 75 × 75 mm VESA mount pattern allows easy integration into industrial panels, walls, or custom enclosures.
- Environmental Robustness: Designed to operate in a wide temperature range and withstand vibration and shock typical of industrial environments.
- Optional Black Finish: Available with an optional black-colored stainless steel enclosure for aesthetic or application-specific requirements.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
### 3. Technical Specifications
Display Characteristics:
- Display Size: 15 inches (diagonal)
- Resolution: XGA 1024 × 768 pixels
- Aspect Ratio: 4:3
- Display Type: TFT LCD
- Brightness / Contrast: (Not specified, typical for industrial XGA panels ~250–400 nits, 700:1 contrast ratio)
- Viewing Angle: (Not specified, typically 160°/140° for XGA panels)
- Color Support: 16.2 million colors (typical for 6-bit + FRC panels)
Mechanical Specifications:
- Enclosure Material: Stainless steel (industrial-grade, corrosion-resistant)
- Enclosure Protection: IP65 on five sides (front, top, bottom, left, right); I/O side excluded
- Dimensions (W × H × D): 398 × 316 × 53 mm
- Mounting Options: VESA 75 × 75 mm standard mount pattern
- Weight: 5.74 kg
Power Specifications:
- Input Voltage (Standard): DC 11–28 V
- Optional Power Input: AC 100–240 V (via external adapter)
- Power Consumption: (Not specified; estimated 20–30 W typical for 15" LCD)
Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel
Certifications:
- CE Certified
- FCC Class A Compliant
### 4. Functionality
The ADP-1156 functions as a standalone industrial display unit designed for integration with embedded systems, industrial PCs, or control terminals. It serves as a visual interface for monitoring, control, and data visualization in industrial automation systems.
How It Works:
The display receives video input from a connected system (typically via VGA, DVI, or HDMI depending on configuration). The rear OSD controls allow users to adjust display parameters such as brightness, contrast, and color balance. The stainless steel enclosure ensures that the display remains protected from environmental hazards, while the IP65-rated front and sides prevent ingress of dust and water.
Use Cases and Applications:
- Food and Beverage Processing: Hygienic design suitable for washdown environments.
- Pharmaceutical Manufacturing: Resistant to cleaning agents and contamination.
- Factory Automation: Reliable display for HMI (Human-Machine Interface) panels.
- Marine and Outdoor Installations: Corrosion-resistant housing for humid or saline conditions.
- Public Information Systems: Durable display for kiosks or terminals in exposed environments.
Compatibility:
The ADP-1156 is compatible with a wide range of industrial computers, embedded controllers, and automation systems supporting standard video outputs. It can be integrated into control cabinets, operator panels, or wall-mounted systems using the VESA 75 interface.
### 5. Components & Accessories
Included Items:
- ADP-1156 15" Stainless Steel Enclosure LCD Display unit
- Rear OSD control interface (integrated)
- Power input connector (DC 11–28 V)
- Mounting hardware compatible with VESA 75 pattern
Optional Accessories:
- AC Power Adapter: Converts 100–240 VAC to DC input for the display.
- Mounting Brackets: Optional wall or panel mounting kits for specific installation requirements.
- Protective Covers: Optional black stainless steel enclosure finish.
- Cables: Video and power cables (VGA/DVI/HDMI depending on configuration).
Connectors:
- Power Connector: DC input terminal (11–28 VDC)
- Video Input: (Not specified; typically VGA or DVI for Aplex industrial displays)
- OSD Controls: Rear-mounted tactile buttons
### 6. Installation & Setup
Requirements:
- Power source providing 11–28 VDC (or 100–240 VAC with optional adapter)
- Compatible video output from host system (VGA/DVI/HDMI depending on configuration)
- Mounting surface or bracket supporting VESA 75 × 75 mm pattern
Mounting Options:
- VESA 75 Mount: Standardized mounting holes allow attachment to arms, brackets, or panels.
- Panel or Wall Mounting: Suitable for fixed installations in control panels or operator stations.
Configuration:
- Connect power and video cables to the designated ports.
- Use rear OSD buttons to configure display settings (brightness, contrast, input source).
- Ensure proper grounding and cable management to maintain IP65 integrity.
Setup Considerations:
- Avoid blocking ventilation openings (if any).
- Maintain environmental conditions within specified operating range.
- For washdown environments, ensure all cable glands and connectors are properly sealed.
### 7. Performance & Capabilities
Display Performance:
The 15-inch XGA panel provides a balance between resolution and visibility, ideal for industrial control applications where clarity and reliability are critical. The display’s brightness and contrast ensure readability under various lighting conditions, while the rugged enclosure maintains consistent performance in harsh environments.
Speed and Response:
Typical LCD response times for industrial XGA panels range from 8–12 ms, sufficient for real-time monitoring and video playback in control systems.
Capacity and Efficiency:
The ADP-1156 consumes low power relative to its size, supporting energy-efficient operation in continuous-use environments. The wide DC input range allows integration with diverse power systems, including battery-backed or vehicle-mounted configurations.
Environmental Durability:
The unit’s stainless steel housing and IP65 protection ensure long-term reliability in environments with exposure to dust, moisture, and vibration. The display’s shock and vibration resistance ratings confirm its suitability for mobile or high-vibration installations.
Limitations:
- The I/O side is not IP65 protected; care must be taken to prevent exposure to liquids or contaminants.
- The display does not include a touch interface by default (non-touch configuration).
- Brightness and contrast specifications are not explicitly stated and may vary by panel revision.
### 8. Standards & Compliance
Ingress Protection:
- IP65 (Front and Sides): Dust-tight and protected against water jets from any direction.
- NEMA 4 Equivalent: Ensures protection suitable for industrial washdown environments.
Certifications:
- CE Marking: Conforms to European safety, health, and environmental protection standards.
- FCC Class A: Complies with U.S. Federal Communications Commission regulations for industrial and commercial electronic equipment.
Industry Standards:
- VESA Mounting Standard (75 × 75 mm): Ensures compatibility with standardized mounting systems.
- Environmental Testing: Meets industrial-grade vibration (1G, 5–500 Hz) and shock (15G, 11 ms) standards.
These certifications and standards confirm that the ADP-1156 meets the requirements for use in regulated industrial environments, ensuring safety, reliability, and electromagnetic compatibility.
### 9. Additional Information
Warranty:
Typically covered by Aplex’s standard industrial product warranty (duration varies by region and distributor, commonly 1–2 years). Warranty covers manufacturing defects and hardware failures under normal operating conditions.
Support:
Aplex provides technical documentation, installation guides, and customer support for integration and troubleshooting. Firmware or configuration updates may be available through authorized service channels.
Maintenance:
- Cleaning: Use non-abrasive, mild cleaning agents suitable for stainless steel surfaces. Avoid solvents that could damage seals or coatings.
- Inspection: Periodically check cable connections and mounting hardware for integrity.
- Environmental Care: Ensure that the display’s operating environment remains within specified temperature and humidity ranges.
Updates and Customization:
Aplex offers customization options such as alternative enclosure finishes (e.g., black stainless steel), optional touch screen integration, and tailored mounting solutions for OEM or system integrator projects.
### Summary
The Aplex ADP-1156 is a 15-inch XGA industrial LCD display housed in a stainless steel IP65-rated enclosure, engineered for rugged, hygienic, and demanding environments. With rear OSD controls, wide-range DC power input (11–28 VDC), and optional AC operation, it provides flexibility for diverse industrial applications. Its VESA 75 mounting compatibility, robust environmental tolerance, and compliance with CE and FCC Class A standards make it a reliable choice for factory automation, food processing, and industrial control systems.
The ADP-1156 combines durability, performance, and adaptability, offering a long-lasting display solution for mission-critical industrial operations where reliability and cleanliness are paramount.
-
