Comprehensive Product Summary – ADP-1170 Industrial Display

---

### 1. Product Overview

Product Name: ADP-1170
Model Number: ADP-1170
Series: Industrial Display Series
Article Number: ADP-1170
Manufacturer: Aplex Technology Inc.

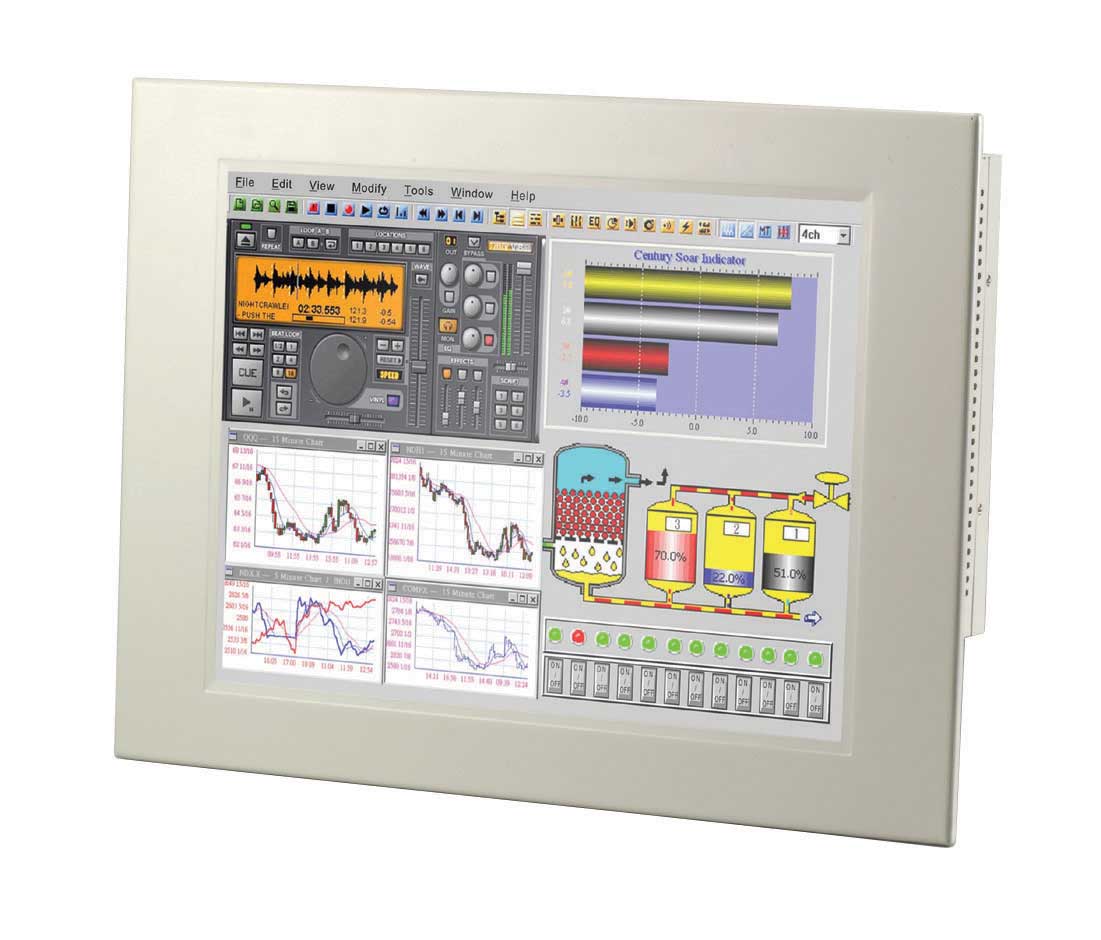

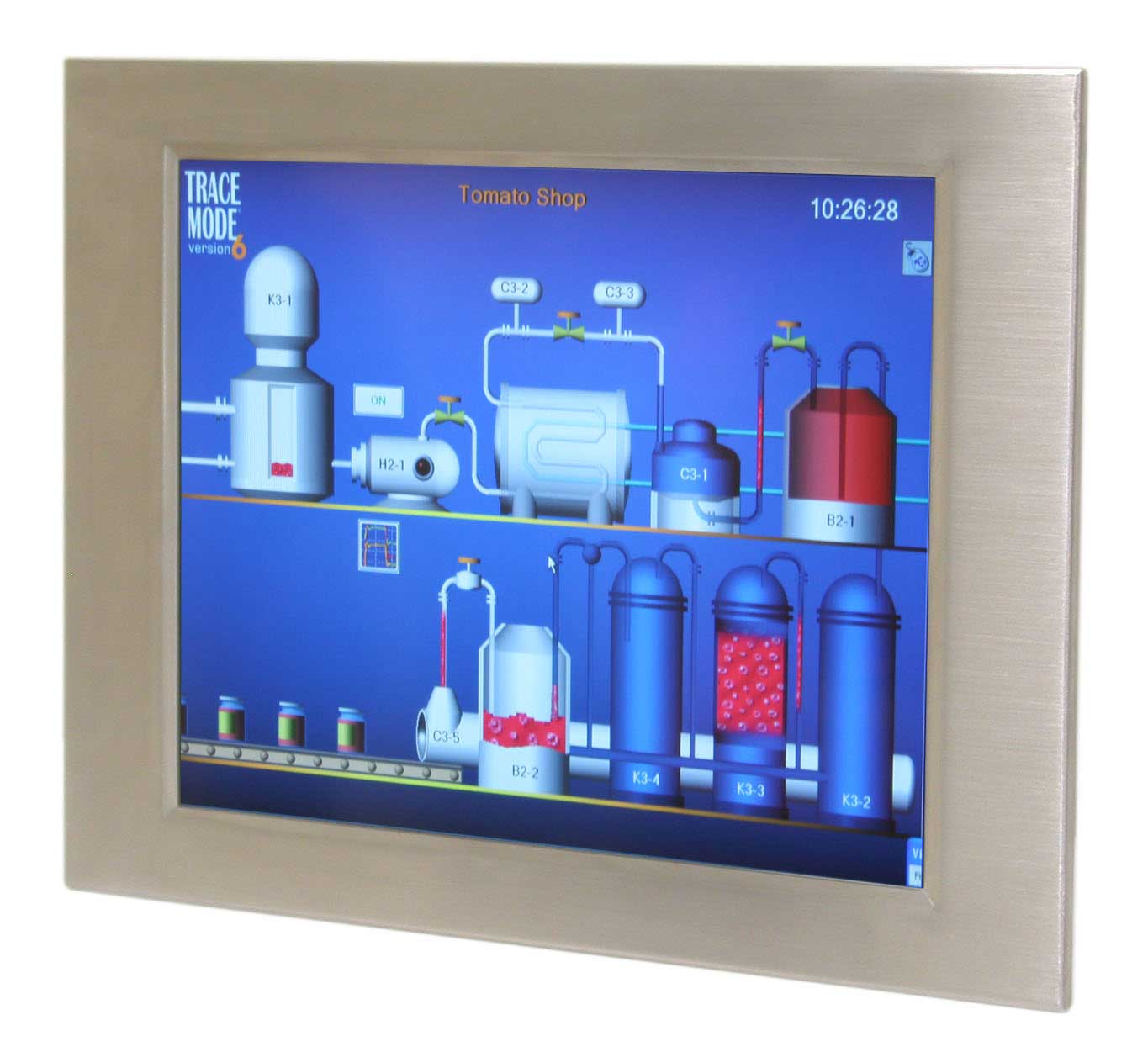

The Aplex ADP-1170 is a 17-inch SXGA TFT Industrial Display Monitor designed for demanding industrial and commercial environments requiring robust visual interfaces, high reliability, and flexible connectivity. Engineered with a steel chassis and IP65-rated front bezel, the ADP-1170 provides a durable and sealed front surface suitable for harsh conditions such as dust, moisture, and vibration. This display is part of Aplex’s industrial-grade display line, optimized for integration into control panels, automation systems, and embedded computing platforms.

---

### 2. Key Features

- Display Size & Resolution: 17-inch TFT LCD panel with SXGA resolution (1280 × 1024 pixels), delivering sharp, high-contrast visuals suitable for industrial HMI (Human-Machine Interface) applications.
- Display Type: Color TFT (Thin Film Transistor) LCD for enhanced brightness, color accuracy, and viewing angles.
- Touchscreen Options: Available in configurations without touch or with optional resistive touch screen supporting RS-232 or USB interface for flexible control integration.
- Input Interfaces: Standard VGA input, with optional DVI, Video, and S-Video inputs for compatibility with a wide range of video sources and industrial PCs.
- Power Input Flexibility: Supports AC 100–240V universal input; optional DC 11–28V input version available for mobile or embedded applications.
- Rugged Construction: Built with a steel chassis and front bezel, ensuring mechanical strength and long-term durability in industrial environments.
- Environmental Protection: IP65 / NEMA 4 compliant front bezel, providing protection against dust and water ingress on the front panel.
- Mounting Options: Supports VESA 75 mm mounting and panel or rack mount configurations for versatile installation.
- User Controls: OSD (On-Screen Display) control located on the backside for easy configuration and adjustment of display parameters.
- Operating Environment: Designed for wide temperature operation (0°C to 50°C) and storage (-20°C to 60°C), with high humidity tolerance and vibration/shock resistance.
- Certifications: Compliant with CE and FCC Class A standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Display Characteristics:
- Display Size: 17 inches (diagonal)
- Resolution: SXGA (1280 × 1024 pixels)
- Display Type: Color TFT LCD
- Aspect Ratio: 5:4
- Brightness / Contrast: (Not specified, typical for industrial TFTs ~250–350 cd/m², contrast ratio ~700:1–1000:1)
- Viewing Angle: (Not specified, typically 160°/140° for SXGA TFT panels)
- Touchscreen: Optional resistive touch (RS-232 or USB interface)

Mechanical Specifications:
- Construction: Steel chassis and front bezel
- Overall Dimensions: 457 mm (W) × 355 mm (H) × 75 mm (D)
- Panel Cutout Dimensions: 422 mm × 331 mm
- Weight: Approximately 7.53 kg
- Mounting Options: Panel mount / Rack mount (optional)
- VESA Mounting: 75 mm standard

Power Specifications:
- Input Voltage:
- Standard: AC 100–240V
- Optional: DC 11–28V
- Power Consumption: (Not specified; typical for 17" TFT displays ~30–45W)

Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel

Certifications:
- CE (Conformité Européenne)
- FCC Class A (for industrial/commercial environments)

---

### 4. Functionality

The Aplex ADP-1170 functions as a high-performance industrial display designed for integration into control systems, operator panels, and embedded computing environments. It provides a 17-inch SXGA resolution display for clear visualization of process data, system status, and graphical interfaces.

Operation:
The display connects to a host system (industrial PC, embedded controller, or workstation) via VGA or optional DVI/Video/S-Video inputs. When equipped with the optional touchscreen, it allows direct user interaction through RS-232 or USB communication interfaces. The OSD control panel on the backside enables users to adjust brightness, contrast, color balance, and input source selection.

Use Cases & Applications:
- Industrial Automation: HMI terminals, SCADA visualization, and process control interfaces.
- Factory Monitoring: Displaying production metrics, alarms, and system diagnostics.
- Embedded Systems: Integration into industrial PCs or control cabinets.
- Transportation & Logistics: Vehicle-mounted or control room displays.
- Energy & Utilities: Monitoring systems for power plants, substations, and renewable energy installations.
- Marine & Outdoor Applications: Suitable for environments requiring IP65 front protection.

Compatibility:
The ADP-1170 is compatible with a wide range of industrial PCs, embedded controllers, and video sources supporting VGA or DVI output. The optional touch interface supports standard operating systems with RS-232 or USB touch drivers (Windows, Linux, etc.).

---

### 5. Components & Accessories

Included Components:
- ADP-1170 17" Industrial Display Unit
- Power cable (for AC input version)
- Mounting brackets (for panel or rack installation)
- User manual and installation guide

Optional Accessories:
- Touchscreen Kit: Resistive touch panel with RS-232 or USB interface
- Video Input Modules: DVI, Composite Video, or S-Video input options
- DC Power Cable: For 11–28V DC input configuration
- Mounting Accessories: VESA 75 mm brackets, rack-mount kits, or panel-mount clamps
- Protective Film or Front Cover: For additional environmental protection

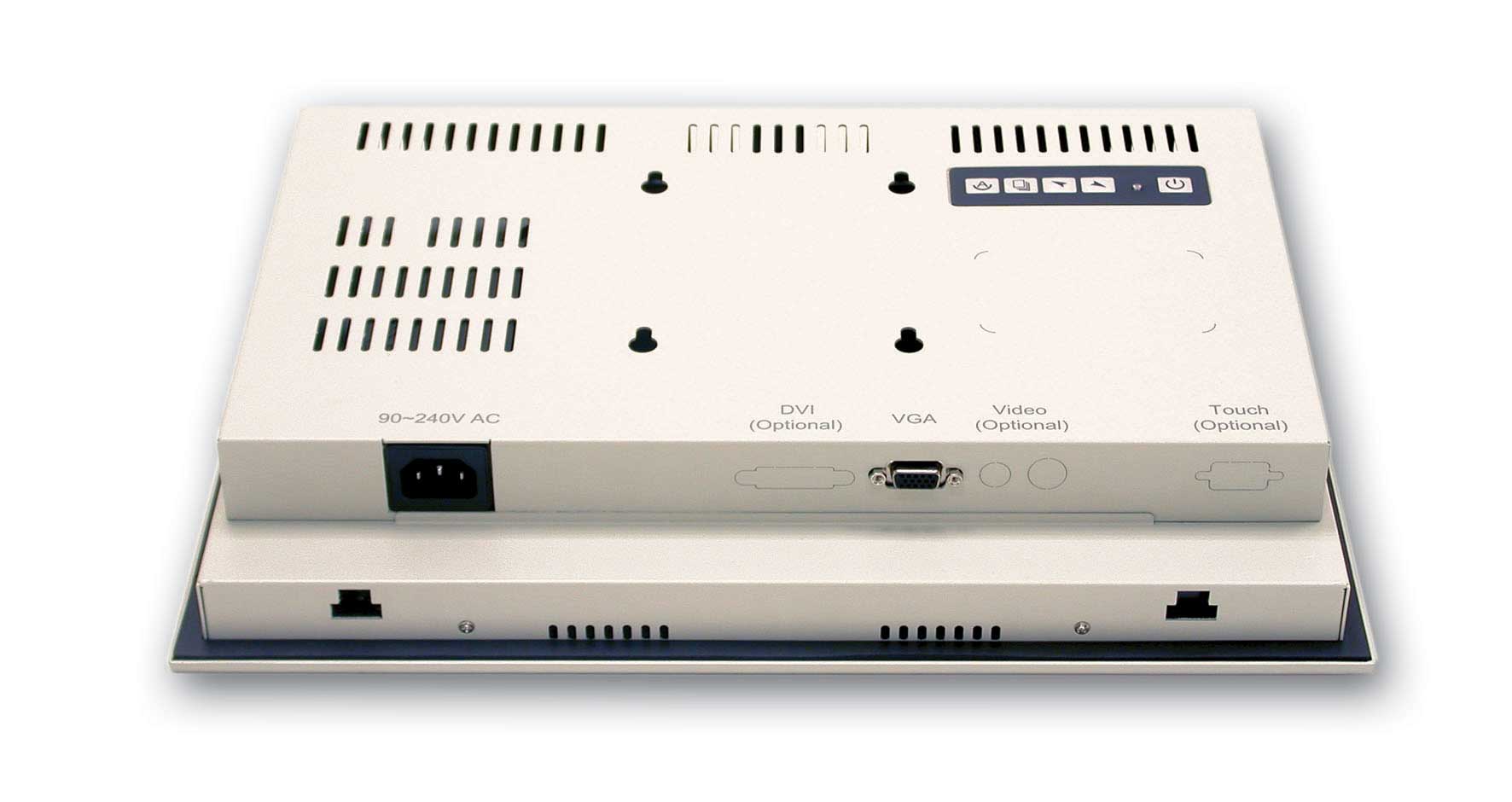

Connectors:
- Video Input: VGA (standard), optional DVI/Video/S-Video
- Power Connector: AC inlet or DC terminal block (depending on configuration)
- Touch Interface (optional): RS-232 (DB9) or USB (Type A/B)

---

### 6. Installation & Setup

Installation Requirements:
- Suitable for panel, rack, or VESA 75 mm mounting.
- Requires cutout dimensions of 422 mm × 331 mm for panel installation.
- Ensure adequate ventilation and clearance for heat dissipation (minimum 25 mm rear clearance recommended).

Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets and screws.
- Rack Mount: Optional rack-mount frame available for standard 19" rack integration.
- VESA Mount: 75 mm VESA pattern for arm or wall mounting.

Power Connection:
- Connect to AC 100–240V mains supply or DC 11–28V (optional version).
- Ensure proper grounding and compliance with local electrical standards.

Configuration:
- Use the rear OSD control panel to adjust display parameters such as brightness, contrast, color temperature, and input source.
- For touchscreen models, install the appropriate touch driver on the host system and calibrate via the provided software utility.

Setup Notes:
- Avoid exposure to direct sunlight or high humidity during installation.
- Verify IP65 sealing integrity when installed in outdoor or washdown environments.
- Ensure vibration and shock conditions remain within specified limits for optimal performance.

---

### 7. Performance & Capabilities

Display Performance:
The ADP-1170 delivers SXGA (1280×1024) resolution, providing crisp and detailed image quality suitable for graphical user interfaces and data visualization. The TFT technology ensures stable color reproduction and wide viewing angles, essential for multi-operator environments.

Speed & Response:
The display’s internal controller supports fast signal processing for real-time data updates, ensuring minimal latency between input and visual output. This is critical for process monitoring and control applications.

Capacity & Efficiency:
The unit’s power-efficient design supports both AC and DC operation, allowing deployment in energy-sensitive or mobile environments. The optional DC input version is particularly suited for embedded or vehicular systems.

Environmental Robustness:
With IP65-rated front protection, the ADP-1170 withstands exposure to dust, splashing water, and industrial contaminants. Its steel chassis provides mechanical rigidity, while vibration and shock resistance ensure stable operation in dynamic environments.

Limitations:
- No built-in touch functionality in the base model (touch is optional).
- Limited brightness specification (not designed for direct sunlight readability).
- Depth (75 mm) may require sufficient enclosure space for panel integration.

---

### 8. Standards & Compliance

Ingress Protection:
- Front Panel: IP65 / NEMA 4 compliant, ensuring protection against dust and water jets.

Safety & EMC Compliance:
- CE Certified: Conforms to European safety and electromagnetic compatibility directives.
- FCC Class A: Meets U.S. Federal Communications Commission standards for industrial and commercial environments, ensuring minimal electromagnetic interference.

Mechanical & Environmental Standards:
- Designed to meet industrial-grade vibration (1G, 5–500 Hz) and shock (15G, 11 ms) requirements.
- Complies with general industrial display standards for reliability and durability.

Quality Assurance:
- Manufactured under ISO-certified production processes (Aplex standard).
- Each unit undergoes functional testing and environmental validation prior to shipment.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (commonly 1–2 years, depending on region and configuration). Warranty covers defects in materials and workmanship under normal operating conditions.

Technical Support:
Aplex provides comprehensive technical support, including installation guidance, driver downloads (for touchscreen models), and troubleshooting assistance. Support is available through authorized distributors and Aplex’s global service network.

Maintenance:
- Regularly clean the front panel with a soft, dry cloth; avoid abrasive materials or solvents.
- Ensure ventilation openings remain unobstructed.
- Periodically inspect mounting hardware and sealing gaskets for integrity.
- For touchscreen models, recalibrate periodically to maintain accuracy.

Software & Firmware Updates:
- Touchscreen drivers and firmware updates are available from Aplex’s official support portal.
- OSD firmware updates (if applicable) can be performed via service interface under authorized supervision.

Lifecycle & Availability:
The ADP-1170 is part of Aplex’s long-term industrial product line, ensuring extended availability and support for OEM and system integrator projects. Designed for stable supply and backward compatibility, it is suitable for long-lifecycle industrial deployments.

---

### Summary

The Aplex ADP-1170 17" SXGA TFT Industrial Display is a robust, high-resolution display solution engineered for industrial automation, embedded systems, and control applications. With its steel construction, IP65-rated front bezel, and flexible input options, it provides reliable performance in harsh environments. The availability of touchscreen, multiple mounting options, and dual power input configurations enhances its adaptability across diverse industrial sectors. Certified for CE and FCC Class A compliance, the ADP-1170 ensures both safety and electromagnetic compatibility, making it a dependable choice for mission-critical display applications.
