Comprehensive Product Summary: ADP-1170T-USB Industrial Display

---

### 1. Product Overview

Product Name: ADP-1170T-USB
Model Number: ADP-1170T-USB
Series: ADP Industrial Display Series
Article Number: ADP-1170T-USB
Manufacturer: Aplex Technology Inc.

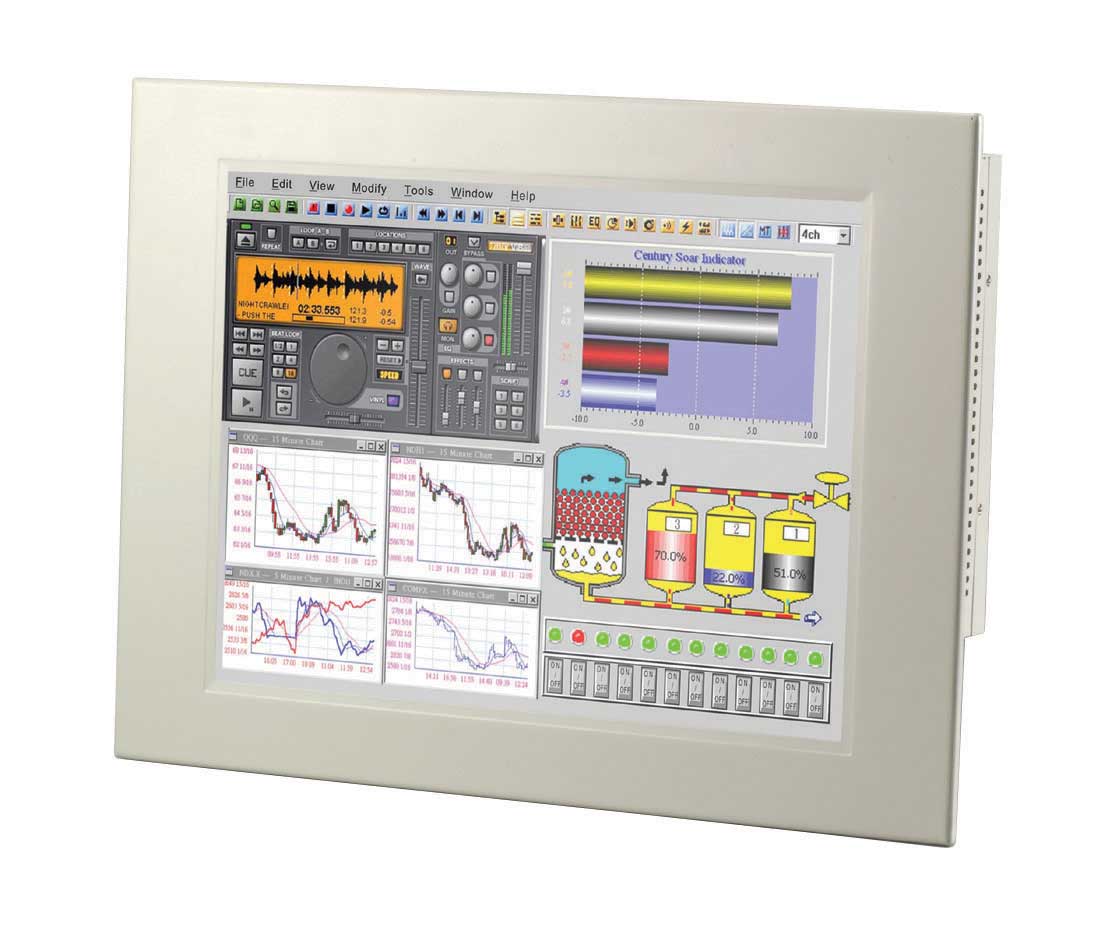

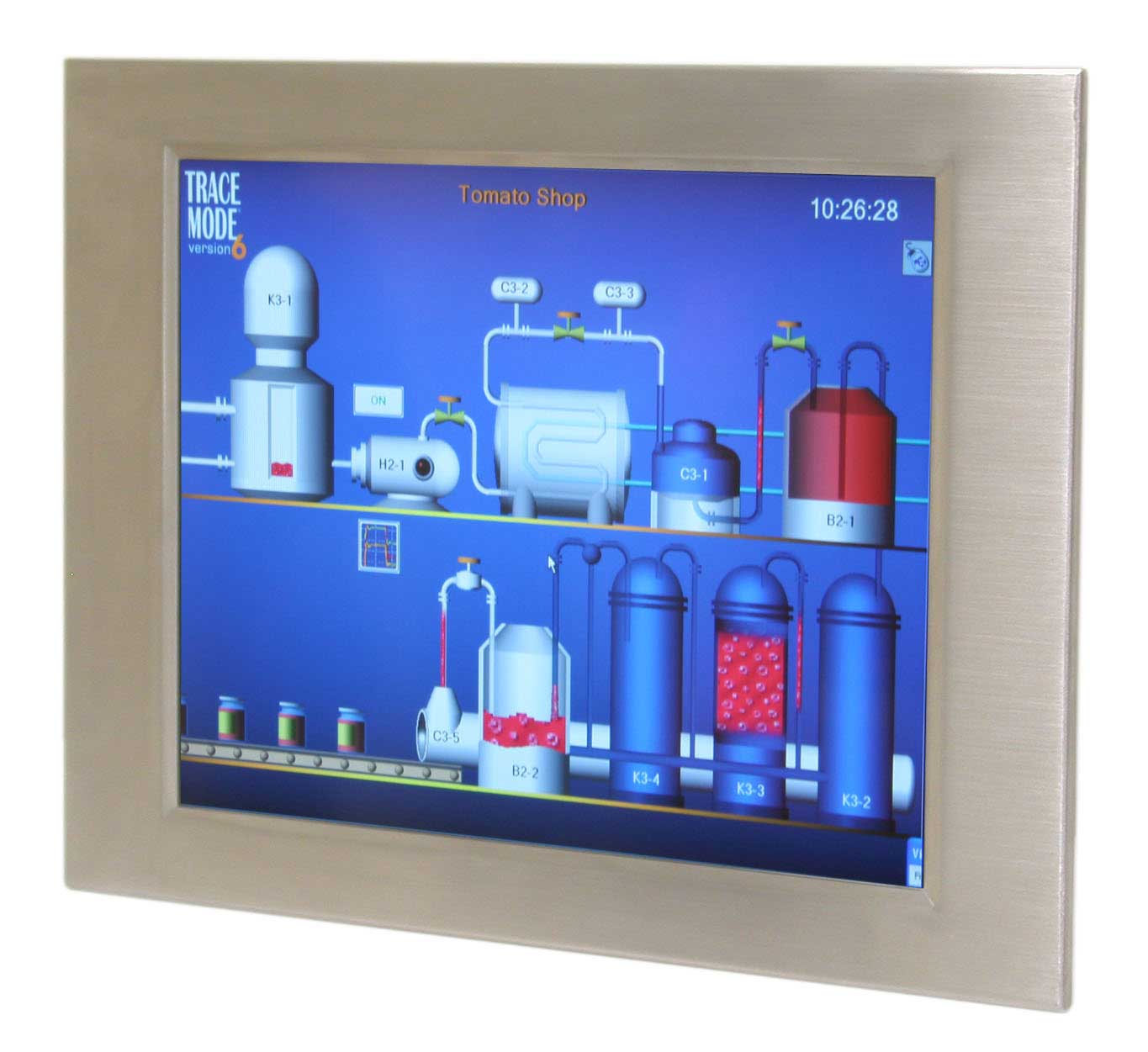

The Aplex ADP-1170T-USB is a 17-inch SXGA TFT Industrial Display Monitor designed for demanding industrial and commercial environments. It integrates a USB touch interface and offers a robust mechanical design with a steel chassis and IP65-rated front bezel, ensuring durability and protection against dust and water ingress. The display supports VGA input as standard, with optional DVI, Video, and S-Video inputs, making it adaptable to a wide range of system configurations. Engineered for reliability, the ADP-1170T-USB is suitable for panel or rack mounting and is optimized for continuous operation in harsh industrial conditions.

---

### 2. Key Features

- 17-inch SXGA TFT Display: High-resolution 1280 × 1024 color display for clear, detailed image rendering.
- USB Touch Interface: Integrated USB touch functionality for intuitive user interaction and control.
- Flexible Input Options: Standard VGA input with optional DVI, Video, and S-Video interfaces for versatile connectivity.
- Industrial-Grade Construction: Steel chassis and front bezel designed for rugged environments.
- IP65 Front Protection: NEMA 4/IP65-compliant front panel provides resistance to dust, moisture, and splashing water.
- Wide Power Input Range: Supports AC 100–240V input, with optional DC 11–28V input for flexible power configurations.
- OSD Control: On-screen display (OSD) controls located on the backside for easy configuration and calibration.
- Mounting Flexibility: Compatible with VESA 75 mounting standard; supports panel and rack mounting options.
- Environmental Resilience: Designed to operate in a wide temperature range and withstand vibration and shock typical of industrial environments.
- Compliance and Certification: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Display Characteristics:
- Display Type: 17-inch Color TFT LCD
- Resolution: SXGA 1280 × 1024 pixels
- Aspect Ratio: 5:4
- Touch Interface: USB touch (RS232 optional)
- Input Signal: VGA (standard), optional DVI, Video, S-Video
- OSD Control: Located on backside panel

Mechanical Specifications:
- Construction: Steel chassis and front bezel
- Overall Dimensions: 457 mm (W) × 355 mm (H) × 75 mm (D)
- Panel Cutout Dimensions: 422 mm × 331 mm
- Mounting Options: Panel mount / Rack mount (optional)
- VESA Mounting: 75 mm standard
- Weight: Approximately 7.53 kg

Power Specifications:
- Power Input (Standard): AC 100–240V
- Power Input (Optional): DC 11–28V

Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random)
- Shock Resistance: 15G peak acceleration (11 ms duration)
- Ingress Protection: NEMA 4 / IP65 compliant front bezel

Certifications:
- Compliance: CE / FCC Class A

---

### 4. Functionality

The ADP-1170T-USB functions as a high-performance industrial display monitor with integrated touch capability. It is designed to interface seamlessly with industrial PCs, embedded systems, and automation controllers. The USB touch interface allows for direct interaction with graphical user interfaces, enabling operators to control processes, input data, or navigate system menus efficiently.

The display’s VGA input ensures compatibility with a wide range of legacy and modern systems, while optional DVI, Video, and S-Video inputs expand its versatility for multimedia or specialized industrial applications. The OSD (On-Screen Display) controls located on the rear panel allow users to adjust brightness, contrast, color balance, and input source selection.

Typical Use Cases and Applications:
- Industrial automation and control panels
- Human-Machine Interface (HMI) systems
- Factory monitoring and process visualization
- Embedded system displays
- Kiosk and information terminals
- Transportation and logistics control stations
- Test and measurement equipment interfaces

The ADP-1170T-USB’s rugged design and environmental resilience make it suitable for deployment in manufacturing plants, production lines, and other industrial settings where reliability and durability are critical.

---

### 5. Components & Accessories

Included Components:
- ADP-1170T-USB 17" Industrial Display Unit
- Integrated USB touch screen interface
- Power cable (for AC input configuration)
- VGA signal cable (standard input)
- Mounting brackets for panel or rack installation
- User manual and installation guide

Optional Accessories and Add-ons:
- DVI input module
- Video/S-Video input module
- RS232 touch interface module (alternative to USB touch)
- DC power input cable (for 11–28V DC configuration)
- VESA 75 mounting kit
- Protective front cover or sealing gasket for enhanced IP protection

Connectors and Interfaces:
- VGA input port (standard)
- USB port for touch interface
- Optional DVI, Video, and S-Video connectors
- Power input connector (AC or DC depending on configuration)
- RS232 port (optional for touch interface)

---

### 6. Installation & Setup

Installation Requirements:
- Compatible with panel cutout dimensions of 422 mm × 331 mm
- Requires mounting surface capable of supporting 7.53 kg weight
- Power source: AC 100–240V or optional DC 11–28V supply

Mounting Options:
- Panel Mount: Designed for flush installation into control panels or enclosures using the provided mounting brackets.
- Rack Mount (Optional): Adaptable for rack installation in industrial cabinets or equipment racks.
- VESA 75 Mounting: Supports standard VESA 75 mm mounting for flexible positioning or arm mounting.

Setup Procedure:
1. Prepare the panel cutout according to specified dimensions.
2. Secure the display using the included mounting brackets or rack mount kit.
3. Connect the VGA cable to the host system (and optional DVI/Video/S-Video if applicable).
4. Connect the USB cable to enable touch functionality.
5. Supply power via AC or DC input as configured.
6. Power on the system and calibrate the touch interface using the provided software or operating system utilities.
7. Adjust display parameters using the OSD controls on the backside.

Configuration Options:
- Input source selection (VGA/DVI/Video/S-Video)
- Brightness, contrast, and color adjustments
- Touch calibration and sensitivity settings

---

### 7. Performance & Capabilities

The ADP-1170T-USB delivers reliable performance optimized for industrial environments. Its SXGA resolution (1280 × 1024) ensures sharp image quality suitable for detailed process visualization and data display. The TFT LCD technology provides consistent color reproduction and wide viewing angles, enhancing readability in various lighting conditions.

Performance Highlights:
- Display Resolution: 1280 × 1024 pixels for high-definition visualization
- Touch Responsiveness: Fast and accurate USB touch interface for real-time control
- Power Efficiency: Operates efficiently across a wide voltage range (AC 100–240V or DC 11–28V)
- Environmental Tolerance: Stable operation from 0°C to 50°C with resistance to vibration and shock
- Durability: Steel chassis and IP65 front bezel ensure long service life in harsh conditions

Limitations:
- Touch functionality may vary under extreme humidity or with gloved operation depending on touch technology type.
- Display brightness and contrast may be affected by direct sunlight exposure if not installed in a shaded or enclosed environment.
- Optional input modules (DVI, Video, S-Video) may require additional configuration or hardware installation.

---

### 8. Standards & Compliance

The ADP-1170T-USB is engineered to meet stringent industrial and regulatory standards, ensuring safe and reliable operation in professional environments.

Ingress Protection:
- Front Panel: NEMA 4 / IP65 compliant, providing protection against dust, dirt, and water jets.

Electromagnetic Compatibility (EMC):
- Compliance: CE / FCC Class A certified, ensuring minimal electromagnetic interference and adherence to industrial EMC requirements.

Safety and Reliability Standards:
- Designed and tested for vibration (1G peak, 5–500 Hz) and shock (15G peak, 11 ms duration) resistance.
- Meets industrial-grade construction standards for mechanical robustness and electrical safety.

Environmental Compliance:
- RoHS-compliant materials (where applicable) to minimize environmental impact.
- Designed for long operational life and reduced maintenance requirements.

---

### 9. Additional Information

Warranty:
- Standard manufacturer’s warranty (typically 1–2 years, depending on region and configuration).
- Covers defects in materials and workmanship under normal operating conditions.

Technical Support:
- Comprehensive technical documentation and installation guides provided by Aplex.
- Online support resources, driver downloads, and firmware updates available through the manufacturer’s website.
- Optional extended support and maintenance contracts for industrial deployments.

Maintenance:
- Minimal maintenance required due to sealed front panel and durable construction.
- Periodic cleaning of the front bezel and screen recommended using non-abrasive materials.
- Regular inspection of connectors and mounting hardware to ensure secure installation.

Software & Firmware Updates:
- Touch driver updates available for major operating systems (Windows, Linux, etc.).
- Firmware updates may be provided to enhance compatibility or performance.

Serviceability:
- Modular design allows for straightforward replacement of input modules or touch interface components.
- Accessible rear panel for easy connection and maintenance.

Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Long product lifecycle support typical of Aplex industrial display series, ensuring availability for system integrators and OEMs.

---

### Summary

The Aplex ADP-1170T-USB is a 17-inch SXGA TFT industrial display engineered for reliability, flexibility, and performance in demanding industrial applications. With its USB touch interface, robust steel construction, and IP65-rated front bezel, it provides a durable and user-friendly solution for control panels, automation systems, and embedded applications. Its wide power input range, multiple mounting options, and compliance with CE/FCC Class A standards make it a versatile choice for system integrators and industrial operators seeking a dependable display solution.

---

Key Technical Summary Table

| Parameter | Specification |
|------------|----------------|
| Display Size | 17" Color TFT LCD |
| Resolution | 1280 × 1024 (SXGA) |
| Touch Interface | USB (RS232 optional) |
| Input Signal | VGA (standard), optional DVI/Video/S-Video |
| Power Input | AC 100–240V, optional DC 11–28V |
| Dimensions | 457 × 355 × 75 mm |
| Panel Cutout | 422 × 331 mm |
| Weight | ~7.53 kg |
| Mounting | Panel / Rack / VESA 75 |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -20°C to 60°C |
| Humidity | 10–90% @ 40°C, non-condensing |
| Vibration | 1G peak, 5–500 Hz |
| Shock | 15G, 11 ms duration |
| Protection | NEMA 4 / IP65 front bezel |
| Certification | CE / FCC Class A |

---

In essence, the ADP-1170T-USB combines industrial-grade durability with modern display and touch technology, offering a reliable, configurable, and high-performance visualization solution for industrial automation, control, and monitoring systems.
