Comprehensive Product Summary – ADP-1194T-USB Industrial LCD Monitor

---

### 1. Product Overview

Product Name: ADP-1194T-USB
Model Number: ADP-1194T-USB
Series: ADP Industrial Display Series
Article Number: ADP-1194T-USB
Manufacturer: Aplex Technology Inc.

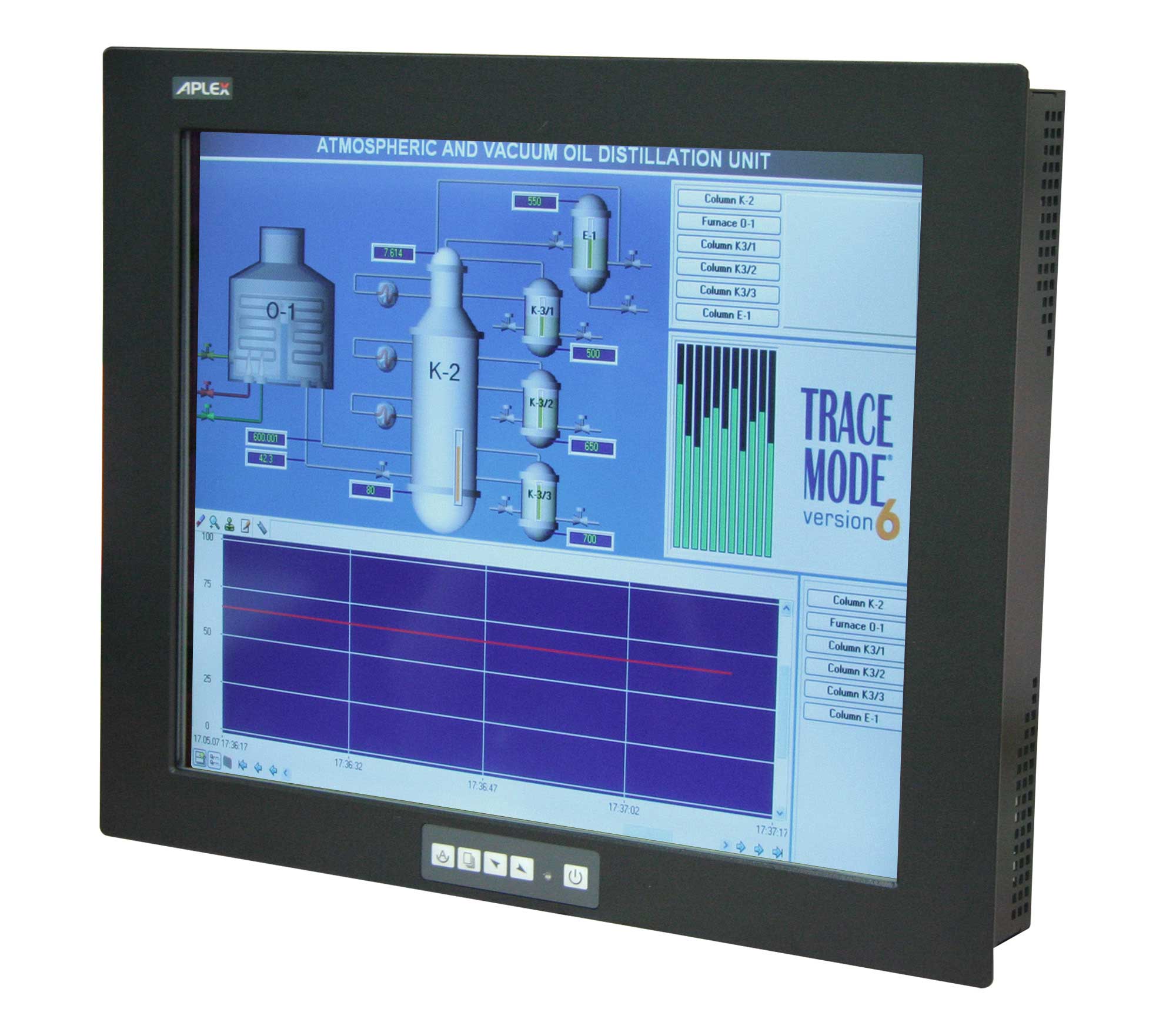

The Aplex ADP-1194T-USB is a 19-inch SXGA TFT industrial-grade LCD monitor designed for demanding industrial and commercial environments. It integrates a USB resistive touch interface and a front-side On-Screen Display (OSD) control system, providing robust performance, flexible connectivity, and reliable operation in harsh conditions. The monitor supports a wide range of video resolutions and offers both AC (100–240V) and optional DC (11–28V) power input configurations, making it suitable for diverse installation scenarios.

---

### 2. Key Features

- 19-inch SXGA TFT Display: High-resolution 1280 × 1024 panel delivering sharp, clear images suitable for industrial visualization, control panels, and HMI applications.
- USB Resistive Touchscreen: Integrated 5-wire resistive touch technology with USB interface for precise, durable, and glove-compatible operation.
- Front OSD Controls: Convenient front-mounted OSD (On-Screen Display) buttons for brightness, contrast, and display adjustments without rear access.
- Wide Resolution Support: Compatible with multiple input resolutions ranging from 640 × 480 (VGA) up to 1600 × 1200 (UXGA), with auto phase and auto position functions for optimal image alignment.
- Flexible Mounting Options: Supports VESA 75 mm mounting standard and panel mounting, allowing integration into control cabinets, kiosks, or industrial consoles.
- Rugged Construction: Available with steel front bezel and chassis or optional aluminum front bezel with steel chassis, ensuring mechanical durability and resistance to vibration and shock.
- Environmental Resilience: Designed for operation in temperatures from 0°C to 50°C, with storage capability down to –20°C and up to 60°C.
- Ingress Protection: NEMA 4 / IP65 compliant front bezel, providing protection against dust, water splashes, and industrial contaminants.
- Multiple Video Inputs: Standard VGA analog input, with optional DVI and S-Video interfaces for flexible connectivity to various systems.
- Power Flexibility: Standard AC 100–240V input with optional DC 11–28V power supply for mobile or embedded applications.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Display Characteristics:
- Display Type: 19-inch TFT LCD
- Resolution: SXGA 1280 × 1024 pixels
- Supported Resolutions: 640 × 480 to 1600 × 1200
- Aspect Ratio: 5:4
- Touchscreen Type: 5-wire resistive, USB interface
- Display Controls: Front OSD (On-Screen Display)

Mechanical Specifications:
- Front Bezel Material: Steel (standard) or optional aluminum
- Chassis Material: Steel
- Dimensions (W × H × D): 467 × 379 × 64.7 mm
- Mounting Options: Panel mount / VESA 75 mm mount
- Construction: Industrial-grade, vibration- and shock-resistant

Power Specifications:
- Input Voltage (Standard): AC 100–240V
- Optional Input Voltage: DC 11–28V
- Power Type: Internal power supply

Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: –20°C to 60°C (–4°F to 140°F)
- Relative Humidity: 10–95% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 10–150 Hz (random)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel

Certifications:
- CE Certified
- FCC Class A Compliant

---

### 4. Functionality

The ADP-1194T-USB functions as a high-performance industrial display solution for control systems, automation interfaces, and embedded computing environments. Its USB resistive touch interface allows direct user interaction with graphical user interfaces (GUIs), SCADA systems, or industrial control software.

The front OSD controls enable quick access to display settings such as brightness, contrast, and input selection, facilitating easy adjustments even when the monitor is panel-mounted.

Use Cases and Applications:
- Industrial automation and process control panels
- Human-Machine Interface (HMI) terminals
- Factory monitoring and production line visualization
- Kiosk and information display systems
- Embedded systems and industrial PCs
- Test and measurement equipment displays
- Transportation and logistics control stations

Compatibility:
- Compatible with standard VGA analog signals
- Optional DVI and S-Video inputs for digital and video sources
- USB interface for touch input, compatible with major operating systems supporting USB HID touch devices

---

### 5. Components & Accessories

Included Components:
- ADP-1194T-USB monitor unit
- Integrated USB resistive touch panel
- AC power input connector (standard)
- VGA input port
- Front OSD control buttons
- Mounting brackets or hardware (depending on configuration)

Optional Accessories and Add-ons:
- DVI input module (for digital video connection)
- S-Video input module (for analog video sources)
- DC power input module (11–28V) for mobile or embedded installations
- Aluminum front bezel option for enhanced corrosion resistance and reduced weight
- VESA 75 mounting kit for arm or wall mounting
- Touchscreen driver software (if required for specific OS environments)

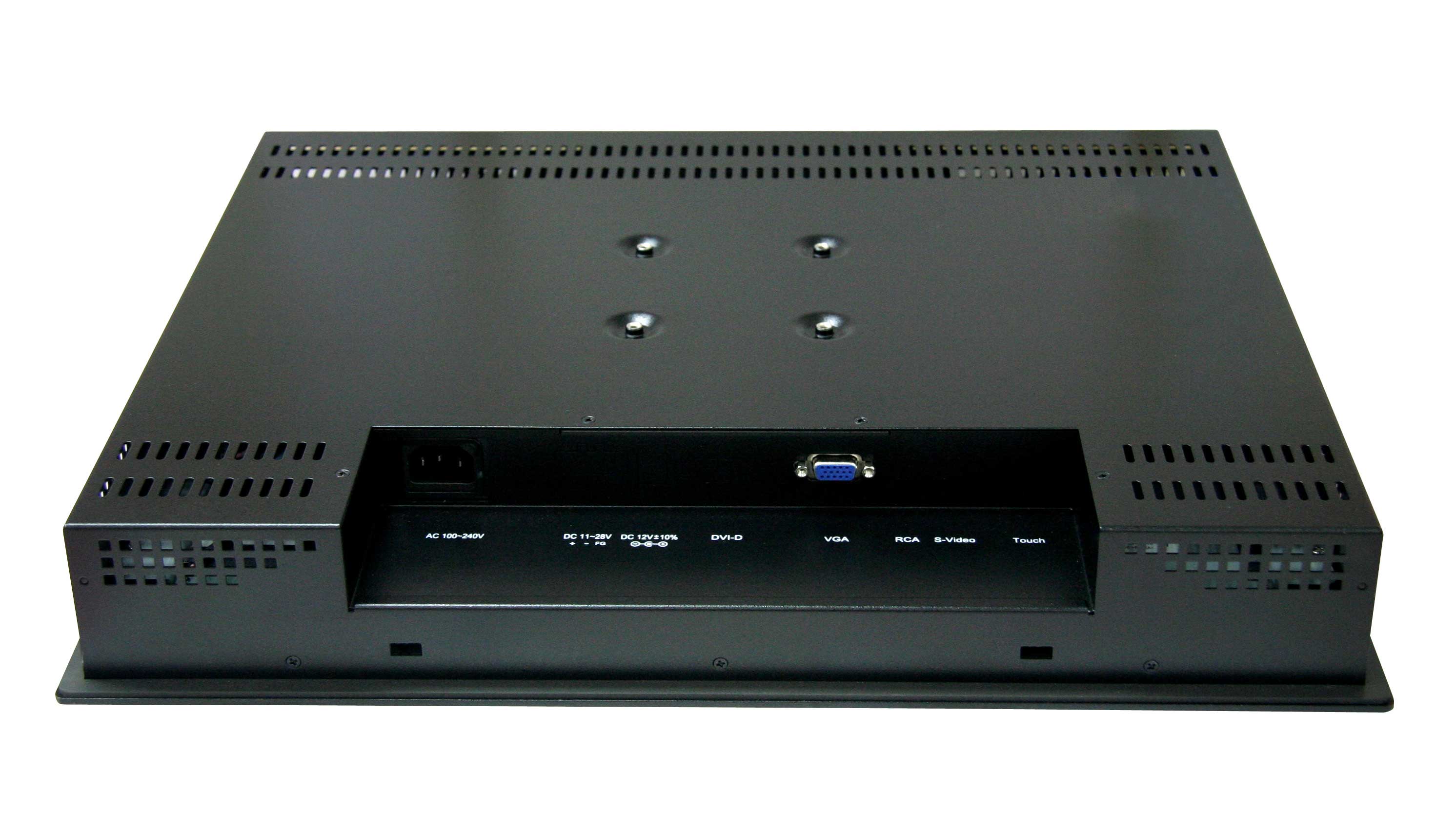

Connectors:
- Video Input: VGA (standard), optional DVI/S-Video
- Touch Interface: USB Type-B connector
- Power Input: AC 100–240V (IEC connector) or optional DC terminal block

---

### 6. Installation & Setup

Installation Requirements:
- Suitable for panel or VESA 75 mm mounting
- Requires access to AC 100–240V or DC 11–28V power source
- Compatible with standard VGA or DVI video output from host system
- USB connection required for touch functionality

Mounting Options:
- Panel Mount: Designed for flush integration into control panels or enclosures using mounting brackets or clamps.
- VESA 75 Mount: Allows attachment to monitor arms, wall brackets, or custom mounting frames.

Configuration:
- Connect video input (VGA/DVI/S-Video) to host system.
- Connect USB cable for touch interface.
- Apply power via AC or DC input.
- Use front OSD buttons to configure display parameters such as brightness, contrast, color temperature, and input source.
- Auto phase and auto position functions automatically optimize image alignment and scaling for the selected resolution.

---

### 7. Performance & Capabilities

Display Performance:
The 19-inch SXGA TFT panel provides high brightness, sharp contrast, and wide viewing angles suitable for industrial visualization. The display supports multiple resolutions, automatically adjusting phase and position for optimal image clarity.

Touch Performance:
The 5-wire resistive touchscreen ensures accurate and reliable touch detection, even when operated with gloves or styluses. The USB interface provides plug-and-play compatibility with most modern operating systems.

Power Efficiency:
The monitor’s internal power supply supports a wide AC input range (100–240V) and optional DC input (11–28V), ensuring stable operation across global power standards and mobile platforms.

Environmental Durability:
The rugged steel or aluminum-steel construction, combined with IP65-rated front protection, allows the ADP-1194T-USB to operate reliably in dusty, humid, or vibration-prone environments.

Limitations:
- Resistive touch technology may have lower optical clarity compared to capacitive alternatives.
- Operating temperature limited to 0–50°C; not suitable for extreme cold or high-heat outdoor environments without additional protection.
- Single display input active at a time (depending on configuration).

---

### 8. Standards & Compliance

Ingress Protection:
- NEMA 4 / IP65 front bezel ensures protection against dust ingress and water splashes, suitable for industrial and semi-outdoor environments.

Electrical and Safety Compliance:
- CE Certified: Conforms to European safety, health, and environmental protection standards.
- FCC Class A: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial and commercial environments.

Mechanical and Environmental Standards:
- Designed to withstand 1G vibration and 15G shock conditions, ensuring reliability in mobile or high-vibration installations.
- Complies with industrial-grade mechanical design standards for long-term durability.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship under normal use conditions.

Support:
Aplex provides technical documentation, driver support for touch functionality, and configuration assistance. Firmware and driver updates are available through the manufacturer’s support portal.

Maintenance:
- Clean front panel with non-abrasive, non-solvent-based cleaners.
- Ensure ventilation openings remain unobstructed.
- Periodically inspect mounting hardware and connectors for secure attachment.
- Avoid exposure to direct sunlight or corrosive environments beyond rated specifications.

Software & Updates:
- USB touch interface typically recognized as a standard HID device; additional drivers may be available for legacy systems.
- Firmware updates for OSD or touch controller may be provided by Aplex for performance enhancements or compatibility improvements.

Lifecycle & Reliability:
The ADP-1194T-USB is engineered for long-term industrial deployment, with stable component sourcing and extended product availability typical of Aplex’s industrial product lines.

---

### Summary

The Aplex ADP-1194T-USB is a robust, versatile 19-inch SXGA industrial LCD monitor featuring USB resistive touch input, front OSD controls, and flexible power and mounting options. Its rugged steel or aluminum-steel construction, IP65-rated front bezel, and wide operating temperature range make it ideal for industrial automation, control systems, and embedded applications. With support for multiple video inputs, broad resolution compatibility, and compliance with CE and FCC Class A standards, the ADP-1194T-USB delivers reliable performance and adaptability in demanding environments.

---

Key Technical Summary Table

| Parameter | Specification |
|------------|----------------|
| Model | ADP-1194T-USB |
| Display Size | 19" TFT LCD |
| Resolution | 1280 × 1024 (SXGA) |
| Supported Resolutions | 640 × 480 to 1600 × 1200 |
| Touchscreen | 5-wire resistive, USB interface |
| OSD Control | Front-side buttons |
| Video Inputs | VGA (standard), optional DVI/S-Video |
| Power Input | AC 100–240V, optional DC 11–28V |
| Dimensions (W×H×D) | 467 × 379 × 64.7 mm |
| Mounting | Panel mount / VESA 75 mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –20°C to 60°C |
| Humidity | 10–95% @ 40°C, non-condensing |
| Vibration | 1G peak, 10–150 Hz |
| Shock | 15G, 11 ms duration |
| Ingress Protection | NEMA 4 / IP65 front bezel |
| Certifications | CE, FCC Class A |
| Construction | Steel bezel & chassis (standard), optional aluminum bezel |
| Manufacturer | Aplex Technology Inc. |

---

In essence, the ADP-1194T-USB combines industrial durability, flexible connectivity, and user-friendly operation in a compact 19-inch form factor. It is engineered to meet the rigorous demands of industrial automation, manufacturing, and embedded display applications, offering a dependable and configurable solution for professional environments.
