Comprehensive Product Summary – AHM-6105 Fanless Panel PC

---

### 1. Product Overview

Product Name: AHM-6105
Model Number: AHM-6105
Series: AHM Industrial Panel PC Series
Article Number: AHM-6105
Manufacturer: Aplex Technology Inc.

The AHM-6105 is a rugged, fanless 10.4-inch industrial panel PC designed for embedded control, automation, and human-machine interface (HMI) applications. It integrates an Intel® Celeron® M processor, a resistive touchscreen, and a robust metal housing suitable for harsh industrial environments. The system is engineered for reliability, low power consumption, and long-term operation in demanding conditions, making it ideal for factory automation, process monitoring, and industrial control systems.

---

### 2. Key Features

- Fanless Design: The AHM-6105 employs a fanless thermal architecture, ensuring silent operation, reduced maintenance, and improved reliability in dusty or vibration-prone environments.
- 10.4" SVGA Display: Equipped with a 10.4-inch TFT LCD panel supporting 800 × 600 (SVGA) resolution, 400 cd/m² brightness, and a wide 130° viewing angle for clear visibility in industrial lighting conditions.
- Touchscreen Interface: Features a 4-wire analog resistive touchscreen, providing accurate and responsive input suitable for gloved or stylus operation.
- Intel® Celeron® M Processor: Powered by a 1.0 GHz or optional 1.5 GHz Intel® Celeron® M CPU, balancing performance and energy efficiency for embedded applications.
- Expandable Memory: Comes with 256 MB SDRAM standard, expandable up to 1 GB for enhanced multitasking and application performance.
- Flexible Storage Options: Supports one 2.5" HDD bay and one CompactFlash (CF) card slot, allowing flexible storage configurations for OS and data.
- Comprehensive I/O Connectivity: Includes dual COM ports (RS-232 and RS-232/422/485), dual USB 2.0 ports, one 10/100 Mbps LAN port, one parallel port, audio I/O, and PS/2 keyboard/mouse interfaces. Optional COM3 and VGA ports are available for extended connectivity.
- Wide DC Power Input: Operates on an 11–28 VDC power supply, suitable for industrial and vehicular power systems.
- Durable Construction: Built with a black alloy front bezel and metal housing, ensuring mechanical strength and electromagnetic shielding.
- Mounting Flexibility: Supports both panel mounting and VESA 75 mm mounting standards for versatile installation.
- Environmental Resilience: Designed to operate in temperatures from 0°C to 50°C and withstand vibration and shock conditions typical of industrial environments.
- Ingress Protection: Front bezel rated NEMA 4 / IP65, providing protection against dust and water ingress.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Display:
- Size: 10.4 inches (diagonal)
- Type: TFT LCD
- Resolution: 800 × 600 pixels (SVGA)
- Brightness: 400 cd/m²
- Viewing Angle: 130° (typical)
- Backlight Lifetime: 40,000 hours (typical)

Processor (CPU):
- Intel® Celeron® M 1.0 GHz (standard)
- Optional Intel® Celeron® M 1.5 GHz

Memory (DRAM):
- Standard: 256 MB SDRAM
- Maximum: 1 GB SDRAM

Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot

Touchscreen:
- Type: 4-wire analog resistive
- Interface: USB or serial (depending on configuration)

Power Input:
- Voltage Range: 11–28 VDC
- Power Consumption: Low-power design (exact wattage dependent on configuration)

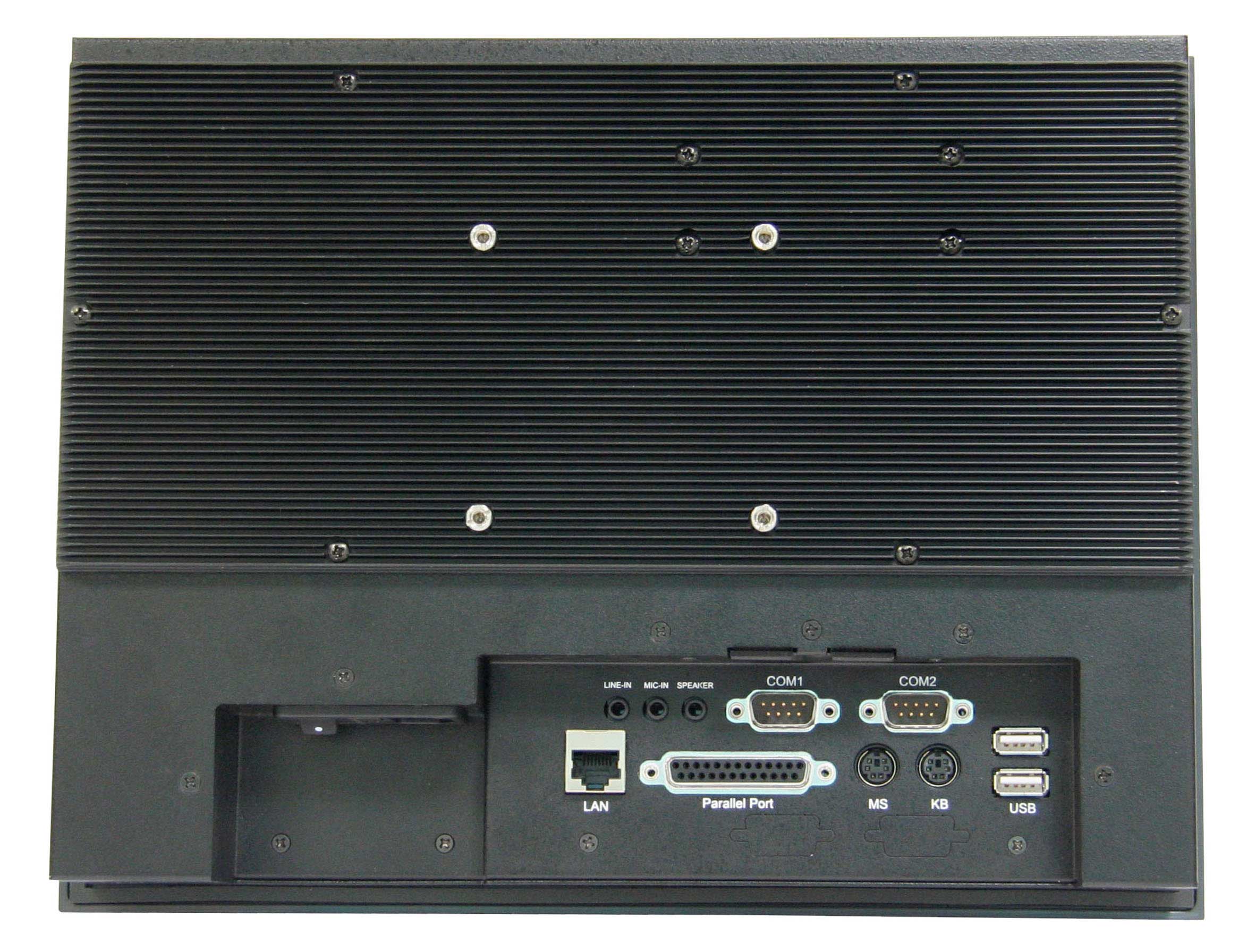

I/O Interfaces:
- 2 × COM ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- 1 × LAN port: 10/100 Mbps Ethernet
- 2 × USB 2.0 ports
- 1 × Parallel port
- 1 × Audio: Mic-in, Line-in, Line-out
- 2 × PS/2 ports (keyboard and mouse)
- Optional: COM3, VGA output

Physical Characteristics:
- Dimensions: 317 mm (W) × 243 mm (H) × 74 mm (D)
- Cut-out Size: 301 mm × 227 mm
- Weight: Approx. 3.86 kg
- Front Panel Color: Black
- Construction: Plastic molding front panel with metal housing

---

### 4. Functionality

The AHM-6105 functions as an all-in-one embedded computing platform integrating display, processing, and input capabilities. It is designed for industrial automation, process visualization, and control applications where reliability and compactness are critical.

Operation:
The system boots from either the internal HDD or CompactFlash card, running standard operating systems such as Windows Embedded, Linux, or other x86-compatible platforms. The resistive touchscreen allows direct user interaction with graphical interfaces, enabling intuitive control and monitoring of industrial processes.

Use Cases and Applications:
- Factory automation and production line control
- Human-Machine Interface (HMI) terminals
- Process monitoring and data acquisition
- Building automation and environmental control systems
- Kiosk and information terminals
- Transportation and vehicle-mounted control systems
- Machine vision and inspection systems

Compatibility:
The AHM-6105 supports a wide range of industrial communication protocols through its serial and Ethernet interfaces. It is compatible with standard industrial software platforms and SCADA systems.

---

### 5. Components & Accessories

Included Components:
- AHM-6105 main unit (panel PC)
- Mounting brackets for panel or VESA 75 installation
- Power connector terminal block
- User manual and driver CD (depending on shipment configuration)

Optional Accessories:
- Additional COM3 port module
- External VGA output module
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash card for OS installation
- Power adapter (11–28 VDC input compatible)
- Wall-mount or arm-mount kits (VESA 75)
- Touchscreen stylus or protective film

Connectors:
- Standard industrial-grade connectors for power and I/O
- Lockable connectors for vibration resistance (optional)

---

### 6. Installation & Setup

Requirements:
- DC power source within 11–28 V range
- Cut-out dimensions: 301 mm × 227 mm for panel mounting
- Adequate ventilation for passive heat dissipation

Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets; suitable for control panels and enclosures.
- VESA 75 Mount: Compatible with 75 × 75 mm VESA standard for arm or wall mounting.

Configuration:
- BIOS setup accessible via keyboard for system configuration
- Operating system installation via CompactFlash or HDD
- Touchscreen calibration through OS-level utilities
- Serial port mode selection (RS-232/422/485) via BIOS or jumper settings

Setup Procedure:
1. Mount the unit securely using the chosen method.
2. Connect DC power input and I/O peripherals.
3. Install the desired operating system and drivers.
4. Calibrate the touchscreen and configure network settings.
5. Verify system operation and communication interfaces.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel® Celeron® M processor provides sufficient computing power for industrial control, data logging, and HMI applications while maintaining low thermal output for fanless operation.

Memory and Storage:
Expandable memory up to 1 GB allows for multitasking and running complex visualization software. The combination of HDD and CF storage supports flexible system configurations, including solid-state operation for vibration-sensitive environments.

Display Performance:
The 10.4" SVGA display delivers clear, bright visuals with 400 cd/m² brightness and a 130° viewing angle, ensuring readability under various lighting conditions. The 40,000-hour backlight life ensures long-term reliability.

Power Efficiency:
The wide 11–28 VDC input range and low-power CPU design make the AHM-6105 suitable for energy-sensitive and mobile applications.

Environmental Durability:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 10–90% @ 50°C, non-condensing
- Vibration Resistance:
- 5–17 Hz, 0.1" double amplitude displacement
- 17–640 Hz, 1.5G acceleration peak-to-peak
- Shock Resistance:
- 10–25 Hz, 2G in X, Y, Z directions for 30 minutes

Limitations:
- Limited to SVGA resolution (800×600)
- Memory capacity capped at 1 GB
- No built-in wireless connectivity (requires external module)

---

### 8. Standards & Compliance

Ingress Protection:
- Front bezel rated NEMA 4 / IP65, ensuring protection against dust, water splashes, and industrial contaminants.

Certifications:
- CE (Conformité Européenne)
- FCC Class A (for industrial and commercial environments)

Industry Standards:
- VESA 75 mounting standard
- RS-232/422/485 serial communication standards
- USB 2.0 and Ethernet IEEE 802.3 compliance

Safety and EMC Compliance:
The AHM-6105 meets international standards for electromagnetic compatibility and electrical safety, ensuring reliable operation in industrial environments with minimal interference.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship under normal use.

Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Engineering support is available for system integration and customization.

Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and connectors recommended.
- Storage devices (HDD/CF) may require replacement after extended use.

Software & Updates:
- Compatible with Windows Embedded, Windows XP/7 (embedded versions), and Linux distributions.
- BIOS and driver updates available from Aplex support portal.
- Touchscreen calibration and firmware utilities provided with the system.

Lifecycle & Reliability:
- Designed for long-term availability and stable supply for industrial OEMs.
- Backlight rated for 40,000 hours ensures extended operational life.
- Rugged construction supports continuous 24/7 operation in industrial environments.

---

### Summary

The Aplex AHM-6105 is a compact, fanless 10.4-inch industrial panel PC engineered for reliability, durability, and flexibility in industrial automation and embedded control applications. With its Intel® Celeron® M processor, resistive touchscreen, and robust I/O interface set, it provides a stable platform for HMI, monitoring, and control tasks. Its rugged metal housing, IP65-rated front bezel, and wide DC input range make it suitable for harsh environments, while compliance with CE and FCC Class A standards ensures dependable performance in professional installations.

The AHM-6105 exemplifies Aplex’s commitment to delivering high-quality, long-life industrial computing solutions optimized for performance, reliability, and ease of integration.
