Comprehensive Product Summary: ADLINK DLAP‑201‑JT2 NVIDIA® Jetson™ TX2 Edge Inference Platform

---

### 1. Product Overview

Product Name: DLAP‑201‑JT2
Model: DLAP‑201‑JT2
Series: DLAP‑201 Series Edge Inference System
Article Number: DLAP‑201‑JT2
Manufacturer: ADLINK Technology, Inc.
Part Number: 50‑1Z308‑1000
Revision: 1.0 (January 14, 2020)

The ADLINK DLAP‑201‑JT2 is a compact, fanless edge AI inference platform built around the NVIDIA® Jetson™ TX2 module. Designed for industrial and embedded AI applications, it delivers high‑performance deep learning acceleration in a ruggedized, small‑form‑factor system suitable for smart city, transportation, and manufacturing environments.

---

### 2. Key Features

- Deep Learning Acceleration: Powered by the NVIDIA® Jetson™ TX2 or TX2i module, featuring a Pascal™ GPU with 256 CUDA cores for efficient AI inference at the edge.
- High‑Performance Memory and Storage: 8 GB 128‑bit LPDDR4 memory and 32 GB eMMC 5.1 onboard storage, with additional mSATA and SDIO expansion options.
- Compact Fanless Design: Dimensions of 148 (W) × 104.8 (D) × 52.1 (H) mm enable deployment in space‑constrained environments.
- Wide Operating Temperature Range: Reliable operation from –20 °C to 70 °C for industrial and outdoor use.
- Comprehensive I/O Connectivity: Dual GbE ports, three USB 3.0 ports, one USB 2.0 OTG, HDMI 2.0 with lock, COM port, CAN 2.0B bus, audio jack, and four‑channel DIO.
- Wireless Communication Support: Integrated Wi‑Fi 802.11ac and Bluetooth 4.1, plus mPCIe and USIM slots for 3G/4G LTE or LoRa modules.
- Flexible Mounting Options: Supports VESA, wall, and optional DIN‑rail mounting for versatile installation.
- Industrial‑Grade Reliability: IP40 protection, vibration and shock resistance, and compliance with CE/FCC Class B and IEC/UL safety standards.
- Linux for Tegra (L4T) Support: Pre‑installed NVIDIA L4T OS optimized for Jetson TX2, with ADLINK customization for edge AI workloads.

---

### 3. Technical Specifications

Processor: NVIDIA® Jetson™ TX2 (optional TX2i variant)
GPU: NVIDIA® Pascal™ architecture, 256 CUDA cores
Memory: 8 GB LPDDR4 (128‑bit)
Storage: 32 GB eMMC 5.1 onboard; 1 × mSATA (full‑size) slot; 1 × SDIO slot

Graphic Output:
- 1 × HDMI 2.0 with lock (supports 3840 × 2160 @ 60 fps)

Front Panel I/O:
- 2 × GbE (RJ‑45): LAN 1 via Jetson TX2, LAN 2 via Intel® I210
- 3 × USB 3.0 Type‑A
- 1 × Audio jack (mic‑in or line‑out)
- Power, Reset, and Recovery buttons with LED indicator
- 12 V DC input (screw‑type connector)

Rear Panel I/O:
- 1 × USB 2.0 OTG (Micro‑USB)
- 1 × COM port (DE‑9, RS‑232/422/485 selectable via jumpers)
- 1 × CAN bus (2.0B, backward compatible with 2.0A)

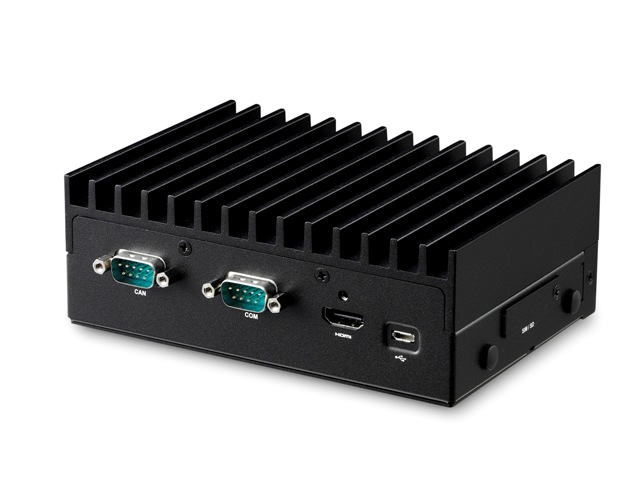

- 1 × HDMI 2.0 with lock

Internal Interfaces:
- 1 × Mini PCIe slot (linked to USIM slot)
- 1 × USIM slot (standard size)
- 4‑channel DIO
- 1 × Debug console

Wireless Connectivity (via TX2):
- Wi‑Fi 802.11ac (2 × 2 867 Mb/s)
- Bluetooth 4.1 (24 Mb/s)

Power Requirements:
- DC Input: 12 V (2.7 A minimum)
- Optional AC‑DC Adapter: 40 W (ADLINK P/N 31‑62156‑1000‑A0)
- Reverse charge protection and BR2032 CMOS battery

Mechanical:
- Dimensions: 148 (W) × 104.8 (D) × 52.1 (H) mm
- Weight: Approx. 765 g
- Antenna holes: 4 × SMA
- Mounting: VESA 100 mm (default), optional DIN rail
- IP Rating: IP40

Environmental:
- Operating Temperature: –20 °C to 70 °C
- Storage Temperature: –40 °C to 85 °C
- Humidity: 95 % @ 40 °C (non‑condensing)
- Vibration: 5 Grms (5–500 Hz, 3 axes with mSATA)
- Shock: 100 G half‑sine 11 ms (with SD and mSATA)
- ESD Protection: ± 4 kV (contact), ± 8 kV (air)

Compliance:
- EMC: CE & FCC Class B (EN61000‑6‑4 / ‑6‑2)
- Safety: IEC / CE / UL standards
- RF Regulations: FCC ID compliant

Operating System:
- Linux for Tegra (L4T)

---

### 4. Functionality

The DLAP‑201‑JT2 operates as an edge inference computer, executing AI models locally without reliance on cloud connectivity. The integrated Jetson TX2 module provides GPU‑accelerated deep learning for tasks such as object detection, classification, and tracking.

Typical Use Cases:
- Smart City: real‑time traffic flow analysis, vehicle recognition, and public safety monitoring.
- Smart Manufacturing: visual inspection, defect detection, and predictive maintenance.
- Transportation: fleet management, driver monitoring, and autonomous vehicle edge processing.
- Retail and Logistics: inventory tracking and customer analytics.

Compatibility:
- Supports NVIDIA JetPack SDK and TensorRT for AI inference optimization.
- Compatible with standard USB peripherals, industrial sensors via COM or CAN bus, and HDMI displays.
- Expandable wireless connectivity through mPCIe modules for LTE or LoRa networks.

---

### 5. Components & Accessories

Included Items:
- DLAP‑201‑JT2 main unit
- Wi‑Fi antennas (2 pcs)
- Screw pack
- VESA mount kit

Optional Accessories:
- DIN rail mount kit (with six M4 screws)
- 40 W AC‑DC adapter (12 V output, P/N 31‑62156‑1000‑A0)
- 3G/4G LTE mPCIe module and SIM card for cellular connectivity

Connectors:
- 12 V DC screw‑type input (3‑pin: +12 V, GND, GND)
- RJ‑45 GbE ports with LED speed indicators (yellow = 1 Gbps, green = 100 Mbps)
- HDMI 2.0 19‑pin connector with locking mechanism
- USB 3.0 Type‑A and Micro‑USB OTG connectors
- DE‑9 serial port for RS‑232/422/485
- CAN bus 9‑pin connector (2.0B)

---

### 6. Installation & Setup

Requirements:
- 12 V DC power supply (LPS and SELV compliant)
- Minimum clearance of 5 cm above unit for heat dissipation
- Operating environment within –20 °C to 70 °C

Mounting Options:
- VESA Mount: Attach the included VESA 100 bracket to a wall or panel, secure the unit using four M4 screws, and slide into place.
- DIN Rail Mount: Optional kit attaches to the chassis using six M4 screws for industrial rack installation.

Internal Expansion:
- mSATA Installation: Insert module at an angle, press down, and secure with M2.5 screws.
- mPCIe 3G/4G Module: Install module and SIM card via side door; attach antennas as required.

Power Connection:
- Verify 12 V polarity before connection. Improper voltage may damage the system.
- Optional ADLINK adapter provides secure locking DC plug.

Software Setup:
- Ships with custom ADLINK Linux for Tegra (L4T) image.
- System recovery via USB 2.0 OTG port and host PC (see Section 3.2 of manual).
- Supports flashing new images using NVIDIA “flash.sh” utility.

---

### 7. Performance & Capabilities

Processing Power:
- Jetson TX2 module delivers up to 1.5 TFLOPS FP16 performance for AI inference.
- 256 CUDA cores enable parallel processing for real‑time computer vision tasks.

Networking:
- Dual Gigabit Ethernet interfaces support redundant or segmented network topologies.
- Optional LTE module enables remote edge deployment without wired infrastructure.

Storage & Data Handling:
- Onboard 32 GB eMMC for OS and applications.
- Expandable via mSATA SSD and SD card for data logging or model storage.

Thermal Efficiency:
- Fanless aluminum chassis with integrated heat sink and thermal pads for passive cooling.
- Designed for continuous operation in industrial environments.

Limitations:
- Single HDMI output (no DisplayPort support).
- Limited internal expansion to one mPCIe slot.
- Requires 12 V regulated power input.

---

### 8. Standards & Compliance

Environmental Responsibility:
ADLINK complies with EU RoHS and WEEE directives, ensuring minimal environmental impact throughout the product lifecycle.

Certifications:
- CE and FCC Class B (EN61000‑6‑4 / ‑6‑2)
- IEC / CE / UL Safety Standards
- RF Regulations: FCC ID compliant
- ESD Protection: ± 4 kV (contact), ± 8 kV (air)

Mechanical & Electrical Safety:
- Meets IEC 62368‑1 and UL 62368‑1 requirements.
- Reverse charge protection for CMOS battery.

---

### 9. Additional Information

Warranty & Support:
- Standard ADLINK limited hardware warranty (terms vary by region).
- Technical support available via ADLINK regional offices and Ask an Expert portal: [http://askanexpert.adlinktech.com](http://askanexpert.adlinktech.com).

Maintenance:
- Periodically inspect connectors and mounting hardware.
- Ensure adequate ventilation and clean dust from heat sink surfaces.
- Replace BR2032 battery only with approved type to avoid explosion risk.

Software Updates:
- Latest L4T images and firmware available from ADLINK website:
[https://www.adlinktech.com/Products/Deep_Learning_Accelerator_Platform_and_Server/Inference_Platform/DLAP‑201‑JT2](https://www.adlinktech.com/Products/Deep_Learning_Accelerator_Platform_and_Server/Inference_Platform/DLAP-201-JT2)
- NVIDIA JetPack SDK and TensorRT updates available from NVIDIA Developer portal.

Service Contacts:
- Headquarters: ADLINK Technology, Inc., New Taipei City, Taiwan (+886‑2‑8226‑5877)
- Americas: Ampro ADLINK Technology, San Jose, CA, USA (+1‑408‑360‑0200)
- China: ADLINK Technology (China) Co., Ltd., Shanghai (+86‑21‑5132‑8988)
- Europe: ADLINK Technology GmbH, Mannheim, Germany (+49‑621‑43214‑0)

---

### Summary

The ADLINK DLAP‑201‑JT2 is a robust, industrial‑grade edge inference platform optimized for AI workloads using the NVIDIA Jetson TX2 module. Its combination of GPU‑accelerated computing, rich I/O, and rugged fanless design makes it ideal for real‑time analytics and machine vision in harsh environments. With support for multiple mounting options, wide temperature tolerance, and comprehensive connectivity—including Ethernet, CAN, and wireless—the DLAP‑201‑JT2 provides a reliable foundation for deploying intelligent edge systems across diverse industrial and commercial sectors.
