Comprehensive Product Summary: Vecow EC‑3000‑3G Fanless Embedded Controller

---

### 1. Product Overview

Product Name: Vecow EC‑3000‑3G
Model: EC‑3000‑3G
Series: EC‑3000 Embedded Controller Series
Article Number: EC‑3000‑3G
Manufacturer: Vecow Co., Ltd.
Manufacturer Headquarters: 4F, No. 52, Aly. 3, Ln. 182, Sec. 2, WenHua Rd., Panchiao Dist., New Taipei City, Taiwan
Website: [www.vecow.com](http://www.vecow.com)
Support Contact: Tel: +886‑2‑2258‑5665

The Vecow EC‑3000‑3G is a rugged, fanless embedded barebone system designed for industrial and embedded computing applications. It integrates Intel® Core™ i7/i5 mobile processors and the Intel® HM55 chipset, offering high‑performance computing in a compact, vibration‑resistant, and thermally efficient aluminum chassis. The system is optimized for environments requiring reliable operation under wide temperature ranges and continuous uptime, such as automation, surveillance, transportation, and industrial control.

---

### 2. Key Features

- High‑Performance Intel® Core™ i7/i5 Mobile Processors:
Supports Intel® Core™ i7‑620M (2.66 GHz), i5‑520M (2.4 GHz), and Celeron® P4500 (1.86 GHz) processors, with additional compatibility for other i7/i5/i3/Pentium/Celeron mobile CPUs in rPGA988 package.

- Fanless, Rugged Design:
Completely fanless aluminum housing ensures silent operation, extended MTBF, and resistance to dust, vibration, and shock. Ideal for harsh industrial environments.

- Triple Gigabit Ethernet Ports:
Three independent Intel® 82574L Gigabit Ethernet controllers, each with a dedicated PCI Express link for maximum throughput and network isolation.

- Dual Display Support:
Simultaneous VGA and DVI‑D/HDMI outputs supporting resolutions up to 2560 × 1600 (VGA) and 1920 × 1080 (DVI/HDMI).

- Rich I/O Connectivity:

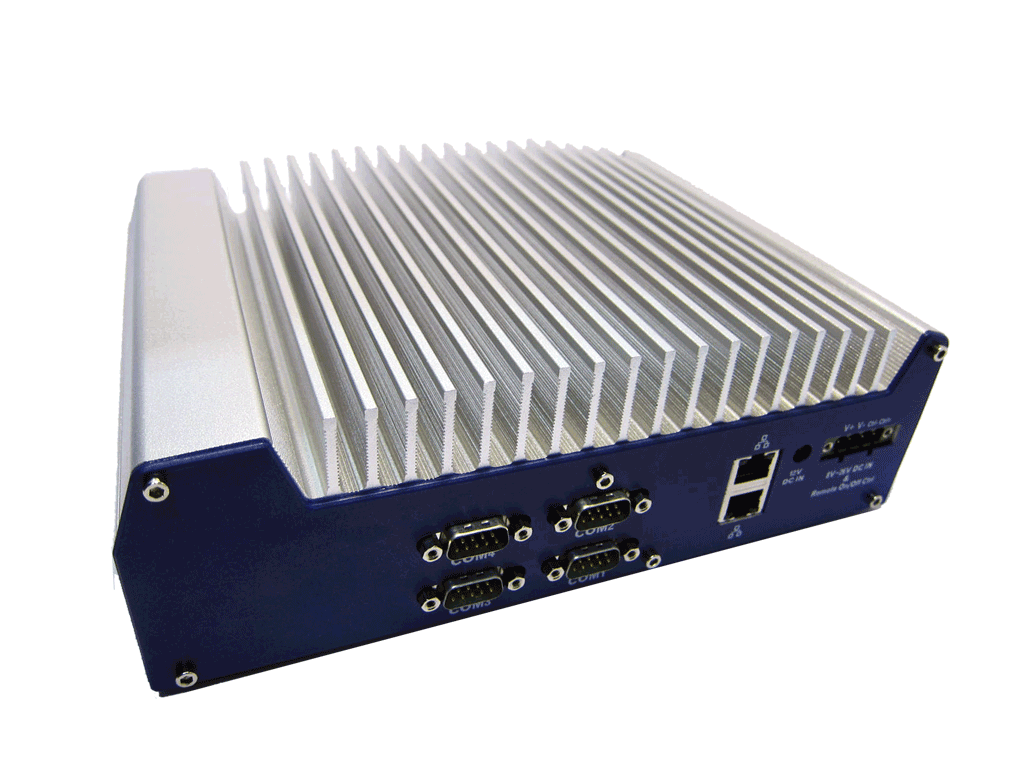

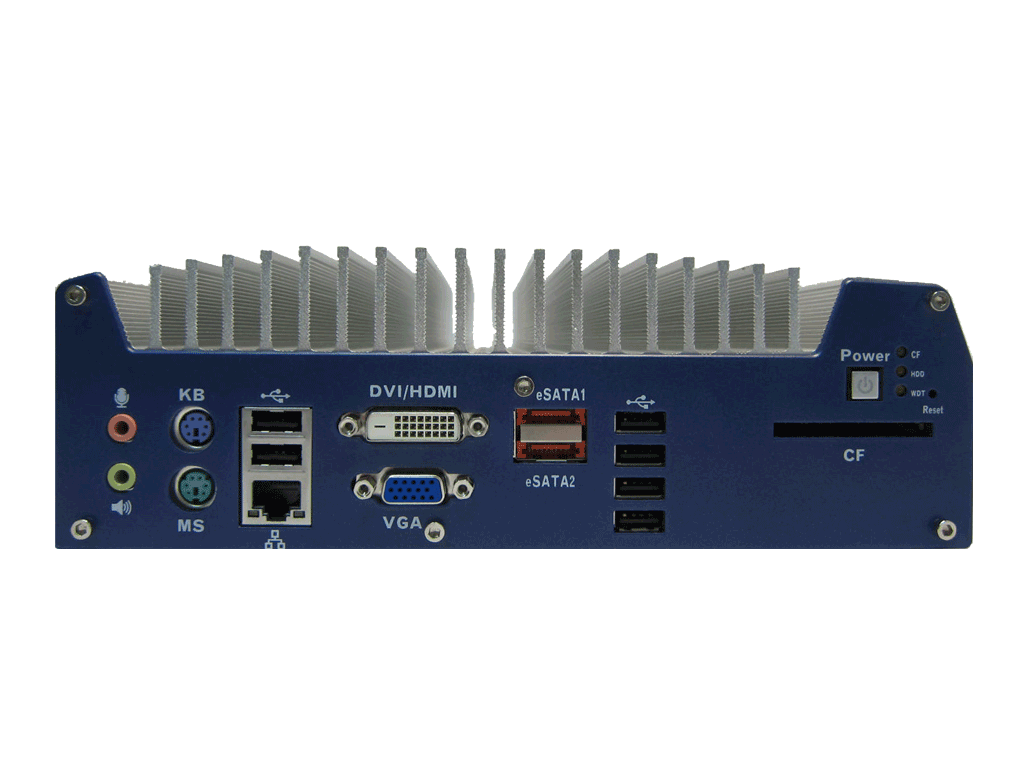

Includes 6 × USB 2.0, 2 × eSATA, 4 × COM (3 × RS‑232, 1 × RS‑232/422/485), PS/2 keyboard and mouse, audio I/O, and CompactFlash Type I socket.

- Flexible Power Input:
Wide‑range 8 – 26 V DC input via 4‑pin terminal block with remote on/off control, or 12 V DC jack for AC/DC adapter.

- Extended Temperature Operation:
Reliable performance from –20 °C to +70 °C (operating) and –40 °C to +85 °C (storage).

- Industrial‑Grade Durability:
Vibration tolerance up to 5 Grms (5–500 Hz, 3 axes) and shock resistance up to 50 Grms (11 ms half‑sine).

- Compact, Wall‑Mountable Form Factor:
Dimensions 240 × 195 × 76 mm, weight 2.7 kg, with included wall‑mount brackets.

- Optional Digital I/O Expansion:
Isolated 8 × DI and 8 × DO (24 V) via optional DB‑25 connector.

- Power Management and Remote Control:
Supports AT/ATX power modes, Wake‑on‑LAN (WOL), and remote on/off control through terminal block.

- Operating System Compatibility:
Verified support for Windows XP, Windows 7 (32/64‑bit), and Linux distributions (Ubuntu 10.04 LTS, Fedora 13).

---

### 3. Technical Specifications

Processor Support:
- Intel® Core™ i7/i5 Mobile Processors (rPGA988 socket)
- i7‑620M (2.66 GHz)
- i5‑520M (2.4 GHz)
- Celeron® P4500 (1.86 GHz)
- Additional supported CPUs: i7‑640M, i5‑580M/560M/540M/480M/460M/450M/430M, i3‑380M/370M/350M/330M, Pentium® P6000.
- Embedded roadmap CPUs (marked *): 7‑year lifecycle (2010–2016).

Chipset: Intel® HM55 PCH

Memory:
- 1 × DDR3 SO‑DIMM socket, up to 4 GB DDR3 1066 MHz SDRAM

Storage:
- 1 × SATA port with power pins for internal 2.5″ HDD/SSD
- 2 × eSATA external ports
- 1 × CompactFlash Type I socket

Display:
- VGA (up to 2560 × 1600)
- DVI‑D (up to 1920 × 1080) / HDMI (up to 1920 × 1080)

Audio:
- Realtek ALC262 codec
- 1 × Mic‑in, 1 × Speaker‑out

Networking:
- 3 × Intel® 82574L Gigabit Ethernet ports (RJ‑45)
- PXE boot and Wake‑on‑LAN support (front port only)

Serial Communication:
- COM1: RS‑232/422/485 (software‑selectable)
- COM2/COM3/COM4: RS‑232
- Baud rate up to 115200 bps

USB: 6 × USB 2.0 ports

PS/2: 1 × Keyboard, 1 × Mouse

Expansion:
- 1 × Mini PCI Express slot
- 1 × PCI‑104 socket (optional reserved footprint)

Power Input:
- 4‑pin pluggable terminal block (8 – 26 V DC, remote on/off control)
- 12 V DC jack (Ø 2.5 mm) for AC/DC adapter

Mechanical:
- Dimensions: 240 mm (W) × 195 mm (D) × 76 mm (H)
- Weight: 2.7 kg
- Mounting: Wall‑mount bracket included

Environmental:
- Operating Temperature: –20 °C to +70 °C
- Storage Temperature: –40 °C to +85 °C
- Humidity: 10 % – 90 %, non‑condensing
- Vibration: 5 Grms (5–500 Hz, 3 axes, w/ SSD) per IEC 60068‑2‑64
- Shock: 50 Grms (11 ms half‑sine, w/ SSD) per IEC 60068‑2‑27
- EMC: CE/FCC Class A

---

### 4. Functionality

The EC‑3000‑3G operates as a compact, high‑reliability embedded controller for industrial automation, machine vision, digital surveillance, and transportation systems. Its fanless architecture dissipates heat through the aluminum chassis, eliminating moving parts and ensuring long‑term stability in dusty or vibration‑prone environments.

Use Cases and Applications:
- Industrial process control and data acquisition
- Machine vision and inspection systems
- Networked video surveillance (with optional capture cards)
- Transportation and fleet management systems
- Digital signage and kiosk controllers
- Edge computing and IoT gateways

Compatibility:
- Supports Windows XP, Windows 7 (32/64‑bit), and Linux (Ubuntu 10.04 LTS, Fedora 13).
- BIOS configurable for IDE or AHCI SATA modes to match OS and storage type.
- Supports legacy PS/2 devices and modern USB peripherals.

---

### 5. Components & Accessories

Standard Package Contents:
1. EC‑3000‑3G fanless controller unit
2. Accessory box containing:
- Vecow Drivers & Utilities DVD
- Wall‑mount bracket
- M4 mounting screws (× 4)
- Foot pads (× 4)
- 4‑pin pluggable terminal block
- HDD thermal pad
3. Quick Installation Guide

Optional Accessories:
- VMX‑200‑4: 4‑channel D1 real‑time Mini PCIe video capture card (120 fps NTSC / 100 fps PAL, H.264/MJPEG, SDK included).
- VMX‑200‑8: 8‑channel D1 real‑time Mini PCIe video capture card (240 fps NTSC / 200 fps PAL, H.264/MJPEG, SDK included).
- PWA‑60W: 60 W AC/DC power adapter.
- Optional isolated 8 × DI / 8 × DO (24 V) module via DB‑25 connector.

---

### 6. Installation & Setup

Mounting:
The EC‑3000‑3G includes wall‑mount brackets for secure installation on flat surfaces. The “pet‑door” access panel on the chassis bottom allows quick installation or replacement of the DDR3 SO‑DIMM and 2.5″ HDD/SSD.

Power Connection:
- Terminal Block Input: Connect V+ and V– for power (8 – 26 V DC). Ctrl+ and Ctrl– pins enable remote on/off control in AT mode.
- DC Jack Input: 12 V DC (Ø 2.5 mm) for AC/DC adapter. Do not use both inputs simultaneously.

Configuration:
- BIOS accessible for COM mode selection (RS‑232/422/485), SATA mode (IDE/AHCI), power recovery behavior, and WOL settings.
- Supports AT and ATX power modes (selectable via JP6 jumper).
- Wake‑on‑LAN enabled through front Ethernet port.

Driver Installation (Windows):
1. Chipset driver (EC3000v10_Chipset_Win_9.2.0.1021)
2. Microsoft .NET Framework 3.5 (for XP)
3. Graphics driver (EC3000v10_Graphics)
4. Audio driver (EC3000v10_Audio_Win_R2.57_20110620)
5. LAN driver (EC3000v10_LAN)
6. ME driver (EC3000v10_ME_Win_6.1.0.1042_PV)

---

### 7. Performance & Capabilities

Processing Performance:
Dual‑core Intel® Core™ i7/i5 CPUs deliver high computational throughput for arithmetic‑intensive tasks such as real‑time data processing and image analysis.

Networking Performance:
Three dedicated Intel® 82574L controllers provide independent 1 Gbps links with low latency and full duplex operation. Each port is isolated on its own PCIe lane to avoid bandwidth bottlenecks.

Storage Performance:
Supports SATA II (3 Gb/s) devices and eSATA hot‑plug operation in AHCI mode. CompactFlash socket available for embedded boot media.

Graphics Performance:
Integrated Intel® HD Graphics supports dual display output (VGA + DVI/HDMI) with high‑resolution capability for industrial HMI and visualization applications.

Reliability & Durability:
Fanless design and solid‑state storage options enable operation in vibration‑intensive environments such as vehicles or factory floors. Thermal management is passive, with CPU throttling and shutdown protection configurable in BIOS (90 °C throttle, 105 °C shutdown for i7/i5).

Limitations:
- Single SO‑DIMM slot limits memory to 4 GB.
- No internal fan means adequate ambient airflow is recommended for sustained high CPU loads.
- Only front Ethernet port supports Wake‑on‑LAN.

---

### 8. Standards & Compliance

Regulatory Compliance:
- FCC Class A: Complies with Part 15 of FCC Rules for commercial digital devices.
- CE Marking: Conforms to applicable EU directives for EMC and safety.
- RoHS: All components and optional modules are RoHS compliant.

Environmental Testing:
- Vibration and shock tested per IEC 60068‑2‑64 and IEC 60068‑2‑27.
- Operating temperature validated from –20 °C to +70 °C.

Industry Standards:
- Intel® Embedded Roadmap CPU support (7‑year lifecycle).
- PCI Express Mini Card and PCI‑104 expansion standards.
- SATA II and USB 2.0 compliance.

---

### 9. Additional Information

Warranty & Support:
Vecow provides global technical support and professional services through its corporate headquarters and authorized partners. Warranty terms are subject to regional policy and product configuration.

Maintenance:
- Periodically inspect DC connections and mounting hardware.
- Ensure adequate ventilation around the aluminum chassis.
- BIOS and driver updates available from [www.vecow.com](http://www.vecow.com).

Software Updates:
Vecow regularly releases updated drivers and BIOS firmware to enhance compatibility with new operating systems and hardware modules.

Lifecycle & Longevity:
Designed for long‑term embedded deployment with Intel® Embedded Roadmap processors supported through 2016 and beyond.

---

### Summary

The Vecow EC‑3000‑3G is a robust, fanless embedded controller engineered for industrial and mission‑critical applications requiring high reliability, wide temperature tolerance, and rich connectivity. Powered by Intel® Core™ i7/i5 mobile processors and the HM55 chipset, it delivers desktop‑class performance in a compact form factor. Its triple Gigabit Ethernet ports, dual display outputs, and comprehensive I/O make it ideal for automation, machine vision, and networked control systems. With CE/FCC Class A certification, rugged mechanical design, and flexible power options, the EC‑3000‑3G offers a reliable platform for long‑term industrial deployment.
