1. Product Overview

Product Name: ECS-7800-PoE
Model: ECS-7800-PoE
Series: ECS-7000 Series Fanless Embedded Controllers
Article Number: ECS-7800-PoE
Manufacturer: Vecow Co., Ltd. (Taiwan)

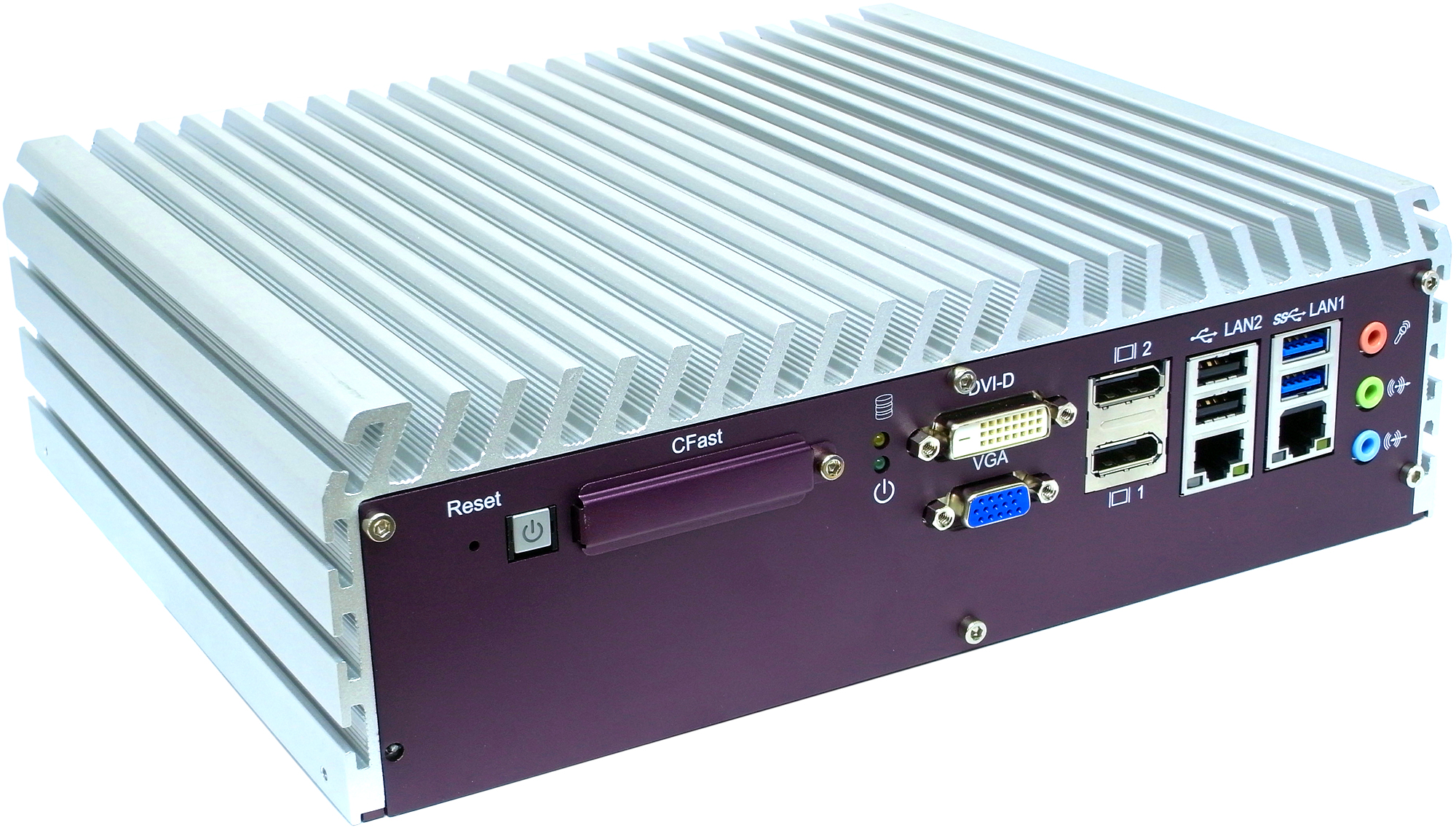

The Vecow ECS-7800-PoE is a high-performance, fanless embedded barebone system designed for industrial and embedded computing applications. It integrates 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile processors with the Intel® QM77 chipset, providing robust computing power, advanced graphics, and extensive I/O connectivity. The system features four IEEE 802.3at PoE+ Gigabit Ethernet ports, multiple display outputs, and ruggedized construction for extended temperature operation from -25°C to +70°C. It is engineered for machine vision, intelligent transportation systems (ITS), industrial automation, and surveillance applications requiring high reliability and low maintenance in harsh environments.

---

2. Key Features

- Processor Support: 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile processors (up to 3.30 GHz, 6 MB cache).
- Chipset: Intel® QM77 Express chipset for mobile platforms.
- Fanless Design: Completely fanless aluminum chassis for silent operation and enhanced reliability.
- Extended Temperature Range: Operates from -25°C to +70°C, suitable for outdoor and industrial environments.

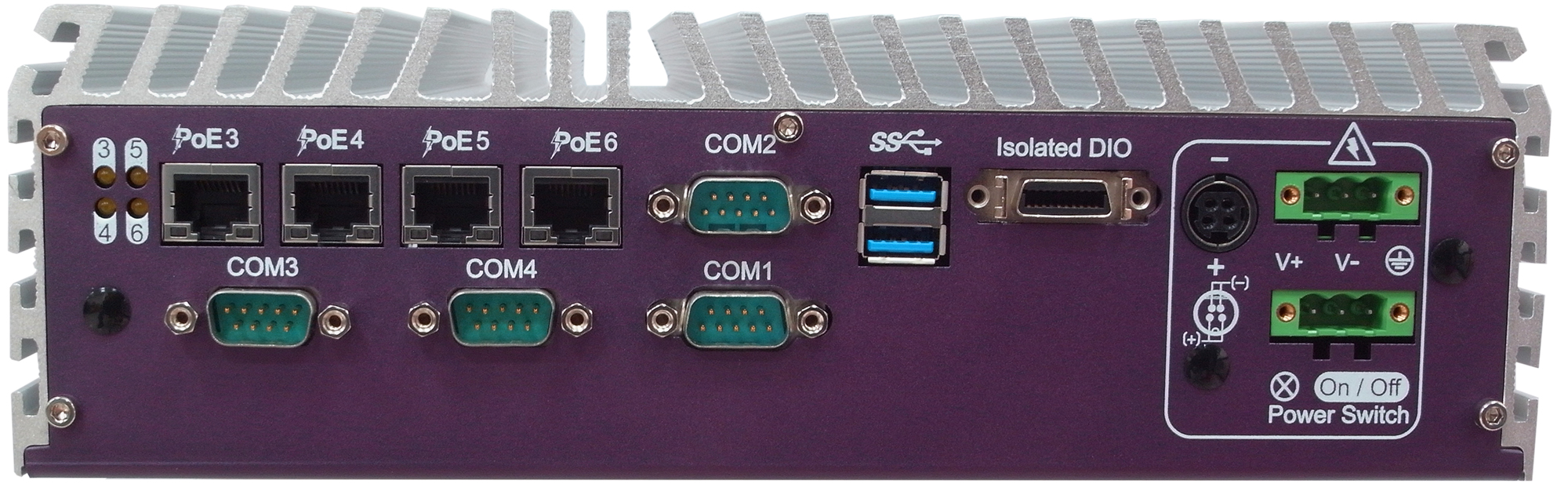

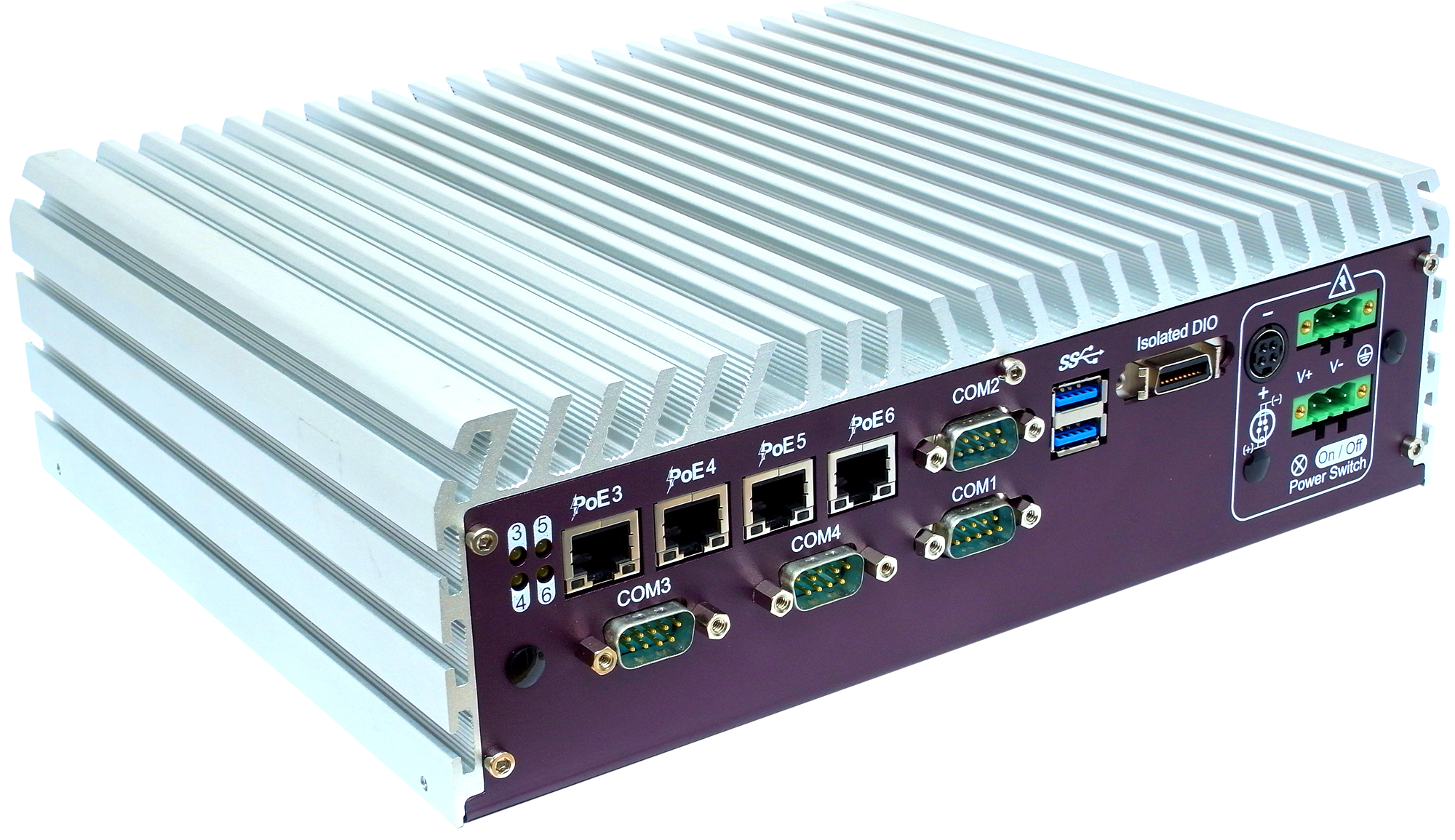

- Power over Ethernet (PoE+): Four IEEE 802.3at PoE+ Gigabit Ethernet ports (25.5 W per port, 48 VDC) powered by Intel® 82574L controllers.
- Rich I/O Connectivity:
- 6 Gigabit Ethernet ports (2 standard GbE + 4 PoE+)
- 4 USB 3.0, 2 USB 2.0, and 2 internal USB 2.0 ports
- 4 COM ports (3 RS-232, 1 RS-232/422/485)
- Isolated 8 Digital Inputs / 8 Digital Outputs
- 16 GPIO lines

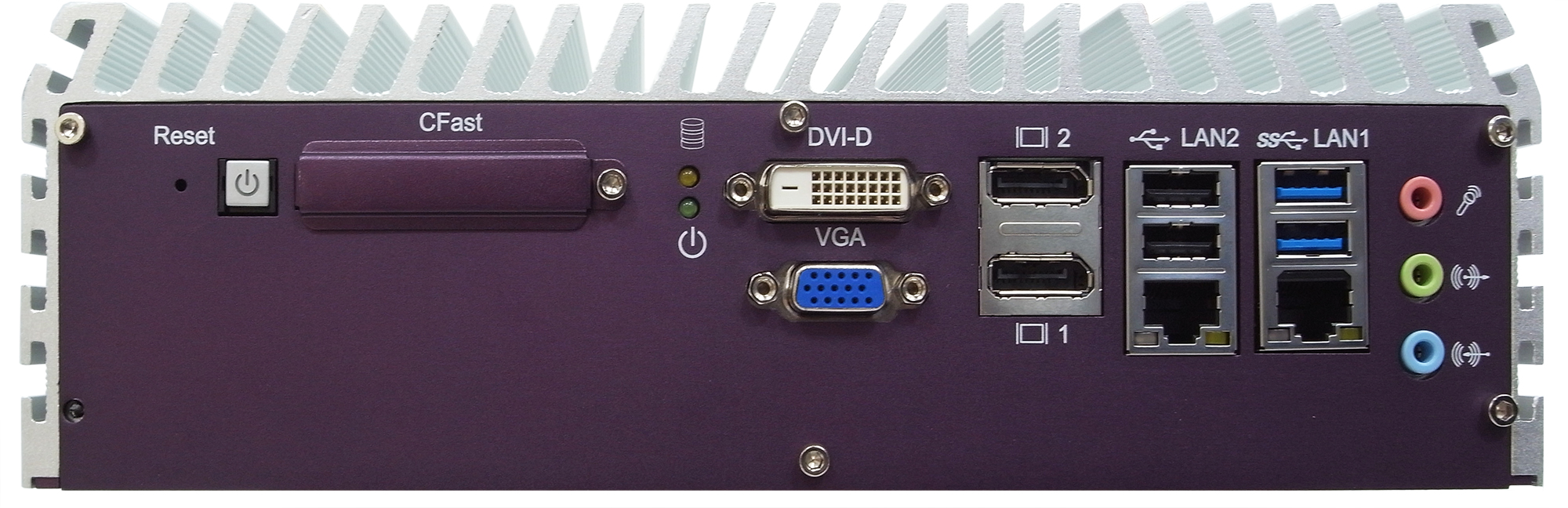

- Display Support: Up to five display interfaces (2× DisplayPort, 1× DVI-D, 1× VGA, 1× LVDS) supporting three independent displays.
- Storage Options:
- 2× SATA III (6 Gbps) for 2.5” HDD/SSD
- 1× SATA II (3 Gbps) for horizontal SATA DOM
- 2× mSATA II (3 Gbps)
- 1× external CFast slot (hot-swappable)
- Expansion Capability:
- 2× Mini PCIe slots (one with SIM card socket)
- 2× SUMIT A/B slots (optional)
- Security and Reliability: Optional Infineon SLB9635 TPM module, watchdog timer, and hardware monitoring.
- Power Input: 6–36 VDC wide-range input with LT4356 surge protection (80 VDC tolerance).
- Certifications: CE and FCC Class A compliant.

---

3. Technical Specifications

Processor:
- Supports Intel® Core™ i7-3610QE, i5-3610ME, i3-3120ME, and other 3rd Gen Ivy Bridge CPUs.
- Socket: rPGA988B
- Cache: 6 MB
- Frequency: Up to 3.30 GHz
- TDP: 35–45 W

Chipset: Intel® QM77 Mobile Express

Memory:
- 2× 204-pin SO-DIMM sockets
- DDR3 1066/1333/1600 MHz or DDR3L 1066/1333 MHz
- Maximum capacity: 16 GB

Graphics:
- Integrated Intel® GMA HD 4000
- Shared memory up to 1.7 GB
- Display interfaces:
- VGA (DB-15, up to 1920×1200)
- DVI-D (up to 1920×1200)
- DisplayPort 1 (up to 2560×1600)
- DisplayPort 2 (up to 1920×1200)
- LVDS dual-channel 24-bit (up to 1920×1200)
- Supports up to three independent displays

Storage:
- 2× SATA III (6 Gbps) for 2.5” HDD/SSD
- 1× SATA II (3 Gbps) for SATA DOM
- 2× mSATA II (3 Gbps)
- 1× external CFast slot (push-in/out ejector)

Audio:
- Codec: Realtek ALC892, 5.1-channel HD Audio
- Interfaces: Line-in, Line-out, Mic-in, front audio header

Ethernet:
- LAN1: Intel® 82579LM GbE (AMT 8.0, Wake-on-LAN, PXE)
- LAN2: Intel® 82574L GbE (Wake-on-LAN, PXE)
- PoE Ports: 4× Intel® 82574L IEEE 802.3at PoE+ (25.5 W per port, 48 VDC)

Digital I/O:
- 8 isolated digital inputs (5–24 V)
- 8 isolated digital outputs
- 16 GPIO lines

Expansion:
- 2× Mini PCIe (one with SIM socket, both support mSATA)
- 2× SUMIT A/B slots (optional)
- 1× internal 6-pin JST connector (USB 2.0)

Power:
- Input: 6–36 VDC via 3-pin terminal block or Mini-DIN
- Optional AC/DC adapter: 120 W, 24 V/5 A
- Protection: LT4356 surge protection (up to 80 VDC)

Mechanical:
- Construction: Aluminum housing
- Dimensions: 260 × 215 × 79 mm (10.2" × 8.5" × 3.1")
- Weight: 3 kg (6.6 lb)
- Mounting: Wall-mount brackets included

Environmental:
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 10–95% non-condensing
- Vibration: 0.5 Grms (5–500 Hz, IEC68-2-64)
- Shock: 20 Grms, 11 ms half-sine (IEC60068-2-27)
- EMC: CE/FCC Class A

---

4. Functionality

The ECS-7800-PoE functions as a rugged embedded controller optimized for industrial automation, machine vision, and intelligent transportation. It integrates computing, networking, and power delivery through PoE+ technology, enabling simultaneous data and power transmission over a single Ethernet cable. Each PoE+ port can supply up to 25.5 W at 48 VDC, suitable for powering IP cameras, sensors, and displays.

The system supports multiple display outputs for visualization and monitoring, and its isolated digital I/O allows safe interfacing with industrial sensors and actuators. The dual Mini PCIe slots enable wireless communication modules (Wi-Fi, 3G/4G/LTE) or additional storage via mSATA. The integrated Intel® AMT 8.0 provides remote management and diagnostics capabilities.

Typical applications include:
- Machine vision and industrial inspection systems
- Intelligent traffic systems (ITS) and surveillance
- Medical imaging and diagnostics
- Factory automation and robotics
- Outdoor kiosks and digital signage

---

5. Components & Accessories

Included Items:
- ECS-7800-PoE main unit
- Wall-mounting brackets and M4 screws
- 4-pin pluggable terminal block for DC input
- Vecow Drivers & Utilities DVD

Optional Accessories:
- Memory Modules:
- Vecow M340S-W28M1 DDR3 4 GB 1333/1066 MHz (wide temp -40°C~+85°C)
- Kingston KVR1333D3S9/8G (8 GB) or KVR1333D3S9/4G (4 GB)
- Power Adapter: PWA-120WM4P (120 W, 24 V, 90–264 VAC input)
- Cables and Boards:
- SCSI-20P-100 (1 m 20-pin SCSI cable)
- TMB-SCSI-20P (terminal board with DIN-rail mount)
- Wireless Module: Intel Mini PCIe Wi-Fi module with antenna

---

6. Installation & Setup

Requirements:
- DC power source (6–36 VDC) or optional 120 W AC/DC adapter
- Compatible DDR3/DDR3L SO-DIMM memory modules
- 2.5” SATA HDD/SSD or mSATA storage device

Mounting Options:
- Wall-mount installation using included brackets
- Proper grounding via terminal block for EMI protection

Configuration Steps:
1. Install DDR3/DDR3L SO-DIMM modules (up to 16 GB).
2. Mount 2.5” HDD/SSD or SATA DOM using SATA connectors.
3. Insert Mini PCIe or mSATA modules as required.
4. Connect power via terminal block or Mini-DIN connector.
5. Attach display, Ethernet, and peripheral cables.
6. Configure BIOS settings (press F2 during POST).
7. Install operating system and drivers in the recommended order:
- Intel Chipset → Graphics → Network → Audio → USB 3.0 → Storage → AMT.

Supported operating systems include Windows XP, Windows 7/8/Server 2008/2012, and Linux distributions (Ubuntu 10.04+, Fedora 13+, kernel 2.6.33+).

---

7. Performance & Capabilities

- Processing Power: Up to 3.30 GHz quad-core performance with Intel® Turbo Boost.
- Memory Bandwidth: Dual-channel DDR3/DDR3L up to 1600 MHz.
- Graphics Performance: Intel® HD 4000 supports triple independent displays and full HD resolutions.
- Networking: Six Gigabit Ethernet ports with PoE+ capability for high-throughput data and device power.
- Storage Throughput: SATA III 6 Gbps interfaces for fast SSD performance.
- Power Efficiency: Wide-range DC input with surge protection ensures stable operation in mobile or industrial power environments.
- Reliability: Fanless design eliminates mechanical failure points; aluminum housing enhances heat dissipation.
- Limitations: No internal fan or active cooling; thermal management relies on ambient airflow. CFast slot does not support hot-swap or plug-and-play.

---

8. Standards & Compliance

- Electrical Safety & EMC: CE and FCC Class A certified.
- Environmental Standards:
- IEC68-2-64 vibration compliance
- IEC60068-2-27 shock compliance
- PoE Standard: IEEE 802.3at (PoE+) compliant, 25.5 W per port.
- Management: Intel® AMT 8.0 for remote management and diagnostics.
- Security: Optional Infineon SLB9635 Trusted Platform Module (TPM) for hardware-based encryption and authentication.
- RoHS Compliance: All components meet RoHS environmental directives.

---

9. Additional Information

Warranty:
Vecow provides a standard limited warranty covering manufacturing defects. Extended warranty and lifecycle support are available for embedded and industrial customers.

Support & Maintenance:
- Technical support via Vecow headquarters and authorized distributors.
- Firmware and driver updates available at [www.vecow.com](http://www.vecow.com).
- BIOS updates and configuration utilities provided through Vecow’s support portal.

Maintenance Recommendations:
- Ensure adequate ventilation around the chassis for passive cooling.
- Regularly inspect power and Ethernet connections for secure fit.
- Use only Vecow-certified accessories and power adapters.

Product Lifecycle:
The ECS-7800-PoE supports Intel’s embedded roadmap processors with a 7-year lifecycle (2011–2017 for Ivy Bridge series), ensuring long-term availability for industrial deployments.

Manufacturer Contact:
Vecow Co., Ltd.
7F, No. 105 Zhongcheng Rd., Tucheng Dist., New Taipei City 23674, Taiwan, R.O.C.
Tel: +886-2-2268-5658 | Fax: +886-2-2268-1658
Email: info@vecow.com | Website: [www.vecow.com](http://www.vecow.com)

---

Summary

The Vecow ECS-7800-PoE is a robust, fanless embedded controller built for demanding industrial and outdoor applications. Combining Intel® Ivy Bridge processing power, multiple PoE+ Gigabit Ethernet ports, and extensive I/O flexibility, it delivers high performance, reliability, and scalability. Its rugged aluminum chassis, wide temperature tolerance, and surge-protected power input make it ideal for mission-critical environments such as machine vision, ITS, and automation. With support for multiple displays, isolated I/O, and TPM security, the ECS-7800-PoE stands as a versatile and future-ready embedded computing platform.
