Comprehensive Product Summary – ADLINK HSL-TB64-DIN 64-Channel Terminal Base

---

### 1. Product Overview

Product Name: HSL-TB64-DIN
Model: HSL-TB64-DIN
Series: HSL (High Speed Link) Terminal Base Series
Article Number: HSL-TB64-DIN
Manufacturer: ADLINK Technology Inc.
Product Type: 64-channel terminal base for HSL-DB daughter boards with DIN rail socket
Product Category: Industrial Automation I/O Terminal Base

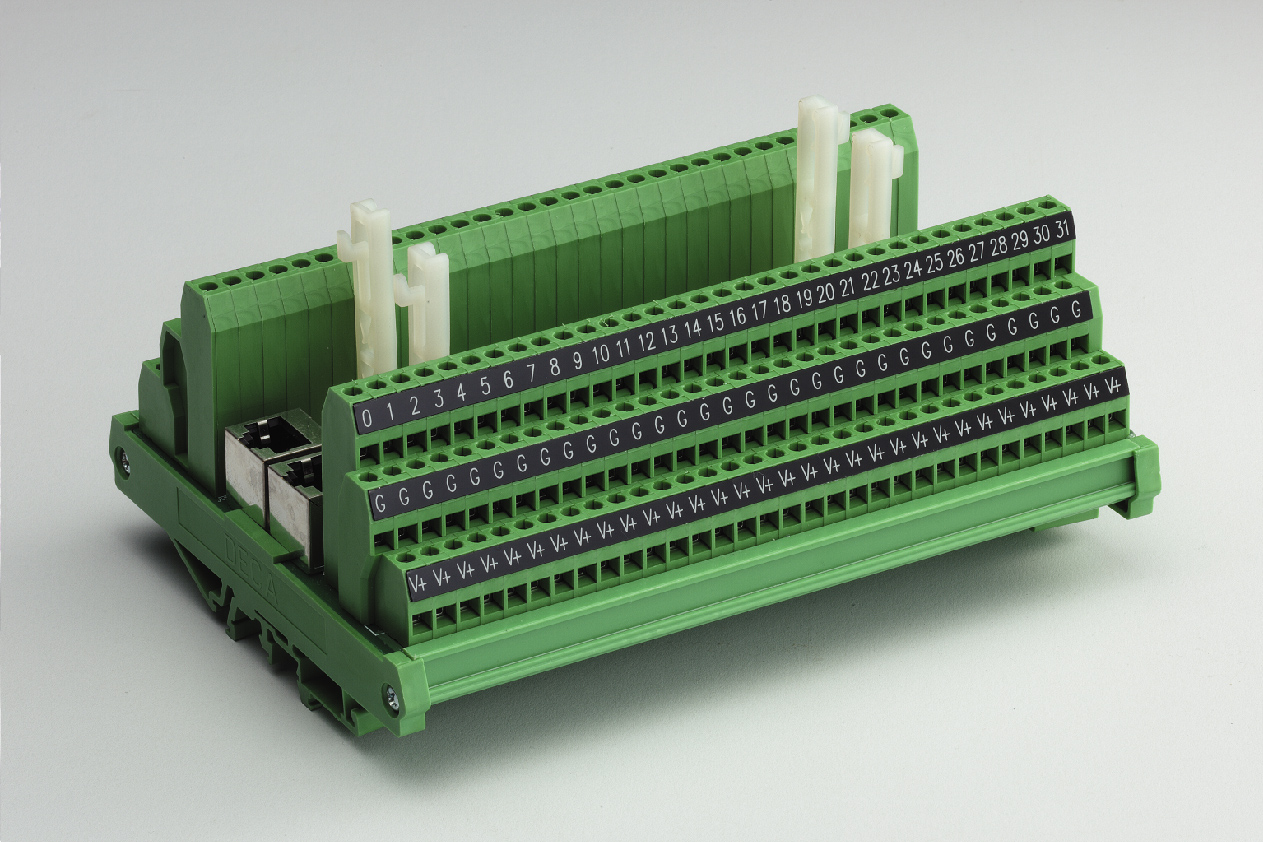

The ADLINK HSL-TB64-DIN is a high-performance, 64-channel terminal base designed for use with ADLINK’s HSL (High Speed Link) system. It serves as a field wiring interface for HSL-DB type daughter boards, providing a robust and efficient connection platform for industrial automation applications. The unit is engineered for DIN rail mounting and supports full-duplex RS-422 communication, ensuring reliable high-speed data transfer in distributed control environments.

---

### 2. Key Features

- 64-Channel Terminal Interface: Supports up to 64 I/O channels, enabling high-density signal connectivity for complex automation systems.
- Compatibility with HSL-DB Daughter Boards: Designed to interface seamlessly with all HSL–DB type daughter boards (two modules per base).
- DIN Rail Mounting: Standard DIN rail socket for quick and secure installation in control cabinets.
- Full-Duplex RS-422 Communication: Ensures high-speed, noise-resistant data transmission between modules and controllers.
- Integrated Power and Ground per Channel: Each signal channel includes dedicated power and ground terminals for stable and isolated operation.
- Built-in Terminator Resistor: On-board termination resistor enhances signal integrity and reduces reflection in long-distance communication lines.
- Screw Terminal Connections: Simplifies field wiring and maintenance with secure, easy-to-use screw terminals.
- Power LED Indicator: Provides visual confirmation of power status for quick diagnostics.
- Interlocking Mechanical Design: Allows rugged, vibration-resistant installation suitable for industrial environments.
- Wide Power Input Range: Operates from 10 to 30 VDC, accommodating various industrial power systems.
- High Wire Gauge Flexibility: Supports wire sizes from 14 AWG (maximum) to 24 AWG (minimum), allowing versatile wiring options.
- Modular System Integration: Designed as part of the HSL modular I/O system, enabling scalable and flexible automation architectures.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Model | HSL-TB64-DIN |
| Supported Modules | All HSL–DB type daughter boards (x2) |
| Maximum Channel Support | 64 channels (192 terminal points) |
| Communication Interface | Full-duplex RS-422 |
| Connector Type | RJ45 |
| Wire Gauge | Max: 14 AWG / Min: 24 AWG |
| Power Supply Voltage | 10 – 30 VDC |
| Weight | 600 g |
| Mounting Type | DIN rail |
| Power Indicator | LED |
| Termination | On-board terminator resistor |
| Dimensions (with –DB daughter boards) | 168.7 mm (W) × 120.1 mm (H) × 107.1 mm (D) |
| Material | Industrial-grade metal and high-durability polymer housing |
| Operating Environment | Industrial automation control panels, distributed I/O systems |
| Manufacturer | ADLINK Technology Inc. |

---

### 4. Functionality

The HSL-TB64-DIN functions as a terminal base that connects field I/O wiring to HSL-DB daughter boards within ADLINK’s HSL distributed I/O system. It provides a structured interface between sensors, actuators, and the HSL communication backbone.

Operational Principle:
- The terminal base receives field wiring connections through screw terminals.
- Each terminal corresponds to a signal channel, with integrated power and ground lines.
- The base communicates with the HSL controller or host system via full-duplex RS-422 through RJ45 connectors.
- The built-in terminator resistor ensures signal integrity across the communication line.
- Power LED indicators provide immediate visual feedback on system status.

Use Cases and Applications:
- Industrial automation and control systems
- Distributed I/O networks in manufacturing plants
- Machine control and monitoring systems
- Process automation and data acquisition
- Integration with PLCs, motion controllers, and industrial PCs
- Applications requiring high-speed, noise-immune communication over long distances

Compatibility:
- Fully compatible with all HSL–DB type daughter boards, including digital input/output and mixed-signal modules.
- Designed to integrate seamlessly with ADLINK’s HSL controllers and communication modules.

---

### 5. Components & Accessories

Included Components:
- HSL-TB64-DIN terminal base unit
- Integrated DIN rail mounting socket
- Built-in terminator resistor
- Power LED indicator
- Screw terminal blocks for field wiring

Optional Accessories:
- HSL–DB daughter boards (various models for digital and analog I/O)
- HSL communication cables (RJ45 type)
- DIN rail mounting hardware (standard industrial rail)
- Power supply units (10–30 VDC range)

Connectors:
- Signal Interface: Screw terminals (64 channels)
- Communication Interface: RJ45 connectors for RS-422 full-duplex communication
- Power Input: Dedicated power terminals per channel

---

### 6. Installation & Setup

Installation Requirements:
- Standard 35 mm DIN rail for mounting
- 10–30 VDC regulated power supply
- Proper grounding and shielding for industrial environments

Mounting Options:
- Snap-on DIN rail installation for quick setup
- Interlocking mechanical design ensures secure attachment and vibration resistance

Configuration:
- Jumper Settings:
- Default: “Not the last module” configuration
- Alternate: “The last module” configuration (for end-of-line termination)
- Jumpers are used to define the module’s position within the HSL communication chain.
- LED indicators confirm power and communication status.

Setup Procedure:
1. Mount the terminal base on the DIN rail.
2. Connect the HSL–DB daughter boards to the terminal base.
3. Wire field I/O signals to the screw terminals.
4. Connect the RS-422 communication cable via RJ45 connectors.
5. Apply 10–30 VDC power supply.
6. Verify LED indicators for proper operation.
7. Configure jumper settings if the module is the last in the communication chain.

---

### 7. Performance & Capabilities

Speed and Communication:
- Utilizes full-duplex RS-422 communication for high-speed, noise-resistant data transfer.
- Supports long-distance communication between distributed modules and controllers.

Capacity:
- 64 channels per terminal base, supporting up to 192 terminal points.
- Two HSL–DB daughter boards can be mounted simultaneously.

Efficiency:
- Integrated power and ground per channel minimize wiring complexity and improve signal stability.
- On-board termination resistor enhances communication reliability.

Limitations:
- Designed specifically for HSL–DB type daughter boards (not compatible with HSL–M modules).
- Requires proper jumper configuration for end-of-line termination.
- Operates within 10–30 VDC; exceeding this range may damage the unit.

Reliability:
- Industrial-grade construction ensures durability in harsh environments.
- Interlocking design prevents accidental disconnection or vibration-induced loosening.

---

### 8. Standards & Compliance

Certifications and Compliance:
- Designed in accordance with industrial automation standards for distributed I/O systems.
- Complies with RS-422 communication protocol specifications.
- Manufactured under ADLINK’s ISO-certified quality management system.
- Meets CE and FCC requirements for electromagnetic compatibility (EMC).

Industry Standards:
- DIN rail mounting standard (EN 50022)
- RS-422 serial communication standard (TIA/EIA-422)
- Industrial wiring standards for 14–24 AWG conductors

Environmental and Safety Compliance:
- RoHS-compliant materials and manufacturing processes
- Designed for safe operation in industrial control panels and enclosures

---

### 9. Additional Information

Warranty:
- Standard ADLINK limited warranty (typically one year; subject to regional terms).
- Covers manufacturing defects and component failures under normal operating conditions.

Technical Support:
- ADLINK Service: service@adlink.com.tw
- Technical Assistance: NuDAM@adlink.com.tw
- Telephone: +886-2-82265877
- Fax: +886-2-82265717
- Website: [http://www.adlink.com.tw](http://www.adlink.com.tw)

Maintenance:
- Periodic inspection of terminal connections recommended.
- Ensure proper grounding and shielding to maintain communication integrity.
- Clean terminals and connectors periodically to prevent oxidation.

Firmware/Hardware Updates:
- Specifications and contents subject to change without notice.
- Updated documentation and product revisions available on ADLINK’s website.

Trademark Information:
- NuDAM® is a registered trademark of ADLINK Technology Inc.
- Other product names and brands are trademarks or registered trademarks of their respective owners.

Document Reference: AM-HSLTB001-E1.00
Copyright: © 2001 ADLINK Technology Inc.

---

### Summary

The ADLINK HSL-TB64-DIN is a robust, high-density terminal base engineered for industrial automation systems utilizing the HSL (High Speed Link) architecture. With support for up to 64 channels and full-duplex RS-422 communication, it provides a reliable and efficient interface between field devices and control systems. Its DIN rail mounting, integrated power and ground per channel, and built-in termination resistor make it ideal for distributed I/O applications requiring high-speed, noise-immune communication.

Designed for compatibility with all HSL–DB type daughter boards, the HSL-TB64-DIN offers flexibility, scalability, and ease of installation in demanding industrial environments. Its rugged construction, wide power input range, and comprehensive wiring support ensure long-term reliability and performance in automation, process control, and machine monitoring applications.
