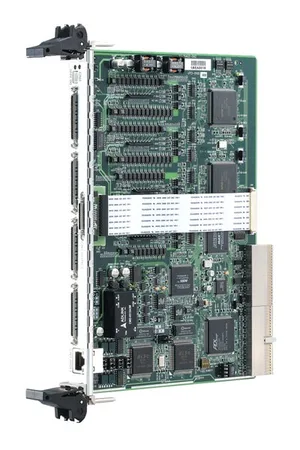

- **8‑Axis Motion Control:** Supports coordinated multi‑axis motion for complex automation tasks. - **Dual HSL Ports:** Two independent HSL (High‑Speed Link) ports for distributed I/O connectivity. - **High‑Speed Distributed I/O:** Up to 6 Mbps data rate with deterministic I/O refreshing. - **Real‑Time Performance:** Deterministic scan cycle proportional to the number of slave modules (30.1 µs per module). - **Scalable Architecture:** Supports up to 63 slave I/O modules per HSL master, expandable to 16 masters per system. - **CompactPCI Interface:** Fully compliant with CompactPCI specifications for industrial embedded systems. - **Easy Wiring:** Utilizes standard RJ‑45 connectors and Cat.5 Ethernet cables for simplified installation. - **Self‑Diagnostic and Error Handling:** Built‑in CRC12 error checking, slave‑no‑response counters, and communication monitoring. - **Modular Slave I/O Design:** Hot‑swappable slave modules with standardized mechanical dimensions and terminal bases. - **Software Support:** Comprehensive driver and API support for Windows and Linux, including DLLs, LabVIEW, ISaGRAF, OPC, and DDE servers. - **Open PC‑Based Architecture:** Compatible with standard PC/IPC platforms, enabling integration with SCADA, DAQ, and SoftPLC systems.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

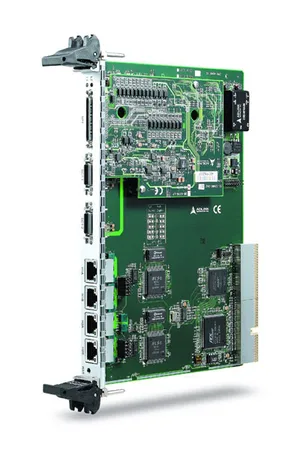

- **Integrated Motion & I/O Control:** Combines a 12‑axis SSCNETII servo control interface (200 MHz DSP) with dual HSL ports for distributed I/O expansion. - **High‑Speed Distributed I/O (HSL):** Supports up to **63 slave I/O modules per master**, with deterministic scan times as low as **30.1 µs per module** and total refresh rates under **2 ms** for 2016 I/O points. - **Real‑Time Deterministic Operation:** Fixed, linear I/O refresh rate proportional to the number of connected slaves ensures predictable timing for control and data acquisition. - **Simple Wiring Architecture:** Uses standard **RJ‑45 connectors** and **Cat.5 100 Base‑TX Ethernet cables** for RS‑422 full‑duplex communication, reducing wiring complexity and cost. - **Massive I/O Expansion:** Up to **16 HSL masters** per system (8 dual‑port cards), supporting **1008 slave modules** and over **32,000 digital I/O points**. - **Self‑Diagnostic & Error Handling:** Built‑in CRC‑12 error checking, per‑slave communication counters, and automatic fault detection with software event reporting. - **Modular Slave Design:** Hot‑swappable slave I/O modules with standardized mechanical form factors and terminal bases for flexible installation. - **Comprehensive Software Support:** Drivers and libraries for **Windows 95/98/2000/NT**, **Linux**, **LabVIEW**, **ISaGRAF (IEC 1131‑3)**, **OPC**, and **DDE** integration. - **Open PC‑Based Architecture:** Fully compatible with standard PC/IPC platforms using the PCI bus, enabling integration with SCADA, HMI, and DAQ systems.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **HSL Communication Protocol:** Fully compatible with ADLINK’s High‑Speed Link (HSL) distributed I/O and motion control architecture. - **Selectable Transmission Speeds:** 3, 6, or 12 Mbps; supports both half‑ and full‑duplex modes. - **On‑board DSP (TMS320C6711):** Handles motion command dispatching, data management, and real‑time control tasks independently of the host CPU. - **4‑Axis Pulse‑Train Output:** Supports stepper, AC/DC servo, linear, or rotary motors. - **Pulse Frequency:** Up to 6.55 MHz per axis. - **Interpolation:** - 2–4 axis linear interpolation - 2‑axis circular interpolation - Multi‑axis continuous contouring for smooth velocity transitions - **Motion Point Table Management:** Up to 2000 motion points stored locally for CPU‑free execution. - **Motion Script Download:** G‑code‑like scripting for autonomous, time‑critical motion sequences. - **Dynamic Motion Control:** Position and speed can be changed on‑the‑fly during operation. - **Home Return Modes:** 13 configurable homing sequences with automatic search. - **Dedicated Motion I/O:** EL, ORG, INP, RDY, SVON, ERC, ALM signals per axis. - **Pulse Output Modes:** OUT/DIR, CW/CCW, or AB‑phase. - **Encoder Feedback:** 28‑bit up/down incremental encoder counter (±134,217,727 pulses). - **Safety & Isolation:** 2500 Vrms isolation on all digital I/O; hardware emergency stop input. - **Backlash Compensation & Vibration Suppression:** Hardware‑based correction and damping functions. - **Software Limits:** Dual programmable software end‑limits per axis. - **Network Scalability:** Up to 15 modules (60 axes) per HSL network. - **CE Certified:** Complies with European EMC and safety standards.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **HSL Communication Protocol:** Fully compatible with ADLINK’s High‑Speed Link (HSL) distributed I/O and motion control network. - **Selectable Transmission Speeds:** 3, 6, or 12 Mbps data rates; supports both half‑duplex and full‑duplex communication modes. - **On‑board DSP (TMS320C6711):** Handles command dispatching, motion sequencing, and data management independently of the host CPU. - **4‑Axis Pulse Train Output:** Supports up to 6.55 MHz pulse frequency for stepper or servo motor control. - **Scalable Network Architecture:** Up to 15 modules (60 axes) can be connected on a single HSL network. - **Advanced Motion Control:** - 2–4 axis linear interpolation - 2‑axis circular interpolation - Continuous contouring for smooth velocity transitions - On‑the‑fly position and speed modification - 13 selectable home return modes - Hardware position compare and trigger output - Automatic backlash compensation - Trapezoidal and S‑curve velocity profiles - **High‑Speed Position Feedback:** 28‑bit up/down incremental encoder interface per axis (±134,217,728 counts). - **Dedicated Motion I/O:** EL, ORG, INP, RDY, SVON, ERC, ALM signals per axis. - **Electrical Isolation:** All digital I/O channels are optically isolated to 2500 Vrms. - **Point Table Management:** Up to 2000 motion points stored locally for CPU‑independent execution. - **Motion Script Download:** Supports G‑code‑like scripting for autonomous, time‑critical motion sequences. - **Software Support:** Includes Motion Creator utility within ADLINK LinkMaster; libraries for DOS, Windows 9x/NT/2000/XP, and Linux.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **HSL Communication Protocol:** Fully compatible with ADLINK’s High‑Speed Link (HSL) distributed I/O and motion control architecture. - **Selectable Transmission Speeds:** 3, 6, or 12 Mbps; supports both half‑duplex and full‑duplex communication modes. - **On‑board DSP (TMS320C6711):** Handles command dispatching, motion sequencing, and data management independently of the host PC. - **4‑Axis Pulse‑Train Control:** Supports stepper, AC/DC servo, linear, or rotary motors via pulse‑train outputs. - **Pulse Output Frequency:** Up to 6.55 MHz for high‑speed motion control. - **Interpolation Capabilities:** - 2–4 axis linear interpolation - 2‑axis circular interpolation - Continuous contouring for smooth velocity transitions - **Dynamic Motion Control:** Position and velocity can be changed on‑the‑fly during motion execution. - **13 Home Return Modes:** Flexible homing sequences for diverse mechanical configurations. - **Motion Point Table Management:** Up to 2000 motion points stored locally for CPU‑independent execution. - **Motion Script Download:** Supports G‑code‑like scripting for autonomous motion sequences. - **Dedicated Motion I/O:** EL, ORG, INP, RDY, SVON, ERC, ALM signals per axis. - **High‑Speed Position Latch & Compare:** Hardware‑based position capture and trigger output with minimal latency. - **Backlash Compensation & Vibration Suppression:** Automatic correction and damping functions for precision motion. - **Isolated I/O:** All digital inputs/outputs are optically isolated to 2500 Vrms. - **Network Scalability:** Up to 15 modules (60 axes) per HSL network. - **Software Support:** Motion Creator utility within LinkMaster, plus C/C++ libraries for Windows and Linux.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **HSL Communication Protocol:** Fully compatible with ADLINK’s High Speed Link (HSL) distributed I/O and motion control network. - **Selectable Transmission Speeds:** 3 Mbps, 6 Mbps, or 12 Mbps data rates. - **Duplex Modes:** Supports both half-duplex and full-duplex communication. - **On-board DSP (TMS320C6711):** Handles motion command processing and data management independently of the host CPU. - **4-Axis Pulse Train Output:** Controls up to four stepper or servo motors simultaneously. - **Scalable Network:** Up to 15 modules (60 axes) can be connected on a single HSL network. - **High Pulse Frequency:** Pulse train output up to 6.55 MHz. - **Interpolation Capabilities:** - 2–4 axes linear interpolation - 2 axes circular interpolation - Continuous contouring for smooth multi-axis motion - **Dynamic Motion Control:** Position and velocity can be modified on-the-fly during motion. - **Motion Point Table Management:** Supports up to 2000 motion points stored locally for reduced CPU load. - **Motion Script Download:** Supports G-code-like scripting for autonomous motion sequences. - **13 Home Return Modes:** Flexible homing configurations for various mechanical setups. - **Dedicated Motion I/O:** Includes EL, ORG, INP, RDY, SVON, ERC, and ALM signals. - **High-Speed Position Latch and Compare:** Hardware-based position compare and trigger output. - **Backlash Compensation & Vibration Suppression:** Automatic correction and damping functions. - **Safety & Isolation:** All digital I/O channels are optically isolated to 2500 Vrms. - **Software Support:** Compatible with ADLINK’s Motion Creator utility and LinkMaster configuration software.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **16-Channel Current Input:** Provides sixteen isolated current input channels for industrial analog signal acquisition. - **High-Speed HSL Interface:** Utilizes ADLINK’s proprietary High Speed Link (HSL) technology for fast, deterministic data transfer between distributed I/O modules and host controllers. - **Robust Metal Enclosure:** Metal cover ensures mechanical durability and EMI protection, suitable for factory automation and process control environments. - **Flexible Power Input:** Operates from a wide DC voltage range of **+10V to +30V**, allowing integration into diverse industrial power systems. - **LED Status Indicators:** Multi-color LEDs provide visual feedback for power, link status, and channel activity (input/output). - **Compact Modular Design:** Compatible with multiple terminal base options for flexible installation and wiring configurations. - **Fast Response Time:** Typical input and output response times of **2 ms maximum**, ensuring real-time performance in control applications. - **Configurable Addressing:** DIP switch-based addressing supports up to **63 unique module addresses**, enabling large-scale distributed I/O networks. - **RS-422 Communication Interface:** Differential signaling for noise immunity and long-distance communication in industrial environments. - **Wide Compatibility:** Works with both **NPN (sinking)** and **PNP (sourcing)** signal types, depending on model variant. - **Low Power Consumption:** Typical power consumption of **1.8 W**, optimizing energy efficiency in multi-module systems.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **High Channel Density:** Supports 16 single-ended or 8 differential analog input channels, selectable via jumper configuration. - **High Resolution:** 16-bit analog-to-digital (A/D) conversion ensures precise signal measurement and accurate data representation. - **Flexible Input Ranges:** Programmable input ranges for both unipolar and bipolar signals, accommodating ±2.5V, ±1V, ±500mV, ±100mV, ±50mV, ±15mV, and ±20mA. - **Thermocouple Compatibility:** Supports multiple thermocouple types (J, K, T, E, R, S, B, N, C) for temperature measurement applications. - **Fast Sampling Rate:** Capable of sampling all channels at 100 Hz, suitable for real-time monitoring and control. - **Robust Construction:** Metal cover provides mechanical protection and electromagnetic shielding for industrial environments. - **LED Indicators:** Integrated Power and Link LEDs for quick visual diagnostics of module status and communication. - **Wide Power Supply Range:** Operates from 10V to 30V DC, ensuring compatibility with various industrial power systems. - **Over-voltage Protection:** ±30V protection on input channels safeguards against transient voltage spikes. - **Compact and Modular Design:** Designed for integration within the HSL I/O system, supporting DIN rail mounting and modular expansion.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **16-Channel Analog Current Input:** Supports multiple current input ranges, typically 0–20 mA or 4–20 mA, enabling precise measurement of industrial process signals. - **2-Channel Analog Voltage Output:** Provides voltage output capability (commonly ±10 V or 0–10 V) for control or actuation tasks. - **Robust Metal Housing:** The metal cover enhances mechanical strength, provides EMI/RFI protection, and ensures long-term reliability in industrial environments. - **HSL Communication Interface:** Utilizes ADLINK’s proprietary High-Speed Link (HSL) protocol for fast, deterministic, and noise-resistant data transmission between remote I/O modules and host controllers. - **Modular Daughter Board Design:** The inclusion of a 2-channel voltage output daughter board allows flexible configuration and easy maintenance. - **High Accuracy and Stability:** Designed for precise analog signal acquisition with low drift and high linearity, ensuring reliable data for process control and monitoring. - **Industrial-Grade Reliability:** Wide operating temperature range, robust construction, and high immunity to electrical noise make it suitable for factory automation, process control, and machine monitoring. - **Compact Form Factor:** Space-efficient design for DIN-rail or panel mounting in control cabinets. - **Easy Integration:** Compatible with ADLINK’s HSL master cards and controllers, simplifying system expansion and integration into existing automation networks.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **High-Density Analog I/O:** 16 voltage input channels and 2 voltage output channels integrated on one board. - **Robust Construction:** Metal cover provides mechanical protection and EMI shielding for industrial reliability. - **HSL Communication Interface:** Utilizes ADLINK’s High-Speed Link (HSL) technology for fast, deterministic data transfer between remote I/O modules and host controllers. - **Flexible Voltage Input Range:** Supports multiple voltage input ranges (typically ±10 V, 0–10 V, or configurable per channel, depending on system setup). - **Precision Analog Conversion:** High-resolution A/D and D/A converters ensure accurate signal measurement and output control. - **Compact Modular Design:** Optimized for distributed I/O architectures, reducing wiring complexity and installation footprint. - **Scalable System Integration:** Compatible with other ADLINK HSL modules for mixed analog/digital I/O configurations. - **Industrial Reliability:** Designed for continuous operation in environments with electrical noise, vibration, and temperature variations. - **Easy Configuration:** Software tools and drivers available for seamless integration with ADLINK controllers and third-party automation software. - **Versatile Application Support:** Suitable for process monitoring, test benches, machine automation, and laboratory instrumentation.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Four Analog Output Channels:** Provides four independent analog output channels for voltage or current signal generation. - **High Resolution:** 16-bit digital-to-analog (DA) conversion ensures fine signal granularity and high accuracy. - **Flexible Output Ranges:** Programmable output ranges support both voltage and current modes, typically ±10V or ±20mA, depending on configuration. - **Fast Response:** DA settling time of approximately 10 µs enables rapid signal updates suitable for dynamic control applications. - **High-Speed Communication:** Designed for integration within the HSL network, supporting fast data exchange between modules and controllers. - **LED Indicators:** Power and Link LEDs provide clear visual status for module operation and network connectivity. - **Wide Power Supply Range:** Operates from +10V to +30V DC, ensuring compatibility with standard industrial power systems. - **Compact Modular Design:** DIN rail mountable with interlocking mechanical design for rugged installation and easy expansion. - **Electrical Isolation:** Photo-coupled isolation between field I/O and logic circuitry enhances noise immunity and system reliability. - **Compatibility:** Fully compatible with other HSL modules such as HSL-AI16-M-T (analog input), HSL-DI8DO8-C-NN (digital I/O), and HSL-TB32-M-DIN (terminal base).

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

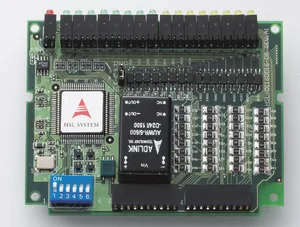

- **Dual 16-Channel Configuration:** Provides 16 discrete NPN sinking input channels and 16 discrete NPN sinking output channels on a single compact daughter board. - **High-Speed Communication:** Designed for ADLINK’s HSL (High Speed Link) system, ensuring fast, deterministic data transfer for industrial automation. - **Flexible Power Input:** Operates with an external DC power supply ranging from +10V to +30V DC. - **Compact and Modular Design:** Compatible with multiple terminal base options (HSL-TB32-DIN, HSL-TB32-U-DIN, HSL-TB64-DIN) for flexible installation and expansion. - **LED Indicators:** Provides clear visual feedback for power (red), link status (green), discrete input (green), and discrete output (yellow). - **Configurable Addressing:** DIP switch settings allow up to 63 address configurations for system scalability. - **Fast Response Time:** Input and output response times are both ≤ 2 ms, ensuring real-time control performance. - **Industrial-Grade Reliability:** Designed for harsh industrial environments with robust electrical isolation and durable construction. - **Multiple Model Variants:** Available in four configurations (NN, NP, PN, PP) to support NPN/PNP input and output combinations. - **Ease of Integration:** Fully compatible with ADLINK’s HSL terminal bases and controllers, simplifying wiring and system setup.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Dual 16-Channel Configuration:** Provides 16 discrete input channels (NPN sinking type) and 16 discrete output channels (PNP sourcing type), allowing simultaneous monitoring and control of digital signals. - **High-Speed Communication:** Designed for ADLINK’s **HSL (High Speed Link)** system, ensuring rapid data exchange between distributed I/O modules and host controllers. - **Flexible Power Input:** Operates with an external DC power supply ranging from **+10V to +30V DC**, supporting diverse industrial power environments. - **Compact and Modular Design:** The daughter board can be mounted on various terminal bases (HSL-TB32-U-DIN or HSL-TB64-DIN), providing scalability and ease of integration. - **LED Indicators:** Equipped with multiple LED indicators for **DC power (Red)**, **Link status (Green)**, **Discrete Input (Green)**, and **Discrete Output (Yellow)**, enabling quick visual diagnostics. - **Configurable Addressing:** DIP switch settings allow address configuration from **1 to 63**, supporting large-scale distributed I/O networks. - **Fast Response Time:** Input and output response times are both **2 ms maximum**, ensuring real-time performance for automation control. - **Industrial-Grade Reliability:** Designed for robust operation in industrial environments, with solid-state transistor outputs and optically isolated inputs. - **Compatibility:** Fully compatible with ADLINK’s HSL terminal bases and communication modules, supporting RS-422 differential signaling for reliable data transmission.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Dual 16-Channel Configuration:** Provides 16 discrete input channels (PNP sourcing type) and 16 discrete output channels (NPN sinking type), allowing simultaneous monitoring and control of digital signals. - **High-Speed Communication via HSL:** Designed for ADLINK’s **High Speed Link (HSL)** system, ensuring fast, deterministic, and reliable data exchange between distributed I/O modules and host controllers. - **Flexible Input/Output Types:** Supports multiple configurations across the HSL-DI16DO16-M series, including NN, NP, PN, and PP variants for different sourcing/sinking combinations. - **Compact Modular Design:** The daughter board form factor allows easy integration with the **HSL-TB32-M-DIN** terminal base, minimizing wiring complexity and installation space. - **Wide Power Supply Range:** Operates from **+10V to +30V DC**, suitable for a variety of industrial power environments. - **LED Status Indicators:** Provides visual feedback for power, link status, and individual input/output channel activity: - Power (Red) - Link (Green) - Discrete Input (Green) - Discrete Output (Yellow) - **Fast Response Time:** Input and output response times are both **≤ 2 ms**, ensuring real-time responsiveness for automation control loops. - **DIN-Rail Mountable Terminal Base:** Compatible with **HSL-TB32-M-DIN**, a 32-channel I/O terminal base with DIN socket for secure and organized installation. - **Address Configuration via DIP Switch:** Supports up to 63 address settings using a 6-bit DIP switch, enabling flexible network addressing within HSL systems.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Dual 16-Channel Configuration:** Provides 16 discrete input channels and 16 discrete output channels, both configured for **PNP sourcing** operation. - **High-Speed Communication:** Designed for ADLINK’s **HSL (High Speed Link)** system, ensuring rapid data exchange between modules and controllers. - **Flexible Addressing:** DIP switch configuration allows up to **63 address settings**, enabling scalable multi-module installations. - **Wide Power Supply Range:** Operates with external DC power from **+10V to +30V**, ensuring compatibility with various industrial power environments. - **LED Indicators:** - **Red LED:** Active DC power - **Green LED:** Link and discrete input status - **Yellow LED:** Discrete output status These indicators provide immediate visual feedback for power, communication, and I/O activity. - **Compact Modular Design:** Compatible with **HSL-TB32-M-DIN** terminal base for DIN-rail mounting, simplifying installation and maintenance. - **Fast Response Time:** Input and output response times of **2 ms maximum**, suitable for time-critical automation processes. - **High Reliability:** Industrial-grade design with robust electrical isolation and noise immunity. - **Flexible I/O Configuration:** Supports both **wet contact** and **PNP sourcing** input types, and **PNP sourcing** transistor outputs. - **Low Power Consumption:** Typical power consumption of **1.8 W**, minimizing system energy requirements.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **High-Speed Industrial Communication:** Built on ADLINK’s HSL (High Speed Link) technology, ensuring fast, reliable, and deterministic data transfer for industrial automation networks. - **Dual 16-Channel Configuration:** Provides 16 discrete input channels and 16 discrete output channels, both configured for NPN sinking operation. - **Robust Construction:** Metal cover design enhances durability and electromagnetic shielding, suitable for harsh industrial environments. - **Flexible Power Input:** Operates with an external DC power supply ranging from +10V to +30V, accommodating various industrial power systems. - **LED Status Indicators:** - **Red:** Active DC power - **Green:** Link and Discrete Input status - **Yellow:** Discrete Output status These indicators provide immediate visual feedback for system diagnostics and operational monitoring. - **Fast Response Time:** Input and output response times are both ≤ 2 ms, ensuring real-time performance in automation control loops. - **Modular Terminal Base Compatibility:** Compatible with multiple terminal base options (HSL-TB32-DIN, HSL-TB32-U-DIN, HSL-TB64-DIN) for flexible installation and wiring configurations. - **Address Configuration via DIP Switch:** Supports up to 63 addressable modules through a 6-bit DIP switch configuration, allowing scalable system expansion. - **RS-422 Communication Interface:** Utilizes differential RS-422 signaling for robust, noise-immune data transmission between modules. - **Low Power Consumption:** Consumes only 1.8 W, optimizing energy efficiency in distributed I/O systems.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Dual 16-Channel Configuration:** Provides 16 discrete NPN sinking input channels and 16 discrete PNP sourcing output channels for versatile digital I/O control. - **High-Speed Link (HSL) Interface:** Designed for ADLINK’s HSL system, enabling fast, deterministic communication between controllers and distributed I/O modules. - **Robust Industrial Design:** Metal enclosure ensures mechanical protection and electromagnetic shielding, suitable for harsh industrial environments. - **Flexible Terminal Base Options:** Compatible with HSL-TB32-DIN, HSL-TB32-U-DIN, and HSL-TB64-DIN terminal bases for scalable installation. - **Wide Power Supply Range:** Operates from +10V to +30V DC, accommodating various industrial power systems. - **Low Power Consumption:** Typical consumption of 1.8 W, ensuring energy efficiency. - **LED Indicators:** Multi-color LEDs for power (red), link (green), input (green), and output (yellow) status monitoring. - **Fast Response Time:** Input and output response times of ≤2 ms, supporting high-speed automation processes. - **Address Configuration via DIP Switch:** Supports up to 63 address settings for flexible network configuration. - **RS-422 Communication Interface:** Differential signaling for noise immunity and reliable data transmission. - **Compact Form Factor:** Optimized for DIN-rail mounting and space-efficient control cabinet integration.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Dual 16-Channel Configuration:** Provides 16 discrete PNP sourcing input channels and 16 discrete NPN sinking output channels, enabling simultaneous monitoring and control of multiple digital signals. - **High-Speed Communication:** Utilizes ADLINK’s proprietary HSL (High Speed Link) technology for rapid, deterministic data transfer between distributed I/O modules and host controllers. - **Robust Industrial Design:** Metal enclosure ensures mechanical durability and electromagnetic shielding, suitable for harsh industrial environments. - **Flexible Power Input:** Operates with an external DC power supply ranging from +10V to +30V, accommodating various industrial power systems. - **LED Status Indicators:** Multi-color LEDs provide real-time visual feedback for power (red), link status (green), input activity (green), and output activity (yellow). - **Compact Form Factor:** Space-efficient design (125 × 22.4 × 80 mm) allows dense installation in control panels. - **Configurable Addressing:** DIP switch settings allow up to 63 unique module addresses, supporting large-scale distributed I/O networks. - **Fast Response Time:** Input and output response times of ≤2 ms ensure precise, low-latency signal processing. - **Compatibility:** Designed for use with the HSL-TB32-M-DIN terminal base, providing 32-channel I/O connectivity and DIN-rail mounting capability.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Integrated I/O Functionality:** 16-channel PNP sourcing discrete inputs and 16-channel PNP sourcing discrete outputs on a single daughter board. - **High-Speed Communication:** Utilizes ADLINK’s proprietary HSL (High Speed Link) technology for rapid data exchange between controllers and distributed I/O nodes. - **Robust Construction:** Metal cover enclosure ensures mechanical protection and electromagnetic shielding suitable for harsh industrial conditions. - **Flexible Power Supply:** Operates with an external DC power range of +10V to +30V, supporting a wide variety of industrial power systems. - **LED Indicators:** Provides clear visual feedback for power status, communication link, and individual channel activity (input/output). - **Compact Modular Design:** Compatible with HSL terminal bases (HSL-TB32-U-DIN and HSL-TB64-DIN) for scalable and flexible I/O configurations. - **Fast Response Time:** Input response time of 2 ms (ON/OFF), ensuring precise signal detection and control in time-critical applications. - **Ease of Configuration:** DIP switch address setting allows flexible node addressing within the HSL network. - **High Reliability:** Designed for continuous operation in industrial automation, process control, and machine monitoring systems. - **Compatibility:** Fully compatible with ADLINK’s HSL controllers and software tools for configuration and diagnostics.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Integrated 16-Channel NPN Input and 16-Channel NPN Output:** Combines both input and output functionality in a single module, reducing wiring complexity and installation space. - **High-Speed HSL Communication:** Utilizes ADLINK’s proprietary HSL protocol for fast, deterministic data exchange between modules and controllers. - **DIN-Rail Mountable Design:** Compact and rugged housing suitable for industrial control cabinets and distributed I/O installations. - **Wide Power Supply Range:** Operates from **+10 VDC to +30 VDC**, ensuring compatibility with standard industrial power systems. - **LED Indicators:** Provides clear visual feedback for power, link status, and individual channel activity (red for power, green for link and I/O status). - **Flexible Address Configuration:** DIP switch-based addressing allows easy integration into multi-module HSL networks. - **Low Power Consumption:** Typical consumption of **1.8 W**, optimizing energy efficiency in large-scale installations. - **High Reliability:** Designed for industrial environments with robust electrical isolation and noise immunity. - **Compatibility with HSL Terminal Bases:** Supports **HSL-TB32-U-DIN** and **HSL-TB64-DIN** terminal bases for flexible wiring and expansion.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Dual Functionality:** Combines 16-channel PNP discrete inputs and 16-channel NPN discrete outputs in a single module, optimizing space and wiring efficiency. - **High-Speed Communication:** Utilizes ADLINK’s proprietary **HSL (High Speed Link)** technology for fast, deterministic data exchange between controllers and distributed I/O nodes. - **DIN-Rail Mountable Design:** Compact form factor with DIN socket compatibility for easy installation in control cabinets. - **Flexible Power Input:** Operates with a wide external power supply range of **+10V to +30V DC**, ensuring compatibility with various industrial power systems. - **LED Status Indicators:** Integrated LED indicators for power, link status, and individual channel activity provide immediate visual diagnostics. - **Address Configuration via DIP Switch:** Simple DIP switch addressing allows flexible node configuration within the HSL network. - **Compatibility with Terminal Bases:** Supports **HSL-TB32-U-DIN** and **HSL-TB64-DIN** terminal bases for modular expansion and simplified wiring. - **Compact and Lightweight:** Designed for high-density installations with minimal footprint and low weight (approx. 72 g). - **Industrial-Grade Reliability:** Built for harsh industrial environments with robust electrical isolation and noise immunity. - **Scalable System Integration:** Fully compatible with other HSL modules, enabling scalable distributed I/O architectures.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Combined I/O Configuration:** Provides **16 discrete input channels** and **48 discrete output channels** in one compact module, reducing wiring complexity and panel space requirements. - **NPN Sinking Type Design:** The “NN” configuration supports **NPN sinking-type sensors and outputs**, compatible with dry contact input devices and NPN transistor output circuits. - **High Isolation:** Each channel is **photo-coupler isolated** with a dielectric strength of **2500 Vrms**, ensuring electrical protection between field devices and control logic. - **Fast Output Response:** Output switching response times are optimized for high-speed control applications: - **ON → OFF:** 180 µs - **OFF → ON:** 1.2 µs - **Flexible Power Supply:** Operates on a **+10V to +30V DC** power input range, accommodating various industrial power environments. - **Low Power Consumption:** Typical power consumption is **1.8 W**, supporting energy-efficient operation. - **User-Friendly Wiring:** Equipped with **spring terminals** for quick and secure field wiring connections. Supports wire gauges from **28 AWG (min)** to **20 AWG (max)**. - **Integrated Power and Ground per Channel:** Each signal channel includes dedicated power and ground terminals, simplifying wiring and reducing noise susceptibility. - **DIN Rail Mounting:** Designed for **DIN rail installation**, facilitating easy integration into standard industrial control cabinets. - **Onboard Terminator:** Built-in termination resistor ensures signal integrity in daisy-chained or networked configurations. - **LED Indicators:** Provides visual status for **Power**, **Link**, and **I/O channel activity**, aiding in diagnostics and maintenance. - **Wide Operating Temperature Range:** Designed for industrial environments with an **operating range of 0°C to 60°C** and **storage range of -20°C to 80°C**.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Combined I/O Functionality:** Integrates 16 discrete input channels and 48 discrete output channels in a single module, reducing wiring complexity and installation space. - **Input/Output Type Configuration:** - Inputs: NPN (sinking type) sensor inputs or dry contact signals. - Outputs: PNP (sourcing type) transistor outputs. - **High Isolation:** Photo-coupled isolation rated at **2500 Vrms**, ensuring electrical separation between field I/O and logic circuits for enhanced safety and noise immunity. - **High-Speed Output Response:** - ON → OFF: **180 µs** - OFF → ON: **1.2 µs** Suitable for high-speed control and signal switching applications. - **Flexible Power Supply Range:** Operates from **+10V to +30V DC**, accommodating various industrial power systems. - **Low Power Consumption:** Typical power consumption of **1.8 W**, optimizing energy efficiency in large-scale installations. - **Field Wiring Convenience:** Equipped with **spring terminals** for quick and secure field wiring connections, supporting wire gauges from **28 AWG (min)** to **20 AWG (max)**. - **Integrated Power and Ground per Channel:** Each signal channel includes dedicated power and ground terminals, simplifying wiring and improving signal integrity. - **DIN Rail Mounting:** Designed for standard **DIN rail installation**, facilitating easy integration into control panels and enclosures. - **Onboard Terminator:** Built-in termination resistor for reliable communication and signal integrity within the HSL network. - **LED Indicators:** Provides visual status for **Power**, **Link**, and **I/O activity**, aiding in diagnostics and system monitoring. - **Wide Operating Temperature Range:** - Operating: **0°C to 60°C** - Storage: **-20°C to 80°C** Ensures reliable performance in diverse industrial environments. - **Slave ID Consumption:** Consumes **3 Slave IDs** within the HSL network addressing scheme.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **Combined I/O Functionality:** Integrates 16 discrete input channels and 48 discrete output channels in a single compact module, reducing wiring complexity and panel space requirements. - **PNP Input / NPN Output Configuration:** The PN variant supports PNP sourcing-type sensor inputs and NPN sinking-type outputs, offering compatibility with standard industrial sensors and output devices. - **High-Speed Digital Response:** Output response times of **1.2 µs (OFF → ON)** and **180 µs (ON → OFF)** ensure rapid signal processing suitable for time-critical automation tasks. - **Optical Isolation:** Each channel is optically isolated with a **2500 Vrms photo-coupler isolation voltage**, providing robust protection against electrical noise, surges, and ground potential differences. - **Flexible Power Supply Range:** Operates on a **+10V to +30V DC** power supply, accommodating a variety of industrial power environments. - **Low Power Consumption:** Consumes only **1.8 W**, contributing to energy-efficient system design. - **DIN Rail Mounting:** Designed for **DIN rail installation**, simplifying integration into control cabinets and modular automation systems. - **Spring Terminal Connections:** Equipped with **spring terminals** for easy, tool-free field wiring and secure electrical connections. - **Integrated Power and Ground per Channel:** Each signal channel includes dedicated power and ground terminals, simplifying wiring and improving signal integrity. - **LED Indicators:** Provides **Power, Link, and I/O status LEDs** for quick visual diagnostics and operational monitoring. - **Built-in Terminator:** On-board termination ensures proper signal integrity in daisy-chained or networked configurations. - **Wide Operating Temperature Range:** Designed to operate reliably from **0°C to 60°C**, with storage capability from **-20°C to 80°C**, suitable for harsh industrial environments.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **High-Density I/O Configuration:** Combines 16 discrete input channels and 48 discrete output channels in a single DIN-rail mountable module, maximizing I/O density and minimizing panel space. - **PNP (Sourcing) Input and Output Design:** The “PP” configuration indicates both input and output channels are PNP type, suitable for sourcing-type sensors and actuators. - **Photo-Coupled Isolation:** Each channel is optically isolated with a **2500 Vrms isolation voltage**, ensuring electrical separation between field signals and logic circuits, enhancing noise immunity and system reliability. - **Fast Output Response:** Output switching response times are **ON → OFF: 180 µs** and **OFF → ON: 1.2 µs**, enabling high-speed digital control suitable for time-critical automation tasks. - **Flexible Power Supply Range:** Operates from **+10V to +30V DC**, accommodating a wide range of industrial power environments. - **Low Power Consumption:** Typical power consumption is **1.8 W**, supporting energy-efficient operation in large-scale distributed systems. - **Integrated Field Wiring Terminals:** Equipped with **spring terminals** for easy and secure field wiring, supporting wire gauges from **28 AWG (minimum)** to **20 AWG (maximum)**. - **Built-in Terminator and Grounding:** Each signal channel includes dedicated power and ground terminals, simplifying wiring and ensuring stable signal reference. - **DIN Rail Mounting:** Designed for standard DIN rail installation, facilitating quick integration into control panels. - **LED Indicators:** Provides visual feedback for **Power**, **Link**, and **I/O status**, aiding in diagnostics and maintenance. - **Environmental Robustness:** Operating temperature range of **0°C to 60°C** and storage temperature range of **-20°C to 80°C**, suitable for industrial environments. - **Slave ID Consumption:** Consumes **3 Slave IDs** on the HSL network, allowing efficient address allocation in multi-module systems.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System
