### 1. Product Overview

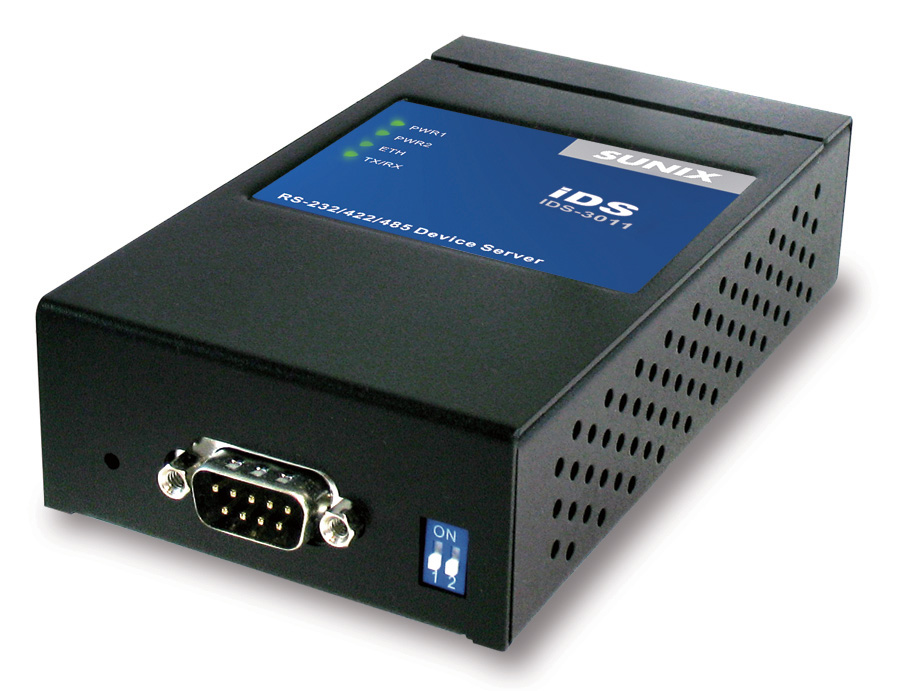

Product Name: IDS-3011
Model Number: IDS-3011
Series: SUNIX IDS Industrial Device Server Series
Article Number: IDS-3011
Manufacturer: SUNIX Co., Ltd.
Product Type: Industrial Serial-to-Ethernet Device Server
Description: 1-Port RS-232/422/485 to 1-Port 10/100TX Ethernet Device Server

The SUNIX IDS-3011 is a robust industrial-grade serial device server designed to connect legacy RS-232, RS-422, or RS-485 serial devices to modern Ethernet networks. It provides a reliable, secure, and flexible communication bridge between serial-based equipment and TCP/IP networks, enabling remote monitoring, control, and data acquisition. The IDS-3011 belongs to the SUNIX IDS 3000 series, which is engineered for industrial automation, process control, and data communication applications requiring high reliability, redundancy, and security.

---

### 2. Key Features

- Multi-Protocol Serial Interface: Supports RS-232, RS-422, and RS-485 (2-wire or 4-wire) communication modes via a DB9 male connector.
- Ethernet Connectivity: 1 x 10/100Base-T(X) RJ-45 port with auto-negotiation and auto MDI/MDI-X support.
- High-Speed Serial Communication: Baud rates from 110 bps up to 460.8 Kbps.
- Redundant Power Inputs: Dual 12–48 VDC inputs via terminal block and DC jack for uninterrupted operation.
- Industrial-Grade Reliability: Metal IP30 enclosure, ESD protection up to 15 kV, and magnetic isolation of 1.5 kV on Ethernet port.
- Fast Recovery Ethernet Redundancy: Recovery time <10 ms ensures minimal downtime in case of link failure.
- Multiple Operation Modes: Virtual COM, TCP Server, TCP Client, UDP, and Serial Tunnel modes for flexible integration.
- Comprehensive Event Notification: Supports Syslog, Email, SNMP trap, relay output, and beeper alerts for system events.
- Cross-Platform Drivers: Virtual COM driver for Windows NT/2000/XP/2003/Vista and fixed TTY driver for Linux.
- Advanced Security: HTTPS, SSL, SSH, WEP/WPA/WPA2, 802.1X, Radius, and TKIP encryption for secure data transmission.
- NAT Pass-Through: Enables remote management through NAT routers without complex configuration.
- Compact and Flexible Installation: DIN-rail and wall-mount options for industrial environments.
- User-Friendly Configuration: Web console, serial console, and Windows-based IDS-Tools utility for discovery, configuration, and monitoring.
- Long-Term Reliability: 5-year manufacturer warranty and industrial-grade component design.

---

### 3. Technical Specifications

Serial Communication:
- Port Count: 1 x RS-232/422/485
- Connector Type: DB9 Male
- Baud Rate: 110 bps to 460.8 Kbps
- Data Bits: 5, 6, 7, 8
- Parity: Odd, Even, None, Mark, Space
- Stop Bits: 1, 1.5, 2
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS-422 Signals: TxD+, TxD-, RxD+, RxD-, GND
- RS-485 (4-wire): TxD+, TxD-, RxD+, RxD-, GND
- RS-485 (2-wire): Data+, Data-, GND
- ESD Protection: 15 kV

Ethernet Interface:
- Port: 1 x RJ-45 10/100Base-T(X), auto-negotiation, auto MDI/MDI-X
- Protection: 1.5 kV magnetic isolation
- Protocols Supported: ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH

Power Requirements:
- Input Voltage: 12–48 VDC (via terminal block or DC jack)
- Power Consumption: Max. 7 W
- Protection: Reverse polarity protection
- Alarm Contact: 1 configurable relay output

Environmental Conditions:
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -20°C to 85°C
- Operating Humidity: 5%–95% RH (non-condensing)

Mechanical:
- Dimensions (W x D x H): 72 x 31 x 125 mm (without connectors)
- Enclosure: Metal housing, IP30 protection
- Mounting Options: DIN-rail and wall mount
- Weight: Approx. 0.5 kg

Certifications and Standards:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge) Level 3, EN61000-4-6 (CS) Level 3
- Shock: IEC60068-2-27
- Freefall: IEC60068-2-32
- Vibration: IEC60068-2-6
- Compliance: CE Class A, RoHS

---

### 4. Functionality

The IDS-3011 functions as a serial-to-Ethernet bridge, converting data between traditional serial interfaces and Ethernet networks. It allows legacy serial devices—such as PLCs, sensors, barcode readers, and data acquisition terminals—to communicate over TCP/IP networks without hardware modification.

Supported Operation Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, enabling transparent communication as if the device were locally connected. Supports up to 5 simultaneous connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 concurrent sessions.
- TCP Client Mode: Initiates TCP connections to a designated server upon startup or data transmission.
- UDP Mode: Enables fast, connectionless data transmission for multicast or broadcast applications.
- Serial Tunnel Mode: Creates a direct serial link between two IDS devices over Ethernet, emulating a physical serial cable.

Applications:
- Industrial automation and control systems
- Remote monitoring and SCADA systems
- Building management and HVAC control
- POS terminals and kiosks
- Data acquisition and instrumentation
- Transportation and logistics systems
- Energy and utility monitoring

Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista, Linux (TTY driver)
- Network Integration: Compatible with standard Ethernet switches, routers, and NAT environments.
- Management Interfaces: Web browser (HTTPS), SSH console, serial console, and IDS-Tools Windows utility.

---

### 5. Components & Accessories

Included Items:
- IDS-3011 main unit
- DIN-rail mounting kit
- Wall-mounting kit
- Quick Installation Guide (QIG)
- Software CD (IDS-Tools utility and drivers)
- Dust cover for unused ports

Optional Accessories:
- 12–48 VDC power adapter (not included by default)
- Additional DIN-rail brackets or wall-mount panels
- Ethernet cables (Cat5/5e UTP)
- Serial cables (DB9 male/female)

Connectors:
- Serial Port: DB9 male connector
- Ethernet Port: RJ-45
- Power Input: 3-pin removable terminal block + DC jack
- Relay Output: Configurable alarm contact

---

### 6. Installation & Setup

Installation Requirements:
- Power supply: 12–48 VDC regulated source
- Ethernet network connection (10/100 Mbps)
- Serial device with RS-232/422/485 interface

Mounting Options:
- DIN-Rail Installation: Attach the included DIN-rail clip to the rear panel and snap onto a standard 35 mm DIN rail.
- Wall Mounting: Use the provided wall-mount bracket and screws to secure the device to a flat surface.

Configuration Methods:
1. IDS-Tools Utility (Windows):
- Automatically discovers devices on the network.
- Allows group configuration, firmware updates, and monitoring.
- Supports Virtual COM Wizard, Serial Tunnel Wizard, and Group IP Wizard.
2. Web Console (HTTPS):
- Access via browser at `https://192.168.1.1` (default IP).
- Configure network, serial, and security settings.
3. Serial Console:
- Direct configuration via serial terminal connection.
4. SSH Console:
- Secure command-line configuration using SSH clients (e.g., PuTTY).

Default Settings:
- IP Address: 192.168.1.1
- Username/Password: admin/admin (change recommended)

---

### 7. Performance & Capabilities

- Ethernet Redundancy: Recovery time <10 ms ensures continuous communication in case of link failure.
- Simultaneous Connections: Supports up to 5 concurrent TCP/UDP/Virtual COM sessions.
- Data Throughput: Optimized for both high-speed (throughput mode) and low-latency (latency mode) applications.
- Buffer Management: 4 KB data buffer per direction with configurable flush intervals and delimiters.
- Security Performance: Encrypted communication via HTTPS, SSL, and SSH; supports authentication via Radius and 802.1X.
- Event Handling: Real-time alerts via Syslog, SNMP trap, Email, relay output, or beeper.
- Reliability: Dual power inputs and industrial-grade components ensure continuous operation in harsh environments.
- Limitations: Single serial port; for multi-port applications, SUNIX offers IDS-3042 and IDS-2042 models.

---

### 8. Standards & Compliance

Electrical and Safety Standards:
- FCC Part 15 Class A
- CISPR EN55022 Class A
- CE Class A
- RoHS compliant

Electromagnetic Susceptibility (EMS):
- EN61000-4-2 (ESD)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT/Burst)
- EN61000-4-5 (Surge) Level 3
- EN61000-4-6 (Conducted Susceptibility) Level 3

Environmental and Mechanical Standards:
- IEC60068-2-27 (Shock)
- IEC60068-2-32 (Freefall)
- IEC60068-2-6 (Vibration)

Network and Security Standards:
- IEEE 802.3 (Ethernet)
- IEEE 802.1X (Network Access Control)
- SSL v3 / TLS encryption
- SNMP MIB II for network management

---

### 9. Additional Information

Warranty:
- 5-year limited hardware warranty from SUNIX Co., Ltd.

Support & Maintenance:
- Technical support via email: info@sunix.com.tw
- Product documentation, firmware, and driver updates available at www.sunix.com.tw
- IDS-Tools software updates provided for Windows platforms.

Maintenance Recommendations:
- Ensure proper grounding and shielding in industrial environments.
- Regularly update firmware for security and performance improvements.
- Use surge protection and stable DC power sources.

Product Family Compatibility:
- IDS-1011: 1-port RS-232 to Ethernet
- IDS-2011: 1-port RS-422/485 to Ethernet
- IDS-3012: 1-port RS-232/422/485 to dual Ethernet (redundant)
- IDS-3042: 4-port RS-232/422/485 to dual Ethernet
- IDS-3042P: 4-port PoE-enabled version

Manufacturer Contact:
SUNIX Co., Ltd.
Tel: +886-2-8913-1987
Fax: +886-2-8913-1986
Email: info@sunix.com.tw
Website: [www.sunix.com.tw](http://www.sunix.com.tw)

---

### Summary

The SUNIX IDS-3011 is a compact, industrial-grade serial-to-Ethernet device server engineered for mission-critical communication in automation and control systems. It bridges traditional serial interfaces (RS-232/422/485) with modern Ethernet networks, offering flexible operation modes, robust redundancy, and advanced security. With its dual power inputs, fast recovery time (<10 ms), and comprehensive management tools, the IDS-3011 ensures reliable, secure, and efficient data transmission in demanding industrial environments. Its compliance with international standards, long warranty, and versatile configuration options make it an ideal solution for integrating legacy serial equipment into IP-based infrastructures.
