Comprehensive Product Summary – IDS-5011-WG Wireless Device Server

---

### 1. Product Overview

Product Name: IDS-5011-WG
Model Number: IDS-5011-WG
Series: IDS-5000 Series Industrial Device Servers
Article Number: IDS-5011-WG
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com

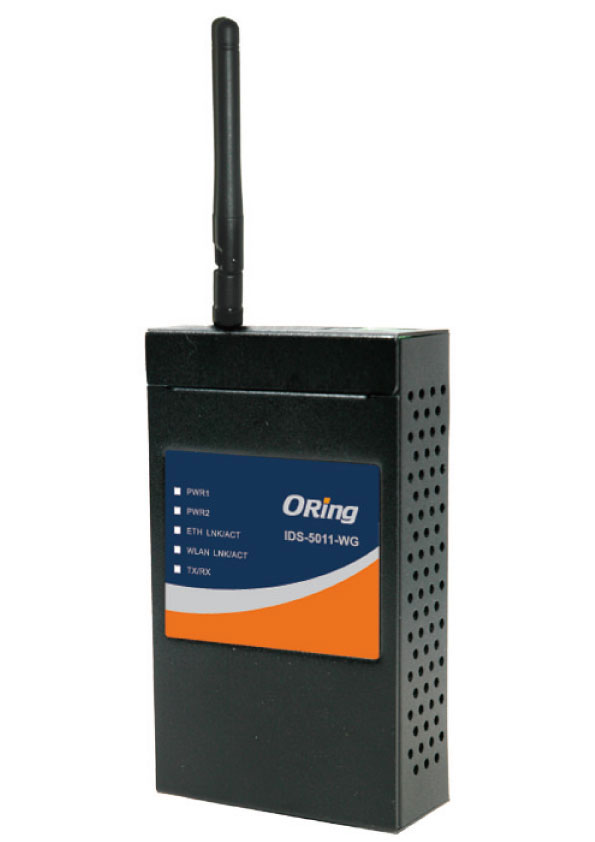

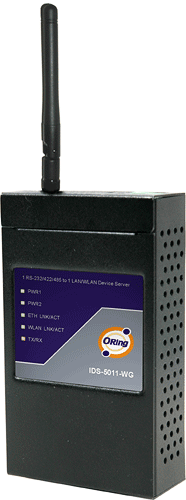

The IDS-5011-WG is an industrial-grade 1-port RS232/422/485 to 802.11b/g WLAN and 1-port 10/100TX LAN device server designed to connect serial-based equipment to Ethernet and wireless networks. It provides a secure, redundant, and flexible communication bridge between legacy serial devices and modern IP-based infrastructures. The device is part of ORing’s industrial networking solutions, offering robust performance, high reliability, and advanced management capabilities for industrial automation, SCADA, and remote monitoring applications.

---

### 2. Key Features

- Dual Network Interfaces:
One 10/100Base-T(X) Ethernet port and one IEEE 802.11b/g WLAN interface for flexible wired or wireless connectivity.

- High-Speed Wireless Connectivity:
WLAN interface supports up to 54 Mbps link speed with IEEE 802.11b/g dual-mode operation.

- Advanced Security:
Supports WEP (64/128-bit), WPA, WPA2, TKIP, AES encryption, and 802.1X/RADIUS authentication for secure wireless communication.

- Multiple Host Redundancy:
Allows simultaneous data transfer to up to 5 host PCs in Virtual COM, TCP Server, TCP Client, or UDP modes, ensuring data redundancy and reliability.

- NAT Pass-Through:
Enables management and communication through NAT routers, allowing remote access across different IP domains.

- Dual Redundant Power Inputs:
Accepts 12–48 VDC via both a DC power jack and a 3-pin terminal block, ensuring uninterrupted operation in case of power source failure.

- Secure Management Interfaces:
Supports HTTPS, SSH, and DS-Tool for configuration and monitoring, providing encrypted management sessions.

- Event Notification System:
Alerts via Syslog, Email, SNMP Trap, and Beeper for proactive fault detection and system monitoring.

- Versatile Operation Modes:
Supports Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP communication modes.

- Industrial-Grade Design:
Rugged IP-30 metal housing, DIN-rail and wall-mount installation options, and wide operating temperature range for harsh environments.

- Comprehensive Software Utility:
Includes DS-Tool for Windows (NT/2000/XP/2003/Vista) for device discovery, configuration, firmware updates, and monitoring.

---

### 3. Technical Specifications

Network Interface:
- Ethernet: 1 × 10/100Base-T(X) RJ-45 port
- Magnetic Isolation: 1.5 kV built-in
- Supported Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH

WLAN Interface:
- Standard: IEEE 802.11b/g
- Operating Mode: Client mode
- Frequency Band:
- FCC (US): 2.412–2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412–2.472 GHz (13 channels)
- Modulation:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g: OFDM (BPSK, QPSK, 16QAM, 64QAM)
- Transmission Rate:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11g: 6/9/12/18/24/36/48/54 Mbps
- Transmit Power: 16 dBm
- Antenna Connector: Reverse SMA (2.4 GHz)
- Security: WEP (64/128-bit), WPA/WPA2, TKIP, AES, 802.1X/RADIUS, SSID broadcast disable

Serial Interface:
- Ports: 1 × RS232/RS422/RS485 (2-wire/4-wire selectable)
- Connector: Male DB9
- Baud Rate: 110 bps to 230.4 kbps (configurable up to 460.8 kbps)
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- Line Protection: 15 kV ESD protection
- DIP Switch: RS422/485 termination configuration

Power Requirements:
- Input Voltage: 12–48 VDC (dual redundant inputs)
- Power Connectors: DC power jack and 3-pin terminal block
- Reverse Polarity Protection: Yes (terminal block)
- Power Consumption: Max. 4 W

Environmental:
- Operating Temperature: -10°C to +55°C
- Storage Temperature: -20°C to +85°C
- Humidity: 5%–95% (non-condensing)

Mechanical:
- Dimensions: 72 mm (W) × 125 mm (D) × 31 mm (H)
- Weight: Approx. 346 g
- Casing: IP-30 metal enclosure
- Mounting: DIN-rail and wall-mount options

LED Indicators:
- PWR1/PWR2: Green (active), Red (booting/IP conflict)
- ETH: Green (100 Mbps), Amber (10 Mbps)
- WLAN: Green (good signal), Amber (poor signal)
- Serial TX/RX: Green (TX), Red (RX)

---

### 4. Functionality

The IDS-5011-WG functions as a wireless serial device server, bridging serial-based equipment to Ethernet or WLAN networks. It converts serial data (RS232/422/485) into TCP/IP packets for transmission over LAN or WLAN, enabling remote monitoring and control of legacy devices.

Supported Operation Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing transparent communication as if directly connected. Supports up to 5 simultaneous host connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 concurrent connections.
- TCP Client Mode: Initiates TCP connections to a defined server upon startup or data transmission.
- UDP Mode: Enables fast, connectionless data transfer via unicast or multicast.
- Serial Tunnel Mode: Creates a transparent serial link between two IDS devices over IP.

Use Cases:
- Industrial automation and control systems
- SCADA and telemetry networks
- Remote serial device management
- Wireless data acquisition and monitoring
- Integration of legacy serial devices into modern IP networks

Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista (32-bit)
- Management Interfaces: Web (HTTPS), SSH, DS-Tool utility

---

### 5. Components & Accessories

Included Items:
- IDS-5011-WG main unit
- DIN-rail mounting kit (pre-installed)
- Wall-mount bracket and screws
- Power terminal block connector
- Quick installation guide and documentation

Optional Accessories:
- External 2.4 GHz antenna (Reverse SMA)
- DC power adapter (12–48 VDC)
- Ethernet cables (Cat 5/5e UTP)

Connectors:
- 1 × RJ-45 Ethernet port
- 1 × Reverse SMA antenna connector
- 1 × DB9 male serial port
- 1 × DC power jack
- 1 × 3-pin terminal block

---

### 6. Installation & Setup

Mounting Options:
- DIN-Rail Installation:
The device includes a rear DIN-rail clip. Tilt and hook the spring clip onto the rail, then press until it clicks securely.
- Wall Mounting:
Remove the DIN-rail kit, attach the wall-mount bracket using the provided screws, and secure the unit to the wall.

Configuration Methods:
1. DS-Tool Utility (Windows):
- Device discovery and IP configuration
- Serial port setup and mode selection
- Firmware updates and monitoring
2. Web Interface (HTTPS):
- Accessible via `https://192.168.10.2`
- Configure network, wireless, and serial parameters
- Manage event notifications and security settings
3. SSH Console:
- Secure command-line configuration and diagnostics

Network Setup:
- Default IP: 192.168.10.2
- Supports Static IP, DHCP, or BOOTP
- NAT pass-through for remote management

Wireless Setup:
- Modes: Infrastructure (via AP) or Ad-Hoc (peer-to-peer)
- Configurable SSID, channel, and encryption type
- Supports WEP, WPA, WPA2, TKIP, AES

---

### 7. Performance & Capabilities

- Wireless Throughput: Up to 54 Mbps (802.11g)
- Serial Data Rate: 110 bps to 230.4 kbps (configurable up to 460.8 kbps)
- Simultaneous Connections: Up to 5 hosts (Virtual COM/TCP/UDP)
- Power Efficiency: Typical consumption ~4 W
- Data Integrity: Built-in TCP alive check, inactivity timeout, and data delimiter-based buffering
- Reliability: Dual power redundancy, NAT pass-through, and event-based alerts ensure continuous operation
- Latency Optimization: Configurable performance modes (Throughput or Latency)

Limitations:
- LAN and WLAN interfaces cannot operate simultaneously; activating LAN disables WLAN to reduce power consumption.
- Virtual COM mapping is not available via web interface (only via DS-Tool).

---

### 8. Standards & Compliance

Electrical & Mechanical Standards:
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Free Fall: IEC 60068-2-32

EMC & Safety Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD)
- EN61000-4-3 (RS)
- EN61000-4-4 (EFT)
- EN61000-4-5 (Surge)
- EN61000-4-6 (CS)
- Safety: EN60950

Environmental Protection:
- IP-30 rated metal enclosure for industrial environments

Certifications:
- CE, FCC, EN60950

---

### 9. Additional Information

Warranty:
- 5-year limited hardware warranty

Support & Maintenance:
- Firmware updates available via DS-Tool or web interface
- Technical support via ORing’s global service network
- Preventive maintenance recommended for power and antenna connections

Software Updates:
- Firmware upgradeable through web or DS-Tool utility
- Configuration backup and restore supported

Event Management & Logging:
- System events (power failure, link down, login failure, IP change) trigger notifications via email, SNMP trap, or Syslog
- Integrated beeper for local alerts

Security Management:
- Access IP control list to restrict unauthorized hosts
- Password protection for web and console access
- HTTPS and SSH encryption for secure management sessions

---

### Summary

The ORing IDS-5011-WG is a robust, feature-rich industrial wireless device server that bridges serial communication to Ethernet and WLAN networks. With its dual redundant power inputs, secure management interfaces, and multi-host redundancy, it ensures reliable operation in mission-critical industrial environments. The device’s 54 Mbps wireless throughput, comprehensive security protocols, and flexible configuration options make it ideal for applications requiring remote serial connectivity, such as factory automation, energy management, and transportation systems.

Its industrial-grade IP-30 metal housing, wide temperature tolerance, and 5-year warranty underscore its suitability for demanding field deployments. The inclusion of DS-Tool software simplifies configuration, monitoring, and firmware management, while NAT pass-through and multi-protocol support enhance integration flexibility across diverse network architectures.

In essence, the IDS-5011-WG delivers a reliable, secure, and scalable solution for extending serial device communication into modern IP-based industrial networks.
