Comprehensive Product Summary – IDS-5011F-MM Industrial Device Server

---

### 1. Product Overview

Product Name: Industrial Device Server
Model: IDS-5011F-MM
Series: IDS-5011F Series
Article Number: IDS-5011F-MM
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com

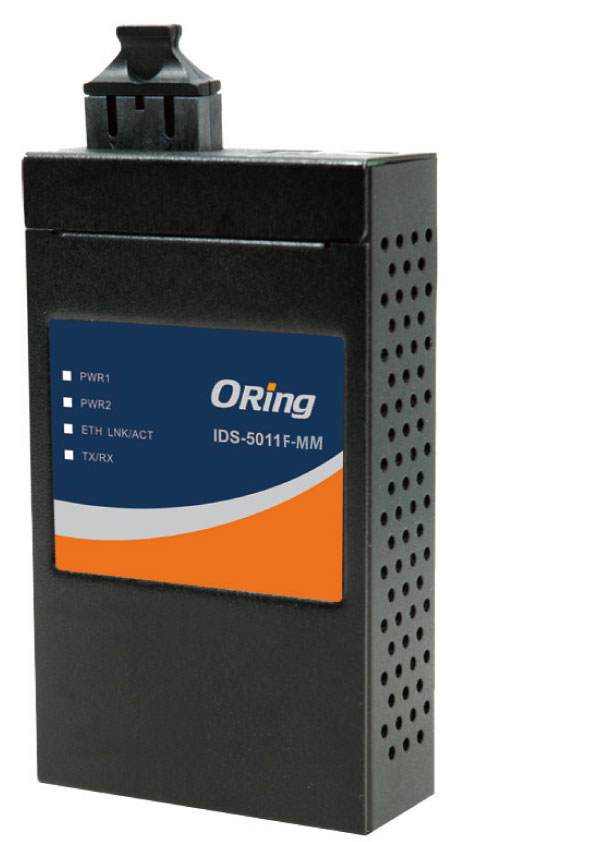

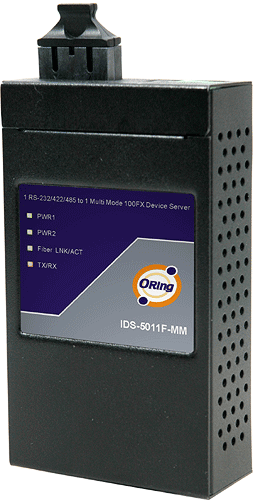

The ORing IDS-5011F-MM is a rugged, industrial-grade 1-port serial-to-fiber device server designed to connect RS-232/422/485 serial devices to a 100Base-FX fiber Ethernet network. It provides secure, redundant, and flexible communication for mission-critical industrial automation, SCADA, and remote monitoring applications. The “MM” designation indicates a multi-mode fiber interface supporting up to 2 km transmission distance at 1310 nm wavelength.

---

### 2. Key Features

- 1-Port Serial to Fiber Conversion: Converts RS-232/422/485 serial communication to 100Base-FX Ethernet over multi-mode fiber.
- Multi-Mode Fiber Interface: SC connector, 1310 nm wavelength, supports 50/125 µm or 62.5/125 µm fiber, up to 2 km distance.
- Versatile Serial Modes: Supports RS-232, RS-422, and 2/4-wire RS-485, configurable via DS-Tool or web interface.
- Multiple Operation Modes: Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP modes for flexible integration.
- Redundant Host Connections: Supports up to 5 simultaneous host connections for data redundancy and reliability.
- Secure Management: HTTPS, SSH, and SSL encryption ensure secure configuration and data transmission.
- NAT Pass-Through: Enables remote management through NAT routers, supporting DDNS and PPPoE for Internet-based access.
- Event Notification System: Alerts via Syslog, Email, SNMP Trap, and Beeper for system and network events.
- Dual Redundant Power Inputs: 12–48 VDC via terminal block and power jack for uninterrupted operation.
- Industrial-Grade Design: IP-30 metal enclosure, DIN-rail and wall-mount options, wide operating temperature range (-40°C to 70°C).
- Software Utility: DS-Tool for Windows provides device discovery, configuration, monitoring, and firmware updates.
- High Reliability: MTBF > 561,000 hours, 5-year warranty.

---

### 3. Technical Specifications

Fiber Interface:
- Port: 1 × 100Base-FX (SC connector)
- Mode: Multi-mode
- Wavelength: 1310 nm
- Fiber Type: 50/125 µm or 62.5/125 µm
- Distance: Up to 2 km
- Optical Power Output: Max -14 dBm, Min -23.5 dBm
- Input Power Range: 0 dBm (max), -31 dBm (min)
- Link Budget: 7.5 dB

Serial Interface:
- Port: 1 × DB9 male connector
- Modes: RS-232 / RS-422 / 2-wire or 4-wire RS-485
- Baud Rate: 110 bps to 460.8 Kbps
- Data Bits: 5, 6, 7, 8
- Parity: None, Odd, Even, Mark, Space
- Stop Bits: 1, 1.5, 2
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- ESD Protection: 15 kV built-in
- Pin Assignments:
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485 (4-wire): Tx+, Tx-, Rx+, Rx-, GND
- RS-485 (2-wire): Data+, Data-, GND

Network Interface:
- Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP v1/v2c, HTTPS, SSH, SMTP, SSL, PPPoE, DDNS
- Management: Web (HTTPS), SSH console, DS-Tool utility
- IP Configuration: Static, DHCP, BOOTP
- NAT Pass-Through: Supported
- SNMP Management: Supported with trap notifications

LED Indicators:
- PWR1/PWR2: Green (normal), Red (booting/IP conflict)
- Fiber Link/ACT: Green for 100 Mbps link/activity
- Serial TX/RX: Green (transmit), Red (receive)

Power:
- Input Voltage: 12–48 VDC (dual redundant)
- Connectors: 3-pin terminal block and DC power jack
- Power Consumption: 4 W (typical)
- Protection: Reverse polarity and overload protection

Physical Characteristics:
- Enclosure: IP-30 metal housing
- Dimensions: 72(W) × 29.4(D) × 123.4(H) mm (2.83 × 1.16 × 4.86 in)
- Weight: 325 g
- Mounting: DIN-rail and wall-mount options

Environmental:
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity: 5%–95% non-condensing

Reliability:
- MTBF: 561,145 hours (MIL-HDBK-217F2, GB, GC, 25°C)
- Warranty: 5 years

---

### 4. Functionality

The IDS-5011F-MM acts as a bridge between legacy serial devices and modern Ethernet networks using fiber optics. It converts serial data from RS-232/422/485 interfaces into Ethernet packets transmitted over a 100Base-FX fiber link. The device supports multiple communication modes:

- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing legacy software to communicate transparently.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 simultaneous connections.
- TCP Client Mode: Initiates connections to a remote server upon startup or data transmission.
- UDP Mode: Enables fast, connectionless data transmission for real-time applications.
- Serial Tunnel Mode: Creates a transparent serial link between two IDS-5011F devices over Ethernet.

Use Cases:
- Industrial automation and control systems
- SCADA and telemetry networks
- Remote serial device management
- Transportation and energy monitoring
- Secure data acquisition in harsh environments

Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista (32-bit)
- Linux: Supported via fixed TTY driver
- Network Integration: Compatible with routers, switches, and NAT environments

---

### 5. Components & Accessories

Included Items:
- IDS-5011F-MM Device Server
- DIN-rail mounting kit
- Wall-mount kit
- ORing Tool CD (includes DS-Tool software)
- Quick Installation Guide

Optional Accessories:
- Power Supplies:
- DR-45 Series (45W DIN-rail power supply)
- DR-75 Series (75W DIN-rail power supply)
- DR-120 Series (120W DIN-rail power supply)
- PAA-121000 (12VDC/1000mA, US plug)
- PAE-121000 (12VDC/1000mA, EU plug)

Connectors:
- SC fiber connector (multi-mode)
- DB9 male serial connector
- 3-pin terminal block for power input

---

### 6. Installation & Setup

Mounting Options:
- DIN-Rail Installation:
The device includes a pre-installed DIN-rail clip. To mount, hook the top of the clip onto the rail and press until it clicks into place.
- Wall Mounting:
Remove the DIN-rail clip, attach the wall-mount bracket using six screws, and secure the unit to the wall.

Power Connection:
- Connect 12–48 VDC to either the terminal block or DC jack. Both inputs can be used simultaneously for redundancy.

Fiber Connection:
- Connect the TX port of the IDS-5011F-MM to the RX port of the switch (and vice versa) using a multi-mode fiber patch cord.

Serial Connection:
- Use the DB9 male connector to connect to serial devices. Configure RS-232/422/485 mode via DS-Tool or DIP switches.

Configuration:
- Web Interface: Access via HTTPS at default IP 192.168.10.2.
- DS-Tool Utility: Provides device discovery, configuration, firmware updates, and monitoring.
- SSH Console: Secure command-line configuration.
- Reset Button: Hold for 5 seconds to restore factory defaults.

---

### 7. Performance & Capabilities

- Data Throughput: Up to 460.8 Kbps on serial interface.
- Network Speed: 100 Mbps full-duplex fiber Ethernet.
- Redundancy: Supports up to 5 simultaneous host connections for data backup.
- Recovery Time: Ethernet redundancy recovery <10 ms.
- Security: HTTPS, SSH, SSL encryption, IP access control, password protection.
- Event Handling: Configurable notifications for power failure, link loss, unauthorized access, and serial signal changes.
- Reliability: Dual power inputs and rugged design ensure continuous operation in industrial environments.

Limitations:
- Single serial port (1:1 conversion)
- Multi-mode fiber limited to 2 km range
- Windows-based DS-Tool utility (Linux configuration via web/SSH)

---

### 8. Standards & Compliance

EMI/EMS Compliance:
- FCC Part 15, CISPR (EN55022) Class A
- EN61000-4-2 (ESD)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT)
- EN61000-4-5 (Surge)
- EN61000-4-6 (Conducted Susceptibility)
- EN61000-4-8 (Magnetic Field)
- EN61000-4-11 (Voltage Dips/Interruptions)

Environmental & Safety:
- Shock: IEC 60068-2-27
- Free Fall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
- Safety: EN60950-1

Protection Rating:
- IP-30 metal enclosure for industrial environments

Certifications:
- CE, FCC, RoHS compliant

---

### 9. Additional Information

Warranty:
5 years limited warranty covering manufacturing defects and hardware reliability.

Support & Maintenance:
- Firmware updates available via DS-Tool or web interface.
- Technical support provided by ORing Industrial Networking Corp.
- Configuration backup and restore supported through DS-Tool and web interface.

Software Updates:
- DS-Tool supports group firmware updates and configuration management.
- Web interface allows firmware upload and system reboot.

Mean Time Between Failures (MTBF):
- IDS-5011F-MM: 561,145 hours
- IDS-5011F-SS (for reference): 562,542 hours

Ordering Information:
- IDS-5011F-MM-SC: 1×RS-232/422/485 + 1×100Base-FX (multi-mode, 2 km, 1310 nm, SC connector)
- IDS-5011F-SS-SC: 1×RS-232/422/485 + 1×100Base-FX (single-mode, 30 km, 1310 nm, SC connector)

Model Code Definition:
- IDS-50 A B C - DD
- A: Serial Port Number (1)
- B: Ethernet Port Number (1)
- C: Fiber Port Identification (F = 100Base-FX)
- DD: Fiber Mode (MM = Multi-mode, SS = Single-mode)

---

### Summary

The ORing IDS-5011F-MM is a high-performance, industrial-grade device server engineered for secure and reliable serial-to-fiber communication. It bridges legacy serial equipment with modern Ethernet networks using a robust 100Base-FX multi-mode fiber interface. With advanced redundancy, secure management protocols, and flexible configuration options, it ensures continuous data transmission even in harsh industrial environments. Its dual power inputs, IP-30 metal housing, and wide temperature tolerance make it ideal for automation, transportation, and energy applications requiring dependable serial connectivity over fiber networks.
