Comprehensive Product Summary: ORing IDS‑5012 Industrial Device Server

---

### 1. Product Overview

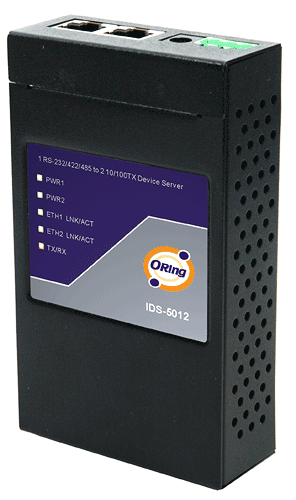

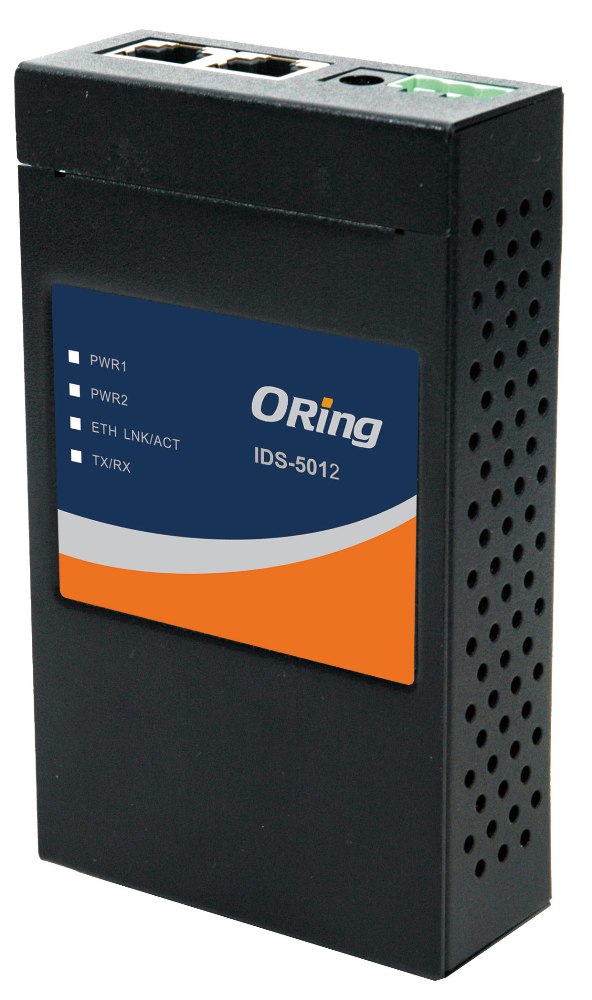

Product Name: IDS‑5012
Model: IDS‑5012
Series: IDS‑50 Series Industrial Device Servers
Article Number: IDS‑5012
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
Telephone: +886‑2‑2918‑3036
Fax: +886‑2‑2918‑3084

The ORing IDS‑5012 is an industrial‑grade, slim‑form device server designed to bridge serial communication interfaces (RS‑232/422/485) with Ethernet networks. It provides two redundant 10/100Base‑T(X) LAN ports and one configurable serial port, enabling reliable, secure, and flexible data transmission between legacy serial devices and modern IP‑based systems. The unit is engineered for mission‑critical industrial automation, transportation, and energy applications requiring high availability, fast recovery, and robust environmental performance.

---

### 2. Key Features

- Dual Redundant Ethernet Ports: Two 10/100Base‑T(X) RJ‑45 interfaces supporting redundant mode with automatic failover and recovery time under 10 ms.
- Switch Mode (Daisy Chain): Enables Ethernet daisy‑chaining to reduce switch port usage and simplify network topology.
- Serial‑to‑Ethernet Conversion: One RS‑232/422/485 port configurable via DS‑Tool for flexible serial communication.
- Multiple Host Redundancy: Supports up to five simultaneous host connections in Virtual COM, TCP Server, TCP Client, or UDP modes.
- Secure Management: HTTPS and SSH protocols for encrypted configuration and monitoring.
- Event Notification: Alerts via Syslog, Email, SNMP Trap, and audible beeper; relay output available for external alarms.
- NAT Pass‑Through: Allows management and communication through NAT routers, enabling remote access across IP domains.
- Dual Power Inputs: Redundant 12–48 V DC inputs via 3‑pin terminal block and DC power jack with reverse polarity protection.
- Software Utility (DS‑Tool): Windows‑based management suite for device discovery, configuration, firmware updates, and monitoring.
- High Reliability: Hardware and software redundancy mechanisms ensure continuous operation in case of network or power failure.
- Industrial Design: IP‑30 metal housing, DIN‑rail and wall‑mount options, and extended operating temperature range.
- Security Functions: IP access control table, password protection, SSL data encryption, and SSH console access.
- Comprehensive Protocol Support: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB‑II, HTTPS, SSH.
- Wide OS Compatibility: Virtual COM drivers for Windows NT/2000/XP/2003/Vista (32‑bit).

---

### 3. Technical Specifications

Network Interface:
- 2 × 10/100Base‑T(X) Ethernet ports (RJ‑45)
- Auto‑negotiation and auto‑MDI/MDI‑X support
- Built‑in 1.5 kV magnetic isolation
- Redundant or switch (daisy‑chain) mode
- Auto‑recovery time < 10 ms

Serial Interface:
- 1 × RS‑232/422/485 (2‑wire or 4‑wire) configurable
- Connector: Male DB9
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS‑422 Signals: Tx+, Tx‑, Rx+, Rx‑, GND
- RS‑485 (4‑wire): Tx+, Tx‑, Rx+, Rx‑, GND
- RS‑485 (2‑wire): Data+, Data‑, GND
- Built‑in 15 kV ESD protection

Power Requirements:
- Dual DC Inputs: 12–48 V DC (3‑pin terminal block and DC jack)
- Reverse Polarity Protection: Yes (terminal block)
- Power Consumption: Max. 4 W

LED Indicators:
- PWR1/PWR2: Green = Power active; Red = booting/IP conflict
- ETH1/ETH2: Green = 100 Mbps LNK/ACT; Amber = 10 Mbps LNK/ACT
- Serial TX/RX: Green = Transmit; Red = Receive

Environmental:
- Operating Temperature: –10 °C to 60 °C (14 °F to 140 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5 % – 95 % (non‑condensing)

Mechanical:
- Dimensions (W × D × H): 72 × 125 × 31 mm
- Enclosure: IP‑30 rated metal case
- Mounting: DIN‑rail or wall mount

Compliance & Safety:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS)
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32

Warranty: 5 years

---

### 4. Functionality

The IDS‑5012 acts as a transparent bridge between serial devices and Ethernet networks. It converts serial data streams (RS‑232/422/485) into TCP/IP packets and vice versa, enabling remote monitoring, control, and data acquisition over LAN or WAN.

Operating Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing legacy applications to communicate as if connected locally. Supports up to five simultaneous host connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to five concurrent sessions.
- TCP Client Mode: Initiates TCP connections to a defined server upon startup or data activity.
- UDP Mode: Provides unicast or multicast data transmission for low‑latency communication.
- Serial Tunnel Mode: Creates a transparent serial link between two IDS‑5012 units over Ethernet.

Security & Management:
- HTTPS/SSH for encrypted configuration
- IP access control lists
- Password protection
- SSL data encryption for serial data streams

Event & Alarm Handling:
- Configurable notifications for power, Ethernet link, login failure, IP change, or serial signal changes (DCD, DSR, RI, CTS).
- Alerts via Email, SNMP Trap, Syslog, or audible beeper.

Network Features:
- DHCP/BOOTP or static IP configuration
- PPPoE for broadband connections
- DDNS for dynamic IP environments
- NAT pass‑through for remote management
- Auto IP reporting for device status updates

Use Cases:
- Industrial automation and SCADA systems
- Transportation and traffic control networks
- Energy and utility monitoring
- Building management and security systems
- Remote serial device management (PLC, sensors, meters, etc.)

---

### 5. Components & Accessories

Included Items:
- IDS‑5012 main unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket and screws
- Quick installation guide
- Power terminal block connector

Optional Accessories:
- External DC power adapter (12–48 V DC)
- Ethernet cables (Cat 5/5e UTP)
- Serial cables (DB9 male/female)

Connectors:
- 2 × RJ‑45 Ethernet ports
- 1 × DB9 male serial port
- 1 × 3‑pin terminal block (PWR1)
- 1 × DC power jack (PWR2)
- Reset button (factory default restore)
- DIP switch for RS‑422/485 termination configuration

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail: Attach using the integrated spring‑loaded clip; tilt and snap until a “click” confirms secure mounting.
- Wall Mount: Remove DIN‑rail kit, attach wall‑mount plate with six screws, and fix to wall surface.

Power Connection:
- Connect 12–48 V DC to either terminal block (PWR1) or DC jack (PWR2). Both can be used simultaneously for redundancy.

Network Connection:
- Use Cat 5/5e UTP cables (100 m max) for Ethernet.
- Auto MDI/MDI‑X allows direct connection to PCs or switches without crossover cables.

Serial Configuration:
- Set interface type (RS‑232/422/485) via DS‑Tool or web interface.
- Adjust DIP switches for RS‑422/485 termination (ON = long‑distance termination).

Software Setup:
- Install DS‑Tool on Windows PC.
- Discover devices via broadcast (default IP 192.168.10.2).
- Configure network, serial, and security parameters.
- Save configuration and reboot if required.

Web Configuration:
- Access via HTTPS://192.168.10.2
- Configure IP, PPPoE, DDNS, authentication, serial settings, and event notifications.

SSH Console:
- Access using SSH client (e.g., PuTTY). Default credentials: admin/admin.

---

### 7. Performance & Capabilities

- Ethernet Redundancy: Automatic failover between dual LAN ports within 10 ms ensures uninterrupted communication.
- Serial Performance: Up to 460.8 kbps baud rate with low latency or high throughput modes selectable.
- Multi‑Host Connectivity: Supports up to five simultaneous connections per serial port, ensuring data redundancy across multiple hosts.
- Data Handling: 4 KB transmit/receive buffers with configurable delimiters and flush timers (0–65,535 s).
- Reliability: Dual power inputs and redundant network paths minimize downtime.
- Security: SSL encryption, HTTPS/SSH management, and IP filtering protect against unauthorized access.
- Efficiency: Low power consumption (max 4 W) and compact design (72 × 125 × 31 mm) suitable for space‑constrained control panels.
- Limitations: Single serial port; expansion requires additional units. Operating temperature limited to –10 °C – 60 °C (not for extreme outdoor use without enclosure).

---

### 8. Standards & Compliance

Electrical & EMC:
- FCC Part 15 Class A
- CISPR (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)

Environmental & Mechanical:
- IEC 60068‑2‑27 (Shock)
- IEC 60068‑2‑6 (Vibration)
- IEC 60068‑2‑32 (Free Fall)
- IP‑30 enclosure rating

Software & Protocol Standards:
- SNMP MIB‑II compliance
- HTTPS/SSH for secure management
- PPPoE, DHCP, BOOTP, DNS, ARP/RARP, ICMP, TCP, UDP

---

### 9. Additional Information

Warranty: 5 years limited manufacturer warranty.
Support: Technical assistance via email or phone; firmware updates available through DS‑Tool or web interface.
Maintenance:
- Periodic firmware updates recommended for security and performance.
- Configuration backup and restore supported via DS‑Tool or web GUI.
- Factory reset available via hardware button (press > 5 s).

Firmware Upgrade:
- Performed through DS‑Tool or web interface; supports group firmware update for multiple devices.

Monitoring & Diagnostics:
- Real‑time device and serial port monitoring via DS‑Tool.
- Syslog integration for centralized event logging.
- SNMP traps for network management systems.

Software Compatibility:
- DS‑Tool and Virtual COM drivers compatible with Windows NT/2000/XP/2003/Vista (32‑bit).
- Web and SSH interfaces platform‑independent.

Typical Applications:
- Connecting PLCs, sensors, meters, and controllers to Ethernet networks.
- Remote serial device management in industrial automation.
- Redundant communication links in transportation and energy systems.
- Secure data acquisition in SCADA and telemetry networks.

---

### Summary

The ORing IDS‑5012 Industrial Device Server is a compact, high‑reliability serial‑to‑Ethernet gateway engineered for industrial environments requiring redundancy, security, and flexibility. With dual Ethernet ports, dual power inputs, and sub‑10 ms failover, it ensures continuous operation even under network or power disruptions. Its versatile communication modes (Virtual COM, TCP Server/Client, UDP) and comprehensive management interfaces (DS‑Tool, HTTPS, SSH) make it adaptable to a wide range of industrial and automation applications. Compliance with global EMC and environmental standards, combined with a 5‑year warranty, underscores its suitability for long‑term deployment in mission‑critical systems.
