- Dual Redundant Ethernet Ports:
Two 10/100Base‑T(X) ports support redundant or switch (daisy‑chain) mode with automatic recovery time under 10 ms, ensuring continuous network connectivity.
- PoE PD Support (IEEE 802.3af):
The ETH2 port functions as a Power‑over‑Ethernet Powered Device (PD) with 1 kV isolation, allowing flexible power sourcing and simplified cabling.
- Multi‑Protocol Serial Connectivity:
Four configurable serial ports supporting RS‑232, RS‑422, and 2‑ or 4‑wire RS‑485 interfaces, selectable via software (DS‑Tool).
- Redundant Power Inputs:
Dual 12–48 V DC inputs via terminal block and DC jack, with reverse polarity protection and fault relay output (1 A @ 24 V DC).
- High Reliability and Rugged Design:
IP‑30 metal housing, DIN‑rail or wall‑mount installation, and compliance with IEC 60068 shock, vibration, and free‑fall standards.
- Advanced Redundancy and Failover:
Automatic LAN failover (< 10 ms), dual power redundancy, and support for up to five simultaneous host connections (Virtual COM, TCP Server/Client, UDP).
- Secure Management:
HTTPS and SSH access, IP filtering, password protection, and SSL data encryption for secure configuration and communication.
- Comprehensive Event Notification:
Fault and status alerts via Syslog, SNMP trap, email, relay output, or beeper.
- Flexible Configuration Tools:
Web‑based GUI, SSH console, and Windows utility (DS‑Tool) for discovery, configuration, monitoring, and firmware updates.
- NAT Pass‑Through and PPPoE/DDNS Support:
Enables remote management across NAT routers and dynamic IP environments.
- Wide Environmental Tolerance:
Operating temperature range −10 °C to 60 °C, humidity 5–95 % non‑condensing.
Two 10/100Base‑T(X) ports support redundant or switch (daisy‑chain) mode with automatic recovery time under 10 ms, ensuring continuous network connectivity.
- PoE PD Support (IEEE 802.3af):
The ETH2 port functions as a Power‑over‑Ethernet Powered Device (PD) with 1 kV isolation, allowing flexible power sourcing and simplified cabling.
- Multi‑Protocol Serial Connectivity:
Four configurable serial ports supporting RS‑232, RS‑422, and 2‑ or 4‑wire RS‑485 interfaces, selectable via software (DS‑Tool).
- Redundant Power Inputs:
Dual 12–48 V DC inputs via terminal block and DC jack, with reverse polarity protection and fault relay output (1 A @ 24 V DC).
- High Reliability and Rugged Design:
IP‑30 metal housing, DIN‑rail or wall‑mount installation, and compliance with IEC 60068 shock, vibration, and free‑fall standards.
- Advanced Redundancy and Failover:
Automatic LAN failover (< 10 ms), dual power redundancy, and support for up to five simultaneous host connections (Virtual COM, TCP Server/Client, UDP).
- Secure Management:
HTTPS and SSH access, IP filtering, password protection, and SSL data encryption for secure configuration and communication.
- Comprehensive Event Notification:
Fault and status alerts via Syslog, SNMP trap, email, relay output, or beeper.
- Flexible Configuration Tools:
Web‑based GUI, SSH console, and Windows utility (DS‑Tool) for discovery, configuration, monitoring, and firmware updates.
- NAT Pass‑Through and PPPoE/DDNS Support:
Enables remote management across NAT routers and dynamic IP environments.
- Wide Environmental Tolerance:
Operating temperature range −10 °C to 60 °C, humidity 5–95 % non‑condensing.

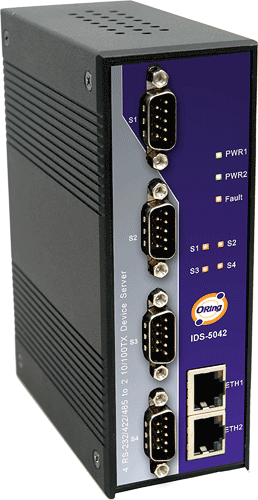

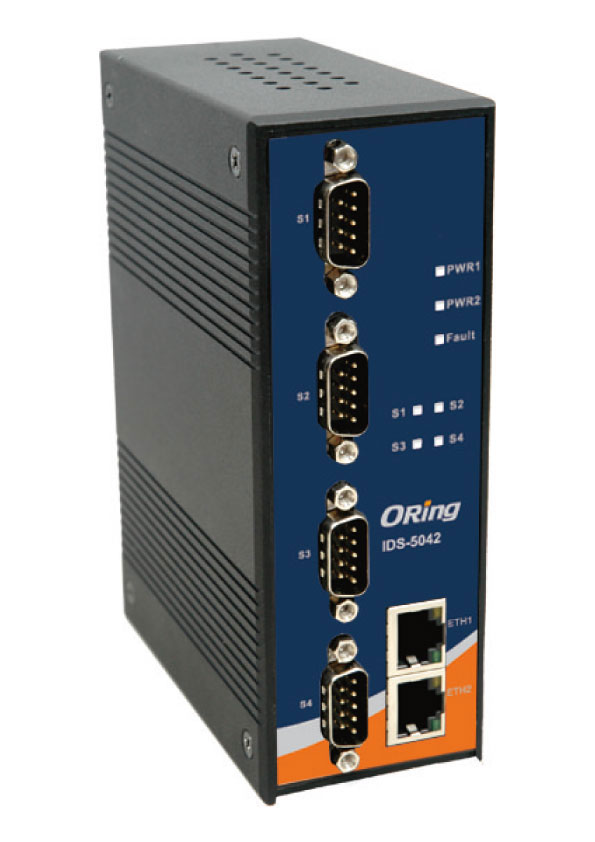

Comprehensive Product Summary – ORing IDS‑5042+ Industrial Device Server
### 1. Product Overview
Product Name: Industrial Device Server
Model: IDS‑5042+
Series: IDS‑5042 Series
Article Number: IDS‑5042+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
The ORing IDS‑5042+ is a rugged, industrial‑grade Ethernet device server designed to connect up to four serial devices (RS‑232/422/485) to dual 10/100Base‑T(X) Ethernet networks. It provides advanced redundancy, PoE PD capability, and secure management features for mission‑critical industrial communication systems. The IDS‑5042+ is part of ORing’s IDS‑5042 series, which also includes the IDS‑5042 and IDS‑5042‑I+ variants.
### 2. Key Features
- Dual Redundant Ethernet Ports:
Two 10/100Base‑T(X) ports support redundant or switch (daisy‑chain) mode with automatic recovery time under 10 ms, ensuring continuous network connectivity.
- PoE PD Support (IEEE 802.3af):
The ETH2 port functions as a Power‑over‑Ethernet Powered Device (PD) with 1 kV isolation, allowing flexible power sourcing and simplified cabling.
- Multi‑Protocol Serial Connectivity:
Four configurable serial ports supporting RS‑232, RS‑422, and 2‑ or 4‑wire RS‑485 interfaces, selectable via software (DS‑Tool).
- Redundant Power Inputs:
Dual 12–48 V DC inputs via terminal block and DC jack, with reverse polarity protection and fault relay output (1 A @ 24 V DC).
- High Reliability and Rugged Design:
IP‑30 metal housing, DIN‑rail or wall‑mount installation, and compliance with IEC 60068 shock, vibration, and free‑fall standards.
- Advanced Redundancy and Failover:
Automatic LAN failover (< 10 ms), dual power redundancy, and support for up to five simultaneous host connections (Virtual COM, TCP Server/Client, UDP).
- Secure Management:
HTTPS and SSH access, IP filtering, password protection, and SSL data encryption for secure configuration and communication.
- Comprehensive Event Notification:
Fault and status alerts via Syslog, SNMP trap, email, relay output, or beeper.
- Flexible Configuration Tools:
Web‑based GUI, SSH console, and Windows utility (DS‑Tool) for discovery, configuration, monitoring, and firmware updates.
- NAT Pass‑Through and PPPoE/DDNS Support:
Enables remote management across NAT routers and dynamic IP environments.
- Wide Environmental Tolerance:
Operating temperature range −10 °C to 60 °C, humidity 5–95 % non‑condensing.
### 3. Technical Specifications
Network Interface:
- 2 × 10/100Base‑T(X) Ethernet ports (RJ‑45)
- Auto MDI/MDI‑X, 1.5 kV magnetic isolation
- Redundant or switch (daisy‑chain) mode
- Auto‑recovery < 10 ms
- Supported protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH
Serial Interface:
- 4 × RS‑232/422/485 software‑selectable ports
- Connector: DB9 male (IDS‑5042/5042+), 5‑pin terminal block (IDS‑5042‑I+)
- Baud rate: 110 bps – 460.8 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS‑422 signals: Tx+, Tx−, Rx+, Rx−, GND
- RS‑485 (4‑wire): Tx+, Tx−, Rx+, Rx−, GND
- RS‑485 (2‑wire): Data+, Data−, GND
- Protection: 15 kV ESD; 2 kV DC isolation (IDS‑5042‑I+ only)
Power Requirements:
- Dual DC inputs: 12–48 V DC (6‑pin terminal block)
- Reverse polarity protection
- Power consumption: typ. 5.5 W, max 7 W
- PoE PD (ETH2): IEEE 802.3af compliant, 8 W max
Mechanical:
- Dimensions: 52 (W) × 106 (D) × 144 (H) mm
- Weight: ≈ 682 g
- Enclosure: IP‑30 metal housing
- Mounting: DIN‑rail or wall‑mount
Environmental:
- Operating temperature: −10 °C to 60 °C (14 °F to 140 °F)
- Storage temperature: −40 °C to 85 °C (−40 °F to 185 °F)
- Humidity: 5 % – 95 %, non‑condensing
Regulatory Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS)
- Mechanical: IEC 60068‑2‑6 (Vibration), ‑2‑27 (Shock), ‑2‑32 (Free Fall)
### 4. Functionality
The IDS‑5042+ acts as a bridge between serial devices and Ethernet networks, enabling legacy RS‑232/422/485 equipment to communicate over IP. Each serial port can operate independently in one of several modes:
- Virtual COM Mode:
Maps serial ports to virtual COM ports on Windows hosts, supporting up to five simultaneous connections for data redundancy.
- TCP Server Mode:
Waits for incoming TCP connections from clients; supports up to five concurrent sessions.
- TCP Client Mode:
Initiates TCP connections to remote servers on startup or upon data transmission.
- UDP Mode:
Provides unicast or multicast communication for high‑speed, low‑latency data exchange.
- Serial Tunnel Mode:
Creates transparent serial‑to‑serial links over Ethernet.
The device supports SSL encryption for secure data transfer, NAT pass‑through for remote access, and PPPoE/DDNS for dynamic IP environments. It can be managed via HTTPS web interface, SSH console, or the DS‑Tool Windows utility.
Typical Applications:
- Industrial automation and SCADA systems
- Remote monitoring and control of PLCs, sensors, and meters
- Transportation and traffic control networks
- Energy management and substation communication
- Building automation and security systems
Compatibility:
- Windows NT/2000/XP/2003/Vista (32‑bit)
- Linux (fixed TTY driver)
- Supports standard TCP/IP networking environments
### 5. Components & Accessories
Included Items:
- IDS‑5042+ device server unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket and screws
- Quick installation guide and documentation
Connectors:
- 4 × DB9 male serial ports
- 2 × RJ‑45 Ethernet ports (ETH1, ETH2 PoE PD)
- 6‑pin terminal block for dual DC power inputs and relay output
- Reset button (factory default restore)
Optional Accessories:
- Power adapters (12–48 V DC)
- Industrial Ethernet cables (Cat 5/5e UTP)
- Serial cables (RS‑232/422/485)
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail: Attach using the rear metal spring clip; press until a “click” confirms secure installation.
- Wall‑Mount: Remove DIN‑rail kit, attach wall‑mount panel with six screws, and fix to wall surface.
Power Connection:
- Connect 12–48 V DC to PWR1 and/or PWR2 terminals.
- PoE PD operation available via ETH2 port (IEEE 802.3af).
- Relay output (1 A @ 24 V DC) for fault alarms.
Network Configuration:
- Default IP address: 192.168.10.2
- Supports Static, DHCP/BOOTP, and PPPoE modes.
- DS‑Tool utility for device discovery and configuration.
- Web interface accessible via HTTPS (https://192.168.10.2).
- SSH console for command‑line management.
Serial Configuration:
- Set interface type (RS‑232/422/485), baud rate, data bits, parity, and flow control via DS‑Tool or web GUI.
- Define delimiters and buffer flush timers for data packing.
- Configure service mode (Virtual COM, TCP Server/Client, UDP).
Reset Procedure:
- Press and hold reset button for 5 seconds to restore factory defaults.
### 7. Performance & Capabilities
- Redundancy: Dual Ethernet failover < 10 ms; dual power inputs.
- Throughput: Optimized modes for high speed or low latency operation.
- Simultaneous Connections: Up to 5 hosts per serial port (Virtual COM/TCP/UDP).
- Data Integrity: SSL encryption and TCP alive check mechanisms.
- Event Handling: Automatic notifications for power, link, and serial status changes.
- Reliability: Industrial‑grade components and EMC protection ensure stable operation in harsh environments.
- Limitations: Maximum serial speed 460.8 kbps; operating temperature −10 °C to 60 °C.
### 8. Standards & Compliance
Electrical & EMC:
- FCC Part 15 Class A
- CISPR (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)
Mechanical & Environmental:
- IEC 60068‑2‑6 (Vibration)
- IEC 60068‑2‑27 (Shock)
- IEC 60068‑2‑32 (Free Fall)
Ingress Protection: IP‑30 metal enclosure
PoE Compliance: IEEE 802.3af PD standard
### 9. Additional Information
Warranty: 5 years limited manufacturer warranty
Support: Technical assistance via email and online resources
Maintenance:
- Firmware updates via DS‑Tool or web interface
- Configuration backup and restore functions
- Event logging and SNMP monitoring for preventive maintenance
Software Utility – DS‑Tool:
- Device discovery and group management
- Real‑time monitoring and log collection
- Group firmware update and configuration backup
- Serial port monitoring and diagnostics
Firmware Management:
- Upgrade via web GUI or DS‑Tool
- Import/export configuration files
- Restore factory defaults through software or hardware reset
Security Features:
- HTTPS and SSH management
- IP filtering and password protection
- SSL data encryption
- Event alerts for unauthorized access attempts
Event Notification Options:
- Email alerts (SMTP configurable)
- SNMP trap notifications
- Syslog integration
- Relay output and beeper for local alarms
Typical Deployment Scenarios:
- Connecting legacy serial equipment to Ethernet networks
- Redundant communication links for industrial automation
- Remote monitoring of sensors and controllers over IP
- Integration of serial devices into SCADA and IoT systems
### Summary
The ORing IDS‑5042+ is a high‑performance, industrial‑grade device server engineered for reliable serial‑to‑Ethernet communication in demanding environments. Its dual redundant Ethernet ports, PoE PD support, and dual DC inputs provide exceptional resilience against network and power failures. With flexible serial configuration, multiple operating modes, and secure management via HTTPS/SSH, the IDS‑5042+ ensures seamless integration of legacy serial devices into modern IP networks. Comprehensive event notification, robust EMC compliance, and a 5‑year warranty make it a dependable choice for industrial automation, transportation, energy, and infrastructure applications.
### 1. Product Overview
Product Name: Industrial Device Server
Model: IDS‑5042+
Series: IDS‑5042 Series
Article Number: IDS‑5042+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
The ORing IDS‑5042+ is a rugged, industrial‑grade Ethernet device server designed to connect up to four serial devices (RS‑232/422/485) to dual 10/100Base‑T(X) Ethernet networks. It provides advanced redundancy, PoE PD capability, and secure management features for mission‑critical industrial communication systems. The IDS‑5042+ is part of ORing’s IDS‑5042 series, which also includes the IDS‑5042 and IDS‑5042‑I+ variants.
### 2. Key Features
- Dual Redundant Ethernet Ports:
Two 10/100Base‑T(X) ports support redundant or switch (daisy‑chain) mode with automatic recovery time under 10 ms, ensuring continuous network connectivity.
- PoE PD Support (IEEE 802.3af):
The ETH2 port functions as a Power‑over‑Ethernet Powered Device (PD) with 1 kV isolation, allowing flexible power sourcing and simplified cabling.
- Multi‑Protocol Serial Connectivity:
Four configurable serial ports supporting RS‑232, RS‑422, and 2‑ or 4‑wire RS‑485 interfaces, selectable via software (DS‑Tool).
- Redundant Power Inputs:
Dual 12–48 V DC inputs via terminal block and DC jack, with reverse polarity protection and fault relay output (1 A @ 24 V DC).
- High Reliability and Rugged Design:
IP‑30 metal housing, DIN‑rail or wall‑mount installation, and compliance with IEC 60068 shock, vibration, and free‑fall standards.
- Advanced Redundancy and Failover:
Automatic LAN failover (< 10 ms), dual power redundancy, and support for up to five simultaneous host connections (Virtual COM, TCP Server/Client, UDP).
- Secure Management:
HTTPS and SSH access, IP filtering, password protection, and SSL data encryption for secure configuration and communication.
- Comprehensive Event Notification:
Fault and status alerts via Syslog, SNMP trap, email, relay output, or beeper.
- Flexible Configuration Tools:
Web‑based GUI, SSH console, and Windows utility (DS‑Tool) for discovery, configuration, monitoring, and firmware updates.
- NAT Pass‑Through and PPPoE/DDNS Support:
Enables remote management across NAT routers and dynamic IP environments.
- Wide Environmental Tolerance:
Operating temperature range −10 °C to 60 °C, humidity 5–95 % non‑condensing.
### 3. Technical Specifications
Network Interface:
- 2 × 10/100Base‑T(X) Ethernet ports (RJ‑45)
- Auto MDI/MDI‑X, 1.5 kV magnetic isolation
- Redundant or switch (daisy‑chain) mode
- Auto‑recovery < 10 ms
- Supported protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH
Serial Interface:
- 4 × RS‑232/422/485 software‑selectable ports
- Connector: DB9 male (IDS‑5042/5042+), 5‑pin terminal block (IDS‑5042‑I+)
- Baud rate: 110 bps – 460.8 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS‑422 signals: Tx+, Tx−, Rx+, Rx−, GND
- RS‑485 (4‑wire): Tx+, Tx−, Rx+, Rx−, GND
- RS‑485 (2‑wire): Data+, Data−, GND
- Protection: 15 kV ESD; 2 kV DC isolation (IDS‑5042‑I+ only)
Power Requirements:
- Dual DC inputs: 12–48 V DC (6‑pin terminal block)
- Reverse polarity protection
- Power consumption: typ. 5.5 W, max 7 W
- PoE PD (ETH2): IEEE 802.3af compliant, 8 W max
Mechanical:
- Dimensions: 52 (W) × 106 (D) × 144 (H) mm
- Weight: ≈ 682 g
- Enclosure: IP‑30 metal housing
- Mounting: DIN‑rail or wall‑mount
Environmental:
- Operating temperature: −10 °C to 60 °C (14 °F to 140 °F)
- Storage temperature: −40 °C to 85 °C (−40 °F to 185 °F)
- Humidity: 5 % – 95 %, non‑condensing
Regulatory Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS)
- Mechanical: IEC 60068‑2‑6 (Vibration), ‑2‑27 (Shock), ‑2‑32 (Free Fall)
### 4. Functionality
The IDS‑5042+ acts as a bridge between serial devices and Ethernet networks, enabling legacy RS‑232/422/485 equipment to communicate over IP. Each serial port can operate independently in one of several modes:
- Virtual COM Mode:
Maps serial ports to virtual COM ports on Windows hosts, supporting up to five simultaneous connections for data redundancy.
- TCP Server Mode:
Waits for incoming TCP connections from clients; supports up to five concurrent sessions.
- TCP Client Mode:
Initiates TCP connections to remote servers on startup or upon data transmission.
- UDP Mode:
Provides unicast or multicast communication for high‑speed, low‑latency data exchange.
- Serial Tunnel Mode:
Creates transparent serial‑to‑serial links over Ethernet.
The device supports SSL encryption for secure data transfer, NAT pass‑through for remote access, and PPPoE/DDNS for dynamic IP environments. It can be managed via HTTPS web interface, SSH console, or the DS‑Tool Windows utility.
Typical Applications:
- Industrial automation and SCADA systems
- Remote monitoring and control of PLCs, sensors, and meters
- Transportation and traffic control networks
- Energy management and substation communication
- Building automation and security systems
Compatibility:
- Windows NT/2000/XP/2003/Vista (32‑bit)
- Linux (fixed TTY driver)
- Supports standard TCP/IP networking environments
### 5. Components & Accessories
Included Items:
- IDS‑5042+ device server unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket and screws
- Quick installation guide and documentation
Connectors:
- 4 × DB9 male serial ports
- 2 × RJ‑45 Ethernet ports (ETH1, ETH2 PoE PD)
- 6‑pin terminal block for dual DC power inputs and relay output
- Reset button (factory default restore)
Optional Accessories:
- Power adapters (12–48 V DC)
- Industrial Ethernet cables (Cat 5/5e UTP)
- Serial cables (RS‑232/422/485)
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail: Attach using the rear metal spring clip; press until a “click” confirms secure installation.
- Wall‑Mount: Remove DIN‑rail kit, attach wall‑mount panel with six screws, and fix to wall surface.
Power Connection:
- Connect 12–48 V DC to PWR1 and/or PWR2 terminals.
- PoE PD operation available via ETH2 port (IEEE 802.3af).
- Relay output (1 A @ 24 V DC) for fault alarms.
Network Configuration:
- Default IP address: 192.168.10.2
- Supports Static, DHCP/BOOTP, and PPPoE modes.
- DS‑Tool utility for device discovery and configuration.
- Web interface accessible via HTTPS (https://192.168.10.2).
- SSH console for command‑line management.
Serial Configuration:
- Set interface type (RS‑232/422/485), baud rate, data bits, parity, and flow control via DS‑Tool or web GUI.
- Define delimiters and buffer flush timers for data packing.
- Configure service mode (Virtual COM, TCP Server/Client, UDP).
Reset Procedure:
- Press and hold reset button for 5 seconds to restore factory defaults.
### 7. Performance & Capabilities
- Redundancy: Dual Ethernet failover < 10 ms; dual power inputs.
- Throughput: Optimized modes for high speed or low latency operation.
- Simultaneous Connections: Up to 5 hosts per serial port (Virtual COM/TCP/UDP).
- Data Integrity: SSL encryption and TCP alive check mechanisms.
- Event Handling: Automatic notifications for power, link, and serial status changes.
- Reliability: Industrial‑grade components and EMC protection ensure stable operation in harsh environments.
- Limitations: Maximum serial speed 460.8 kbps; operating temperature −10 °C to 60 °C.
### 8. Standards & Compliance
Electrical & EMC:
- FCC Part 15 Class A
- CISPR (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)
Mechanical & Environmental:
- IEC 60068‑2‑6 (Vibration)
- IEC 60068‑2‑27 (Shock)
- IEC 60068‑2‑32 (Free Fall)
Ingress Protection: IP‑30 metal enclosure
PoE Compliance: IEEE 802.3af PD standard
### 9. Additional Information
Warranty: 5 years limited manufacturer warranty
Support: Technical assistance via email and online resources
Maintenance:
- Firmware updates via DS‑Tool or web interface
- Configuration backup and restore functions
- Event logging and SNMP monitoring for preventive maintenance
Software Utility – DS‑Tool:
- Device discovery and group management
- Real‑time monitoring and log collection
- Group firmware update and configuration backup
- Serial port monitoring and diagnostics
Firmware Management:
- Upgrade via web GUI or DS‑Tool
- Import/export configuration files
- Restore factory defaults through software or hardware reset
Security Features:
- HTTPS and SSH management
- IP filtering and password protection
- SSL data encryption
- Event alerts for unauthorized access attempts
Event Notification Options:
- Email alerts (SMTP configurable)
- SNMP trap notifications
- Syslog integration
- Relay output and beeper for local alarms
Typical Deployment Scenarios:
- Connecting legacy serial equipment to Ethernet networks
- Redundant communication links for industrial automation
- Remote monitoring of sensors and controllers over IP
- Integration of serial devices into SCADA and IoT systems
### Summary
The ORing IDS‑5042+ is a high‑performance, industrial‑grade device server engineered for reliable serial‑to‑Ethernet communication in demanding environments. Its dual redundant Ethernet ports, PoE PD support, and dual DC inputs provide exceptional resilience against network and power failures. With flexible serial configuration, multiple operating modes, and secure management via HTTPS/SSH, the IDS‑5042+ ensures seamless integration of legacy serial devices into modern IP networks. Comprehensive event notification, robust EMC compliance, and a 5‑year warranty make it a dependable choice for industrial automation, transportation, energy, and infrastructure applications.
-
Datasheet_IDS-5042_IDS-5042+_v1.5_HQ.pdf
PDF Catalog
-
IDS-5042.pdf
PDF Catalog
Kein Zubehör vorhanden.
