Comprehensive Product Summary – IDS‑5611F‑MM Secure Industrial Ethernet Device Server

---

### 1. Product Overview

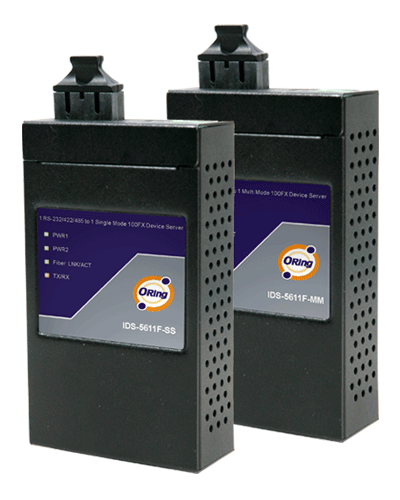

Product Name: IDS‑5611F‑MM
Model: IDS‑5611F‑MM
Series: IDS‑56 Industrial Secure Device Server Series
Article Number: IDS‑5611F‑MM
Manufacturer: ORing Industrial Networking Corp.

The IDS‑5611F‑MM is a high‑performance industrial secure device server designed to convert one serial communication port (RS‑232/422/485) into a 100Base‑FX multimode fiber Ethernet interface. It is part of ORing’s IDS‑56 series, which focuses on secure, redundant, and reliable serial‑to‑Ethernet communication for mission‑critical industrial applications. The device integrates advanced network security, redundancy, and management features, making it suitable for automation, transportation, energy, and remote monitoring systems that require robust serial‑to‑fiber connectivity.

---

### 2. Key Features

- Secure Serial‑to‑Fiber Conversion:
Converts one RS‑232/422/485 serial port to one 100Base‑FX multimode fiber Ethernet port, enabling long‑distance, interference‑free communication.

- Data Security via SSL Encryption:
Supports SSL encryption to ensure secure data transmission between serial devices and Ethernet networks, protecting sensitive industrial data from interception or tampering.

- Redundant Host Connectivity:
Allows simultaneous connection to up to five host PCs in Virtual COM, TCP Server, TCP Client, or UDP modes. This redundancy ensures continuous data availability even if one host fails.

- Network Redundancy and Fast Recovery:
Incorporates Ethernet redundancy with recovery times of less than 10 ms, minimizing downtime in case of network interruptions.

- Dual Power Inputs:
Features redundant 12–48 VDC power inputs via both a DC terminal block and a DC power jack, ensuring uninterrupted operation during power source failure.

- Comprehensive Event Warning System:
Supports event notifications through Syslog, Email, SNMP Trap, Relay output, and Beeper, allowing proactive monitoring and fault management.

- Secure Management Interfaces:
Provides HTTPS and SSH for encrypted configuration sessions, along with console command control for direct management.

- NAT Pass‑Through and DDNS Support:
Enables remote management through NAT routers and supports Dynamic DNS (DDNS) for flexible domain‑based access.

- PPPoE Connectivity:
Supports Point‑to‑Point Protocol over Ethernet (PPPoE) for integration into broadband or ISP‑based networks.

- Versatile Operation Modes:
Operates in Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP modes, offering flexibility for various communication architectures.

- Industrial‑Grade Design:
Constructed with a metal IP‑30 rated housing, suitable for harsh industrial environments. Supports DIN‑rail and wall mounting for flexible installation.

- Software Utility – DS‑Tool:
Bundled with DS‑Tool, a Windows‑based management utility for configuration, monitoring, and firmware updates across multiple ORing device servers.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Model | IDS‑5611F‑MM |
| Ethernet Interface | 1 × 100Base‑FX (Multimode Fiber) |
| Serial Interface | 1 × RS‑232/422/485 (configurable via DS‑Tool) |
| Connector Type | DB9 Male |
| Power Input | Dual redundant 12–48 VDC (terminal block and DC jack) |
| Power Consumption | Maximum 7 W |
| Casing Material | Metal, IP‑30 protection |
| Dimensions | 72 (W) × 125 (D) × 31 (H) mm |
| Mounting Options | DIN‑rail or wall mount |
| Operating Temperature | −10°C to +60°C |
| Storage Temperature | −40°C to +85°C (typical for industrial devices) |
| Relative Humidity | 5%–95% (non‑condensing) |
| Weight | Approx. 0.5 kg (typical for this form factor) |
| Network Recovery Time | <10 ms |
| Protection Rating | IP‑30 |
| Warranty | 5 years |

---

### 4. Functionality

The IDS‑5611F‑MM functions as a secure serial‑to‑fiber Ethernet bridge, enabling legacy serial devices to communicate over modern Ethernet networks via fiber optics.

Operational Modes:
- Virtual COM Mode: Creates a virtual serial port on a host PC, allowing legacy applications to communicate with remote serial devices as if they were locally connected.
- TCP Server Mode: The device listens for incoming TCP connections from clients, suitable for centralized data collection.
- TCP Client Mode: Initiates connections to a remote server, ideal for pushing data to control centers.
- UDP Mode: Provides connectionless communication for broadcast or low‑latency data exchange.
- Serial Tunnel Mode: Establishes a transparent serial link between two IDS‑5611F units over Ethernet or fiber.

Use Cases and Applications:
- Industrial automation systems (PLC, HMI, SCADA integration)
- Transportation and traffic control networks
- Power and energy monitoring systems
- Oil, gas, and water utility telemetry
- Remote serial device management in secure environments
- Factory and process control systems requiring fiber‑optic isolation

Compatibility:
- Compatible with Windows NT/2000/XP/2003/Vista (32‑bit) operating systems.
- Supports fixed TTY driver for Linux, enabling integration into Linux‑based control systems.
- Works seamlessly with ORing’s DS‑Tool for centralized configuration and monitoring.

---

### 5. Components & Accessories

Included Components:
- IDS‑5611F‑MM main unit
- DIN‑rail mounting kit
- Terminal block for DC power input
- Quick installation guide and documentation
- Software utility (DS‑Tool) on CD or downloadable package

Optional Accessories:
- Wall‑mounting brackets
- External power adapters (12–48 VDC)
- Fiber patch cables (multimode, ST/SC connectors depending on configuration)
- Serial communication cables (DB9 to terminal block or custom pinouts)

Connectors:
- Serial Port: DB9 Male (RS‑232/422/485 selectable)
- Fiber Port: 100Base‑FX multimode (typically SC or ST connector)
- Power Input: 2‑pin terminal block and DC jack

---

### 6. Installation & Setup

Installation Requirements:
- Power supply: 12–48 VDC regulated source
- Fiber optic network infrastructure (multimode fiber, 100Base‑FX standard)
- Serial device with RS‑232, RS‑422, or RS‑485 interface

Mounting Options:
- DIN‑Rail Mounting: Standard 35 mm DIN‑rail clip for control cabinet installation.
- Wall Mounting: Optional brackets for flat‑surface installation.

Configuration Process:
1. Hardware Setup:
Connect the serial device to the DB9 port and the fiber cable to the 100Base‑FX port.
Supply power via terminal block or DC jack.
2. Network Configuration:
Assign IP address, subnet mask, and gateway using DS‑Tool or web interface.
3. Mode Selection:
Choose operation mode (Virtual COM, TCP Server, TCP Client, UDP, or Serial Tunnel).
4. Security Setup:
Enable SSL encryption, configure HTTPS/SSH access, and define IP access control lists.
5. Event Notification:
Set up Syslog, SNMP trap, or email alerts for system events.

Software Tools:
- DS‑Tool Utility:
A Windows‑based management application for device discovery, configuration, firmware updates, and monitoring.
- Web Interface:
HTTPS‑secured browser interface for configuration and diagnostics.
- Console Interface:
Command‑line access via serial console or SSH for advanced configuration.

---

### 7. Performance & Capabilities

- Network Throughput:
100 Mbps full‑duplex fiber Ethernet (100Base‑FX multimode).

- Serial Communication:
Supports RS‑232, RS‑422, and RS‑485 standards with configurable baud rates (typically up to 921.6 kbps).

- Redundancy:
- Network Redundancy: Recovery time <10 ms ensures minimal communication loss.
- Host Redundancy: Up to 5 simultaneous host connections for data mirroring and failover.
- Power Redundancy: Dual DC inputs prevent downtime during power source failure.

- Security:
- SSL encryption for data integrity and confidentiality.
- HTTPS and SSH for secure management sessions.
- IP filtering to restrict unauthorized access.

- Event Management:
- Syslog, SNMP trap, and email notifications for proactive fault detection.
- Audible beeper and relay output for local alarms.

- Efficiency:
- Low power consumption (max 7 W).
- Compact form factor for space‑constrained installations.
- Industrial temperature tolerance for reliable field operation.

- Limitations:
- Single serial port (1 × RS‑232/422/485).
- Designed for 100 Mbps fiber networks (no Gigabit support).
- Windows driver support limited to 32‑bit versions (legacy OS environments).

---

### 8. Standards & Compliance

Certifications and Regulatory Compliance:
- CE (Conformité Européenne):
Complies with European safety, health, and environmental protection standards.
- FCC (Federal Communications Commission):
Meets U.S. electromagnetic interference (EMI) and radio frequency (RF) emission standards.
- EN60950:
Certified for information technology equipment safety.

Industry Standards Supported:
- IEEE 802.3u (100Base‑FX Fast Ethernet)
- RS‑232/422/485 serial communication standards
- SNMP v1/v2c/v3 for network management
- SSL/TLS for encrypted communication
- PPPoE and DDNS for network connectivity
- Syslog and SMTP for event reporting

Environmental and Mechanical Standards:
- IP‑30 protection rating for industrial environments
- DIN‑rail and wall‑mount compliance for industrial enclosures

---

### 9. Additional Information

Warranty:
5‑year limited hardware warranty covering manufacturing defects and component reliability.

Technical Support:
ORing provides comprehensive technical support, including firmware updates, configuration assistance, and troubleshooting via online resources and direct support channels.

Maintenance:
- Periodic firmware updates available through DS‑Tool or web interface.
- Regular inspection of fiber connectors and power terminals recommended.
- Configuration backup and restore functions supported via DS‑Tool.

Software Updates:
Firmware and DS‑Tool updates are periodically released to enhance security, add features, and maintain compatibility with evolving network standards.

Product Lifecycle and Reliability:
The IDS‑5611F‑MM is engineered for long‑term industrial deployment, with a mean time between failures (MTBF) typical of ORing’s industrial‑grade devices. Its robust metal housing, redundant power design, and secure firmware architecture ensure continuous operation in demanding environments.

---

### Summary

The ORing IDS‑5611F‑MM is a secure, redundant, and industrial‑grade serial‑to‑fiber Ethernet device server that bridges legacy serial equipment with modern fiber‑optic Ethernet networks. Its combination of SSL encryption, redundant power and host connectivity, and comprehensive event management makes it ideal for mission‑critical applications requiring high reliability and data integrity.

With support for multiple communication modes, secure management interfaces (HTTPS/SSH), and industrial‑grade construction, the IDS‑5611F‑MM delivers a future‑proof solution for secure serial communication over fiber networks.

---

In summary:
- Model: IDS‑5611F‑MM
- Type: Secure 1‑Port RS‑232/422/485 to 100Base‑FX Multimode Fiber Device Server
- Manufacturer: ORing Industrial Networking Corp.
- Key Strengths: SSL encryption, redundant power, 5‑host connectivity, event alarms, and industrial durability
- Applications: Industrial automation, SCADA, energy systems, transportation, and remote monitoring
- Warranty: 5 years

This device exemplifies ORing’s commitment to secure, reliable, and redundant industrial networking solutions, ensuring continuous operation and data protection in critical communication infrastructures.
