Comprehensive Product Summary – IDS-5642 Industrial 4-Port RS232/422/485 2-Port TX Secure Device Server

---

### 1. Product Overview

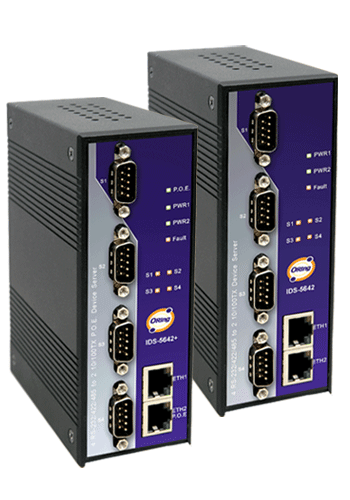

Product Name: Industrial Secure Device Server
Model: IDS-5642
Series: IDS-5600 Series (Industrial Security Device Server Family)
Article Number: IDS-5642
Manufacturer: ORing Industrial Networking Corp.

The ORing IDS-5642 is a high-performance, industrial-grade secure device server designed to connect serial-based equipment to Ethernet networks. It provides four serial communication ports (RS232/422/485) and two 10/100Base-T(X) Ethernet LAN ports, enabling reliable and secure data transmission between legacy serial devices and modern IP-based systems. The IDS-5642 is part of ORing’s industrial networking product line, known for robust design, redundant power inputs, and advanced network management capabilities suitable for mission-critical industrial automation and control applications.

---

### 2. Key Features

- Multi-Protocol Serial Support: Four configurable serial ports supporting RS232, RS422, and 4(2)-wire RS485 communication modes, selectable via ORing’s DS-Tool utility.
- Dual Ethernet Ports: Two 10/100Base-T(X) RJ45 LAN interfaces for network redundancy or dual network connectivity.
- Secure Communication: Supports SSL data encryption and secure management interfaces (HTTPS, SSH) to ensure data integrity and confidentiality.
- Redundant Power Inputs: Dual 12–48 VDC power inputs via terminal block for uninterrupted operation in case of power source failure.
- Fast Ethernet Redundancy: Ethernet redundancy with recovery time less than 10 ms using ORing’s O-Ring technology, ensuring continuous network availability.
- Comprehensive Event Notification: Supports multiple alert mechanisms including Syslog, Email, SNMP Trap, relay output, and audible beeper alarms.
- Industrial-Grade Design: Rugged IP-30 metal enclosure with DIN-rail or wall-mount installation options, designed for harsh industrial environments.
- Wide Compatibility: Compatible with Windows NT/2000/XP/2003/Vista (32-bit) and Linux (via fixed TTY driver).
- Flexible Management: Web-based HTTPS console, SSH console, and DS-Tool configuration utility for Windows platforms.
- High Reliability: 5-year manufacturer warranty and compliance with major industrial EMC and safety standards.

---

### 3. Technical Specifications

Ethernet Interface:
- 2 × 10/100Base-T(X) RJ45 LAN ports
- Auto MDI/MDI-X supported
- Redundant Ethernet operation supported

Serial Interface:
- 4 × RS232/422/485 serial ports
- Configurable operation modes: RS232, RS422, or 4(2)-wire RS485
- Configuration via DS-Tool software
- 5 simultaneous host connections supported (Virtual COM, TCP Server, TCP Client, UDP modes)

Connectors:
- 1 × DB9 male connector for serial communication
- 2 × RJ45 connectors for Ethernet LAN
- 2 × DC terminal block connectors for redundant power input

Power Supply:
- Input voltage: 12–48 VDC (redundant inputs)
- Maximum power consumption: 7 W

Mechanical Construction:
- Enclosure: IP-30 rated metal case
- Dimensions: 52 (W) × 106 (D) × 144 (H) mm
- Weight: 678 g (standard model), 682 g (IDS-5642+)
- Mounting: DIN-rail or wall-mount

Environmental Conditions:
- Operating temperature: -10°C to 60°C
- Storage temperature: -40°C to 85°C
- Relative humidity: 5% to 95% (non-condensing)

LED Indicators:
- Power, Ethernet link/activity, serial port status
- Red blinking LED indicates IP conflict or DHCP/BOOTP server response failure

---

### 4. Functionality

The IDS-5642 functions as a secure bridge between serial devices and Ethernet networks. It allows legacy serial equipment—such as PLCs, sensors, meters, and controllers—to communicate over IP-based infrastructures. Each serial port can be independently configured for RS232, RS422, or RS485 operation, enabling flexible integration with diverse industrial devices.

Operational Modes:
- Virtual COM Mode: Emulates a COM port on a remote PC, allowing serial applications to communicate over Ethernet as if directly connected.
- TCP Server/Client Mode: Enables point-to-point or multi-point communication between serial and network devices.
- UDP Mode: Supports broadcast or multicast communication for real-time data distribution.

Applications:
- Industrial automation and control systems
- Building management systems (BMS)
- Transportation and traffic control
- Energy and utility monitoring
- Remote equipment management and SCADA integration

Compatibility:
- Operating systems: Windows NT/2000/XP/2003/Vista (32-bit)
- Linux systems supported via fixed TTY driver
- Management via Web HTTPS, SSH, or DS-Tool configuration utility

---

### 5. Components & Accessories

Included Components:
- IDS-5642 main unit
- DIN-rail mounting kit
- Quick installation guide
- Terminal block connectors for power input
- DB9 serial connector interface

Optional Accessories:
- Wall-mount brackets
- External power adapters (12–48 VDC)
- Ethernet patch cables
- Serial communication cables (RS232/422/485)

Connectors:
- Ethernet: 2 × RJ45 (10/100Base-T(X))
- Serial: 1 × DB9 male (multi-protocol)
- Power: 2 × DC terminal block inputs for redundancy

---

### 6. Installation & Setup

Installation Options:
- DIN-Rail Mounting: Standard industrial mounting for control cabinets and enclosures.
- Wall Mounting: Optional bracket kit for flat-surface installation.

Setup Requirements:
- Power input: 12–48 VDC regulated supply
- Ethernet connection to LAN or control network
- Serial connection to target devices via DB9 interface

Configuration Tools:
- DS-Tool Utility: Windows-based configuration software for serial mode selection, IP setup, and network management.
- Web HTTPS Console: Secure browser-based interface for configuration and monitoring.
- SSH Console: Command-line configuration for advanced users.

Initial Setup Steps:
1. Mount the device on DIN-rail or wall surface.
2. Connect redundant power inputs.
3. Connect Ethernet cables to LAN ports.
4. Connect serial devices to DB9 interface.
5. Configure network and serial parameters using DS-Tool or web interface.

---

### 7. Performance & Capabilities

Network Performance:
- Dual 10/100 Mbps Ethernet ports with auto-negotiation
- Redundant Ethernet recovery time <10 ms using O-Ring technology
- Supports multiple simultaneous connections (up to 5 hosts)

Serial Communication:
- High-speed serial data transmission with configurable baud rates
- Supports RS232 (full duplex), RS422 (full duplex), and RS485 (half/full duplex)
- Reliable data forwarding between serial and Ethernet interfaces

System Performance:
- Low latency communication suitable for real-time control
- Event-driven notification system for proactive fault management
- Stable operation under industrial temperature and vibration conditions

Limitations:
- No built-in fiber interface (available in IDS-5611F models)
- No PoE support on Ethernet ports
- Limited to 32-bit Windows OS for DS-Tool utility

---

### 8. Standards & Compliance

Electromagnetic Compatibility (EMC):
- EN61000-4-2 (ESD Protection)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT/Burst Immunity)
- EN61000-4-5 (Surge Protection)

Safety Standards:
- EN60950 (Information Technology Equipment Safety)

Regulatory Approvals:
- CE (Conformité Européenne)
- FCC (Federal Communications Commission)

Environmental Protection:
- IP-30 rated metal enclosure for dust protection and mechanical durability

Network Standards:
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3x Flow Control

Management Protocols:
- SNMP v1/v2c/v3
- Syslog, SMTP, SNMP Trap for event reporting
- DHCP Server/Client support
- VLAN (802.1Q/GVRP) compatibility

---

### 9. Additional Information

Warranty:
- 5-year limited hardware warranty covering manufacturing defects and performance reliability.

Support & Maintenance:
- ORing provides firmware updates, configuration utilities, and technical documentation through its official support portal.
- Technical support includes remote troubleshooting, configuration assistance, and RMA services.

Maintenance Recommendations:
- Periodic inspection of power and Ethernet connections.
- Firmware updates to maintain security and performance.
- Regular log monitoring via Syslog or SNMP for proactive maintenance.

Software & Firmware Updates:
- Firmware upgrades available via web interface or DS-Tool utility.
- Backward compatibility maintained across IDS-5600 series models.

Product Family Compatibility:
The IDS-5642 belongs to the IDS-5600 series, which includes related models such as:
- IDS-5611F-MM / IDS-5611F-SS: Optical device servers with fiber interfaces.
- IDS-5612: Single-port redundant device server.
- IDS-5642+: Enhanced version with extended features and slightly higher weight (682 g).

Typical Deployment Scenarios:
- Integration of serial-based PLCs into Ethernet-based SCADA systems.
- Secure remote monitoring of industrial sensors and controllers.
- Redundant communication links in factory automation networks.
- Serial-to-IP conversion in transportation, energy, and utility sectors.

---

### Summary

The ORing IDS-5642 Industrial Secure Device Server is a robust, feature-rich solution for bridging serial communication devices with Ethernet networks in industrial environments. With four configurable RS232/422/485 ports, dual redundant Ethernet interfaces, and advanced security and management features, it ensures reliable, secure, and continuous data communication. Its rugged IP-30 metal housing, redundant power inputs, and compliance with stringent EMC and safety standards make it ideal for demanding applications in automation, transportation, and energy management. Backed by a 5-year warranty and comprehensive management tools, the IDS-5642 delivers long-term reliability and operational efficiency in mission-critical industrial networking deployments.
