1. Product Overview

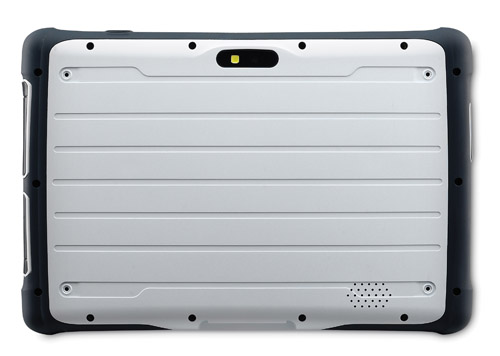

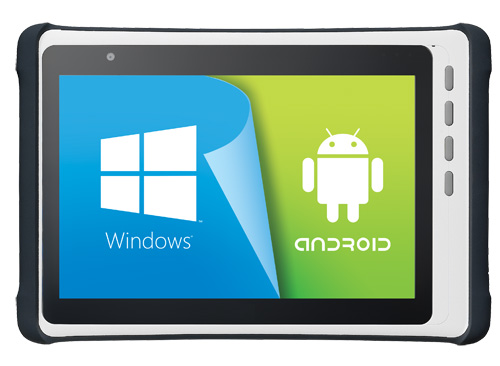

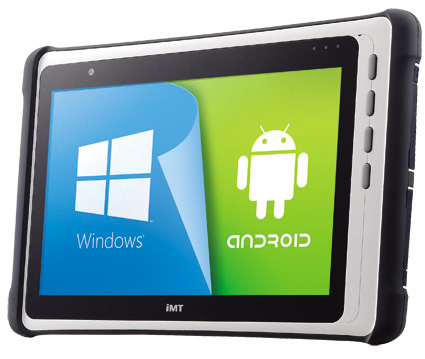

Product Name: IMT-BT-Android
Model: IMT-BT (Android)
Series: IMT-BT Medical Mobile Tablet Series
Article Number: IMT-BT-Android
Manufacturer: ADLINK Technology Inc.
The IMT-BT-Android is a 10.1-inch industrial-grade medical mobile tablet engineered by ADLINK Technology. It is designed for professional and semi-rugged environments such as healthcare, field service, and industrial applications. The device integrates an Intel® Celeron® N2807 dual-core processor and runs Android 4.4.2 (KitKat), with optional support for Windows Embedded 8.1 or Windows 10. It combines robust computing performance, high durability, and comprehensive connectivity options in a compact, IP65-rated enclosure.
2. Key Features
- Processor: Dual-core Intel® Celeron® N2807 SoC (Bay Trail-M) operating at 1.58 GHz (up to 2.16 GHz burst).
- Operating Systems: Android 4.4.2 (KitKat) preinstalled; Windows Embedded 8.1 and Windows 10 optional.
- Display: 10.1-inch TFT LCD with 1280×800 WXGA resolution, 600 cd/m² brightness, and Corning® Gorilla® Glass protection.
- Touchscreen: 2-point projected capacitive touch (PCT) for precise input and glove-friendly operation.
- Wireless Connectivity:
- WLAN: IEEE 802.11 a/b/g/n/ac
- WPAN: Bluetooth 4.0
- WWAN: Optional 3.5G HSPA+ or 4G LTE (Mini PCIe module)
- Sensors: Integrated GPS (uBlox AMY-6M), E-compass, G-sensor, gyroscope, and illuminance sensor.
- Data Capture: HF 13.56 MHz NFC RFID reader supporting ISO15693, ISO14443A/B, NFC 18000-3 standards, with SAM encryption.
- Cameras: 5 MP rear camera with flash and autofocus; 2 MP front camera for video conferencing.
- Rugged Design: IP65 ingress protection, 1.2 m drop resistance (1.5 m with optional protective housing).
- Battery: 7.4 V, 6300 mAh Li-ion battery with <4-hour full charge time.
- Audio: Built-in 2 W speaker, microphone, and 3.5 mm stereo headphone jack.
- Expansion: Full-size SD slot, SIM slot, USB 3.0 port, HDMI output.
- Certifications: CE, FCC, EN 60601-1 (medical safety), RoHS compliant.
3. Technical Specifications
Physical Characteristics
- Dimensions: 291 × 198 × 23 mm (L × W × T)
- Weight: 1.2 kg
- Housing: Industrial-grade enclosure with optional rubber protective case
- Ingress Protection: IP65 (dust-tight and water-resistant)
- Drop Resistance: 1.2 m standard; 1.5 m with protective housing
Performance
- CPU: Intel® Celeron® N2807 dual-core SoC, 1.58 GHz base frequency
- Memory: 4 GB DDR3L 1333 MHz
- Storage: 64 GB mSATA SSD (eMMC variant available)
- Graphics: Integrated Intel® HD Graphics
Display
- Type: 10.1” TFT LCD with LED backlight
- Resolution: 1280 × 800 (WXGA)
- Brightness: 600 cd/m² (sunlight readable)
- Touch: 2-point capacitive multi-touch
- Protection: Corning® Gorilla® Glass, 7H hardness
Power
- Battery: 7.4 V, 6300 mAh Li-ion
- Adapter: Input 100–240 V AC, 47–63 Hz; Output 12 V DC, 2.5 A
- Charging Time: <4 hours
Environmental Conditions
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 60°C
- Charging Temperature: 0°C to 40°C
- Humidity: 10%–90% non-condensing
4. Functionality
The IMT-BT-Android functions as a semi-rugged mobile computing platform optimized for medical, industrial, and field service environments. It supports Android 4.4.2, providing a familiar interface for mobile applications, data collection, and wireless communication. The device integrates multiple sensors and connectivity modules, enabling real-time data acquisition, GPS navigation, and RFID-based identification.
Use Cases and Applications:
- Healthcare: Patient data management, bedside monitoring, and mobile diagnostics.
- Industrial: Field inspection, asset tracking, and maintenance operations.
- Retail and Logistics: Inventory control, barcode/RFID scanning, and mobile point-of-sale.
- Transportation: Fleet management, GPS navigation, and vehicle diagnostics.
Compatibility:
- Supports Android-based enterprise applications.
- Compatible with standard Wi-Fi, Bluetooth peripherals, and LTE networks.
- HDMI output allows external display connectivity for presentations or diagnostics.
5. Components & Accessories
Included Items:
- IMT-BT-Android tablet
- 12 V power adapter with EU/US power cord
- Silicone hand strap with mounting screws
Optional Accessories:

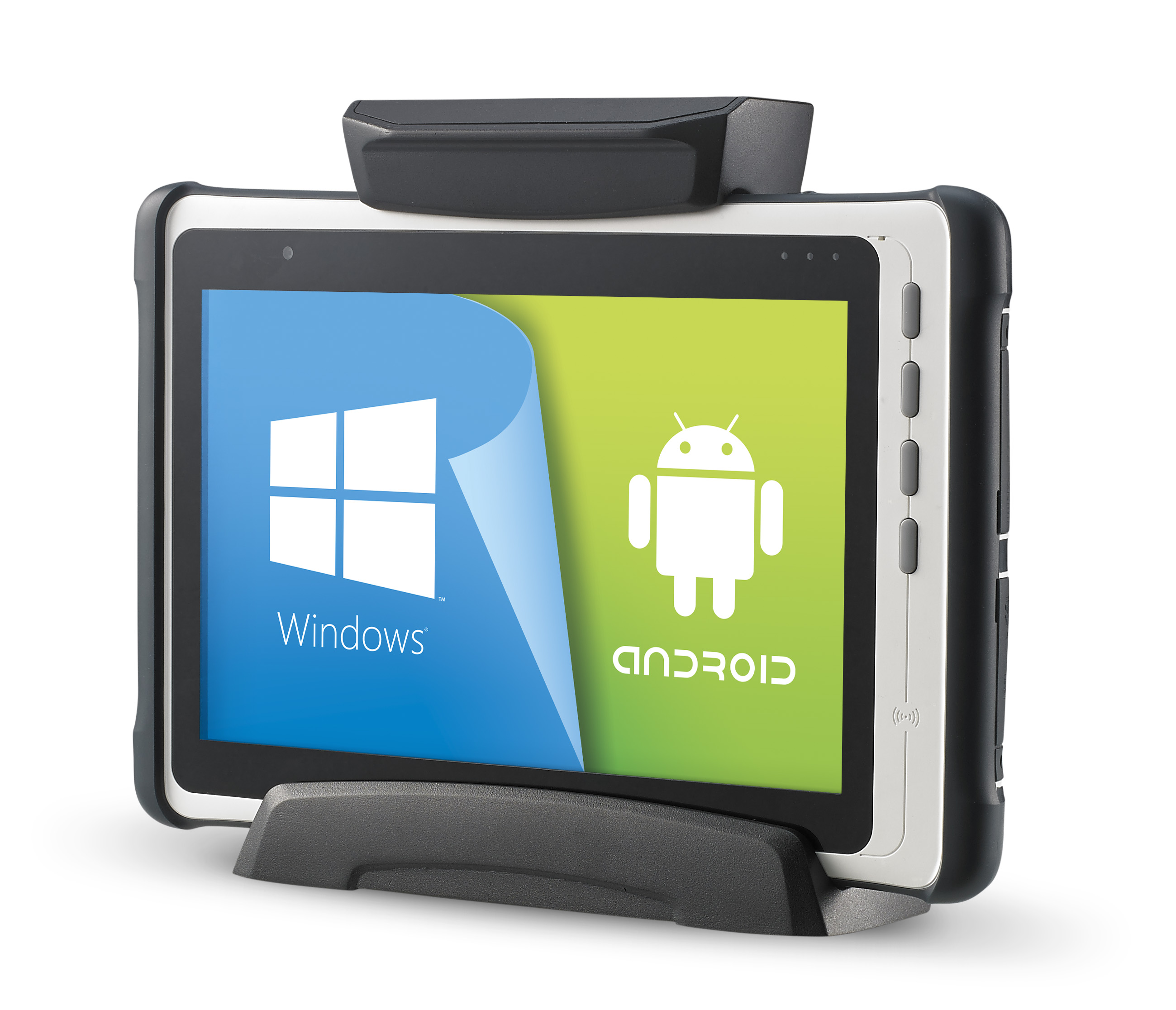

- Office Dock (P/N: 93-D0000-100E): Provides desktop connectivity and charging.
- Vehicle Dock (P/N: 93-D0001-100E): 9–36 V DC input with cigarette lighter adapter for in-vehicle use.
- Protective Rubber Housing (P/N: 58-80068-0000): Enhances drop resistance to 1.5 m.
Ports and Connectors:
- USB 3.0 (Type-A)
- HDMI (Type-A)
- 3.5 mm audio jack
- DC input
- Full-size SD slot
- SIM slot (for WWAN models)
- Docking interface for charging and peripheral expansion
6. Installation & Setup
Requirements:
- Power source: 100–240 V AC
- Operating environment: 0°C–40°C, 10–90% RH non-condensing
Mounting Options:
- Hand strap for handheld operation
- Docking stations for office or vehicle mounting
- Optional protective housing for rugged field use
Configuration Steps:
1. Insert SIM and microSD cards as required.
2. Charge the battery fully before first use (approx. 4 hours).
3. Power on the device using the dedicated power button.
4. Follow the Android setup wizard to configure language, Wi-Fi, and Google account.
5. Install applications via Google Play or enterprise deployment tools.
Maintenance:
- Clean with a soft, lint-free cloth.
- Avoid exposure to moisture, extreme temperatures, or direct sunlight.
- Do not disassemble or modify the device.
7. Performance & Capabilities
Processing Power:
The Intel® Celeron® N2807 dual-core processor delivers efficient multitasking and low power consumption, suitable for data-intensive mobile applications.
Wireless Performance:
- Wi-Fi throughput up to 65 Mbps (802.11n)
- Bluetooth 4.0 for peripheral connectivity
- Optional LTE module supporting 150 Mbps downlink and 50 Mbps uplink
Battery Life:
- 6300 mAh battery provides extended operation for field use.
- Full recharge in under 4 hours.
Data Capture:
- Integrated RFID reader supports multiple tag standards.
- Dual cameras enable documentation and telemedicine applications.
Limitations:
- Operating temperature limited to 0–40°C.
- Android 4.4.2 may restrict compatibility with newer applications.
8. Standards & Compliance
Certifications:
- CE (Conformité Européenne)
- FCC (Federal Communications Commission)
- EN 60601-1 (Medical Electrical Equipment Safety)
- CB Scheme
- RoHS (Restriction of Hazardous Substances)
Environmental Compliance:
- Designed in accordance with EU RoHS and WEEE directives.
- ADLINK enforces environmentally responsible manufacturing and disposal practices.
Electromagnetic Compatibility (EMC):
- CISPR 11 Class B emissions
- IEC 61000-4-2 ESD ±6 kV contact, ±8 kV air
- IEC 61000-4-4 EFT ±2 kV power lines
- IEC 61000-4-5 surge ±1 kV line-to-line, ±2 kV line-to-earth
- IEC 61000-4-8 magnetic field 3 A/m
Ingress Protection:
- IP65 rating ensures dust-tight and water-resistant operation.
9. Additional Information
Warranty & Support:
- Standard manufacturer warranty (details per region).
- Technical support available via ADLINK’s “Ask an Expert” portal: [http://askanexpert.adlinktech.com](http://askanexpert.adlinktech.com).
- Global service centers in Taiwan, USA, China, and Germany.
Maintenance Guidelines:
- Avoid mechanical shock and exposure to liquids.
- Store between -10°C and 50°C when not in use.
- Charge battery at least once every two weeks if unused for extended periods.
Safety Instructions:
- Use only ADLINK-approved batteries and adapters.
- Do not operate with damaged cords or connectors.
- Ensure adequate ventilation during charging.
- Follow all warnings to prevent electrical shock or fire hazards.
Environmental Responsibility:
ADLINK complies with RoHS and WEEE directives, ensuring minimal environmental impact through responsible material selection and end-of-life recycling programs.
Intended User Profile:
Designed for professional users aged 18–70 with vocational training in electrical or electronic fields. Users should understand basic electrical safety and device handling procedures.
Summary
The ADLINK IMT-BT-Android is a robust, medical-grade industrial tablet that merges computing power, mobility, and durability. With its Intel® Celeron® N2807 processor, 10.1-inch sunlight-readable display, and comprehensive wireless connectivity, it is optimized for demanding field and healthcare environments. The device’s IP65 protection, optional LTE connectivity, and integrated RFID/GPS capabilities make it a versatile platform for data collection, diagnostics, and mobile operations. Certified to CE, FCC, and EN 60601-1 standards, the IMT-BT-Android ensures compliance with industrial and medical safety requirements while maintaining ADLINK’s commitment to environmental sustainability and product reliability.
