Comprehensive Product Summary – ORing INJ-102GT Industrial PoE Power Injector

---

### 1. Product Overview

Product Name: INJ-102GT
Model Number: INJ-102GT
Series: Industrial Gigabit PoE Injector Series
Article Number: INJ-102GT
Manufacturer: ORing Industrial Networking Corp.
Version: 1.0

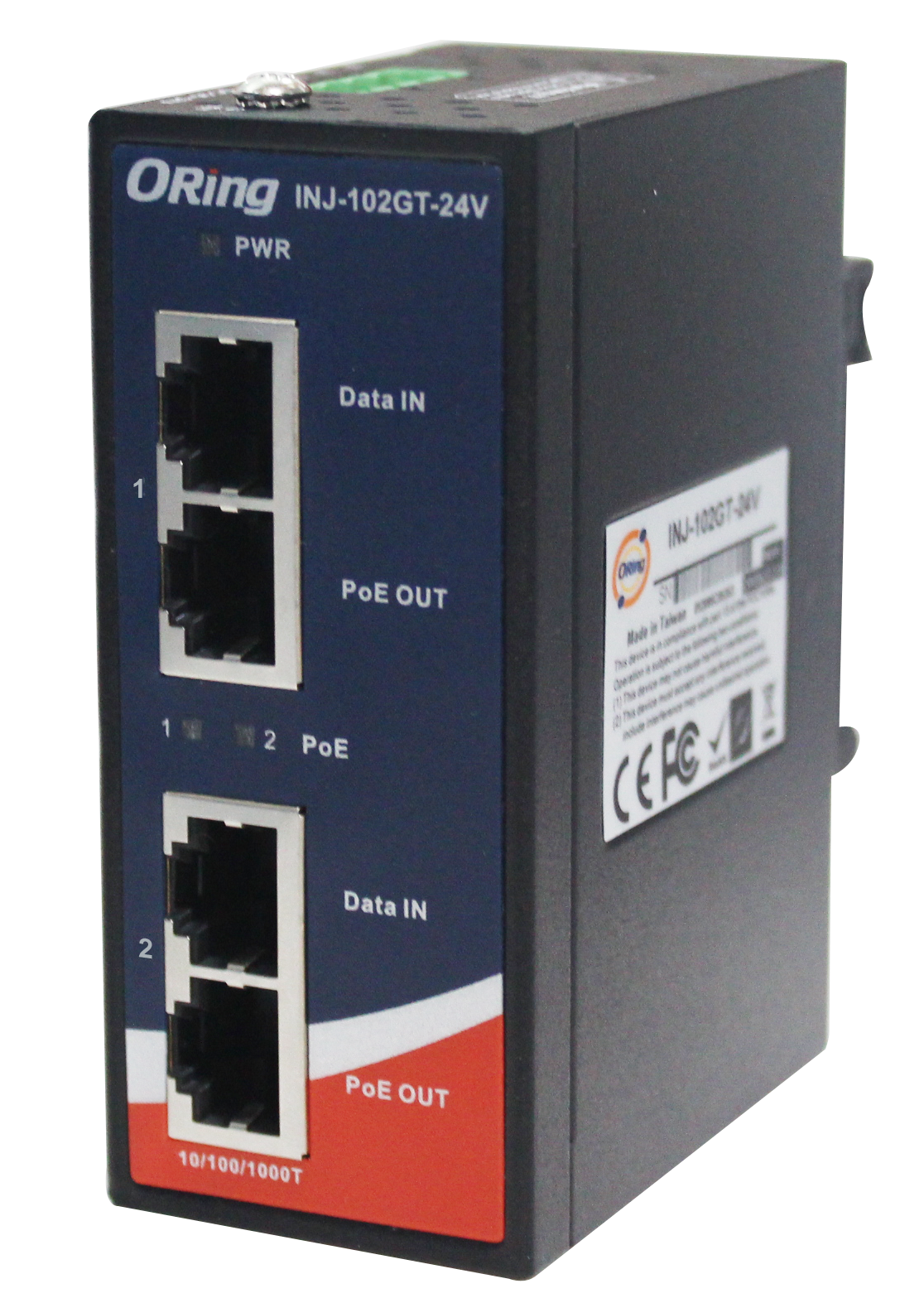

The ORing INJ-102GT is a compact, industrial-grade, dual-port Gigabit Power over Ethernet (PoE) injector designed to deliver both data and electrical power to network devices over standard Ethernet cabling. It supports IEEE 802.3af and IEEE 802.3at standards, providing up to 30 watts of power per port. Engineered for rugged environments, the INJ-102GT features a slim IP30-rated metal enclosure, dual 50–57 VDC power inputs, and flexible mounting options for DIN-rail or wall installations.

---

### 2. Key Features

- Dual-Port Gigabit PoE Output:
Provides two 10/100/1000Base-T(X) PoE output ports for simultaneous data and power transmission.

- IEEE 802.3af/802.3at Compliance:
Fully compliant with PoE (15.4 W) and PoE+ (30 W) standards, ensuring compatibility with a wide range of powered devices (PDs) such as IP cameras, wireless access points, VoIP phones, and industrial controllers.

- Intelligent Power Detection:
The injector automatically detects the presence of a valid PoE signature before applying power, preventing damage to non-PoE devices.

- High Power Output:
Supports up to 30 W per port at 50 VDC input, suitable for high-power PoE devices.

- Rugged Industrial Design:
Constructed with a robust IP30-rated metal housing for enhanced durability in harsh environments.

- Wide Operating Temperature Range:
Operates reliably from -40°C to +70°C, suitable for both indoor and outdoor industrial applications.

- Dual Power Input (50–57 VDC):
Redundant power input design ensures continuous operation and protection against power failure.

- Comprehensive Protection:
Built-in short circuit, overload, and high-voltage protection mechanisms safeguard both the injector and connected devices.

- Flexible Mounting Options:
Supports both DIN-rail and wall-mount installations for versatile deployment.

- LED Indicators:
Provides clear visual status for power and PoE activity, simplifying monitoring and troubleshooting.

---

### 3. Technical Specifications

Physical Ports:
- 2 × 10/100/1000Base-T(X) RJ45 ports (Data Input)
- 2 × 10/100/1000Base-T(X) RJ45 ports (PoE Output, PSE)
- Auto MDI/MDIX support on all ports

Power Input:
- Voltage: 50–57 VDC via 4-pin terminal block
- Dual redundant power inputs supported

Power Output:
- Output Voltage: 50 VDC
- Output Current: 600 mA max. per port
- Maximum Power Output: 30 W per port

LED Indicators:
- PWR/Ready (Green):
- ON: Power is on and functioning normally
- PoE Indicators (Blue):
- ON: PoE device detected and powered
- Blinking: Detecting PoE device
- OFF: No PoE device detected

Protection Features:
- Short Circuit Protection
- Overload Protection
- High Voltage Protection

Enclosure:
- Material: Metal
- Protection Rating: IP30 (industrial-grade)

Dimensions:
- Width: 26.1 mm
- Depth: 70 mm
- Height: 95 mm
- (1.03 × 2.76 × 3.74 inches)

Weight:
- 250 g

Environmental Conditions:
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Storage Temperature: -40°C to +80°C (-40°F to +176°F)
- Operating Humidity: 5% to 90% (non-condensing)

---

### 4. Functionality

The INJ-102GT functions as a Power Sourcing Equipment (PSE) device that injects power into Ethernet cables while maintaining full data throughput. It enables network devices that require both data and power—such as IP cameras, wireless access points, and VoIP phones—to operate without separate power supplies.

Operation Principle:
1. The injector receives data from a non-PoE switch or network device through its “Data IN” ports.
2. It combines the data signal with DC power and transmits both through the “PoE OUT” ports.
3. The connected powered device (PD) receives both power and data over a single Ethernet cable.
4. The injector’s intelligent detection circuit ensures that power is only applied when a valid IEEE 802.3af/at signature is detected, preventing accidental damage to non-PoE equipment.

Use Cases and Applications:
- Industrial automation and control systems
- IP surveillance networks
- Wireless access point installations
- VoIP telephony systems
- Transportation and outdoor networking
- Smart building and IoT infrastructure

Compatibility:
- Compatible with all IEEE 802.3af/at compliant powered devices
- Works with standard CAT5e/CAT6 Ethernet cabling up to 100 meters

---

### 5. Components & Accessories

Included Items:
- 1 × INJ-102GT PoE Injector unit
- 1 × 4-pin terminal block (for DC power input)
- 2 × RJ45 dust covers
- 3 × M3 × 3 screws
- 1 × Wall-mount kit
- 1 × 25 mm DIN-rail mounting kit
- 1 × Quick Installation Guide (printed on recycled paper)

Optional Accessories:
- Power supply (50–57 VDC external source, not included)
- Ethernet cables (CAT5e or higher recommended)

Connectors:
- RJ45 (8-pin) connectors for data and PoE transmission
- 4-pin terminal block for DC power input

---

### 6. Installation & Setup

Installation Requirements:
- DC power source: 50–57 VDC
- Standard Ethernet cabling (CAT5e or higher)
- Mounting surface or DIN-rail

Mounting Options:
- DIN-Rail Installation:
Attach the included DIN-rail clip to the rear of the unit and snap it onto a standard 35 mm DIN-rail.
- Wall-Mount Installation:
Use the provided wall-mount bracket and screws to secure the injector to a flat surface.

Configuration Steps:
1. Connect the DC power source to the 4-pin terminal block.
2. Connect the data cable from a non-PoE switch or router to the “Data IN” port.
3. Connect the “PoE OUT” port to the powered device (PD).
4. Verify LED indicators:
- Green PWR LED should be ON.
- Blue PoE LED should indicate device detection and power delivery.

Grounding:
- Frame ground connection is provided for enhanced electrical safety and EMI protection.

Cable Pinouts:
- Power is supplied on Ethernet pins 1/2 (V+) and 3/6 (V−).
- Pins 4, 5, 7, and 8 are used for data or remain unpowered depending on the mode.

---

### 7. Performance & Capabilities

Speed and Throughput:
- Supports full-duplex Gigabit Ethernet (10/100/1000 Mbps) on all ports.
- Auto-negotiation and auto MDI/MDIX ensure seamless connectivity with various network devices.

Power Capacity:
- Delivers up to 30 W per port, sufficient for high-power PoE+ devices.
- Total power budget depends on the external DC power supply capacity.

Efficiency:
- Optimized for minimal power loss over long cable runs (up to 100 meters).
- Intelligent power management ensures efficient energy distribution.

Reliability:
- Industrial-grade components ensure continuous operation in demanding environments.
- Redundant power input design enhances uptime and system resilience.

Limitations:
- Requires IEEE 802.3af/at compliant PDs for power delivery.
- Does not support non-standard passive PoE devices.
- Maximum Ethernet cable length limited to 100 meters per IEEE standard.

---

### 8. Standards & Compliance

IEEE Standards:
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+)

Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (Electrostatic Discharge)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (Electrical Fast Transient)
- EN61000-4-5 (Surge Immunity)
- EN61000-4-6 (Conducted Susceptibility)
- EN61000-4-8 (Power Frequency Magnetic Field)
- EN61000-4-11 (Voltage Dips and Interruptions)

Environmental & Mechanical Compliance:
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32

Safety Certification:
- EN60950-1 (Information Technology Equipment Safety)

Ingress Protection:
- IP30-rated enclosure for protection against solid objects greater than 2.5 mm.

---

### 9. Additional Information

Warranty:
- 2-year limited manufacturer warranty covering defects in materials and workmanship.

Support & Maintenance:
- Technical support provided by ORing Industrial Networking Corp.
- Firmware updates and documentation available through the manufacturer’s website.
- Routine maintenance involves checking power connections, verifying LED indicators, and ensuring proper grounding.

Product Identification:
- Model: INJ-102GT
- Part Number: 1907-2-29-INJ102GT-0
- Manufacturer: ORing Industrial Networking Corp.

Environmental Responsibility:
- Packaging and documentation printed on recycled paper.

Summary of Advantages:
- Compact, slim design for space-constrained installations
- Industrial-grade reliability and environmental tolerance
- Dual-port Gigabit performance with full PoE+ capability
- Intelligent power management and protection features
- Flexible mounting and redundant power input options

---

### Conclusion

The ORing INJ-102GT is a high-performance, industrial-grade 2-port Gigabit PoE injector engineered for demanding network environments. Its compliance with IEEE 802.3af/at standards, robust IP30 metal housing, and wide temperature tolerance make it ideal for industrial automation, surveillance, and outdoor networking applications. With dual 50–57 VDC inputs, intelligent power detection, and comprehensive protection mechanisms, the INJ-102GT ensures reliable and safe power delivery to connected devices.

This injector exemplifies ORing’s commitment to industrial networking reliability, offering a compact yet powerful solution for extending PoE capabilities in mission-critical Ethernet infrastructures.
