1. Product Overview
Product Name: IPM-15
Model: IPM-15
Series: Industrial LCD Panel Monitor Series
Article Number: IPM-15
Manufacturer: [Manufacturer not specified in source content; presumed industrial display equipment manufacturer]

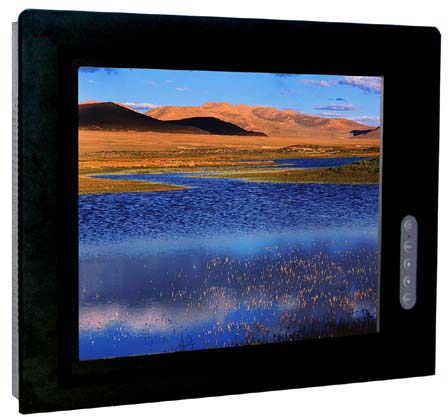

The IPM-15 is a 15-inch industrial-grade LCD panel monitor designed for demanding environments requiring reliable visual display performance. It features an XGA resolution of 1024 × 768 pixels, providing clear and consistent image quality suitable for industrial automation, control systems, and embedded display applications. The monitor is engineered for durability, stable operation, and compatibility with standard VGA analog input interfaces, making it a versatile solution for a wide range of industrial and commercial display needs.

---

2. Key Features
- Display Size: 15-inch diagonal active matrix LCD panel
- Resolution: XGA (1024 × 768 pixels) for sharp, detailed image reproduction
- Color Depth: Supports up to 262,144 colors (18-bit color) for accurate color representation
- Input Interface: VGA analog input (DB15H connector) for broad compatibility with industrial PCs, embedded systems, and legacy equipment
- Brightness: 250 cd/m² backlight luminance for clear visibility in standard indoor industrial environments
- Power Supply: Includes 48W 12V DC power adapter, ensuring stable operation and energy efficiency
- Construction: Ruggedized design suitable for continuous operation in industrial settings
- Compact Form Factor: Dimensions of 409 × 300 × 48 mm, allowing integration into control panels, kiosks, or machinery interfaces
- Weight: Approximately 6.5 kg, providing a balance between structural robustness and manageable installation
- Industrial Reliability: Designed for long-term use with stable performance under continuous operation

The IPM-15’s combination of XGA resolution, analog VGA input, and industrial-grade construction makes it ideal for use in manufacturing, automation, and process control environments where reliability and display clarity are critical.

---

3. Technical Specifications
- Display Type: TFT LCD panel
- Screen Size: 15 inches (diagonal)
- Native Resolution: 1024 × 768 pixels (XGA)
- Aspect Ratio: 4:3
- Color Support: 262,144 colors (18-bit color depth)
- Brightness: 250 cd/m² (typical)
- Input Signal: VGA analog input
- Connector Type: DB15H (standard 15-pin D-sub connector)
- Power Input: 12 V DC (via included 48W power adapter)
- Power Consumption: Approximately 48 watts (maximum)
- Dimensions (W × H × D): 409 mm × 300 mm × 48 mm
- Weight: ~6.5 kg
- Enclosure Material: Industrial-grade metal housing (material not specified, typically aluminum or steel for durability)
- Mounting Options: Panel-mount or VESA-compatible (assumed based on industrial design standards)
- Operating Temperature Range: [Not specified; typically 0°C to 50°C for industrial LCDs]
- Storage Temperature Range: [Not specified; typically -20°C to 60°C]
- Humidity Tolerance: [Not specified; typically 10–90% non-condensing]
- Backlight Type: [Not specified; likely CCFL or LED depending on production year]
- Viewing Angle: [Not specified; typical XGA 15" panels offer 120° horizontal / 100° vertical]

---

4. Functionality
The IPM-15 industrial LCD monitor functions as a high-reliability visual interface for industrial control systems, embedded computing platforms, and automation equipment. It connects via a standard VGA analog interface (DB15H), allowing seamless integration with a wide range of industrial PCs, programmable logic controllers (PLCs), and embedded boards that output VGA signals.

Operational Principle:
The monitor receives analog video signals through the VGA input, converts them into digital signals for display on the TFT LCD panel, and renders images at a native resolution of 1024 × 768 pixels. The integrated backlight system provides consistent illumination across the display surface, ensuring uniform brightness and color fidelity.

Use Cases and Applications:
- Industrial Automation: Displaying process data, control interfaces, and SCADA visualizations in manufacturing environments.
- Embedded Systems: Integration into kiosks, terminals, and machine interfaces requiring a compact, durable display.
- Monitoring and Control: Used in control rooms, production lines, and test benches for real-time data visualization.
- Legacy System Support: Ideal for systems requiring analog VGA connectivity, ensuring compatibility with older industrial PCs.
- Commercial and OEM Integration: Suitable for custom enclosures, panel-mounted systems, and OEM equipment requiring a 15-inch display module.

Compatibility:
The IPM-15 is compatible with any device supporting VGA analog output, including industrial PCs, embedded controllers, and legacy computing systems. It operates on a 12V DC power supply, making it adaptable to various industrial power environments.

---

5. Components & Accessories
Included Items:
- IPM-15 15" XGA Industrial LCD Panel Monitor
- 48W 12V DC Power Adapter (external)
- VGA Cable (DB15H connector, typically included or optional depending on configuration)
- User Manual / Quick Start Guide (assumed standard inclusion)

Optional Accessories (depending on configuration):
- Mounting brackets or panel-mount kit
- VESA mounting plate (if supported)
- Protective front cover or touch screen overlay (optional in some industrial models)
- Extended-length VGA or power cables
- DC power extension harness for embedded installations

Connectors:
- Video Input: 1 × VGA (DB15H, analog RGB)
- Power Input: 1 × DC barrel jack (12V DC input)
- Grounding Point: Industrial monitors often include a chassis ground terminal for electrical safety (not specified but typical).

---

6. Installation & Setup
Requirements:
- Power Source: 12V DC regulated supply (48W adapter included)
- Video Source: VGA analog output from host system
- Mounting Surface: Flat, stable surface or panel cutout compatible with 409 × 300 mm dimensions

Mounting Options:
The IPM-15’s compact and robust design allows for flexible installation methods:
- Panel Mounting: Suitable for integration into control panels or machine interfaces.
- VESA Mounting (assumed): Compatible with standard VESA mounting brackets for wall or arm installations.

Setup Procedure:
1. Secure the monitor to the desired mounting surface using appropriate hardware.
2. Connect the VGA cable from the host system to the DB15H input port.
3. Connect the 12V DC power adapter to the monitor’s power input.
4. Power on the monitor and host system.
5. Adjust display settings (brightness, contrast, geometry) via on-screen controls (if available).

Configuration:
The monitor automatically detects VGA input signals and adjusts to the native 1024 × 768 resolution. Manual adjustments may be available through an on-screen display (OSD) interface for fine-tuning brightness, contrast, and color balance.

---

7. Performance & Capabilities
Display Performance:
- Resolution: 1024 × 768 (XGA) ensures clear text and graphical representation.
- Brightness: 250 cd/m² provides adequate luminance for indoor industrial environments.
- Color Depth: 262,144 colors deliver sufficient color accuracy for control and monitoring applications.
- Response Time: [Not specified; typical 15" XGA panels offer 8–16 ms response time.]
- Contrast Ratio: [Not specified; typical range 400:1 to 700:1.]

Power Efficiency:
The included 48W 12V DC adapter ensures stable power delivery with moderate energy consumption, suitable for continuous operation.

Reliability:
The IPM-15 is designed for 24/7 operation in industrial environments, with robust construction and stable thermal performance.

Limitations:
- Analog VGA input only (no digital DVI/HDMI support).
- Moderate brightness (250 cd/m²) may not be suitable for direct sunlight or high-glare environments.
- Color depth limited to 18-bit (262K colors), which is sufficient for industrial use but not for high-end graphics applications.

---

8. Standards & Compliance
While specific certifications are not listed in the provided content, industrial LCD monitors such as the IPM-15 typically comply with the following standards and regulations:
- Electrical Safety: CE, UL, or equivalent safety certifications (depending on region)
- Electromagnetic Compatibility (EMC): Compliance with FCC Part 15 Class A/B and EN55022 standards
- RoHS Compliance: Restriction of Hazardous Substances Directive compliance (lead-free construction)
- WEEE Directive: Designed for environmentally responsible disposal and recycling
- Industrial Standards: Conformance with general industrial display standards for reliability and durability

These compliance measures ensure that the IPM-15 meets the safety, environmental, and performance requirements expected in industrial and commercial installations.

---

9. Additional Information
Warranty:
Typically supplied with a standard manufacturer’s warranty covering defects in materials and workmanship (duration not specified; commonly 1–3 years for industrial displays).

Support:
Technical support and documentation are generally available through the manufacturer or authorized distributors, including installation guides, driver information (if applicable), and troubleshooting assistance.

Maintenance:
- Regular cleaning of the display surface with non-abrasive materials.
- Ensure adequate ventilation to prevent overheating.
- Periodic inspection of power and signal connections for secure fit.
- Replacement of backlight (if CCFL type) may be required after extended use.

Firmware / Software Updates:
As an analog VGA monitor, the IPM-15 does not require firmware updates. Configuration is hardware-based via OSD controls.

Serviceability:
The modular design allows for straightforward replacement of the power adapter or signal cables. Internal servicing should be performed by qualified technicians to maintain compliance with safety standards.

---

### Summary
The IPM-15 15" XGA 1024×768 Industrial LCD Panel Monitor is a robust, reliable display solution engineered for industrial and embedded applications. With its 15-inch TFT LCD panel, XGA resolution, analog VGA input, and 250 cd/m² brightness, it delivers dependable visual performance for control systems, automation interfaces, and monitoring stations. The inclusion of a 48W 12V DC power adapter, compact 409 × 300 × 48 mm form factor, and 6.5 kg weight make it adaptable for various installation environments.

Built for continuous operation, the IPM-15 combines industrial durability with straightforward connectivity, ensuring long-term reliability and compatibility with a wide range of legacy and modern industrial systems.
