Comprehensive Product Summary: ADLINK MXC-2300CD-3S

---

### 1. Product Overview

Product Name: MXC-2300CD-3S
Model Number: MXC-2300CD-3S
Series: MXC-2300 Series – Intel® Atom™ Quad-Core Processor-Based Fanless Expandable Embedded Computer
Article Number: MXC-2300CD-3S
Manufacturer: ADLINK Technology, Inc.
Part Number: 50-1Z159-1000
Manual Revision: 2.00 (October 8, 2015)

The ADLINK MXC-2300CD-3S is a rugged, fanless, and expandable embedded controller designed for industrial automation, transportation, and mission-critical applications. It integrates an Intel® Atom™ E3845 quad-core processor and provides extensive I/O, expansion, and communication interfaces, including CAN bus, isolated digital I/O, and multiple PCI slots. The system is engineered for reliability in harsh environments, offering wide temperature operation and robust mechanical design.

---

### 2. Key Features

- Processor: Intel® Atom™ E3845 SoC, 4 cores @ 1.91 GHz, integrated graphics (542/792 MHz base/turbo).
- Memory: Dual DDR3L SO-DIMM slots, up to 8 GB (4 GB pre-installed, 1333 MHz).
- Expansion: 3 PCI slots (MXC-2300CD-3S configuration) or 2 PCI + 1 PCIe x4 (other variants).

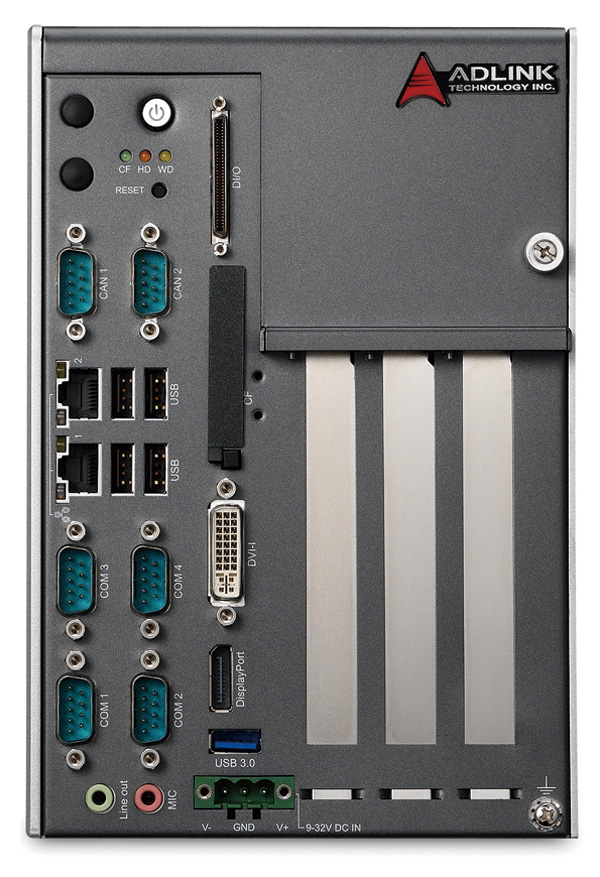

- I/O Interfaces:
- 2 isolated CAN ports (DB9, SJA1000 controller)
- 16 isolated digital inputs and 16 isolated digital outputs (1.5 kV isolation)
- 4 COM ports (2 x RS-232/422/485 software-selectable, 2 x RS-232)
- 5 external USB ports (4 x USB 2.0, 1 x USB 3.0) + 1 internal USB 2.0
- Dual Intel® WGI210IT Gigabit Ethernet ports with teaming and Wake-on-LAN
- 1 DisplayPort + 1 DVI-I (supporting VGA/DVI-D)
- Audio: Line-out and Mic-in (Realtek ALC269 HD Audio)
- Storage Options:
- 1 SATA-II port for 2.5” HDD/SSD
- 1 Type II CompactFlash socket
- 1 internal Mini PCIe slot with USIM socket for 3G connectivity
- Power Input: 9–32 VDC wide-range input with pluggable connector and remote on/off switch.
- Operating Temperature: 0°C to 50°C standard; -20°C to +70°C with industrial-grade SSD/RAM.
- Construction: Fanless aluminum chassis, wall-mountable, 3.5 kg weight.
- Manageability: Integrated ADLINK SEMA 2.2 (Smart Embedded Management Agent) for remote monitoring and control.
- Certifications: CE, FCC Class A, UL/cUL, CB, RoHS, and WEEE compliant.

---

### 3. Technical Specifications

Processor & Chipset:
- Intel® Atom™ E3845 (Bay Trail-I Premium), 4 cores @ 1.91 GHz
- Integrated Intel SoC architecture

Memory:
- 4 GB DDR3L 1333 MHz SO-DIMM (expandable to 8 GB via 2 slots)

Graphics:
- DisplayPort: up to 2560×1600
- DVI-I: up to 1920×1200
- VGA (via DVI-I): up to 2560×1600

Storage:
- 1 SATA-II port for 2.5” HDD/SSD
- 1 CompactFlash Type II socket

Expansion Slots:
- 3 PCI slots (5V 32-bit, 33/66 MHz)

Networking:
- 2 Intel® WGI210IT GbE ports with teaming, Wake-on-LAN, PXE boot support

Serial Communication:
- 2 x RS-232/422/485 (COM1, COM2)
- 2 x RS-232 (COM3, COM4)

USB:
- 4 x USB 2.0, 1 x USB 3.0 (external), 1 x internal USB 2.0

Digital I/O:
- 16 isolated DI (5–24 V logic high, 0–1.5 V logic low, 1.5 kV isolation)
- 16 isolated DO (MOSFET, 5–35 V, 100 mA continuous, 250 mA peak per channel)

CAN Bus:
- 2 isolated CAN ports (DB9, SJA1000 controller, up to 1 Mbps, CAN 2.0A/B compliant)

Audio:
- Realtek ALC269 HD Audio Codec (Line-out, Mic-in, 24-bit/192 kHz)

Power Supply:
- 9–32 VDC input, pluggable connector with latch
- Optional 100 W AC-DC adapter

Mechanical:
- Dimensions: 142 (W) × 219 (D) × 210 (H) mm
- Weight: 3.5 kg
- Mounting: Wall-mount kit included

Environmental:
- Operating: 0°C to 50°C (standard), -20°C to 70°C (extended)
- Storage: -40°C to 85°C
- Humidity: 95% @ 40°C (non-condensing)
- Vibration: 5 Grms (SSD/CF), 0.5 Grms (HDD)
- Shock: 50 G, 11 ms (SSD/CF)
- ESD: ±4 kV contact, ±8 kV air

Compliance:
- EMC: CE/FCC Class A
- Safety: UL 60950-1, CAN/CSA-C22.2 #60950-1

---

### 4. Functionality

The MXC-2300CD-3S functions as a high-performance embedded controller for industrial and automation systems. It operates fanlessly, relying on passive heat dissipation through its aluminum chassis. The system supports multiple communication protocols and interfaces, making it suitable for machine control, data acquisition, and networked automation.

Use Cases:
- Factory and machine automation
- Maritime and transportation control systems
- Intelligent surveillance and monitoring
- Test and measurement instrumentation
- Facility and energy management systems

Compatibility:
- Operating Systems: Windows 7/8/8 Embedded, Linux Fedora 18 (other distributions on request)
- Supports ADLINK SEMA 2.2 for remote system health monitoring and control

---

### 5. Components & Accessories

Included Items:
- MXC-2300CD-3S main unit
- Wall-mount kit and screws
- Quick Start Guide
- ADLINK All-in-One DVD (drivers and utilities)

Optional Accessories:
- Fan module with smart fan control
- 500 GB HDD (0°C–50°C)
- 32/64 GB SSD (0°C–70°C)
- 32 GB industrial CompactFlash (-40°C–85°C)
- 90 W or 100 W AC-DC adapter
- Extended temperature screening service (-20°C to +70°C)
- Display and COM port cables (available separately)

---

### 6. Installation & Setup

Mounting:
- Wall-mount installation using included brackets and M4 screws.
- Maintain at least 5 cm clearance above the unit for heat dissipation.

Storage Installation:
- Supports 2.5” HDD/SSD via SATA-II interface.
- CompactFlash card accessible via front panel slot.

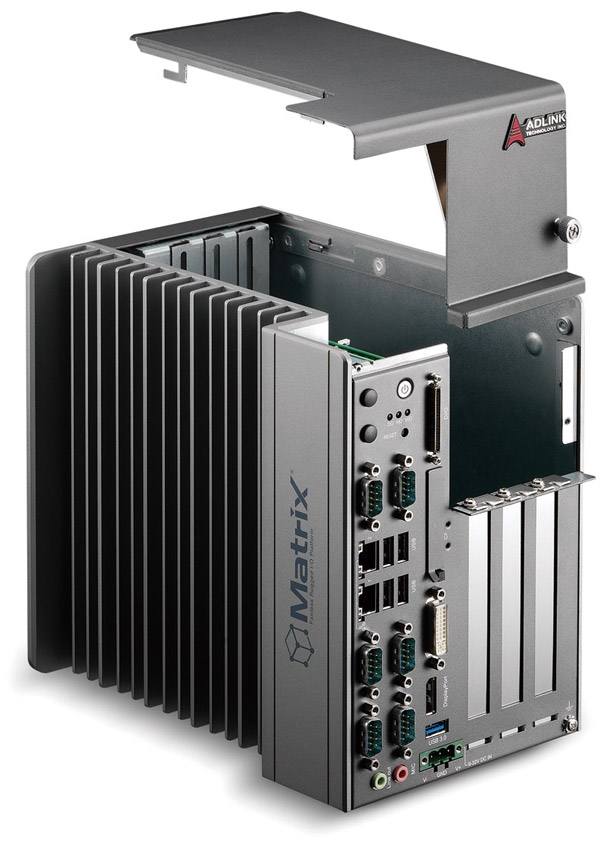

Expansion Installation:
- PCI/PCIe cards installed via top cover access.
- Mini PCIe card and USIM socket accessible internally.

Power Connection:
- 3-pin DC input connector (V+, GND, V−).
- Accepts 9–32 VDC input; ensure stable, low-noise power source.

Cooling:
- Passive cooling by default; optional fan module available for high-load or high-temperature environments.

---

### 7. Performance & Capabilities

Processing Performance:
- Quad-core Atom E3845 delivers efficient multitasking and low power consumption (~37.4 W at full load).

Graphics:
- Integrated Intel HD Graphics supports dual independent displays via DisplayPort and DVI-I.

Networking:
- Dual GbE with teaming for redundancy or load balancing.
- Supports IEEE 802.3az, 1588, VLAN, PXE, and jumbo frames.

I/O Performance:
- High-speed USB 3.0 and multiple serial ports for peripheral connectivity.
- Isolated DIO and CAN interfaces ensure reliable industrial communication.

Reliability:
- Fanless design eliminates moving parts, reducing maintenance.
- Wide temperature and vibration tolerance for harsh environments.

Limitations:
- PCIe expansion limited to x4 bandwidth (Gen 1/2).
- CF card not hot-swappable due to SATA interface.

---

### 8. Standards & Compliance

Electrical & Safety:
- UL/cUL certified (UL 60950-1, CAN/CSA-C22.2 #60950-1)
- CE and FCC Class A compliant

Environmental:
- RoHS and WEEE compliant
- Designed for industrial-grade reliability and environmental responsibility

Software & Manageability:
- ADLINK SEMA 2.2 for system monitoring (temperature, voltage, power status)
- Watchdog Timer (WDT) for system recovery
- BIOS configurable for advanced power management, virtualization, and security

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (contact ADLINK for regional terms)
- Global technical support via ADLINK offices in Taiwan, USA, China, Japan, Europe, and other regions

Maintenance:
- Minimal maintenance due to fanless design
- Regular inspection of power and I/O connections recommended
- Firmware and BIOS updates available from ADLINK’s official website

Software Tools:
- ADLINK SEMA utility for remote diagnostics and control
- Driver packages for Windows and Linux
- API libraries for Digital I/O and Watchdog Timer functions

Power Consumption Reference:
- Idle: ~14.9 W
- Full Load: ~37.4 W
- Recommended Power Supply: 90–100 W @ 24 VDC

Environmental Responsibility:
- Fully compliant with EU RoHS and WEEE directives
- Designed for low environmental impact and recyclability

---

### Summary

The ADLINK MXC-2300CD-3S is a robust, fanless embedded computer optimized for industrial and automation applications requiring high reliability, flexible expansion, and wide environmental tolerance. Powered by the Intel® Atom™ E3845 quad-core processor, it combines low power consumption with strong I/O capabilities, including isolated digital I/O, dual CAN bus, and multiple PCI slots. Its rugged design, extended temperature operation, and comprehensive connectivity make it ideal for factory automation, intelligent transportation, and mission-critical control systems.

With integrated ADLINK SEMA 2.2 for remote management, wide-range DC power input, and compliance with global safety and EMC standards, the MXC-2300CD-3S delivers a dependable and scalable platform for embedded industrial computing.
