Comprehensive Product Summary: ADLINK MXE-5401 Fanless Embedded Computer

---

### 1. Product Overview

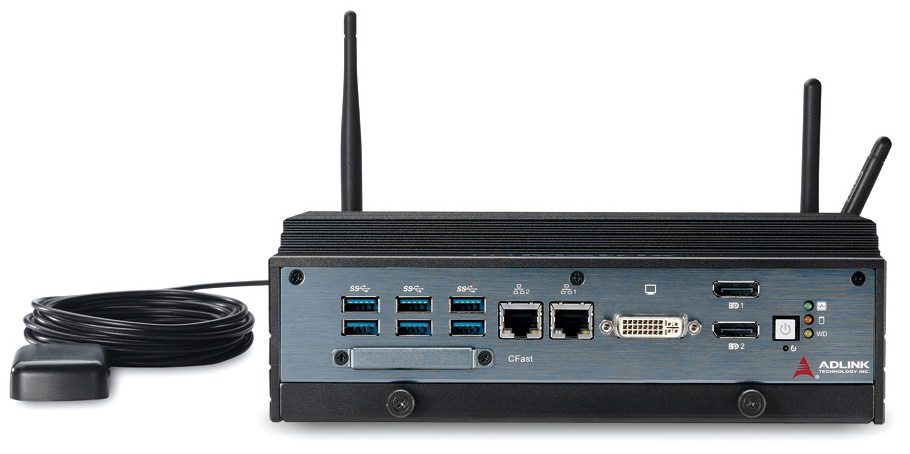

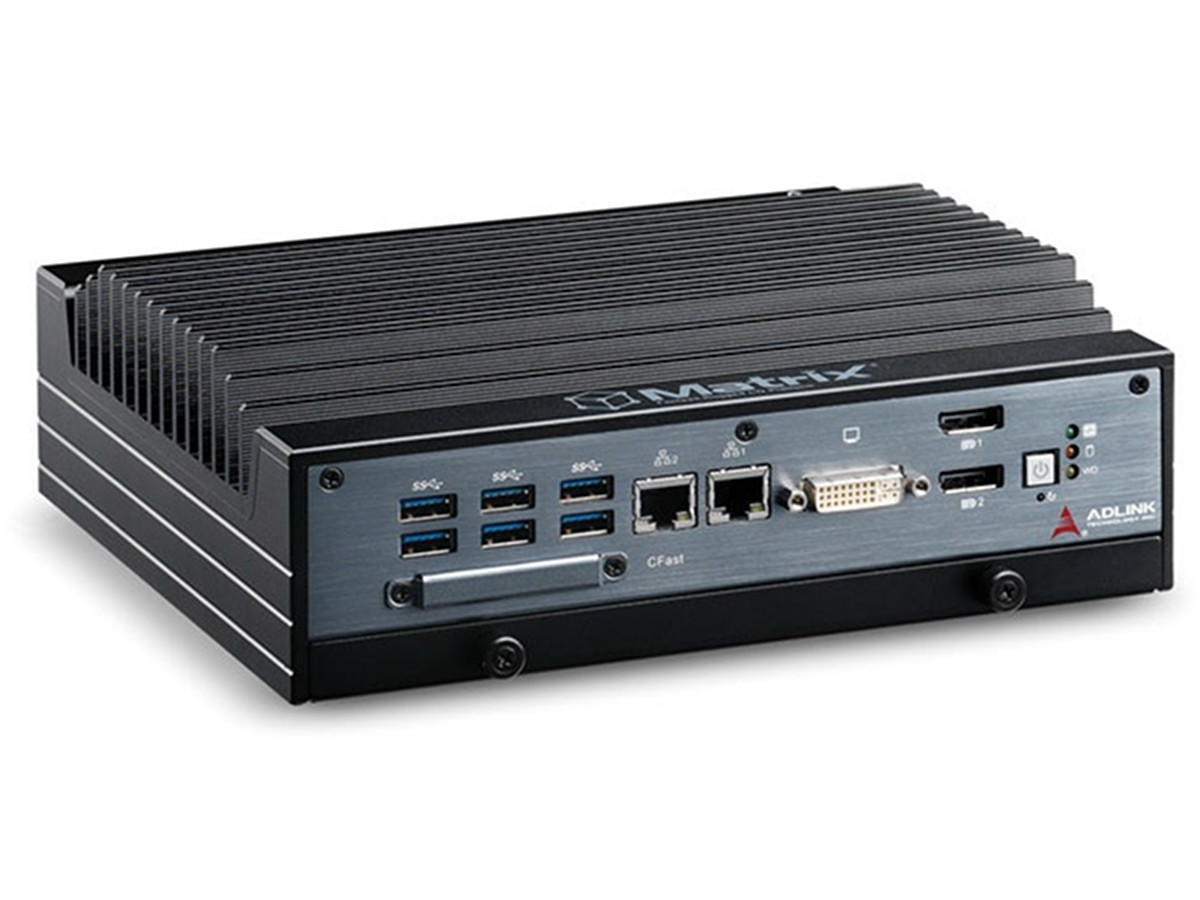

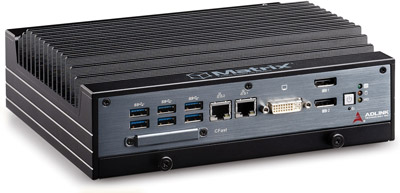

Product Name: ADLINK Matrix MXE-5401
Model: MXE-5401
Series: MXE-5400 Series (Matrix E Series)
Article Number: MXE-5401
Manufacturer: ADLINK Technology, Inc.
Product Type: Fanless Embedded Computer
Processor Platform: Intel® 4th Generation Core™ i7 (Haswell)
Chipset: Intel® QM87 Mobile Platform Controller Hub

The ADLINK MXE-5401 is a rugged, fanless embedded computer designed for industrial and mission-critical applications. It belongs to ADLINK’s Matrix MXE-5400 series, which integrates high-performance Intel® Core™ i7/i5/i3 processors with advanced manageability, security, and connectivity features. The MXE-5401 model specifically incorporates the Intel® Core™ i7-4700EQ quad-core processor, offering exceptional computing power and energy efficiency in a compact, cable-free, and vibration-resistant chassis.

---

### 2. Key Features

- High-Performance Processing:
Equipped with a 4th Generation Intel® Core™ i7-4700EQ 2.4 GHz (Turbo up to 3.4 GHz) quad-core processor, delivering superior performance for compute-intensive and multimedia applications.

- Intel® Technologies:
- Intel® Quick Sync Video: Accelerated video encoding and decoding for image/video processing.
- Intel® vPro™ Technology: Includes iAMT™ 9.0, TPM 1.2, TXT, and Intel® VT for enhanced security, virtualization, and remote management.
- Intel® VT-x and VT-d: Hardware-assisted virtualization support.

- ADLINK SEMA 2.2 (Smart Embedded Management Agent):
Provides real-time system monitoring, watchdog timer control, power management, and remote diagnostics.

- Fanless Rugged Design:
- Cable-free internal construction for reliability.
- Operates in extended temperature ranges (-20°C to +60°C with industrial SSD).
- Withstands 5 Grms vibration and 100G shock (SSD/CFast configuration).

- Rich I/O Connectivity:
- 4× Gigabit Ethernet ports (3× Intel® I210IT + 1× Intel® I217LM).
- 4× COM ports (2× RS-232/422/485, 2× RS-232).
- 6× USB 3.0 (4 with 1600 mA power budget) + 1× USB 2.0.
- 8× isolated digital inputs and 8× isolated digital outputs (1.5 kV isolation).
- 1× Audio In, 1× Line Out.
- 2× DisplayPort + 1× DVI-I supporting up to 3 independent displays.

- Storage and Expansion:
- 2× SATA III (6.0 Gb/s) ports with RAID 0/1 support.
- 1× CFast slot, 1× eSATA port.
- 2× Mini PCIe slots (one switchable to mSATA).
- 1× USIM slot for 3G/LTE communication.

- Wide Power Input Range:
9–32 VDC input with optional 160 W AC-DC adapter.

- Software Support:
Compatible with Windows® 7 / 7 Embedded and Linux (by request).

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Processor | Intel® Core™ i7-4700EQ, 2.4 GHz (Turbo 3.4 GHz), 4 cores, 8 threads |
| Chipset | Intel® QM87 |
| Memory | 4 GB DDR3L-1600 SODIMM (expandable to 16 GB) |
| Graphics | Integrated Intel® HD Graphics 4600, supports 3 independent displays |
| Display Interfaces | 1× DVI-I, 2× DisplayPort (up to 2560×1600 @60Hz) |
| Ethernet | 4× GbE (3× Intel® I210IT + 1× Intel® I217LM PHY) |
| Serial Ports | 4× COM (2× RS-232/422/485, 2× RS-232) |
| USB Ports | 6× USB 3.0 (4× 1600 mA), 1× USB 2.0 |
| Digital I/O | 8× DI + 8× DO, 1.5 kV isolation |
| Audio | 1× Mic-in, 1× Line-out |
| Expansion Slots | 2× Mini PCIe (1× mSATA capable), 1× USIM slot |
| Storage | 2× SATA III (RAID 0/1), 1× CFast slot, 1× eSATA |
| Power Input | 9–32 VDC, optional 160 W AC-DC adapter |
| Dimensions | 230 mm (W) × 205 mm (D) × 75 mm (H) |
| Weight | 3.8 kg (8.39 lbs) |
| Mounting | Wall-mount kit included |
| Operating Temperature | 0°C to 50°C (standard), -20°C to 60°C (extended) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 95% @ 40°C (non-condensing) |
| Vibration Resistance | 5 Grms (SSD/CFast), 0.5 Grms (HDD) |
| Shock Resistance | 100G (SSD/CFast), 20G (HDD) |
| Certifications | CE, FCC Class A, UL, CB |
| Power Consumption | Idle: 13.44 W; Full Load: 92.4 W |
| Recommended PSU | 160 W (for high-temp operation) |

---

### 4. Functionality

The MXE-5401 operates as a high-performance, fanless embedded controller suitable for industrial automation, transportation, and surveillance systems. Its Intel® Haswell architecture provides advanced computing and graphics capabilities while maintaining low power consumption.

Use Cases:
- Intelligent Transportation Systems (ITS)
- Digital Security and Surveillance
- Factory and Machine Automation
- Building and Facility Management
- In-Vehicle Infotainment and Control Systems

Operation:
The system boots from internal SATA, CFast, or mSATA storage. It supports multiple OS environments and can be remotely managed via Intel® vPro™ and ADLINK SEMA utilities. The embedded watchdog timer ensures system reliability by automatically rebooting in case of software failure.

Compatibility:
- Supports Windows® 7 / 7 Embedded
- Linux distributions (on request)
- Compatible with ADLINK’s SEMA software suite for monitoring and control

---

### 5. Components & Accessories

Included Items:
- MXE-5401 main unit
- Wall-mount brackets and screws
- DB62-to-COM/DIO splitter cable
- Quick Start Guide
- ADLINK All-in-One DVD (drivers and utilities)

Optional Accessories:
- 8 GB / 16 GB DDR3L memory upgrade
- 500 GB SATA HDD (0–50°C)
- 32 GB / 64 GB industrial-grade SSD (-20–70°C)
- 160 W AC-DC adapter (-20–70°C)
- Wireless kit (3G/WiFi/BT/GPS)
- Extended temperature screening (-20°C to +60°C)

---

### 6. Installation & Setup

Requirements:
- DC power input (9–32 VDC)
- Stable mounting surface or wall-mount installation
- Adequate ventilation (minimum 5 cm clearance above unit)

Mounting Options:
- Wall-mount (standard)
- Optional DIN-rail or custom mounting (via accessory kits)

Configuration Steps:
1. Install storage devices (HDD/SSD/CFast) using included brackets.
2. Insert Mini PCIe or mSATA modules as required.
3. Connect COM/DIO breakout cable for serial and digital I/O.
4. Connect DC power and secure connector screws.
5. Install OS and drivers from ADLINK DVD.
6. Configure BIOS and SEMA utilities for system monitoring.

Cooling Considerations:
The fanless design relies on passive heat dissipation through the aluminum chassis. Maintain airflow clearance and avoid obstructing ventilation surfaces.

---

### 7. Performance & Capabilities

- Processing Power: Quad-core Intel® i7-4700EQ with Turbo Boost up to 3.4 GHz.
- Graphics: Integrated Intel® HD Graphics 4600 supports triple independent displays.
- Storage Performance: SATA III (6.0 Gb/s) with RAID 0/1 for redundancy or performance.
- I/O Throughput: USB 3.0 ports deliver up to 5 Gb/s transfer rates; four ports support 1600 mA for high-power peripherals.
- Networking: Four independent Gigabit Ethernet interfaces enable network redundancy, load balancing, or multi-network segmentation.
- Reliability: Watchdog timer, SEMA monitoring, and rugged mechanical design ensure continuous operation in harsh environments.
- Limitations:
- No internal fan; requires ambient temperature control within specified range.
- Limited internal expansion (two Mini PCIe slots).
- HDD operation restricted to 0–50°C.

---

### 8. Standards & Compliance

- EMC Compliance: CE & FCC Class A
- Safety Certifications: UL, CB
- Environmental Compliance:
- RoHS (Restriction of Hazardous Substances)
- WEEE (Waste Electrical and Electronic Equipment)
- Industry Standards:
- IEEE 802.3 (Ethernet)
- SATA III (6.0 Gb/s)
- USB 3.0 SuperSpeed
- Intel® vPro™ and AMT 9.0
- TPM 1.2 Security Module

ADLINK enforces strict environmental and quality standards, ensuring all manufacturing processes and materials minimize ecological impact.

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (contact ADLINK for regional terms)
- Global technical support via ADLINK service centers
- Firmware and BIOS updates available through ADLINK website

Maintenance:
- Periodic inspection of connectors and power input recommended
- Firmware and driver updates via ADLINK All-in-One DVD or online resources
- No internal fan maintenance required due to passive cooling design

Software Utilities:
- SEMA Utility: Monitors system health, voltage, temperature, and power consumption.
- WDT (Watchdog Timer): Ensures system recovery from software hangs.
- DI/O API Libraries: Enable programmable control of digital I/O channels.

BIOS Features:
- Configurable COM port modes (RS-232/422/485)
- SATA mode selection (IDE/AHCI/RAID)
- Intel® Rapid Start and Trusted Computing support
- Power management (restore on AC loss, wake timers)
- Security options (administrator/user passwords, TPM)

Environmental Responsibility:
ADLINK adheres to RoHS and WEEE directives, promoting sustainable product design and end-of-life recycling.

---

### Summary

The ADLINK MXE-5401 is a high-performance, fanless embedded computer engineered for industrial-grade reliability and versatility. Powered by the Intel® Core™ i7-4700EQ processor and Intel® QM87 chipset, it delivers robust computing, advanced graphics, and extensive I/O connectivity in a compact, ruggedized chassis. Its wide operating temperature range, isolated digital I/O, and multiple Gigabit Ethernet ports make it ideal for demanding applications such as intelligent transportation, factory automation, and surveillance systems. With ADLINK’s SEMA management suite and Intel® vPro™ technology, the MXE-5401 ensures secure, remotely manageable, and continuous operation in mission-critical environments.
