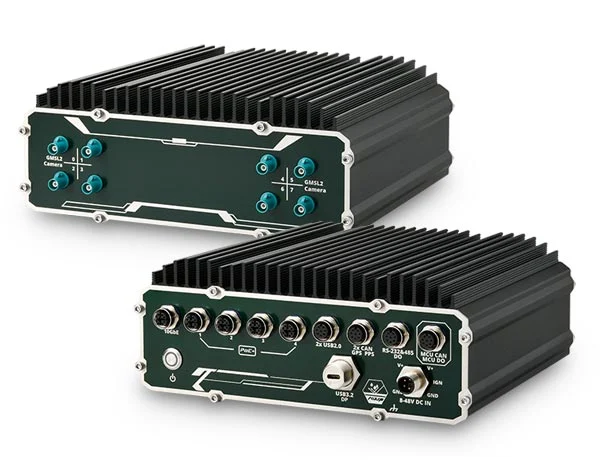

IP66 fanless Jetson AGX Orin 64GB computer with 8x GMSL2, 4x PoE+ and 10GbE.
IP66 fanless Jetson AGX Orin 64GB computer with 8x GMSL2, 4x PoE+ and 10GbE. IP66 fanless Jetson AGX Orin 64GB computer with 8x GMSL2, 4x PoE+ and 10GbE. IP66 fanless Jetson AGX Orin 64GB computer with 8x GMSL2, 4x PoE+ and 10GbE.

NRU-230V-AWP-JAO64

IP66 fanless Jetson AGX Orin 64GB computer with 8x GMSL2, 4x PoE+ and 10GbE.
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Industrial Computer
  • Der NRU-230V-AWP-JAO64 kombiniert ein NVIDIA Jetson AGX Orin Modul mit 64 GB LPDDR5 und einem robusten, lüfterlosen IP66-Gehäuse. Acht GMSL2-FAKRA-Anschlüsse ermöglichen den direkten Einsatz von Fahrzeugkameras. Vier PoE+-Gigabit-Ethernet-Ports, ein 10GbE-Port und USB-C mit 4K-DisplayPort ergänzen die Bildverarbeitungsschnittstellen. Für mobile und industrielle Systeme stehen isolierte CAN-, RS-485-, DI- und DO-Kanäle sowie RS-232 zur Verfügung. NVMe, zwei interne SATA-Plätze und Mobilfunkerweiterungen unterstützen flexible Anwendungen. Die Stromversorgung akzeptiert 8 bis 48 V DC und bietet Zündsteuerung.
IP66 fanless edge AI computer with NVIDIA Jetson AGX Orin, 64GB LPDDR5, 64GB eMMC, eight GMSL2 camera inputs, four PoE+ Gigabit Ethernet ports, one 10GBASE-T port, USB 3.2/DisplayPort, isolated CAN and serial I/O, NVMe and SATA expansion, and an 8V to 48V DC input with ignition control. Supports MAXN operation without throttling at 55°C under full CPU and GPU stress.
  • Processor Module NVIDIA Jetson AGX Orin
  • System Memory 64 GB LPDDR5
  • Onboard eMMC 64 GB
  • GMSL2 Camera Ports 8 ports
  • PoE+ Gigabit Ethernet Ports 4 ports
  • PoE Power Budget 100 W
  • 10 Gigabit Ethernet Ports 1 port
  • DC Input Range 8 to 48 V DC
  • Ingress Protection IP66
  • Weight 4.4 kg
  • Form Factor IP66 rugged fanless computer; wall mount

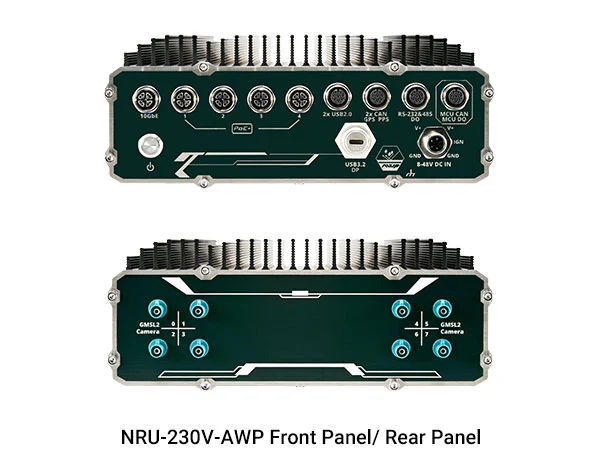

  • Connector 8x FAKRA Z; 5x M12 X-coded Ethernet; M12 A-coded I/O; M12 L-coded power; waterproof USB-C
  • Dimensions 225 x 194 x 88.5 mm without rubber feet; 225 x 194 x 89.5 mm with rubber feet
  • Full-Function Operating Temperature -25 to 60 °C
  • Operating Temperature -25°C to 70°C without 10GbE transmission and PoE load; -25°C to 60°C with full function
  • MAXN Non-Throttling Temperature 55 °C
  • Bus Interface PCIe Gen4 x2 NVMe; mini PCIe; USB 3.1/3.2; SATA
  • Digital I/O 1x isolated DI; 2x isolated DO; 2x isolated CAN 2.0; isolated RS-485; RS-232
  • Resolution GMSL2 camera options up to 2880x1860 at 30 fps; DisplayPort up to 3840x2160 at 60 Hz
  • Key Features NVIDIA Jetson AGX Orin 64GB; IP66 waterproof and dustproof; fanless operation; 8x GMSL2; 4x PoE+ GbE; 1x 10GBASE-T; 55°C non-throttling in JAO64 MAXN mode; 8V to 48V DC; ignition control
  • Accessories PA-160W-OW, PA-280W-CW6P-2P, AC-IMX390-H60, AC-IMX390-H120, AC-IMX390-H190, AC-ISX031-H60, AC-ISX031-H120, AC-ISX031-H190, AC-IMX490-H30, AC-IMX490-H60, AC-IMX490-H120, Cblkit-FP-NRU-230V-AWP_NRU-240S-AWP, Cblkit-BP-NRU-230V-AWP, Cbl-TpCPlug-UTpCF-50CM, Cbl-M12A8M-2U2TA-180CM1, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12X8M-RJ45F-100CM, Cbl-FAKRA-ZFM-ZFM-12M
