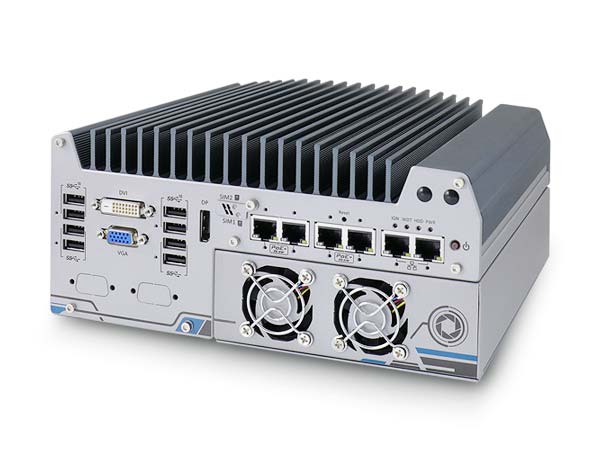

Intel Core machine vision controller with DTIO V2 real-time I/O and 120W GPU support.

Nuvis-7306RT-DTIO

Intel Core machine vision controller with DTIO V2 real-time I/O and 120W GPU support.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer
Der Nuvis-7306RT-DTIO ist ein leistungsfähiger All-in-one-Vision-Controller für industrielle Bildverarbeitung. Er unterstützt Intel Core i7/i5 Prozessoren der 9. und 8. Generation, bis zu 64 GB DDR4 sowie eine NVIDIA GPU mit bis zu 120 W TDP. Vier PoE+- und acht USB-3.1-Anschlüsse dienen zur Kameraintegration. Beleuchtungssteuerung, vier isolierte 12-V-Kameratrigger, ein A/B/Z-Encodereingang sowie isolierte digitale Ein- und Ausgänge sind integriert. Die patentierte DTIO-V2-Steuerung ermöglicht Echtzeit-I/O im Mikrosekundenbereich.

All-in-one machine vision controller with Intel 9th/8th Gen Core i7/i5 CPU, Q370 chipset, up to 64 GB DDR4 memory and patented DTIO V2 real-time I/O control. It provides four PoE+ ports, eight USB 3.1 ports, four lighting outputs, four isolated 12 V camera triggers, one A/B/Z encoder input, eight isolated digital inputs and eight isolated digital outputs. Two PCIe x16 slots support a 120W NVIDIA GPU and camera interface cards.

Supported Processor Generation Intel 9th/8th Gen Core i7/i5 Coffee Lake
Processor Socket LGA1151
Chipset Intel Q370
Maximum Memory 64 GB
Memory Type DDR4-2666/2400 SDRAM, two SODIMM slots
Real-Time I/O Firmware DTIO V2
Lighting Dimming Frequency 100 kHz
Counter/Timer 1-channel quadrature encoder input (A/B/Z)
Key Features Intel 9th/8th Gen Core i7/i5 support; patented DTIO V2 real-time I/O; 4-channel CC/CV lighting control; 4 isolated camera triggers; A/B/Z encoder input; 8 isolated DI and 8 isolated DO; 4 PoE+ ports; 8 USB 3.1 ports; dual PCIe x16 slots; 120W NVIDIA GPU support
LED Lighting Controller Channels 4 channels
Constant Current Output Up to 2 per channel A
Constant Voltage Output 24 VDC
Analog Output 4-channel CC/CV LED lighting control, up to 2 A/channel or 24 VDC
Camera Trigger Outputs 4 isolated outputs at 12 VDC channels
Isolated Digital Inputs 8 high-speed inputs, under 2 µs transient time channels
Isolated Digital Outputs 4 high-speed plus 4 high-current outputs channels
High-Current Output Rating Up to 500 mA
Digital I/O 8 isolated DI; 8 isolated DO; 4 isolated 12 V camera trigger outputs
Encoder Input 1-channel quadrature A/B/Z
Gigabit Ethernet Ports 6 total, including 4 PoE+ ports
PoE Standard and Power IEEE 802.3at, 25.5 W
USB 3.1 Ports 4 Gen2 plus 4 Gen1 ports
PCI Express Expansion 2x PCIe x16 Gen3 slots with 8-lane signals
Supported GPU Power 120 W TDP
Bus Interface 2x PCIe x16 Gen3 slots with 8-lane signals; mini-PCIe; M.2 PCIe Gen3 x4
SATA Drive Support 2 internal SATA ports for 2.5-inch HDD/SSD, RAID 0/1
M.2 Storage Socket M.2 2280 M key, PCIe Gen3 x4
DC Input Voltage 8 to 35 VDC
Dimensions 240 x 225 x 111 mm
Weight 3.7 kg
Form Factor Wall-mount industrial vision computer

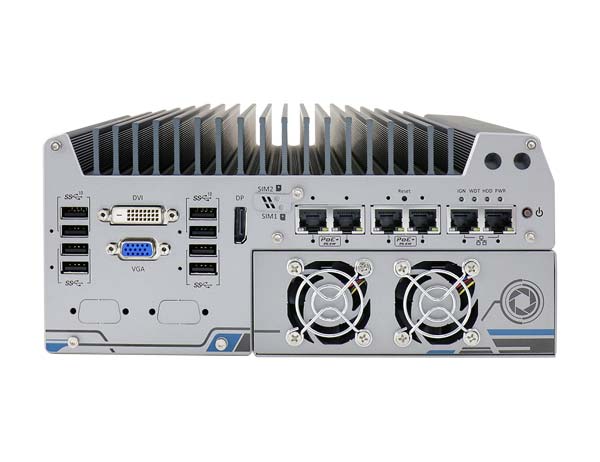

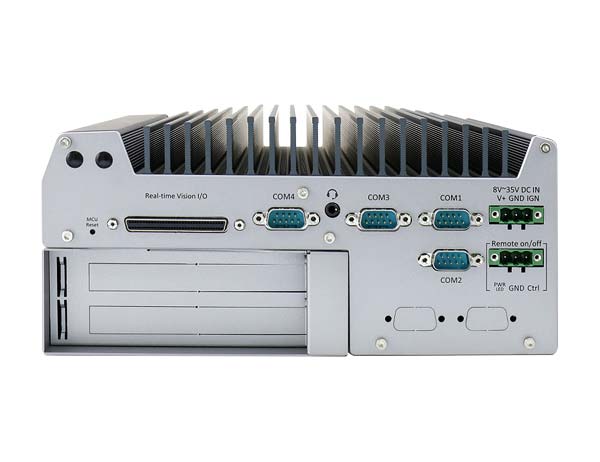

Connector 4x RJ45 PoE+, 2x RJ45 GbE, 8x USB 3.1, VGA, DVI-D, DisplayPort, serial ports, terminal blocks
Dimensions 240 x 225 x 111 mm (W x D x H)
Operating Temperature -25 to 60 in 35W TDP mode; -25 to 50 in 65W TDP mode °C
Storage Temperature -40 to 85 °C
Relative Humidity 10 to 90, non-condensing %
Operating Temperature -25°C to 60°C in 35W TDP mode; -25°C to 50°C in 65W TDP mode
Optional Power Adapters PA-280W-ET2; PA-480W-DIN
Resolution VGA/DVI-D up to 1920 x 1200; DisplayPort up to 4096 x 2304
Accessories PA-280W-ET2, PA-480W-DIN
