Comprehensive Product Summary: Nuvo‑2510VTC In‑Vehicle Fanless Computer

---

### 1. Product Overview

Product Name: Nuvo‑2510VTC
Model: Nuvo‑2510VTC
Series: Nuvo‑2500 Series (In‑Vehicle Computing Line)
Article Number: Nuvo‑2510VTC
Manufacturer: Neousys Technology Inc. (Taiwan)

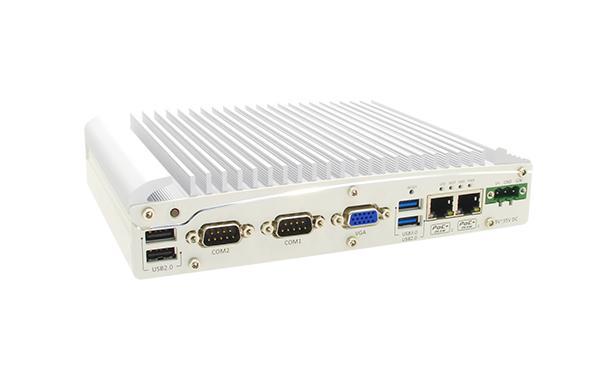

The Nuvo‑2510VTC is a rugged, fanless in‑vehicle embedded computer designed for mobile and transportation applications. It integrates an Intel® Atom™ E3845 quad‑core processor (Bay Trail platform) and provides dual IEEE 802.3at PoE+ Gigabit Ethernet ports, a built‑in CAN bus interface, and intelligent ignition power control. The system is engineered for reliability under harsh environmental conditions, supporting wide‑range DC input (8–35 VDC), extended temperature operation, and high vibration/shock resistance.

---

### 2. Key Features

- Intel® Atom™ E3845 Quad‑Core Processor (1.91 GHz, 2 MB Cache): Delivers efficient performance for embedded and vehicular computing with low power consumption.
- Fanless Thermal Design: Passive cooling ensures silent operation and long‑term reliability in dusty or vibration‑prone environments.
- Dual IEEE 802.3at PoE+ Gigabit Ethernet Ports: Two Intel® I210 GbE controllers provide up to 25.5 W per port for powering IP cameras or wireless access points directly via CAT‑5e/6 cables.
- Integrated CAN Bus Interface: One DB‑9 connector compliant with CAN 2.0A and 2.0B standards for vehicle network communication.
- Intelligent Ignition Power Control: MCU‑based ignition sensing with programmable on/off delay, low‑battery protection, and smart power‑off logic for automotive integration.
- Rich I/O Connectivity:
- 4 × COM ports (2 × software‑programmable RS‑232/422/485, 2 × RS‑232)
- 1 × USB 3.0 and 3 × USB 2.0 ports
- 1 × DVI‑I (digital output) and 1 × VGA port
- 1 × Mic‑in and 1 × Speaker‑out
- Expansion Capability: Two full‑size Mini‑PCI Express slots (one with internal USIM socket, one with external USIM socket) for 3G/4G/LTE, GPS, or Wi‑Fi modules.
- Storage Flexibility: One 2.5″ SATA III bay for HDD/SSD and one half‑size mSATA slot.
- Wide‑Range DC Power Input (8–35 VDC): Supports direct connection to 12 V or 24 V vehicle batteries.
- Compact and Rugged Construction: 205 × 145 × 44 mm aluminum chassis with patented shock‑absorbing wall‑mount brackets.
- Environmental Hardening: Operates from –25 °C to +70 °C (SSD configuration) with 5 Grms vibration and 50 Grms shock resistance.
- Certifications: E‑Mark, CE/FCC Class A for vehicular and industrial compliance.

---

### 3. Technical Specifications

Processor: Intel® Atom™ E3845 (1.91 GHz, 4 cores, 2 MB cache)
Graphics: Integrated Intel® HD Graphics, supports up to 2560 × 1600 resolution
Memory: 1 × 204‑pin SO‑DIMM slot, up to 8 GB DDR3L‑1333 MHz SDRAM
Storage:
- 1 × 2.5″ SATA III HDD/SSD bay
- 1 × half‑size mSATA slot (SATA + USB signal)

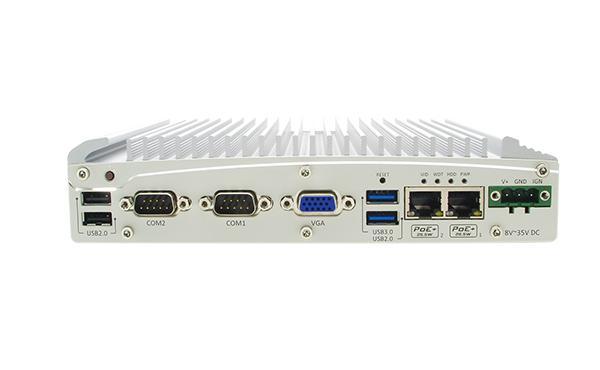

Front I/O:
- 2 × Gigabit Ethernet (IEEE 802.3at PoE+ 25.5 W each)
- 1 × VGA (DB‑15)
- 2 × RS‑232/422/485 (software‑selectable)
- 1 × USB 3.0 + 3 × USB 2.0

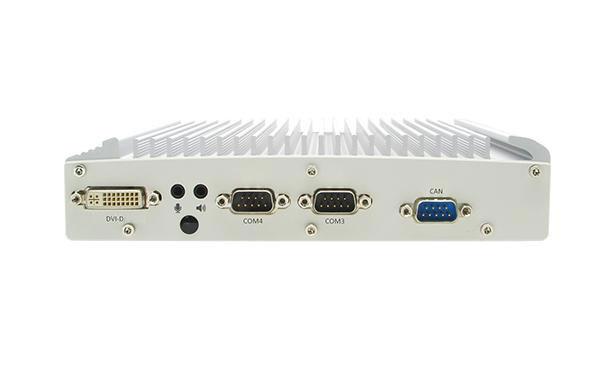

Rear I/O:
- 1 × DVI‑I (DVI‑D output)
- 2 × RS‑232 (COM3 & COM4)
- 1 × Mic‑in, 1 × Speaker‑out
- 1 × CAN bus (DB‑9)

Expansion:
- 2 × Mini‑PCI Express (full‑size)
- Slot 1: PCIe + USB signals with internal USIM socket
- Slot 2: USB signal with external USIM socket

Power Input: 3‑pin pluggable terminal block for 8–35 VDC and ignition signal
Power Consumption: Typical < 25 W (60 W AC/DC adapter optional)

Mechanical:
- Dimensions: 205 (W) × 145 (D) × 44 (H) mm
- Weight: 1.9 kg (including HDD and RAM)
- Mounting: Shock‑absorbing wall mount (standard) / DIN‑rail (optional)

Environmental:
- Operating Temperature: –25 °C to +70 °C (with SSD) / –10 °C to +50 °C (with HDD)
- Storage Temperature: –40 °C to +85 °C
- Humidity: 10 % – 90 %, non‑condensing
- Vibration: 5 Grms (5–500 Hz, 3 axes, IEC 60068‑2‑64)
- Shock: 50 Grms (half‑sine 11 ms, IEC 60068‑2‑27)

---

### 4. Functionality

The Nuvo‑2510VTC functions as a compact, embedded computing platform for vehicular and mobile environments. It operates fanlessly, using a passive aluminum heat‑sink chassis to dissipate heat from the CPU and chipset.

Use Cases:
- Mobile NVR (Network Video Recorder) for fleet surveillance
- ANPR/ALPR (Automatic Number Plate Recognition) systems
- Vehicle diagnostics and CAN bus data logging
- Mobile gateway or wireless access point controller
- Industrial automation and remote monitoring in transport applications

Compatibility:
- Supports Windows 7/8/8.1 (32/64‑bit) and Linux (Ubuntu 14.04 or later)
- Compatible with standard Mini‑PCIe modules for LTE, Wi‑Fi, GPS, and other expansions
- PoE ports support IEEE 802.3at PD devices (IP cameras, APs)

Ignition Control Operation:
The built‑in MCU monitors the vehicle’s ignition signal and controls system power accordingly. Configurable modes allow delayed startup and shutdown to prevent battery drain and ensure graceful system power management.

---

### 5. Components & Accessories

Included Items:
- Nuvo‑2510VTC main unit
- Wall‑mount bracket with shock‑absorbing grommets
- 3‑pin pluggable terminal block for DC input and ignition
- M4 and M3 mounting screws
- Neousys Drivers & Utilities DVD

Optional Accessories:
- DINRAIL‑25: DIN‑rail mounting assembly for Nuvo‑2510VTC
- PA‑60W‑OW: 60 W AC/DC power adapter (12 V 5 A output, –30 °C to +60 °C operation)

Connectors & Interfaces:
- DB‑9 for CAN bus
- DB‑15 for VGA
- DVI‑I for digital display
- RJ‑45 for dual PoE+ Ethernet
- USB Type‑A ports (1 × USB 3.0, 3 × USB 2.0)
- 3.5 mm audio jacks for Mic and Speaker

---

### 6. Installation & Setup

Power Connection:
The system accepts 8–35 VDC input through a 3‑pin terminal block (V+, GND, IGN). It can be wired directly to vehicle batteries (12 V or 24 V). Ignition control is activated via the IGN pin.

Mounting Options:
- Wall Mount: Standard shock‑absorbing bracket with M4 screws.
- DIN‑Rail: Optional DINRAIL‑25 kit for industrial cabinet installation.

Configuration & BIOS Setup:
- BIOS accessible via F2 key during boot.
- Ignition control parameters (power‑on/off delay, battery voltage thresholds) configurable in BIOS when rotary switch set to Mode 7.
- Supports Wake‑on‑LAN, Watchdog Timer, and Power‑on after Power Failure options.

Storage and Memory Installation:
- 2.5″ HDD/SSD mounted on removable bracket with thermal pad.
- One DDR3L SO‑DIMM socket accessible after removing back cover.
- Mini‑PCIe modules and mSATA cards installed internally via dedicated slots.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel Atom E3845 (quad‑core, 1.91 GHz) provides sufficient computing power for multi‑channel video processing, data logging, and network management tasks while maintaining low thermal output (< 10 W TDP).

Graphics Performance:
Integrated Intel HD Graphics supports dual independent displays (VGA + DVI‑D) up to 2560 × 1600 resolution.

Networking & PoE Capability:
- Two Intel I210 Gigabit controllers with IEEE 802.3at PSE support.
- Each port delivers 25.5 W for PoE devices (IP cameras, APs).
- Compatible with standard Ethernet devices (non‑PoE safe).

Storage Performance:
- SATA III interface (6 Gb/s) for SSD or HDD.
- mSATA slot enables dual‑drive configurations (OS + data separation).

Environmental Performance:
- Continuous operation at 100 % CPU load from –25 °C to +70 °C (SSD).
- Vibration resistance 5 Grms and shock resistance 50 Grms ensure reliability in mobile environments.

Limitations:
- Single SO‑DIMM slot limits RAM to 8 GB.
- No PCI/PCIe expansion cassette (simplified compact design).
- CAN bus non‑isolated interface.

---

### 8. Standards & Compliance

- E‑Mark: Certified for vehicular applications (automotive EMC compliance).
- CE / FCC Class A: Conforms to EN 55022 and EN 55024 for industrial EMC standards.
- IEEE 802.3at: PoE+ Power Sourcing Equipment compliance.
- IEC 60068‑2‑64 / ‑27: Vibration and shock testing standards.
- RoHS Compliant: Lead‑free manufacturing process.

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (typically 2 years, region‑dependent).
- Technical support and driver updates available via Neousys Technology website (www.neousys‑tech.com).

Maintenance:
- Fanless design requires minimal maintenance.
- Periodic inspection of mounting screws and power connections recommended.
- Use SSD for extended temperature operation and vibration resistance.

Software & Utilities:
- Neousys Drivers & Utilities DVD includes chipset, graphics, LAN, audio, and USB drivers for Windows 7/8/8.1.
- “One‑Click” driver installation utility simplifies setup.
- WDT (DIO) library and API package available for watchdog timer, digital I/O, CAN bus, and ignition control programming.

Firmware & BIOS Updates:
- BIOS updates provided by Neousys for feature enhancements and security patches.
- BIOS supports WDT for booting, Wake‑on‑LAN, and Ignition Power Control configuration.

Reliability and Longevity:
- Designed for 24/7 operation in mobile and industrial environments.
- Solid‑state components and fanless architecture extend MTBF and reduce failure points.

---

### Summary

The Neousys Nuvo‑2510VTC is a compact, rugged, and energy‑efficient in‑vehicle embedded computer built for demanding mobile applications. Its combination of Intel Atom E3845 processing, dual PoE+ Gigabit Ethernet, CAN bus integration, and intelligent ignition control makes it ideal for fleet management, mobile surveillance, and vehicular data acquisition systems.

With a fanless design, wide temperature operation, and automotive certifications, the Nuvo‑2510VTC ensures reliable performance in harsh environments. Its modular expansion via Mini‑PCIe slots and broad I/O connectivity enable flexible integration with wireless communication modules and sensor networks.

Overall, the Nuvo‑2510VTC exemplifies Neousys Technology’s expertise in rugged embedded computing for transportation and industrial automation, offering a balanced blend of performance, durability, and system integration capabilities.
